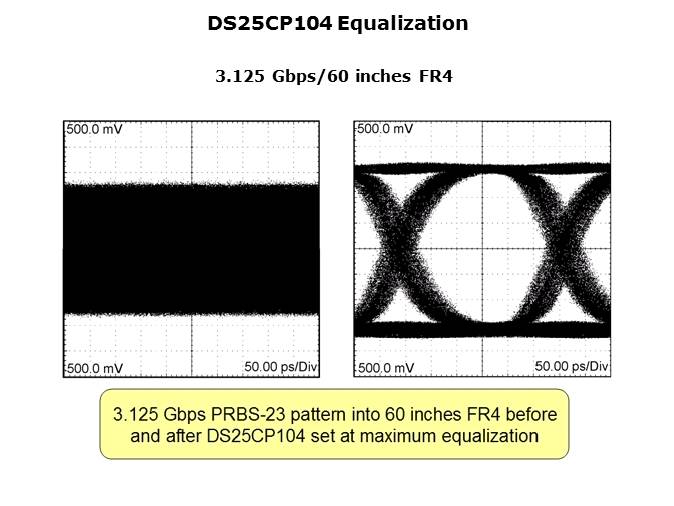

Here is a more dramatic example of equalization. In this case, after 60 inches of FR4 the eye is completely closed eye. With maximum equalization boost, this signal can be recovered with some residual jitter but likely an acceptable unit interval.
