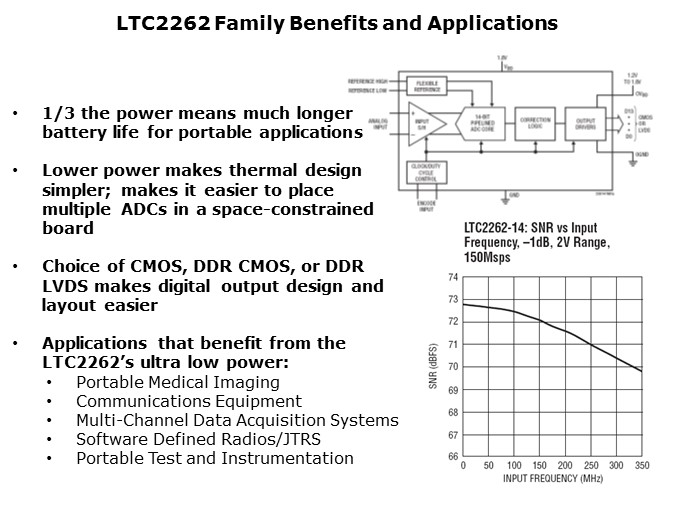

LTC2262-Slide4

Operating an ADC at high temperature extremes can degrade SNR performance by 1dB or more. Lower power dissipation helps to keep the system within normal operating temperatures. The low power of the LTC2262 family enables ADCs to operate within smaller form factors, eases thermal design and layout. Lower power helps extend battery life in portable applications and reduces thermal concerns in multi-channel data acquisition without sacrificing performance.

PTM Published on: 2011-05-19
