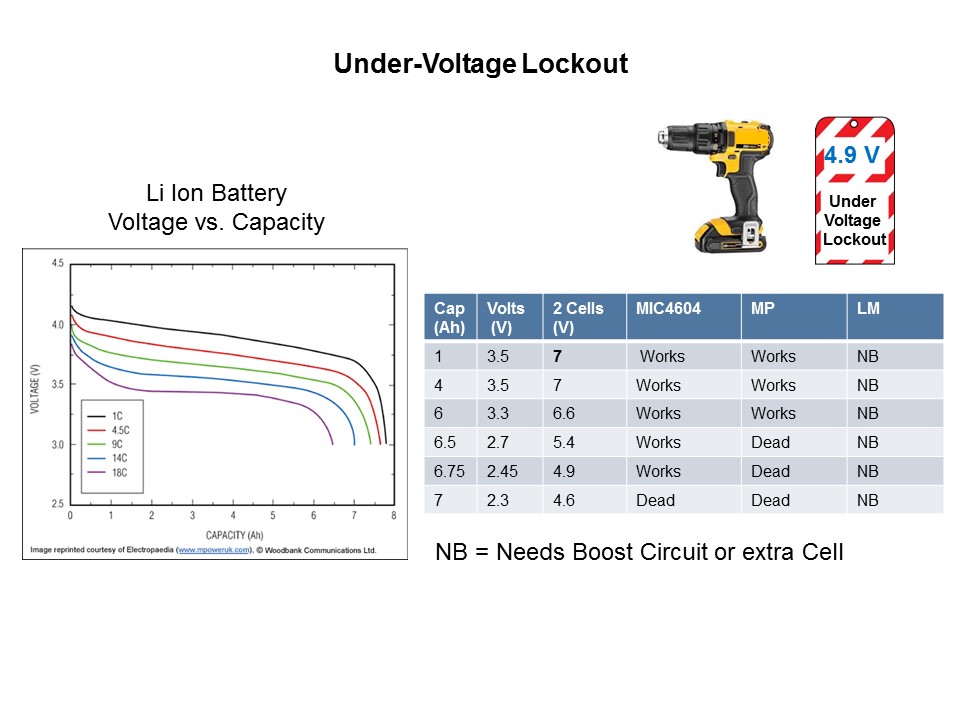

Under Volt

In the battery application, the Gate to Source voltage will track VDD input supply typically having been powered directly from a battery voltage of the 4.9V. Under voltage lockout allows for longer battery run time by allowing the battery pack run down to 4.9V. When the supply voltage drops below 4.9V, the device will go in under-voltage lockout which will disable the device.
