Half Bridge

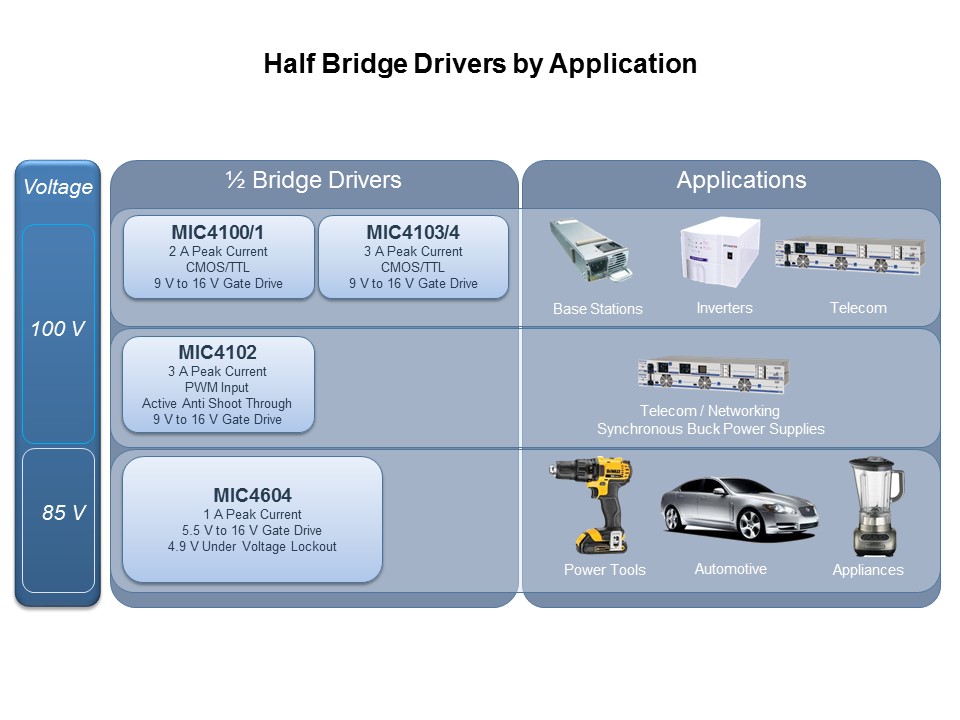

Microchip Technology offers several Half-Bridge Drivers that address Power supply and motor drive applications. The MIC4100-MIC4104 product family typically addresses the Power supplies used in Telecom, Networking, and Base stations because these devices can switch MOSFETs very fast which allows power supplies to get very high efficiency with very small magnetic and capacitive components. The MIC4604 is a Half-Bridge driver that offers specifications best suited for motor drive. These devices can operate at lower Gate to source voltage which allows for longer run time. This product will be the focus for this presentation.
PTM Published on: 2013-09-18
