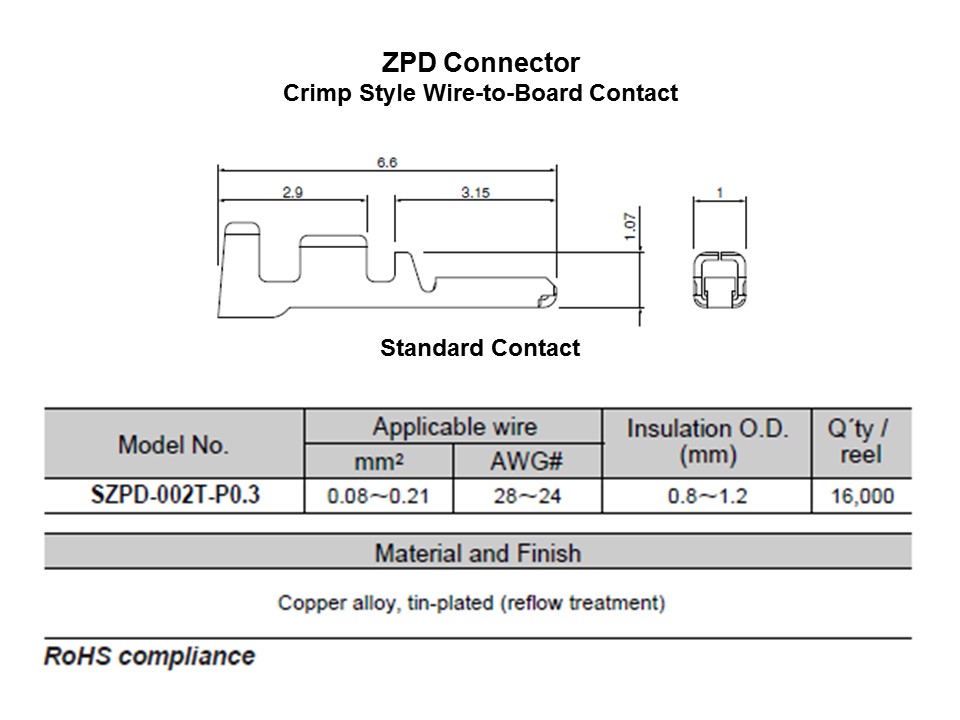

ZPD Connector Series Slide 3

The ZPD contacts, which are designed to accommodate a wire range of 24AWG to 28AWG, are tin-plated over a copper alloy base material. The box construction provides stable contact performance, positive electrical contact and low contact resistance at all times even when subjected to vibration and distortion. The suggested wire strip length for the wire is 2.1mm.

PTM Published on: 2011-01-05
