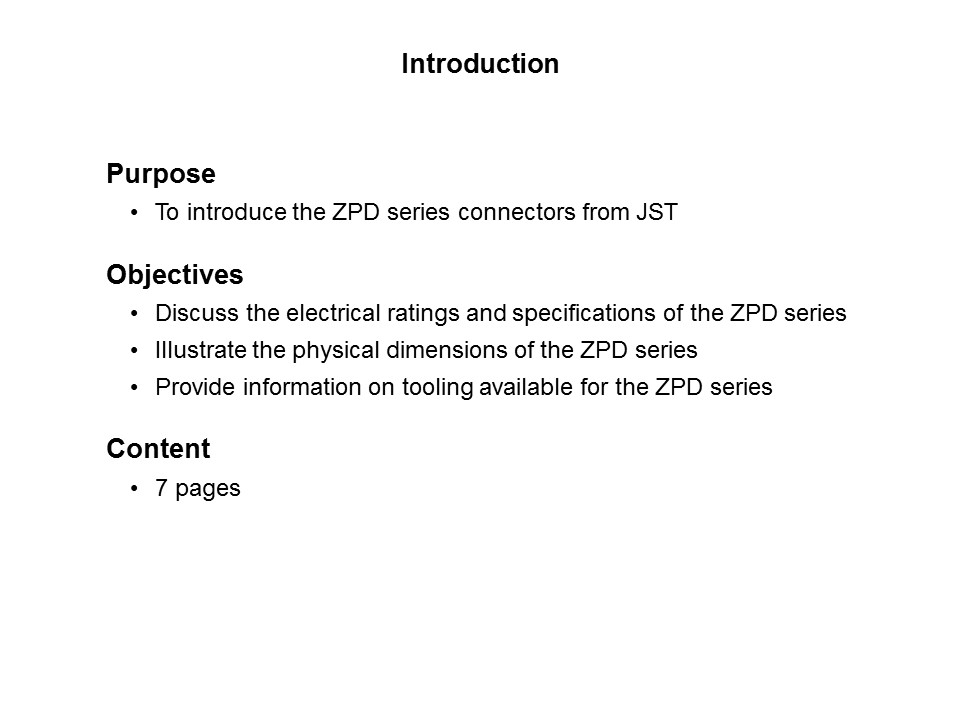

ZPD Connector Series Slide 1

Welcome to the JST ZPD Connector Series product training module. The purpose of this presentation is to introduce the ZPD series connectors from JST. This presentation will discuss the electrical ratings and specifications of the ZPD series. Additionally, it will provide the physical dimensions of the ZPD series headers, housings and crimp contacts. Finally, it will provide information on the tooling provided by JST for the ZPD series.

PTM Published on: 2011-01-05
