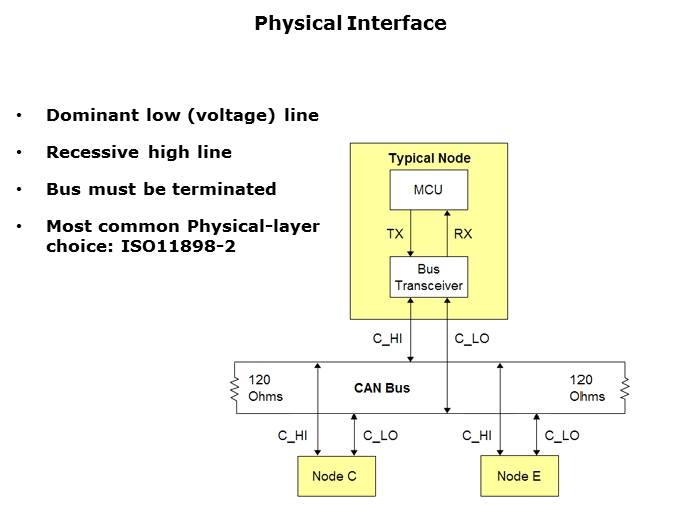

CAN Basics Part 1 Slide 13

The CAN bus must be terminated to provide the recessive state and to eliminate wave reflections at ends of the bus wires. Typical DC bus terminations are in the 60-Ohm range, and the twisted-pair cables have a 120-Ohm characteristic impedance, which is specified in ISO11898-2. Many Physical-layer choices are possible, but ISO11898-2 is the most common.

PTM Published on: 2011-11-02
