LTC7150S-Slide7

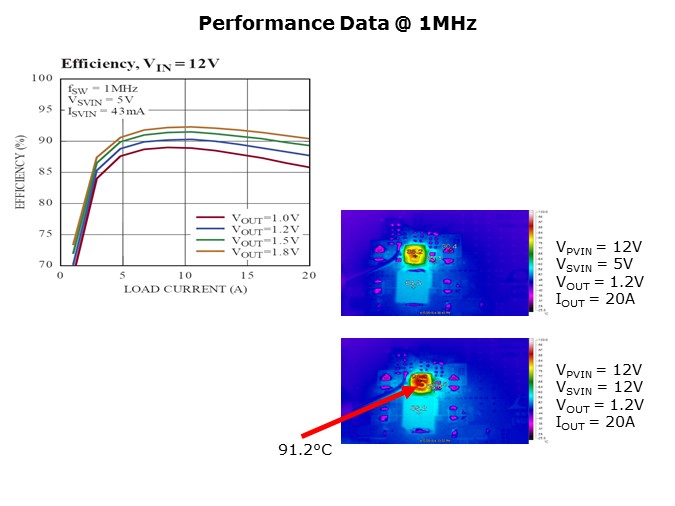

This plot here shows the LTC7150S’s high efficiency Vs load current. Notice also the excellent thermal performance, how cool the device runs at high current, less than 92°C local IC and PCB temperature from 12V in to 1.2V out at 20A output current.

PTM Published on: 2017-09-26
