ADP2504-EVALZ: 3V @ 1A, 2.3 ~ 5.5V in, Buck-Boost

Summary

The ADP2503/ADP2504 adjustable output voltage evaluation boards are complete buck-boost converter solutions that test the ADP2503/ADP2504, high efficiency, low quiescent current, step-up/step-down, dc-to-dc converters. These converters provide accurate (±2%) regulation for load currents up to 1 A.

The ADP2503/ADP2504 evaluation boards are available for all output voltages. Additional voltage options are available upon request from your local Analog Devices, Inc., sales office.

At high load currents, the ADP2503/ADP2504 uses a current mode, fixed frequency PWM control scheme for excellent stability and transient response. To ensure the longest battery life in portable applications, the ADP2503/ADP2504 feature an optional power- saving pulse skip mode that reduces the switching frequency under light load conditions to save power.

Specifications

Manufacturer	Analog Devices Inc.
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	505-ADP2504-EVALZ-ND
Eval Board Supplier	Analog Devices Inc.
Eval Board	Normally In Stock
Topology	Step Up/Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	3 V
Current Out	1 A
Voltage In	2.3 ~ 5.5 V

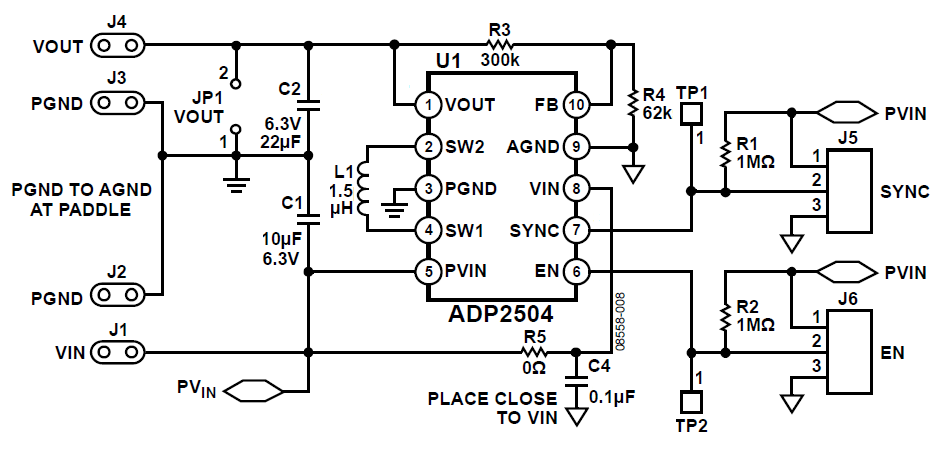

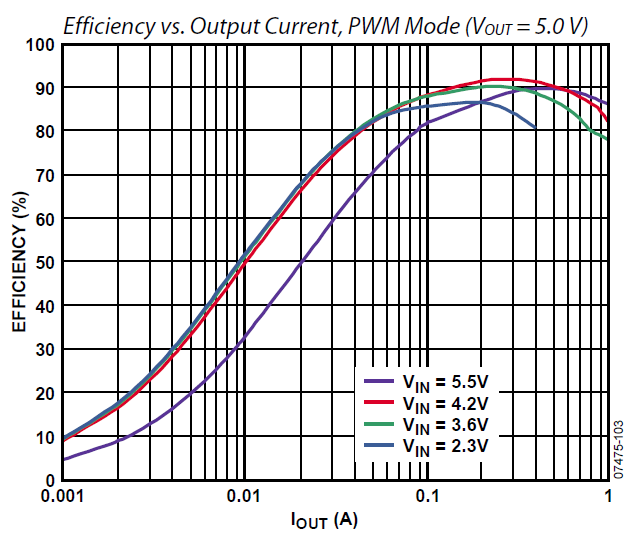

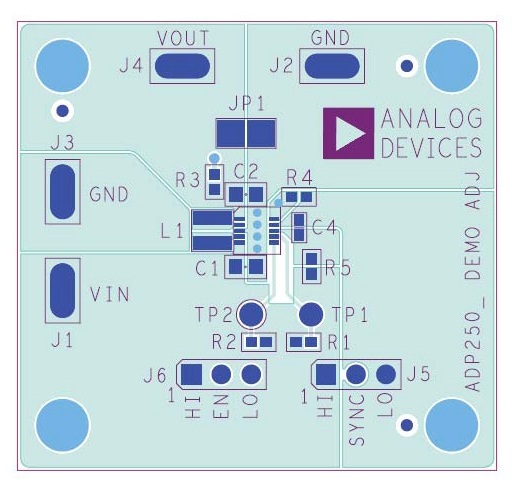

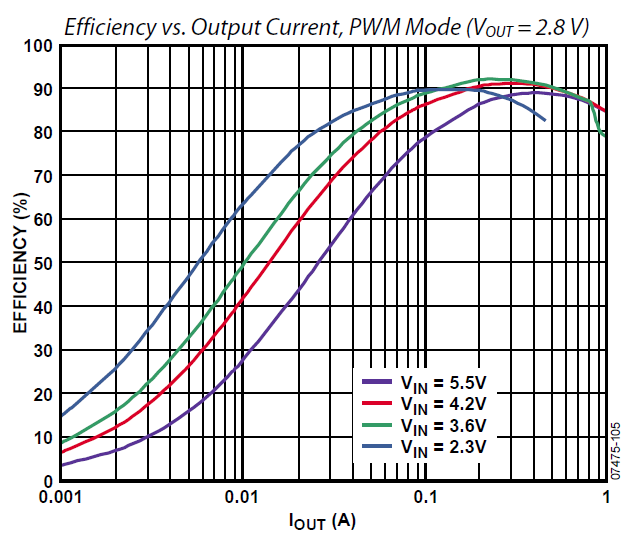

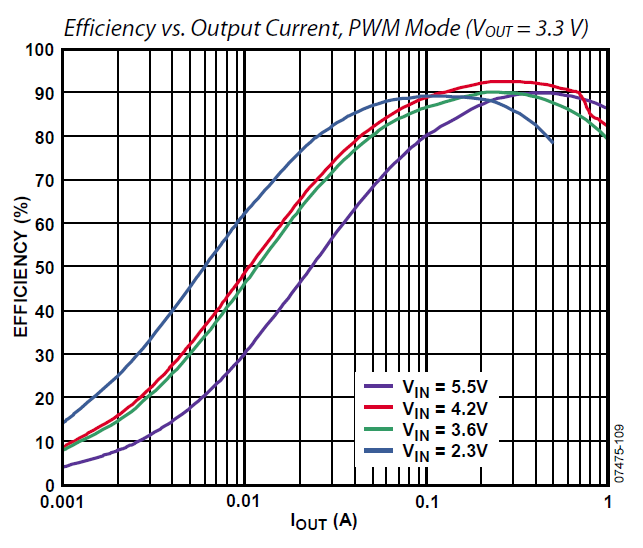

Efficiency @ Conditions	>80%, 5.5V in, 5V @ 0.085 ~ 1 A >80%, 5.5V in, 3.3V @ 0.1 ~ 1 A >80%, 5.5V in, 2.8V @ 0.12 ~ 1 A >80%, 4.2V in, 5V @ 0.045 ~ 0.8 A >80%, 4.2V in, 3.3V @ 0.043 ~ 1 A >80%, 4.2V in, 2.8V @ 0.058 ~ 1 A >80%, 3.6V in, 5V @ 0.040 ~ 0.8 A >80%, 3.6V in, 3.3V @ 0.05 ~ 0.95 A >80%, 3.6V in, 2.8V @ 0.041 ~ 0.9 A >80%, 2.3V in, 5V @ 0.041 ~ 0.4 A >80%, 2.3V in, 2.8V @ 0.025 ~ 0.46 A >80%, 2.3 Vi, 3.3V @ 0.025 ~ 0.48 A
Voltage Out Range	2.8 ~ 5.5 V
Features	PFM or PWM Short Circuit Protection Shutdown, Enable, Standby Soft Start Synchronizable Temperature Compensation Thermal Protection Under Voltage Protection, Brown-Out
Switching Frequency	2.5 MHz
Standby Current [Typical]	200 nA
Quiescent Current [Typical]	38 µA
Component Count + Extras	10 + 0
Internal Switch	Yes
Design Author	Analog Devices
Application / Target Market	Digital Cameras Portable Devices USB Powered Devices VOIP Phones
Standby Current [Maximum]	1 µA
Quiescent Current [Maximum]	50 µA
Main I.C. Base Part	ADP2504
Date Created By Author	2009-11
Date Added To Library	2013-10
