trans

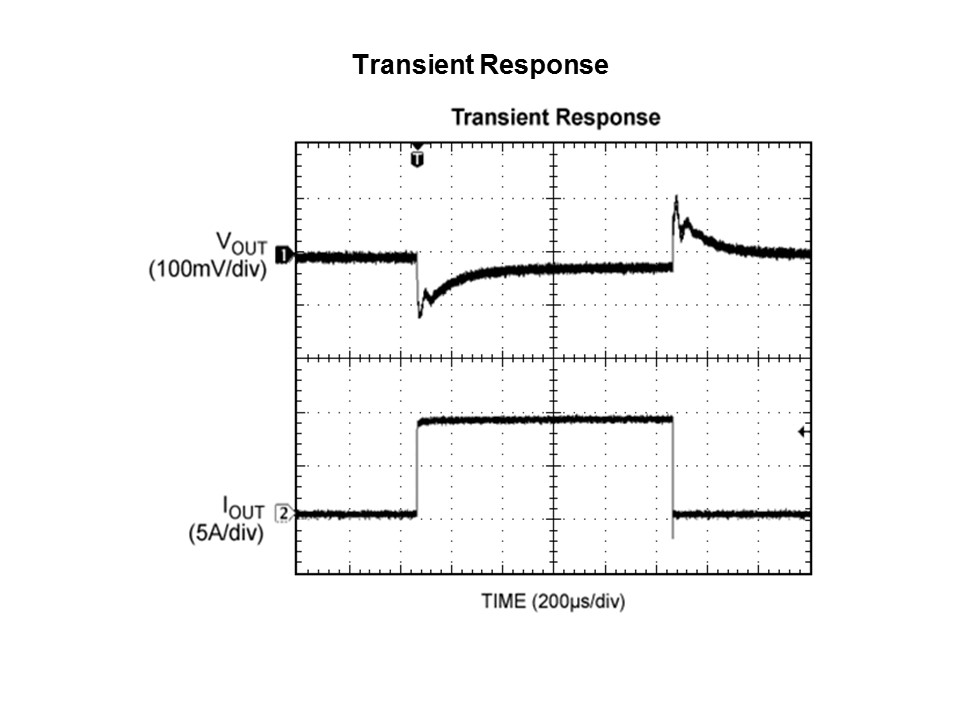

Shown on this slide is a plot of the transient response of the MIC26950 for a load transient from 0 A-12 A. The output droop is small and the recovery is ultrafast.
PTM Published on: 2011-12-01
