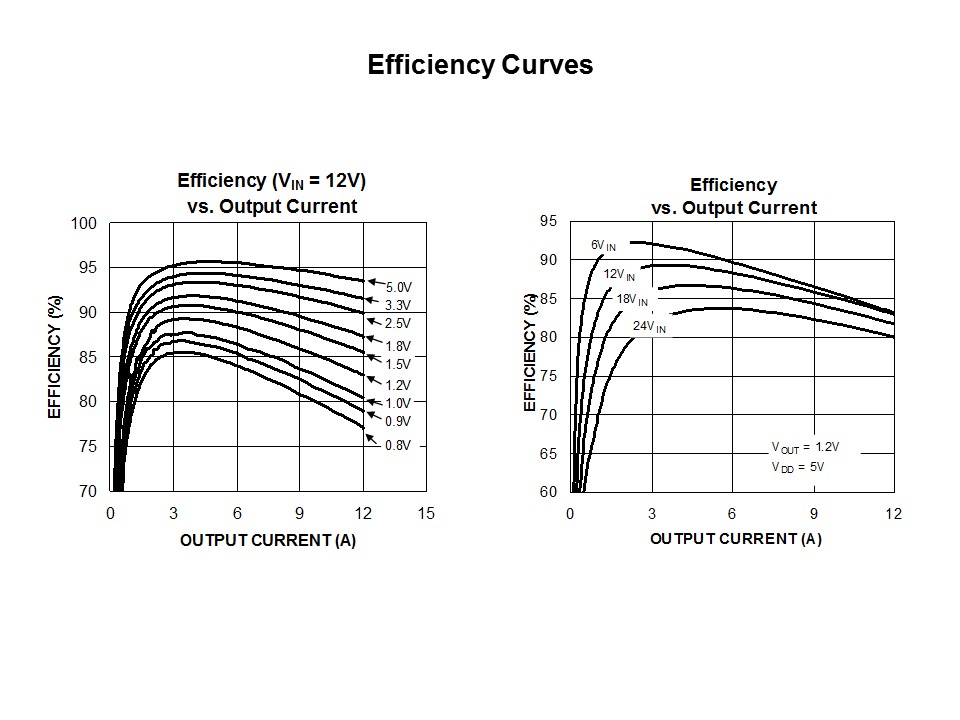

eff curve
The curves on this slide show the efficiency data for output voltages, ranging from 0.8 V to 5 V at varying current ratings and varying input voltages. The efficiency is maintained consistently high across the entire output current range from 1 A to 12 A.
