hyper

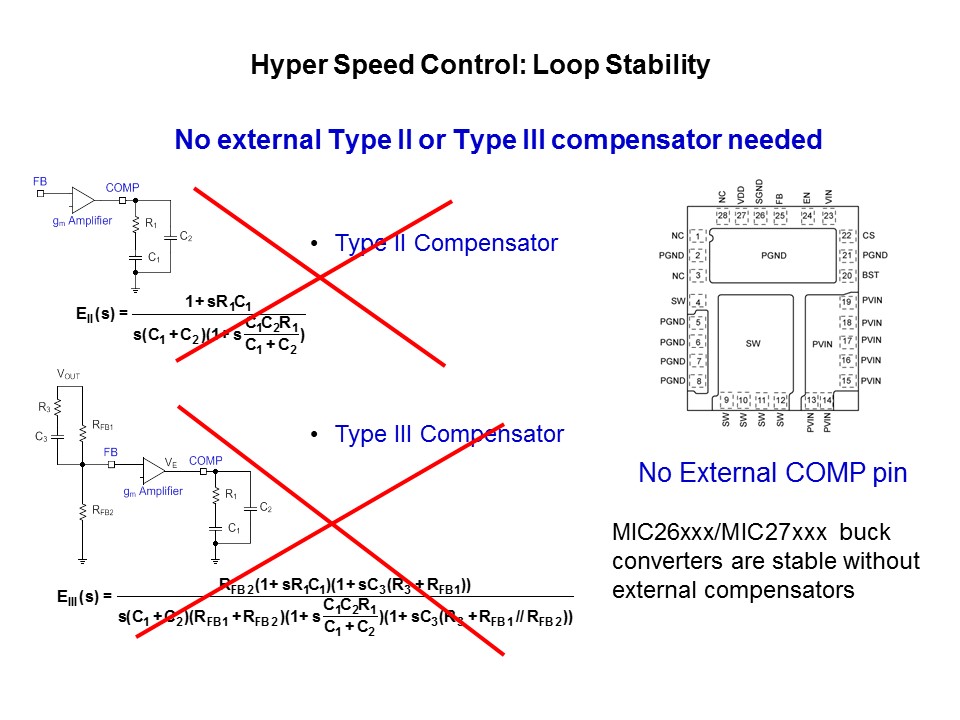

Type II and type III compensators, which are necessary in voltage mode control and current mode control, are not required for the SuperSwitcher IITM family. There is no COMP pin available in the MIC26xxx/MIC27xxx pin out. No external compensation makes these devices easy to use.
PTM Published on: 2011-12-01
