LTC3866-Slide5

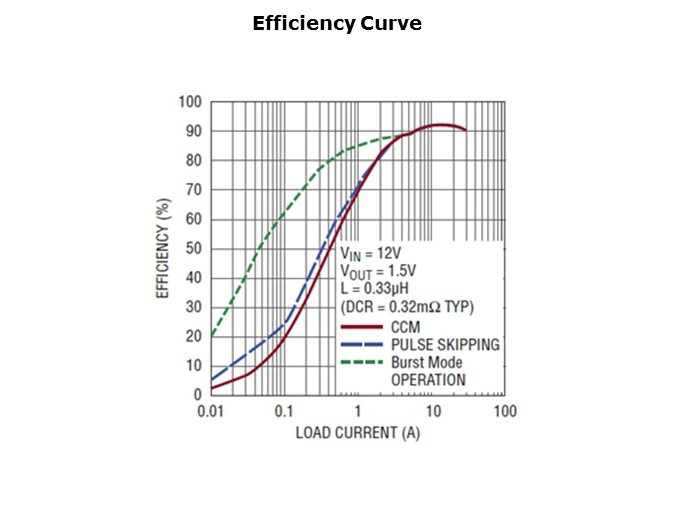

Shown here is a graph with the efficiency curve of the previous LTC3866 circuit. As shown, the efficiencies over or greater than 90% are attainable at >10A output currents. This helps to simplify the overall systems thermal design.
