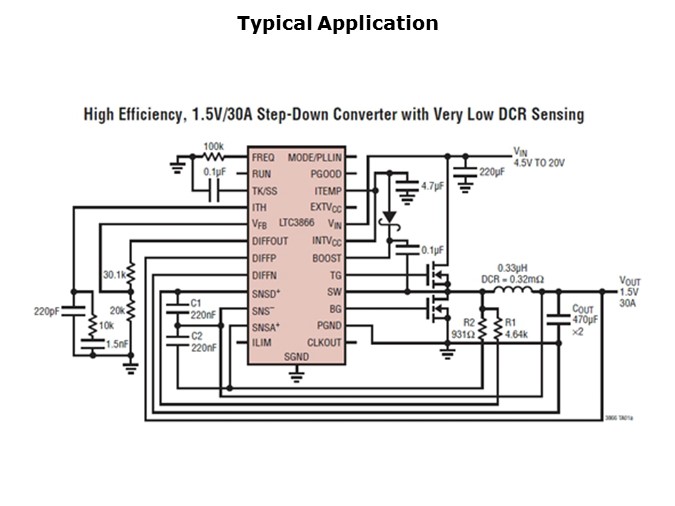

This slide shown here, shows a typical LTC3866 step-down converter schematic. This circuit produces a 1.5V/30A output from a 4.5V to 20V input voltage. Higher output currents are attainable with the use of large MOSFETs or DR MOS.
