SAM9 MPU Boot Solutions and Application Deployment Slide 11

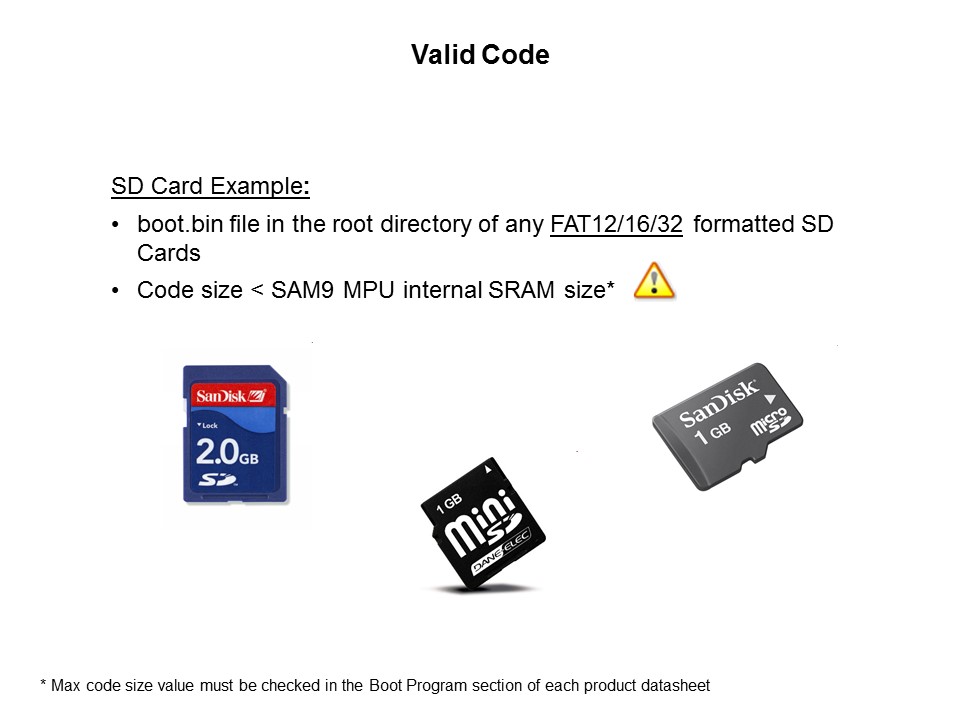

For SD Cards, there are two code requirements that must be followed: a boot.bin file must be written in the root directory of a FAT formatted SD card and the code size of this boot.bin must be at least smaller than the SAM9 MPU internal SRAM size. Once again, this is product dependent and must be checked in the Boot Program section of the product datasheet.
PTM Published on: 2011-10-18
