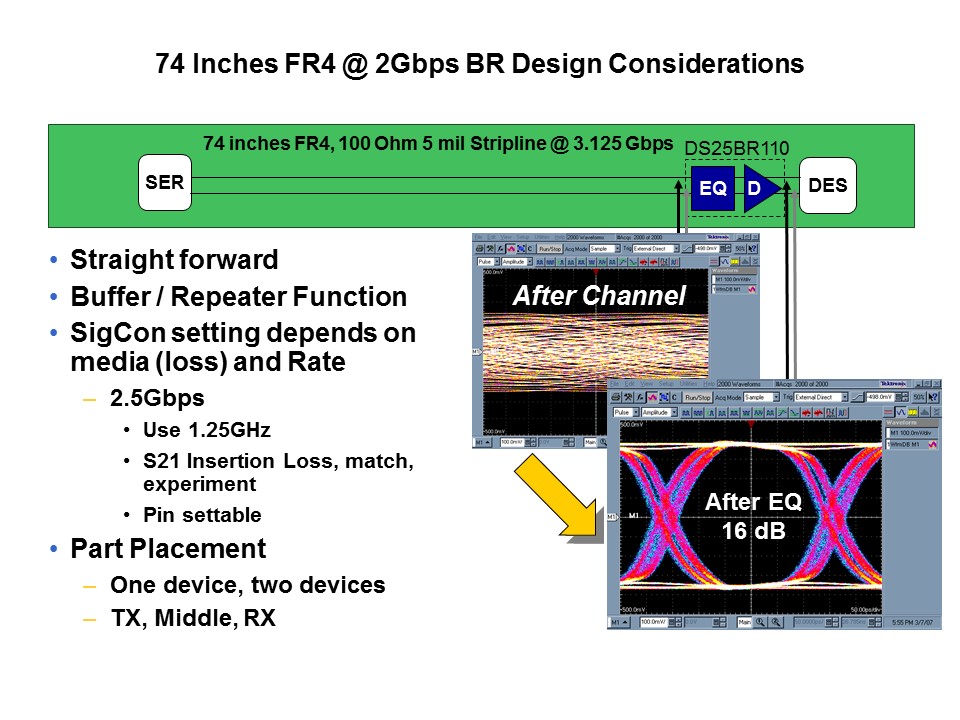

For a long 74” trace in FR4, the signal is entirely closed down at the end and full amplitude is not obtained. The DS25BR110 is used with 16 dB of gain to recover and open the eye as seen here. The main design consideration is part placement and part selection, which are mainly application dependent.
