Signal Conditioning Applications Slide 15

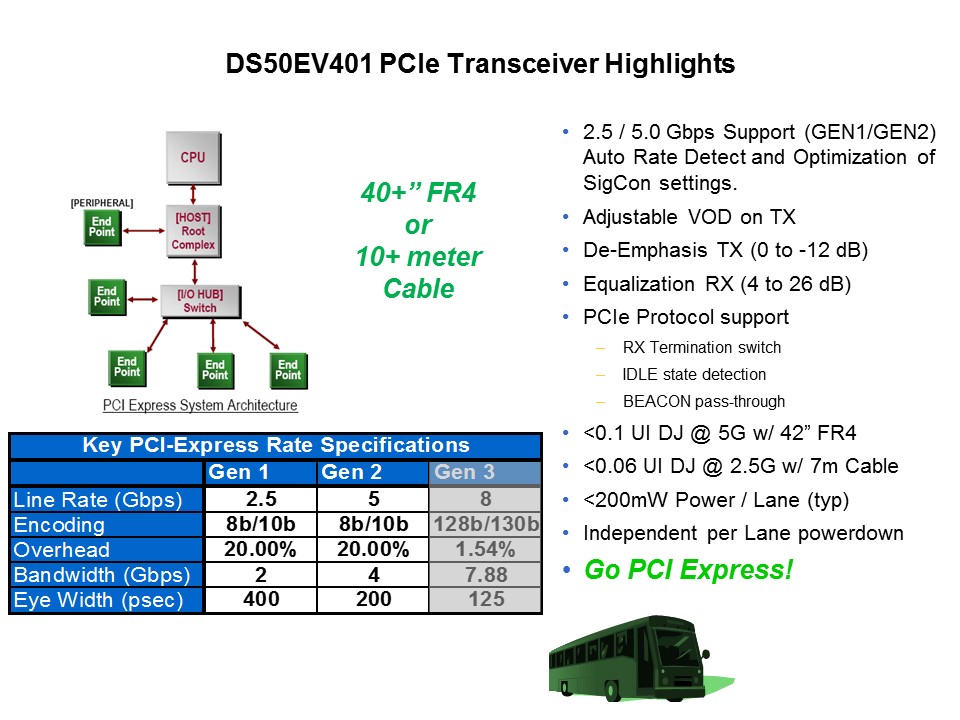

PCIe GEN1 and GEN2 along with the proposed (draft) GEN3 characteristics are shown on this slide. Even though GEN3 is 8 Gbps, a doubling of throughput is obtained due to a change in the coding scheme. The DS50PCI401 is targeted to support 40+ inches of trace or 10+ meters of cable and is for GEN1 and GEN 2 applications. Other notable items for the transceiver are listed here.
