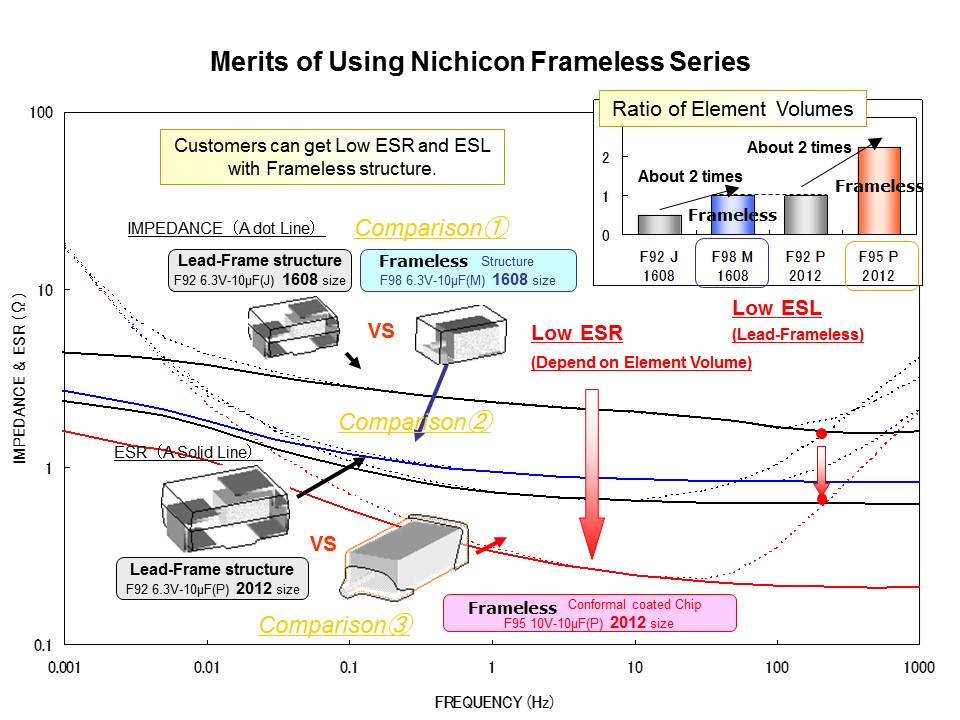

Illustrated here are the frequency characteristics for impedance and ESR. When comparing between the lead frame structure and the frameless structure, the frameless structure has twice the capacitor element volume. Therefore, low ESR can be realized. Also, low ESL can be achieved because there is no lead frame.
PTM Published on: 2011-11-02
