Product List

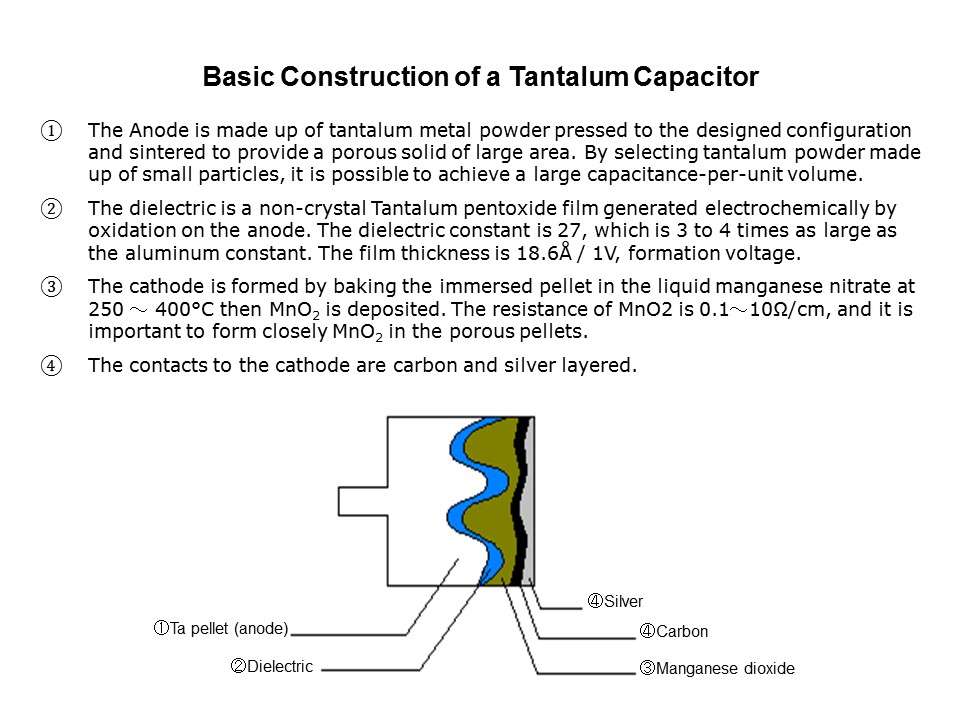

Shown here is the basic construction of a tantalum capacitor. Tantalum metal is the anode while the tantalum oxide layer is the dielectric and the manganese nitrate is the cathode. Nichicon can make a large surface area by using fine tantalum powder. This allows for production of larger capacitance values than other capacitors in the same size.
PTM Published on: 2011-11-02
