SS-Slide13

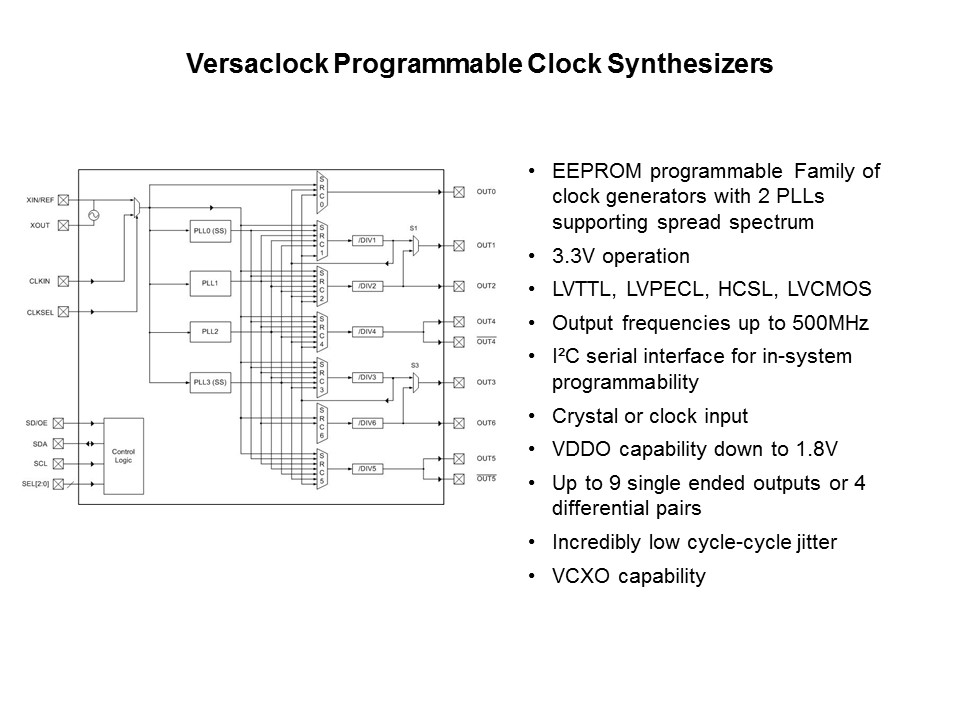

Versaclock III products exhibit the best jitter performance of all previous generations and are EEPROM programmable for increased design flexibility. The products range from 5 outputs to 9 outputs with up to 4 independent PLLs. Two of the PLLs are capable of producing spread spectrum outputs. This family of products supports both single ended and differential clock outputs up to 500MHz. These devices are featured in small form factor 24-pin to 32-pin QFN packages. For more information on the Versaclock III family of devices and to download the Versaclock software for free, please visit https://www.renesas.com/us/en.

PTM Published on: 2011-09-02
