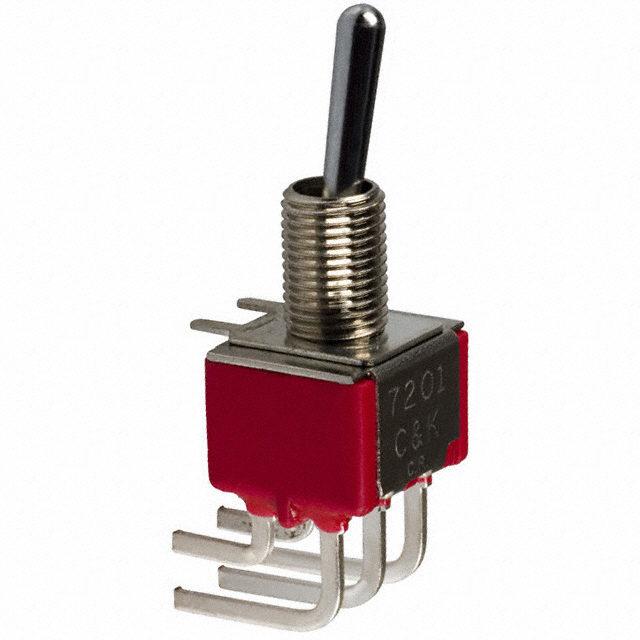

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
7201SYAQE | |
|---|---|
DigiKey Part Number | CKN1480-ND |
Manufacturer | |
Manufacturer Product Number | 7201SYAQE |
Description | SWITCH TOGGLE DPDT 5A 120V |
Manufacturer Standard Lead Time | 13 Weeks |
Customer Reference | |
Detailed Description | Toggle Switch DPDT Panel Mount, Right Angle |
Datasheet | Datasheet |
EDA/CAD Models | 7201SYAQE Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Packaging | Tray | |
Part Status | Active | |
Mounting Type | Panel Mount, Right Angle | |
Circuit | ||
Switch Function | ||
Current Rating (Amps) | 5A (AC/DC) | |
Voltage Rating - AC | 120 V | |
Voltage Rating - DC | 28 V | |
Actuator Type | Standard Round | |
Actuator Length | 10.67mm | |
Illumination | Non-Illuminated | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Termination Style | PC Pin | |
Panel Cutout Dimensions | Circular - 6.35mm Dia | |
Bushing Thread | 1/4-40 | |
Ingress Protection | - | |
Features | Epoxy Sealed Terminals | |
Operating Temperature | -30°C ~ 85°C | |
Actuator Material | Brass, Chrome Plated | |
Electrical Life | 100,000 Cycles | |
Base Product Number |
In-Stock: 257
Can ship immediately
Quantity
All prices are in SGD
Tray
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | $20.43000 | $20.43 |
| 10 | $17.62800 | $176.28 |
| 25 | $16.62160 | $415.54 |
| 40 | $16.12675 | $645.07 |
| 80 | $15.42300 | $1,233.84 |
| 240 | $14.36758 | $3,448.22 |
| 480 | $13.73765 | $6,594.07 |
| 960 | $13.13409 | $12,608.73 |
| Unit Price without VAT: | $20.43000 |
|---|---|
| Unit Price with VAT: | $22.26870 |
