LTC3892-Slide6

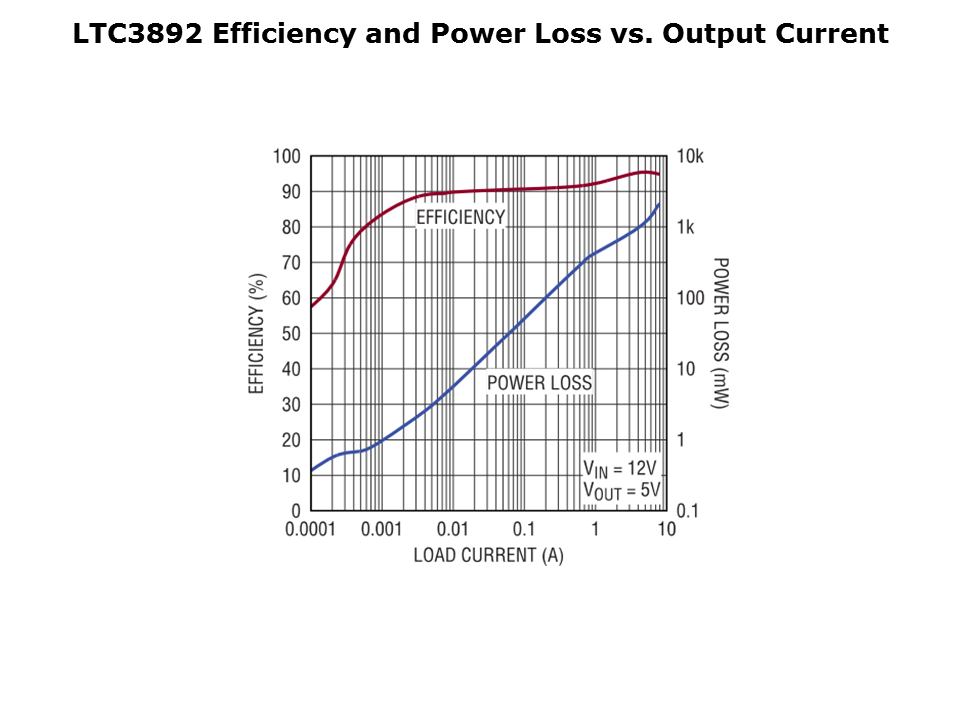

This slide shows the efficiency and power loss of the previous schematic for the 5V output. An efficiency of up to 96% can be achieved. Notice that the efficiency remains high even at light loads due to the Burst mode Operation of the device.

PTM Published on: 2016-02-17
