Detect-Slide16

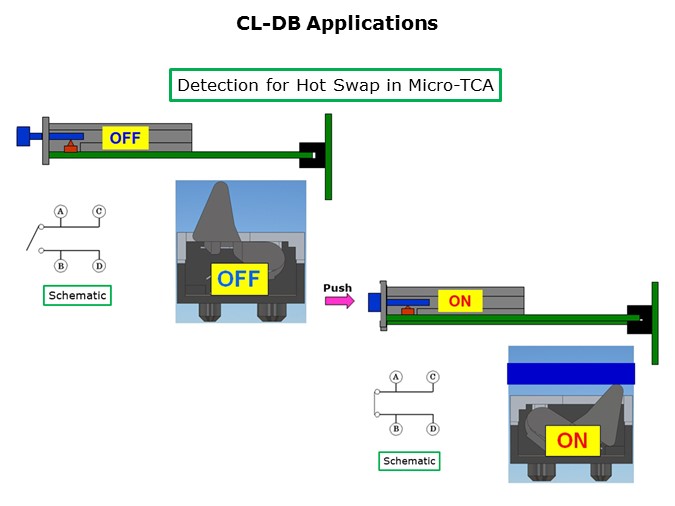

This is an example of how CL-DB will work in a hot swap application in Micro-TCA. When the handle is not in position, contact is OFF. When the handle is depressed, it will push down the actuator of the detect switch and the contact will be turned ON.

PTM Published on: 2012-04-24
