The TB6569FTG is a brushed DC motor driver with corresponding control system of either the constant current PWM control system or the direct PWM control system. Maximum Ratings of 50V and 4.5A (@ Power supply voltage (VM) ≤ 36V) are possible for motor applications. When the power supply voltage (VM) is more than 36V, please use the IC by configuring the current range of 4.0A or less. This evaluation board mounts necessary components to evaluate the IC.
Brushed DC motor can be controlled by the direct PWM drive. In case of controlling the brushed DC motor by the constant current PWM drive, please remove the short resistor (0Ω), which is mounted to R2. Then, replace the current detection resistor that is appropriate for the constant current PWM control.
| Manufacturer | Marutsuelec Co., Ltd. |
|---|---|
| Category | Motor Control |
| Eval Board Part Number | 1796-1000-ND |
| Eval Board Supplier | Marutsuelec Co., Ltd. |
| Eval Board |
Normally In Stock
|
| Voltage In |
10 ~ 47 V
|
| Number of Motors and Type |
1, DC Brush Motor
|
| Power / Current Out |
1.5 A (4.5 A Peak)
|
| Features |
Brake Function
Over Current Protection Over Voltage Protection Thermal Protection Under Voltage Protection, Brown-Out |
| Component Count + Extras |
9 + 6
|
| Application / Target Market |
Motor Control
|
| Design Author |
Marutsuelec Co., Ltd
|
| Main I.C. Base Part |
TB6569FTG
|
| Date Created By Author | 2016-07 |
| Date Added To Library | 2023-05 |

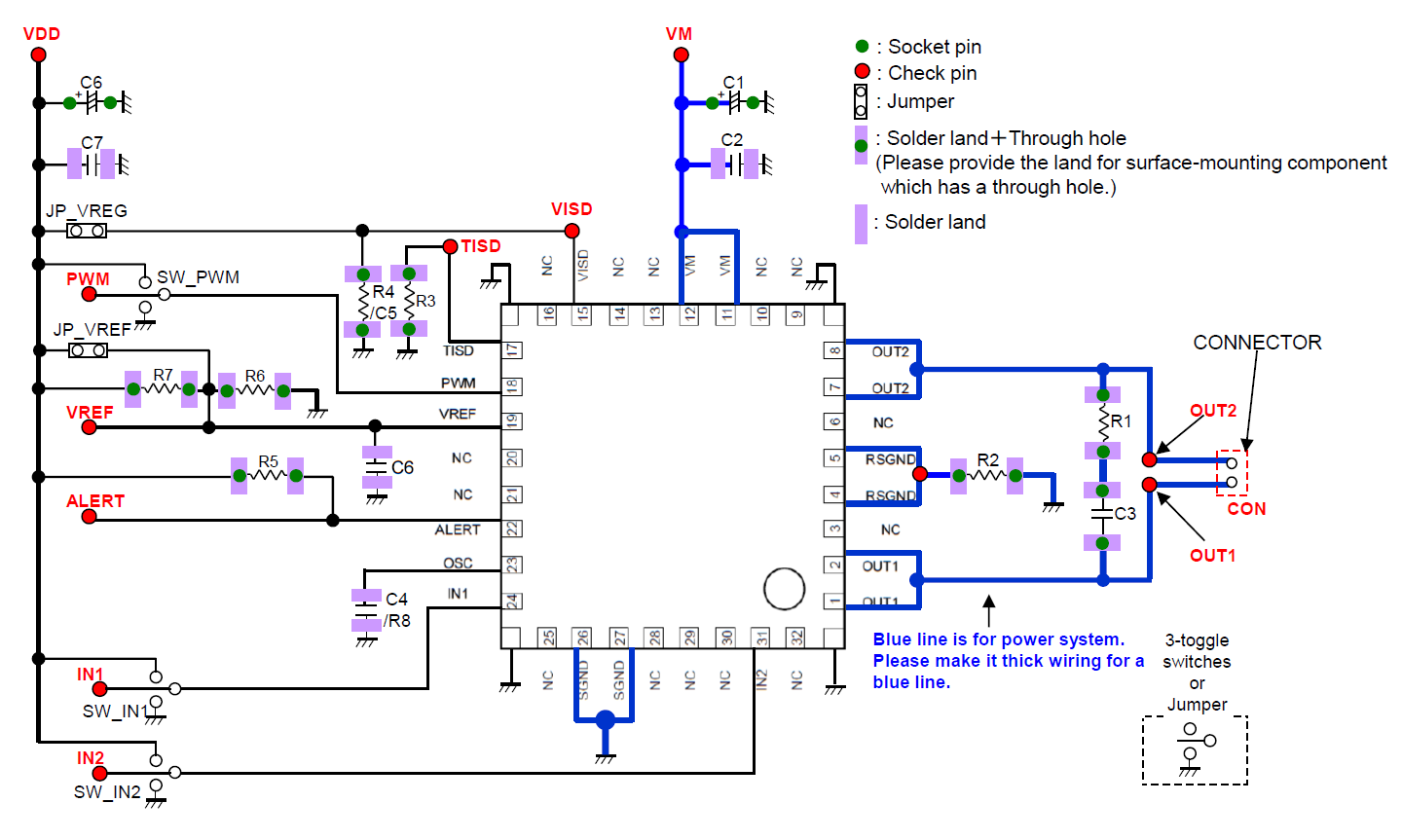

 - Schematic.png "MTO-EV007FTG(TB6569FTG) - Schematic")

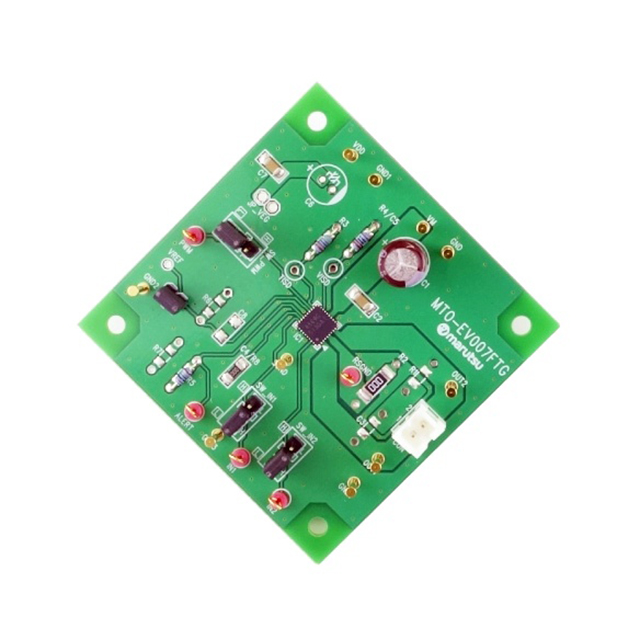

 - Board.jpg "MTO-EV007FTG(TB6569FTG) - Board")

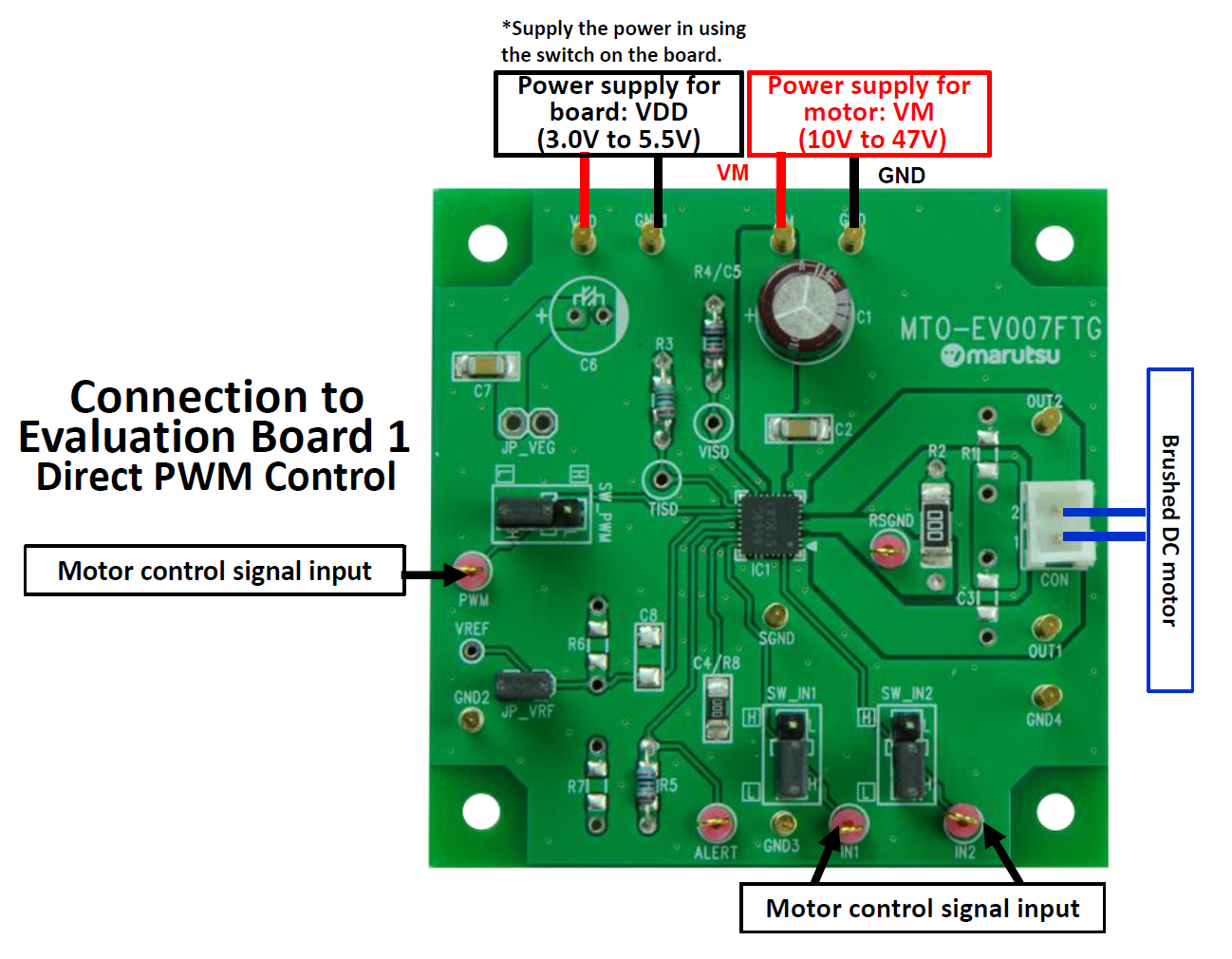

 - Hook Up 1.png "MTO-EV007FTG(TB6569FTG) - Hook Up 1")

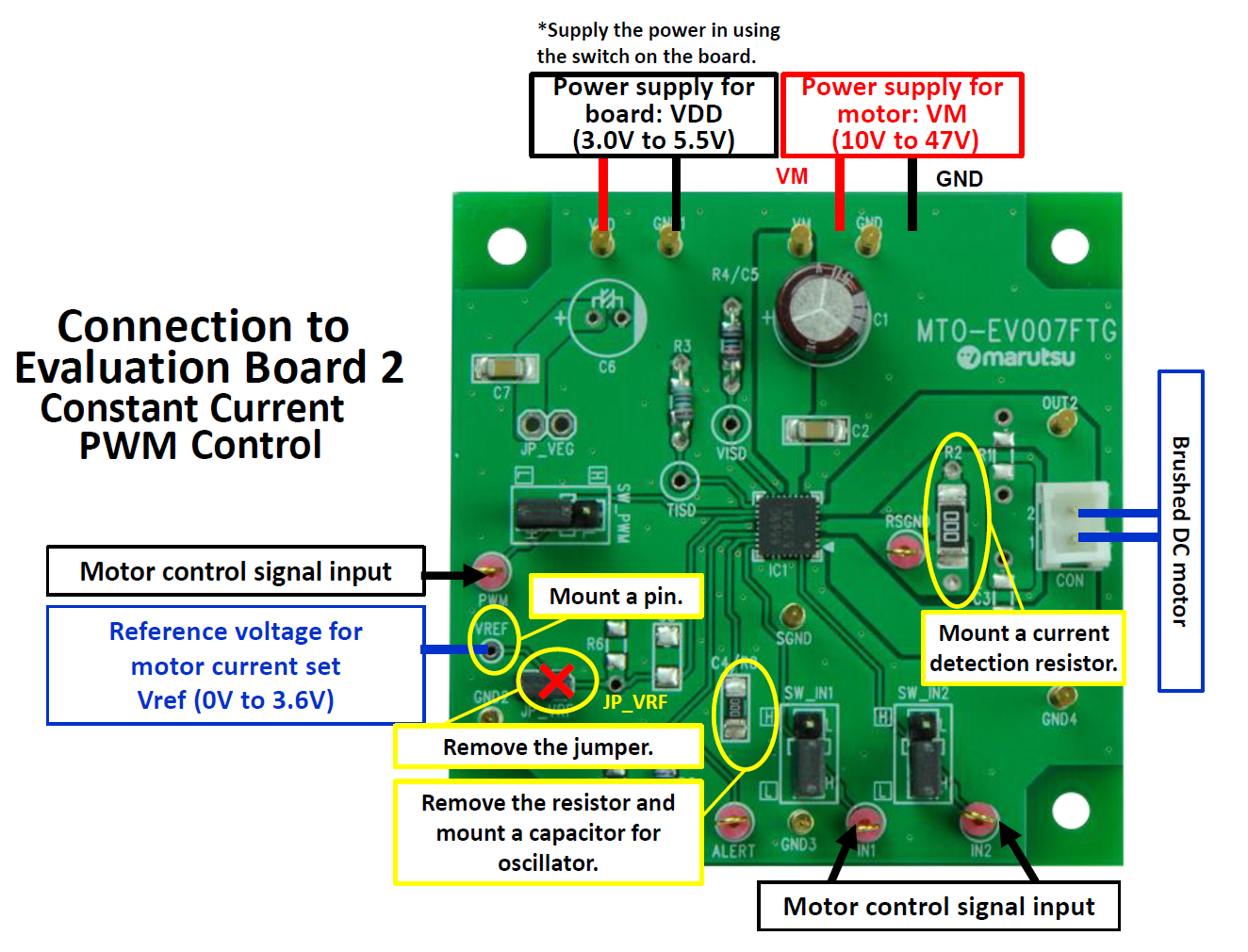

 - Hook Up 2.png "MTO-EV007FTG(TB6569FTG) - Hook Up 2")
