EVAL6482H: Stepper, 6A/Phase @ 10.5 ~ 85V in

Summary

The EVAL6482H demonstration board is a high power microstepping motor driver. In combination with the STEVAL-PCC009V2 communication board and the evaluation software, the board allows the user to investigate all the features of the L6482 device. In particular, the board can be used to check the advanced current control and to regulate the L6482 parameters in order to fit the application requirements.

The EVAL6482H supports the daisy chainconfiguration making it suitable for the evaluation of the L6482 in multi motor applications.

Specifications

Manufacturer STMicroelectronics
Category Motor Control
Eval Board Part Number 497-13517-ND
Eval Board Supplier STMicroelectronics
Eval Board Board not Stocked
Voltage In 10.5 ~ 85 V
Number of Motors and Type 1, Stepper Motor, BiPolar
Power / Current Out 6 A per Phase
Features Microstepping
Over Current Protection
Shutdown, Enable, Standby
SPI Interface
Status Indication
Thermal Protection
Under Voltage Protection, Brown-Out
Component Count + Extras 43 + 26
Application / Target Market Motor Control
Design Author STMicroelectronics
Main I.C. Base Part L6482
Date Created By Author 2012-10
Date Added To Library 2017-03

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

EVAL6482H - User Guide L6482 - Datasheet EVAL6482H - Application Notes and Design Files

Media

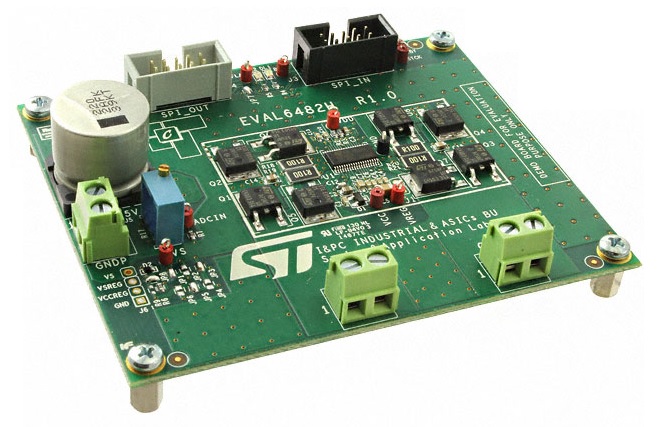

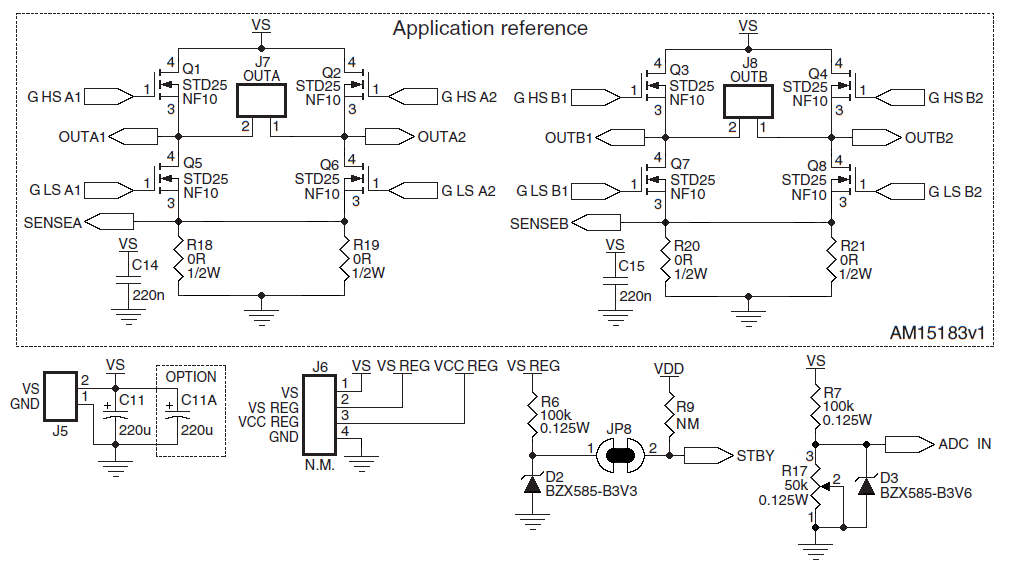

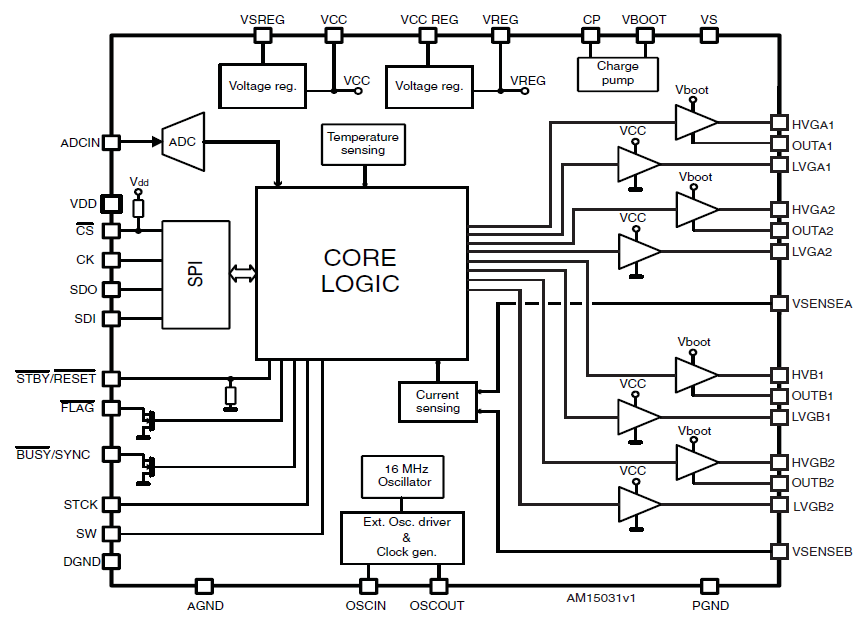

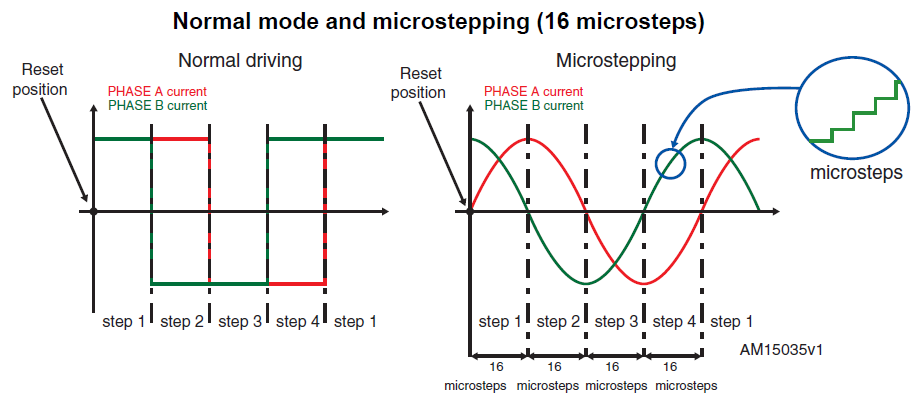

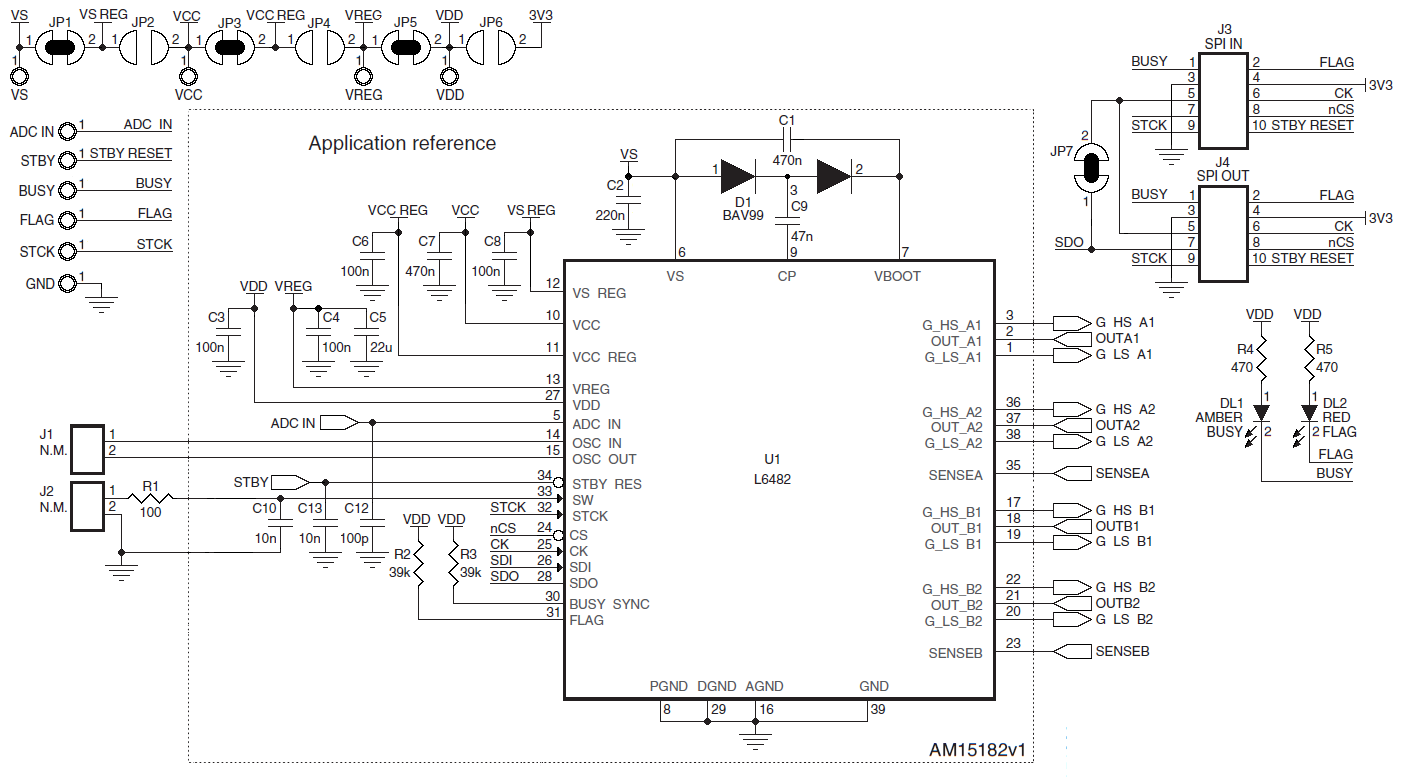

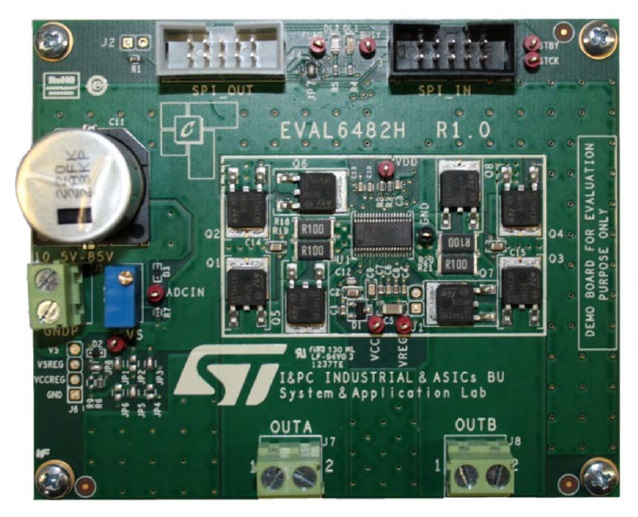

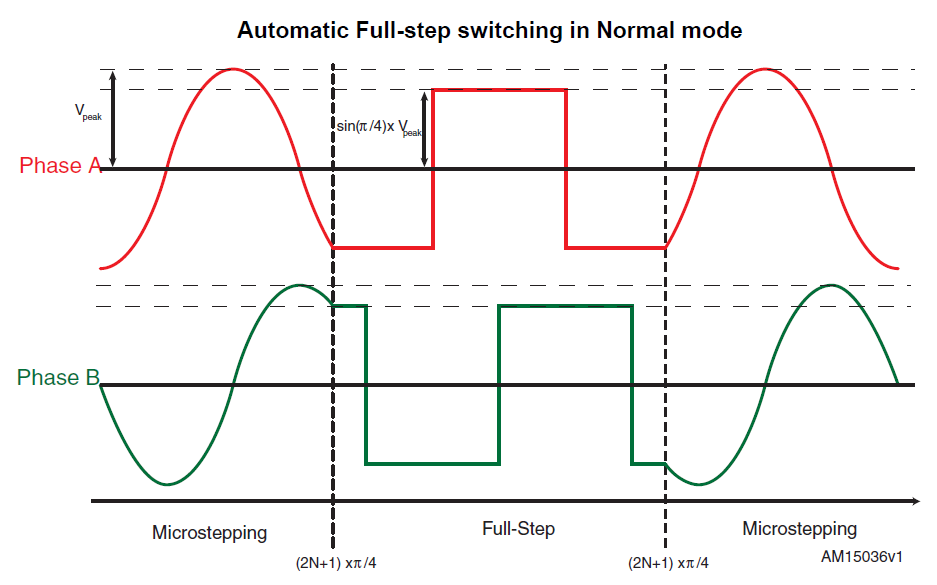

EVAL6482H - Schematic 1 - Full EVAL6482H - Schematic 2 - Full EVAL6482H - Board 1 - Full EVAL6482H - Board 2 - Full EVAL6482H - Chart 1 - Full EVAL6482H - Chart 2 - Full EVAL6482H - Block Diagram - Full
