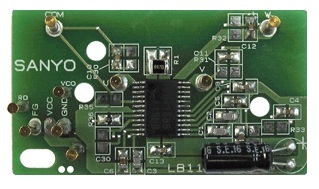

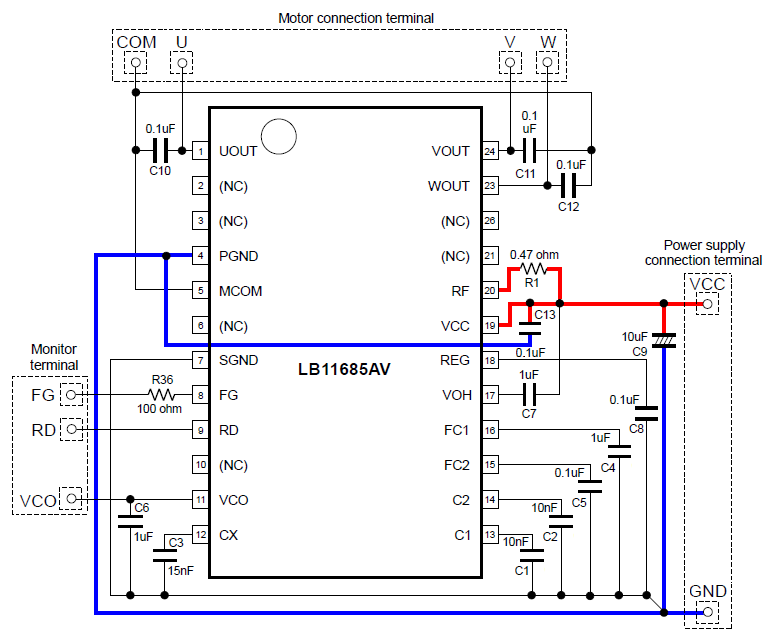

LB11685AVGEVB: 3-ph, 1.2A, 4.5 ~ 18V in

Summary

The LB11685AV is a three-phase full-wave current-linear-drive motor driver IC. It adopts a sensorless control system without the use of a Hall effect device. For quieter operation, the LB11685AV features a current soft switching circuit and be optimal for driving the cooling fan motors used in refrigerators, etc.

Specifications

Manufacturer	onsemi
Category	Motor Control
Eval Board Part Number	LB11685AVGEVBOS-ND
Eval Board Supplier	onsemi
Eval Board	Normally In Stock
Voltage In	4.5 ~ 18 V
Number of Motors and Type	1, 3-Ph Induction, Sensorless
Power / Current Out	1.2 A
Features	Current Limit (Adj. or Fixed) Hall Input Sensorless Control (FOC) Sensorless Stall Detection Soft Start Thermal Protection
Component Count + Extras	16 + 9
Application / Target Market	Motor Control White Goods
Design Author	ONSemiconductor
Main I.C. Base Part	LB11685AV
Date Created By Author	2012-03
Date Added To Library	2013-04
