Design contains obsolete parts

STEVAL-ILL023V1: 2.8A @ 14V Max, 8 ~ 18V in

Summary

The STEVAL-ILL023V1 demonstration board is based on the L6726A single phase PWM controller, with two external MOSFETS for synchronous rectification.

Designed for 2.8 A LEDs (Vf = 2.5V ~ 14V) , the main benefit of the solution is its exceptional efficiency. Ease of dimming and scalability to even higher currents are additional advantages of the design.

The solution is also much safer with regard to border conditions, since the current limit is based solely on the selection of the MOSFETS.

Specifications

Manufacturer STMicroelectronics
Category Lighting
Sub-Category LED Drivers - DC In
Eval Board Board not Stocked
Voltage In 8 ~ 18 V
Topology Step Down
Current Out 1 A
1.5 A
2.8 A
Voltage Out (Max) 14 V
Outputs and Type 1 Non-Isolated
Efficiency @ Conditions >94%, 18V in, 12.6Vf @ 2.8 A
Features Dimming Control
Over Current Protection
Soft Start
Switching Frequency 270 kHz
Component Count + Extras 30 + 5
Design Author STMicroelectronics
Application / Target Market
Main I.C. Base Part L6726A
Date Created By Author
Date Added To Library 2017-05

Support Documents & Media

L6726A - Datasheet STEVAL-ILL023V1 - User Guide - UM0677

Media

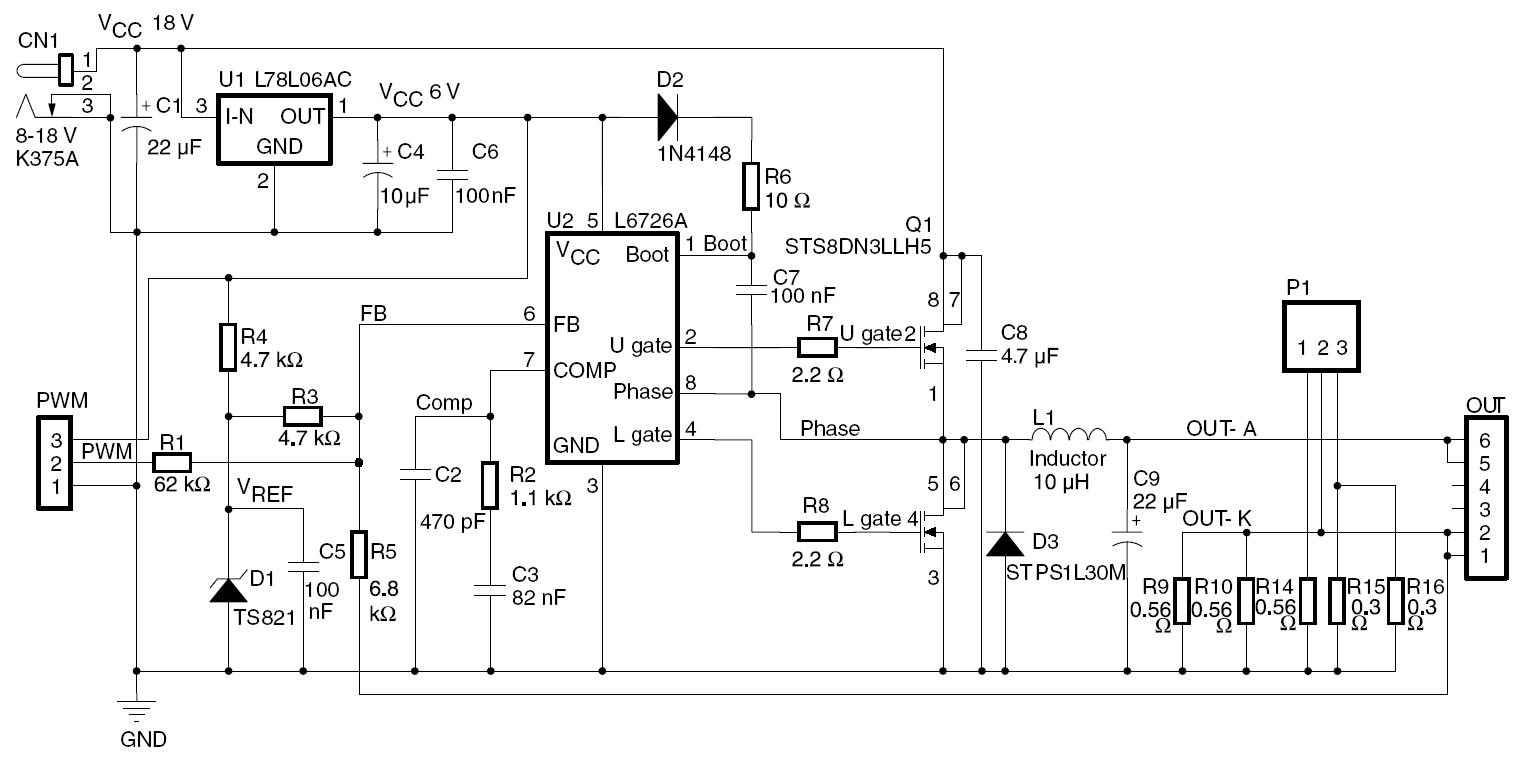

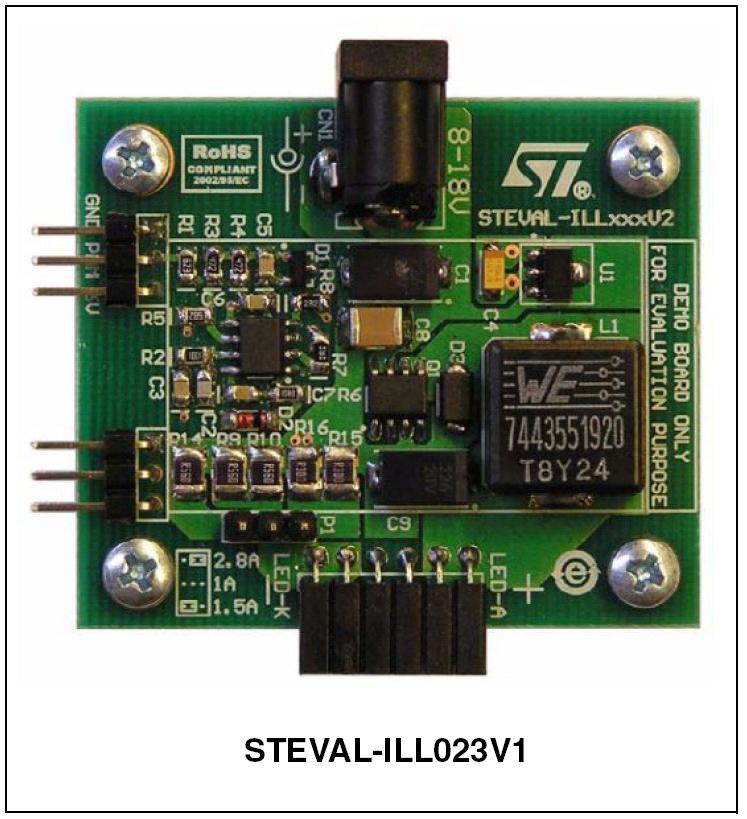

STEVAL_ILL023V1_Schematic.JPG STEVAL_ILL023V1_Board.JPG
