LM3406MHEVAL: 350mA ~ 1.5A @ 18.9V (24V in), 6 ~ 42Vin

Summary

The LM3406 circuit and BOM that come pre-installed on the evaluation board are optimized to run from an input voltage of 24V, but the circuit can operate from a wide input voltage range of 6 ~ 42V.

The current output ranges from 0.35A to 1.5A. Figure 2 shows the program jumper settings used to program currents of 0.35A, 0.7A, 1A, and 1.5A.

Specifications

Manufacturer Texas Instruments
Category Lighting
Sub-Category LED Drivers - DC In
Eval Board Part Number 296-LM3406MHEVAL/NOPB-ND
Eval Board Supplier Texas Instruments
Eval Board Normally In Stock
Voltage In 6 ~ 42 V
Topology Step Down
Current Out 350mA, 700mA, 1A, or 1.5A
Voltage Out (Max) 18.9 V
Outputs and Type 1 Non-Isolated

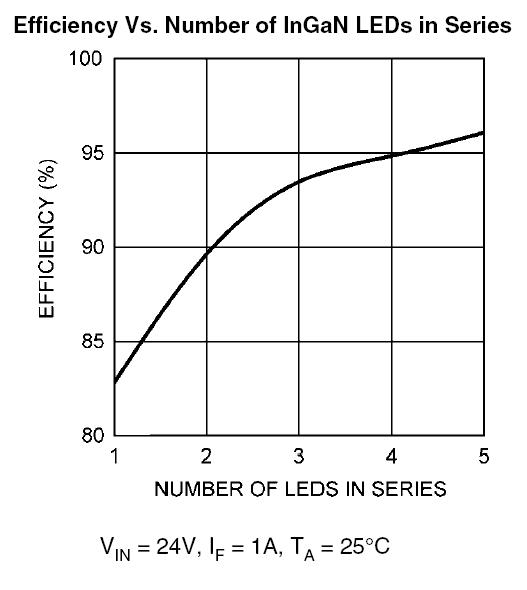

Efficiency @ Conditions >96%, 24V in, 5 LEDs @ 1 A

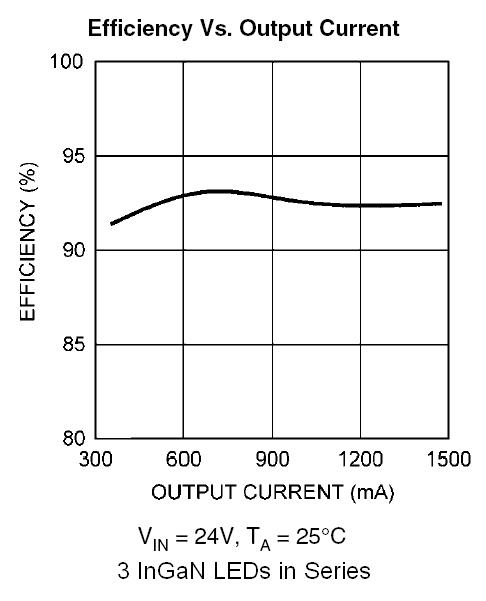

>92%, 24V in, 3 LEDs @ 0.5 ~ 1.4 A
Features Dimming Control
Shutdown, Enable, Standby
Thermal Protection
Switching Frequency 545 kHz
Component Count + Extras 17 + 5
Design Author Texas Instruments
Application / Target Market Flashlight / Torch
Lighting: LED Signage
Main I.C. Base Part LM3406MH
Date Created By Author
Date Added To Library 2011-03

Eval Board

Order a fully assembled board:

Quantity Available: 1

Quantity:

Support Documents & Media

LM3406MHEVAL - User Guide LM3406/HV - Datasheet Ultra Librarian Software:CAD Symbols and Footprints (Zip File) TI's CAD/CAE Symbols and Footprint Search

Media

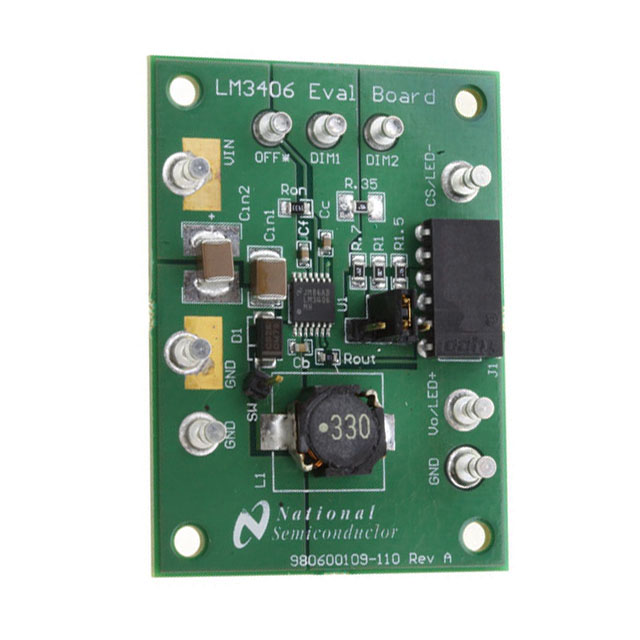

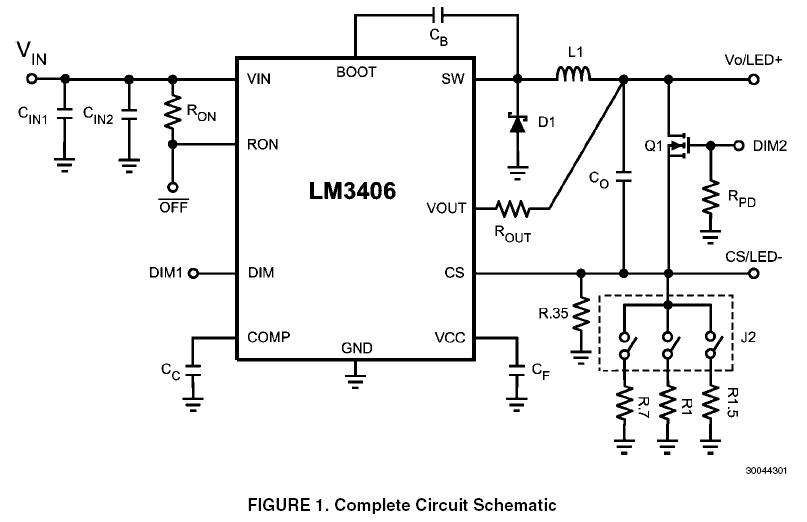

LM3406MHEVAL_Schematic.JPG LM3406MHEVAL_Board.JPG LM3406MHEVAL_Chart_1.JPG LM3406MHEVAL_Chart_2.JPG
