DER-351: 330mA @ 11V Max, 90 ~ 265VAC in

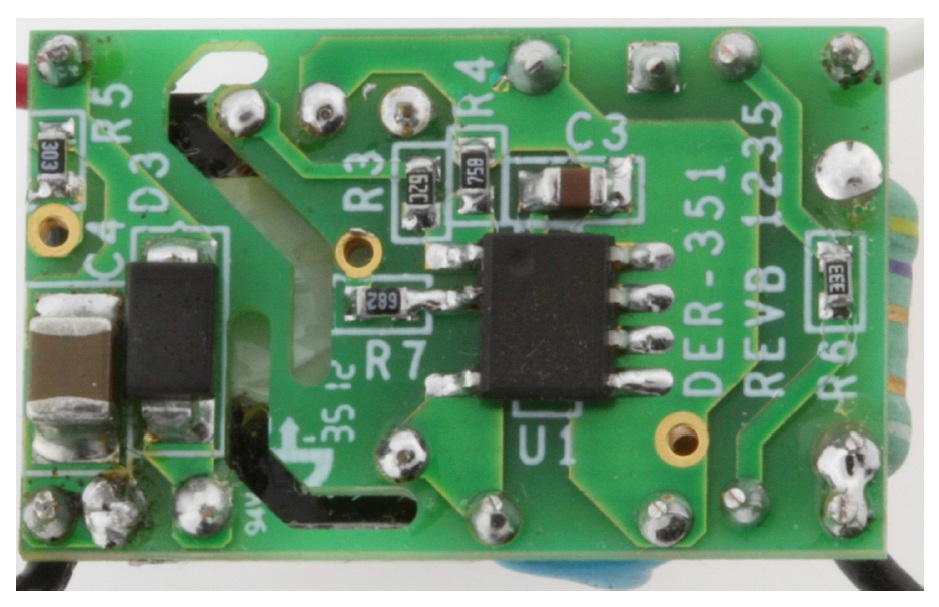

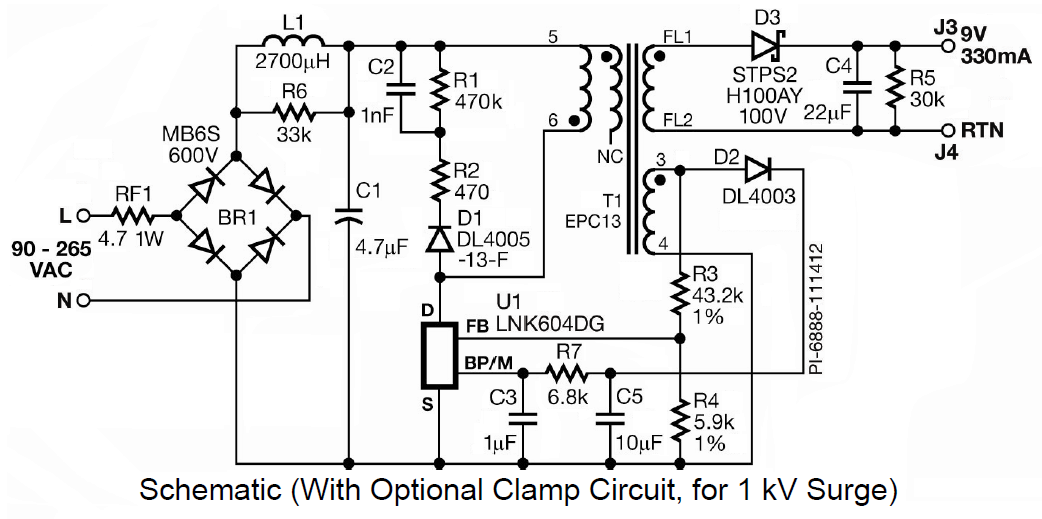

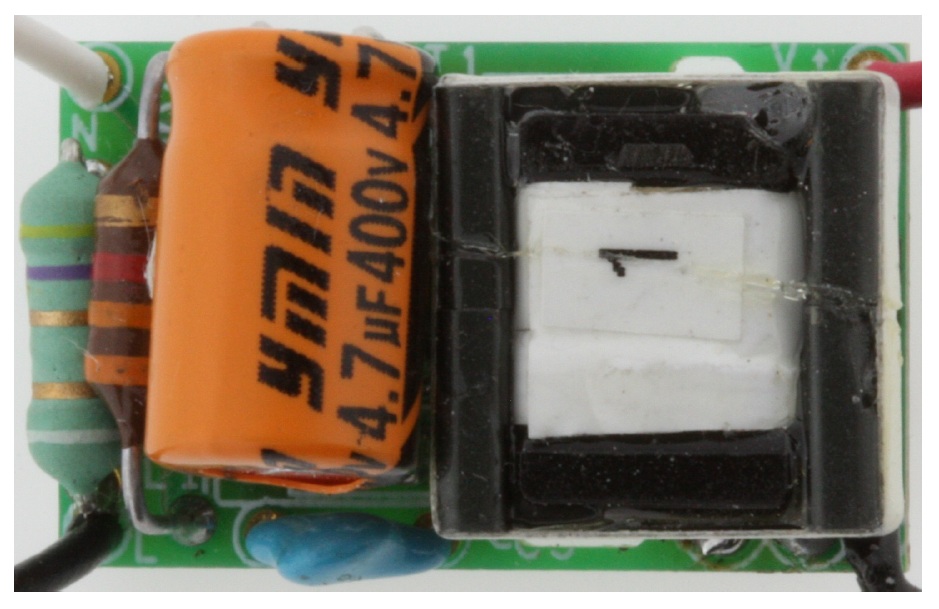

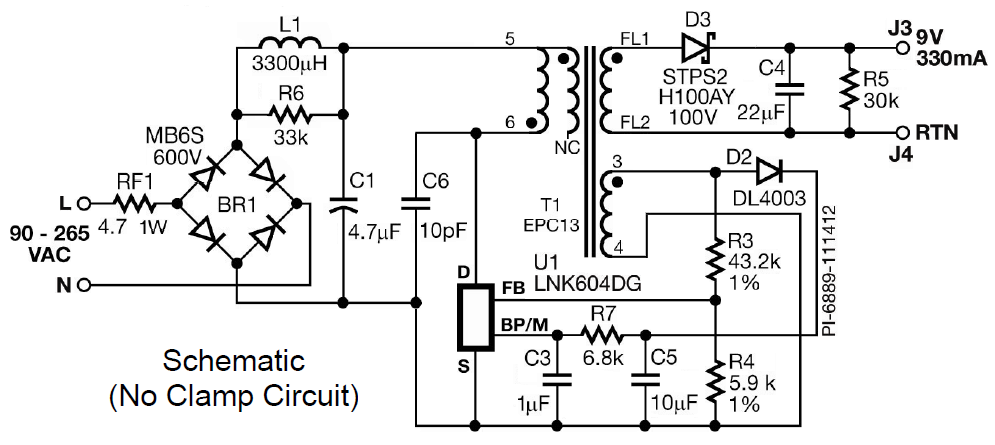

This engineering report describes the design for a universal input, 9 V, 330 mA LED driver. This power supply utilizes the LNK604DG device from the Power Integrations LinkSwitch-II family.

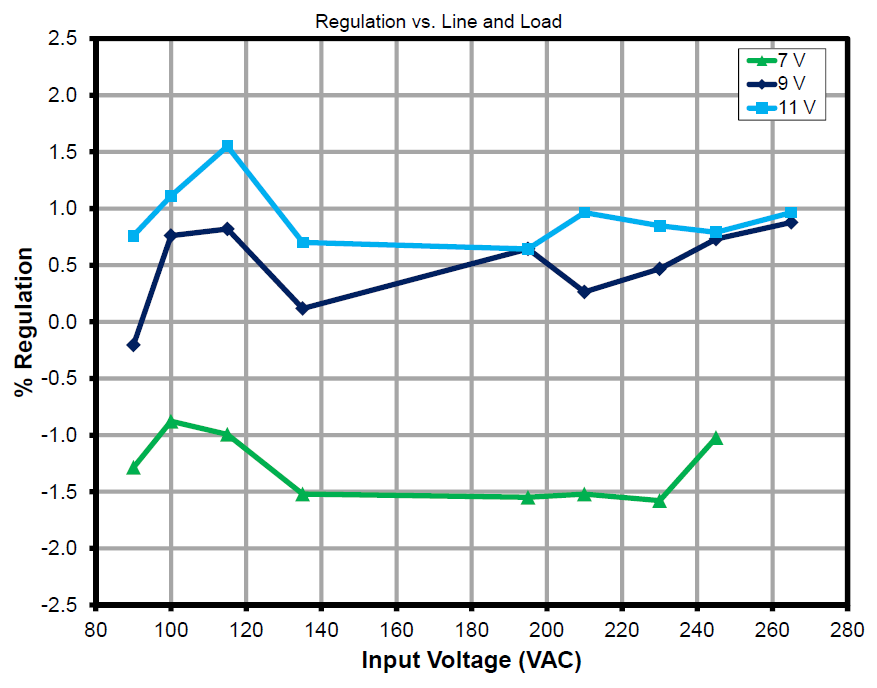

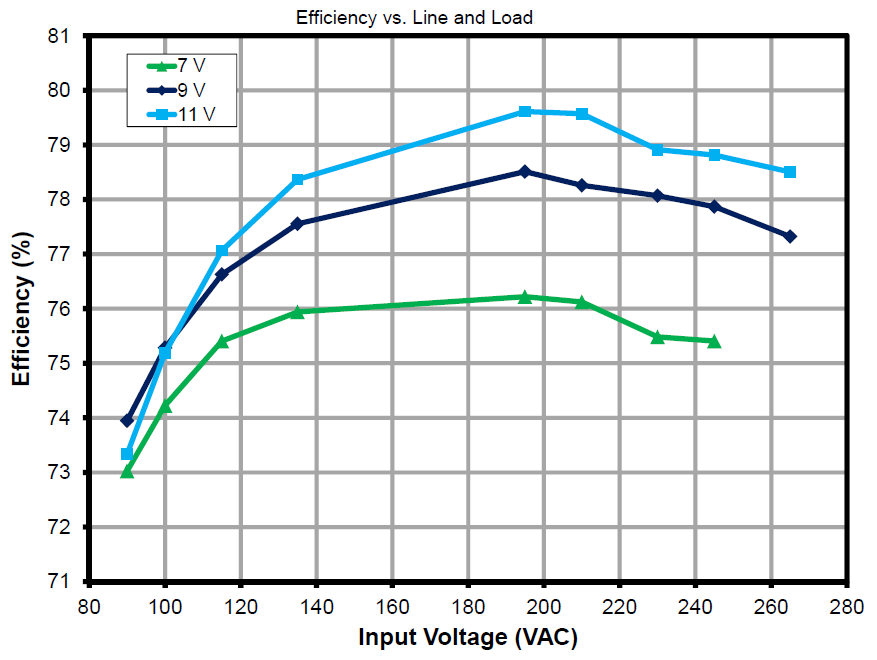

This document contains the power supply and transformer specifications, schematics, bill of materials, and typical performance characteristics pertaining to this power supply.

The LinkSwitch-II dramatically simplifies low power CV/CC charger designs by eliminating an optocoupler and secondary control circuitry. The device introduces a revolutionary control technique to provide very tight output voltage and current regulation, compensating for transformer and internal parameter tolerances along with input voltage variations.

The device incorporates a 700 V power MOSFET, a novel ON/OFF control state machine, a high-voltage switched current source for self-biasing, frequency jittering, cycle-by-cycle current limit and hysteretic thermal shutdown circuitry onto a monolithic IC.
