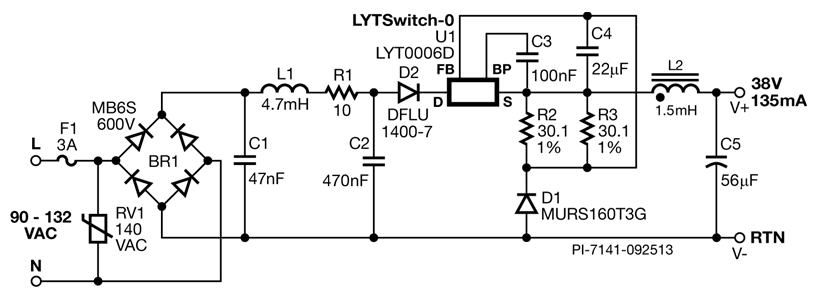

This document describes a cost effective power supply utilizing the LYTSwitch™-0 family (LYT0006D) in a highly compact buck topology.
This power supply operates over an input voltage range of 90 VAC to 132 VAC. The DC bus voltage is high enough to support a 38 V output when using a buck topology. In a buck converter the output voltage must always be lower than the input voltage. The output voltage is also limited by the maximum duty cycle of the LYTSwitch-0, which also requires the input voltage to be larger than the output voltage.
| Manufacturer | Power Integrations |
|---|---|
| Category | Lighting |
| Sub-Category | LED Drivers - AC / Offline |

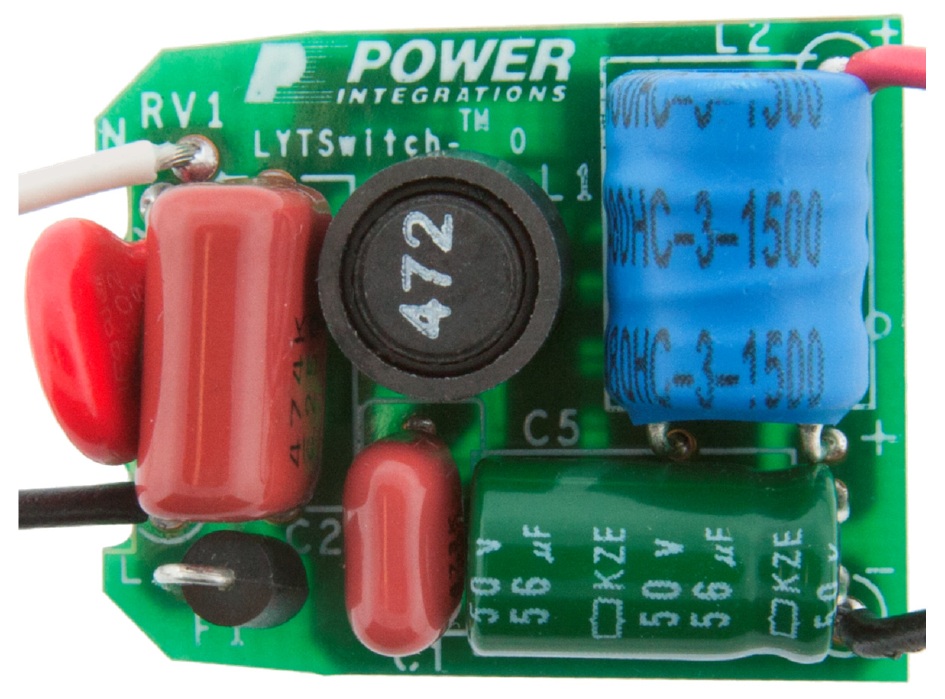

| Eval Board |
Board not Stocked
|
| AC Voltage |
115 V
|
| Outputs and Type |
1 Non-Isolated
|

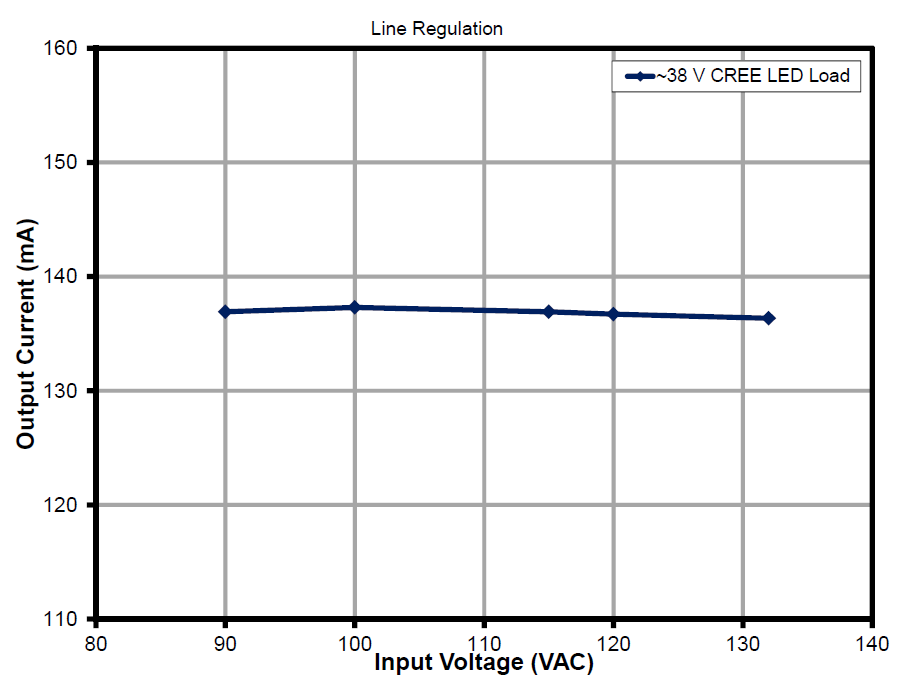

| Current Out |
135 mA
|
| Voltage Out (Max) |
38 V
|
| Efficiency @ Conditions |
>85%, 90 ~ 132 VAC, 38 V LED load
|
| Features |
Current Limit (Adj. or Fixed)
Frequency Jitter for EMI Open Circuit Protection Short Circuit Protection Thermal Protection |
| Switching Frequency |
66 kHz
|
| Component Count + Extras |
16 + 0
|
| Design Author |
Power Integrations
|
| Application / Target Market |
Lighting: LED Commercial Lighting
Lighting: LED Home Lighting |
| Voltage In |
90 ~ 132 VAC
|

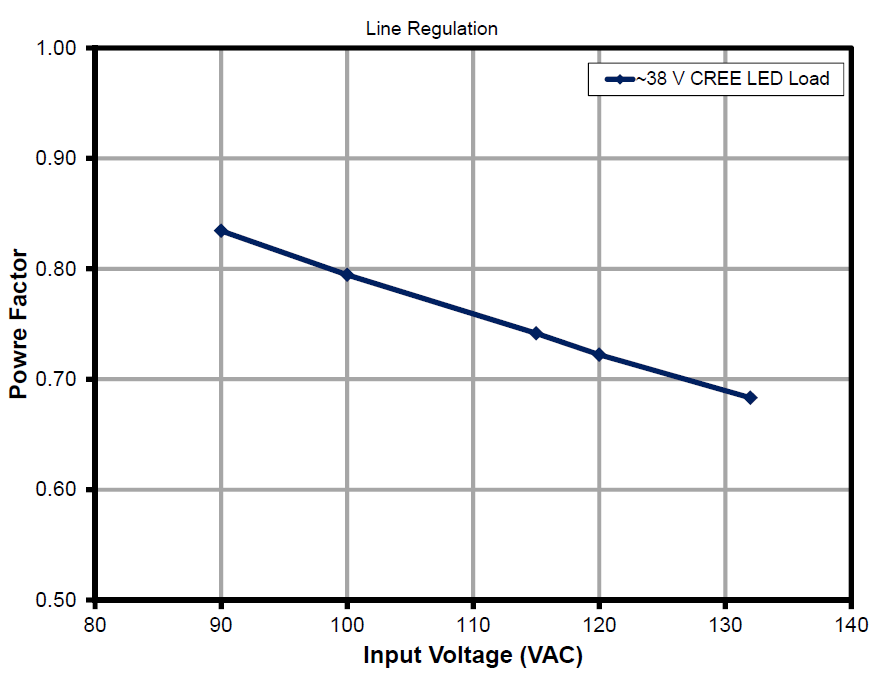

| Power Factor |
0.7 @ 120 VAC
|
| Standard(s) |
EN55015 B conducted EMI
IEC 1000-4-5 |
| Main I.C. Base Part |
LYT0006
|
| Date Created By Author | 2013-09 |
| Date Added To Library | 2014-09 |
