The TPA6211A1 is a 3.1-W mono fully-differential amplifier designed to drive a speaker with at least 3-W impedance while consuming only 20 mm2 total printed-circuit board (PCB) area in most applications.
Features like -80 dB supply voltage rejection from 20 Hz to 2 kHz, improved RF rectification immunity, small PCB area, and a fast startup with minimal pop makes the TPA6211A1 ideal for PDA/smart phone applications.
* Based on board 296-18929-ND The TPA6211A1 is a 3.1-W mono fully-differential amplifier designed to drive a speaker with at least 3-W impedance while consuming only 20 mm2 total printed-circuit board (PCB) area in most applications.
| Manufacturer | Texas Instruments |
|---|---|
| Category | Audio Amplifiers |
| Eval Board Part Number | 296-18929-ND |
| Eval Board Supplier | Texas Instruments |

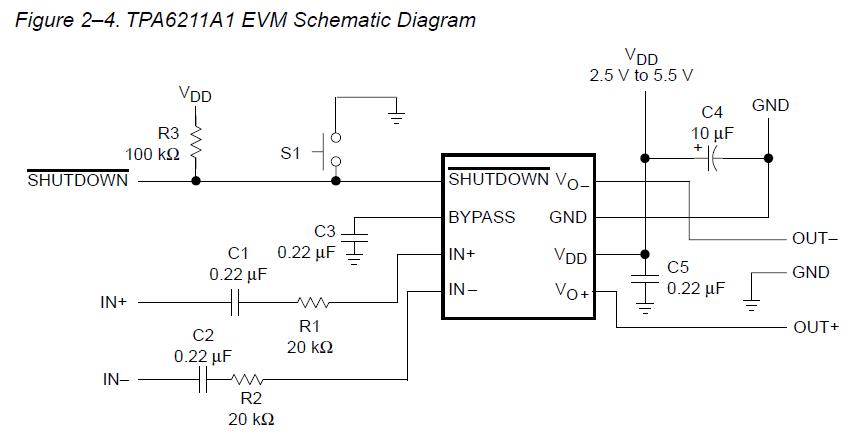

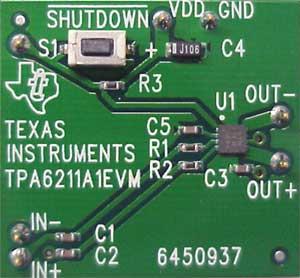

| Eval Board |
Normally In Stock
|
| Amplifier Type |
Class AB
|
| Number of Outputs |
Mono
|
| Output Power (RMS) @ Load |
3.1 W @ 3 Ω
|
| Voltage In |
2.5 ~ 5.5 V
|
| THD+N (1kHz) @ Conditions |
< 0.02% @ 1 W (8 Ω, 5V)
< 0.03% @ 1.5 W (4 Ω, 5V) < 0.03% @ 200 mW (8 Ω, 5V) < 0.05% @ 350 mW (4 Ω, 2.5V) < 20% @ 2 W (8 Ω, 5V) < 20% @ 3 W (4 Ω, 5V) |
| Features |
Shutdown, Enable, Standby
Turn On/Off Depop |
| Efficiency @ Conditions |
>81%, 1.7 W @ 8 Ω, 5 V
>67%, 3.1 W @ 3 Ω, 5 V |
| Standby Current [Typical] | |
| Quiescent Current [Typical] | |
| Component Count + Extras |
9 + 8
|
| Application / Target Market |
Cell Phones
Portable Devices |
| Design Author |
Texas Instruments
|
| Main I.C. Base Part |
TPA6211A1
|
| Quiescent Current [Maximum] |
5 mA
|
| Standby Current [Maximum] |
1 µA
|
| Date Created By Author | |
| Date Added To Library | 2011-03 |
Singapore
