MAX98400AEVKIT+: Class D, 2.1, 20W x 2 + 44W Sub

The MAX98400A evaluation kit (EV kit) configures the MAX98400A Class D amplifier to drive 2x20 W into a pair of 8 Ω speakers in stereo mode, or 1x40 W into a 4 Ω speaker in mono mode, for audio applications. The EV kit operates from an 8 V to 28 V DC power supply. The EV kit is configured for +20.1 dB gain. The EV kit accepts a pair of single-ended or differential input signals and provides two sets of differential outputs for speakers.

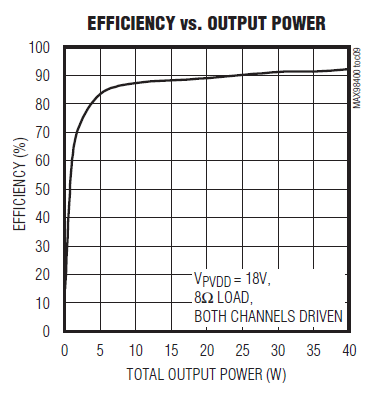

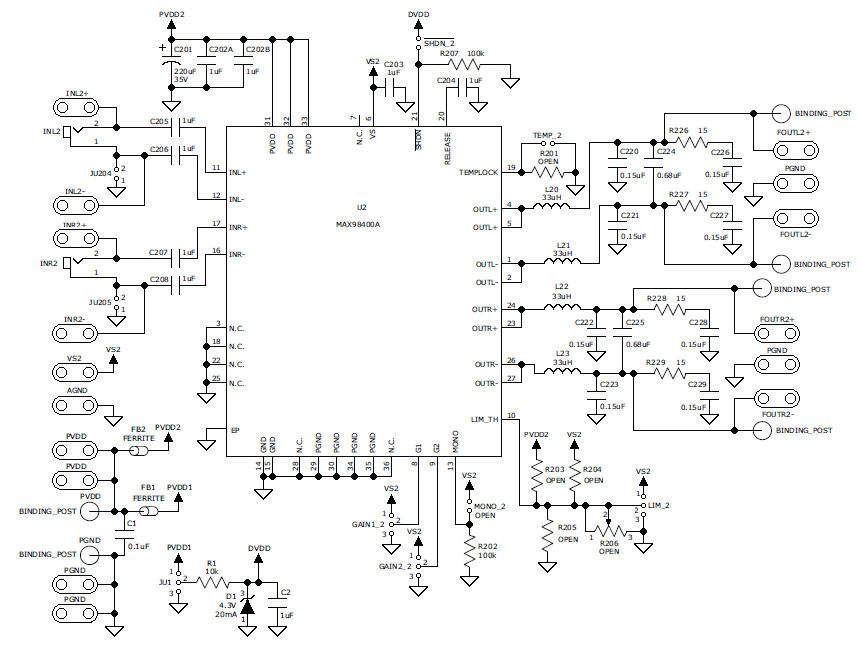

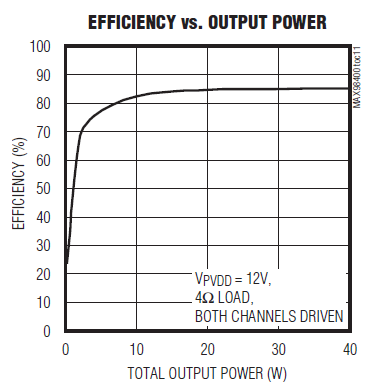

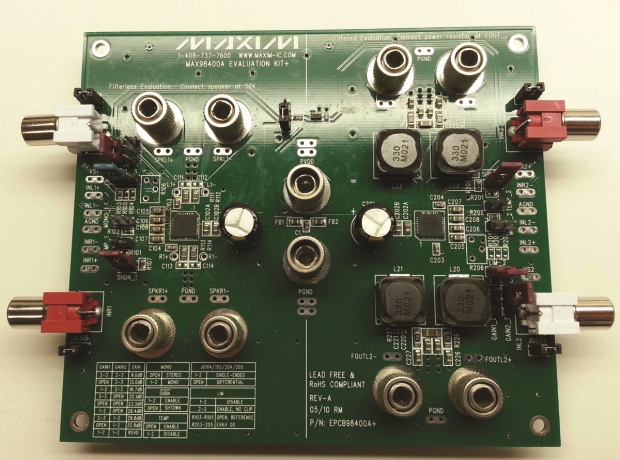

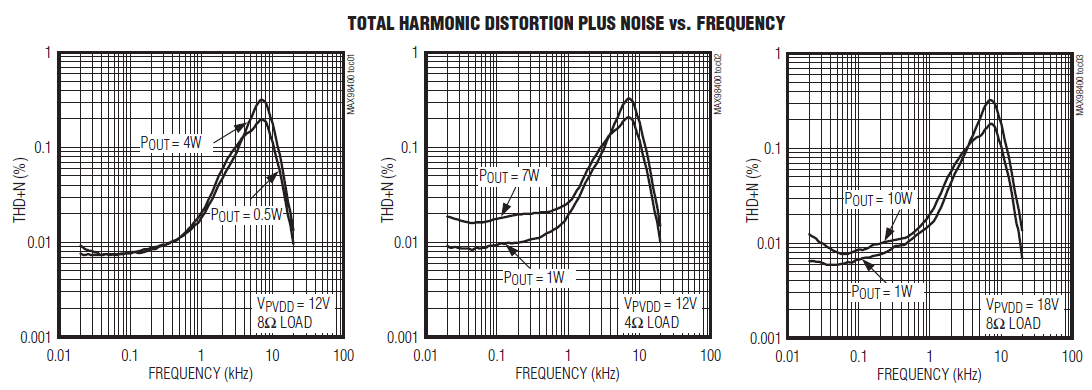

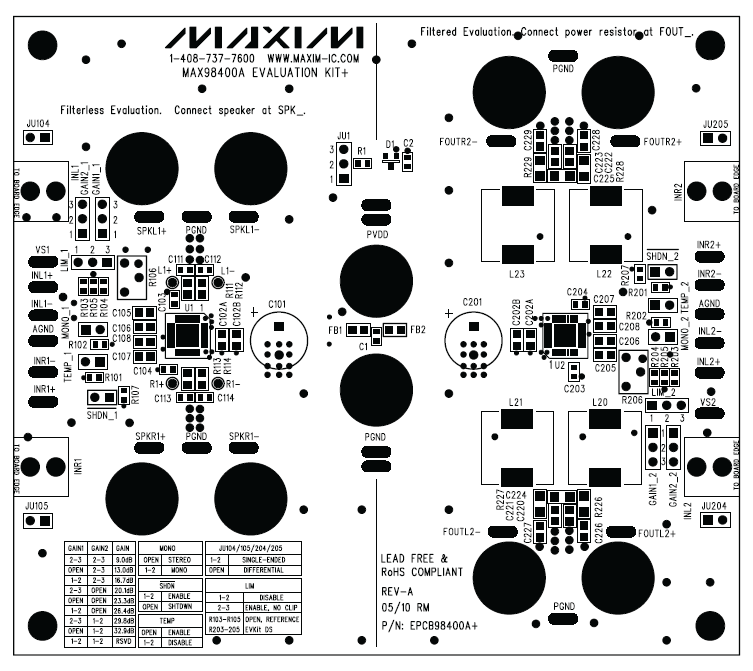

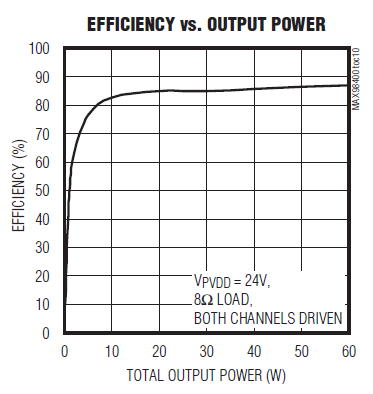

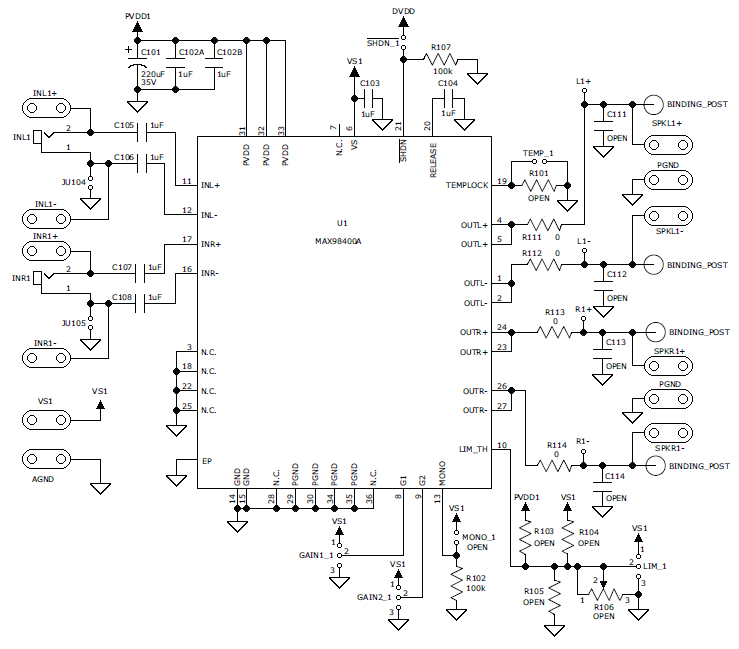

The EV kit has two independent MAX98400A circuits, demonstrating direct speaker driving (for low component count) and filtered output driving (for ease of evaluation). The EV kit comes with two MAX98400AETX+ devices installed.

The EV kit provides an option to control the limiter, thermal foldback, input configuration, gain, shutdown, and mono mode of the MAX98400A. The EV kit also provides an input pad to accept an optional external power supply for powering the device’s preamplifiers. The EV kit includes convenient audio input and output connectors.
