IRAUDAMP17: 100W x 2 (4Ω @ 52V), ±30 ~ 52V in

Summary

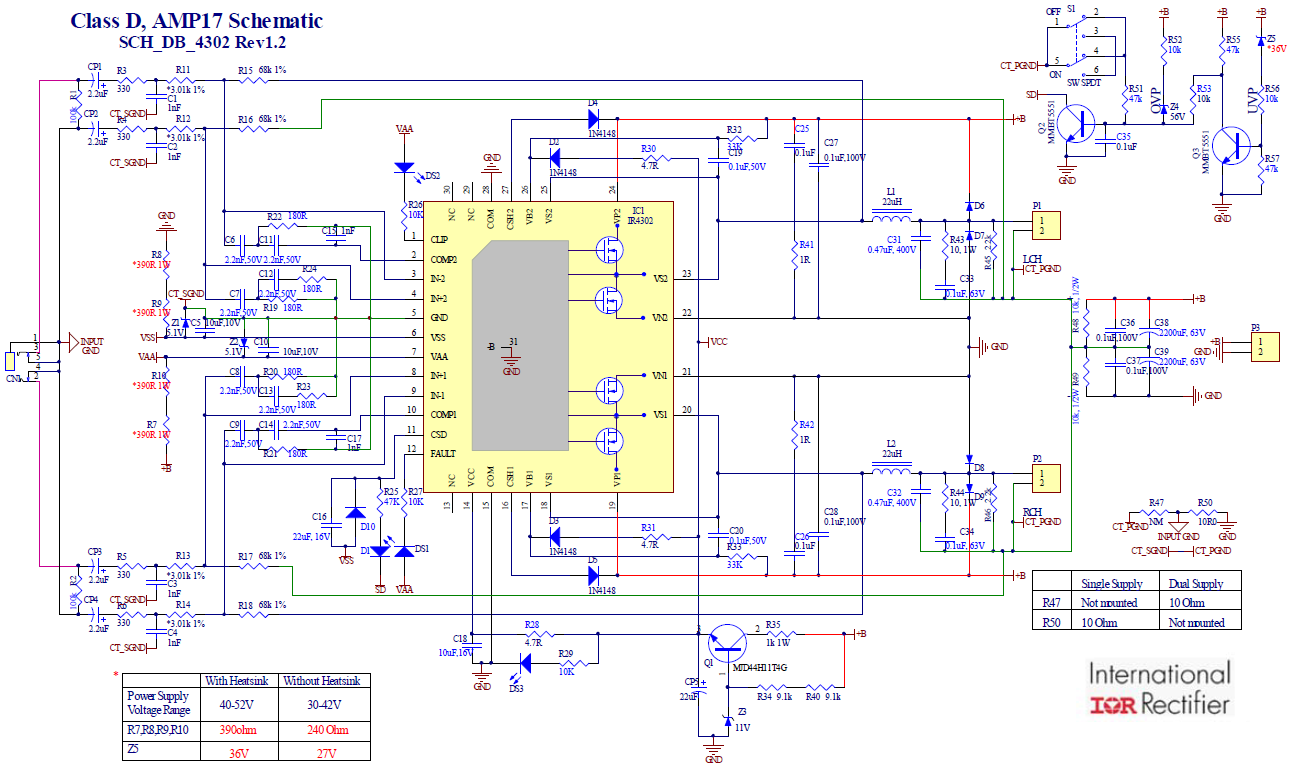

The IRAUDAMP17 reference design is a two-channel, 100W/ch (4Ω / 52V Bus voltage) half-bridge Class D audio power amplifier with single power supply. This reference design demonstrates how to use the IR4302 IC with single power supply, implement protection circuits, and design an optimum PCB layout using PowIRaudio integrated Class D IC.

This reference design does not require additional heatsink or fan cooling for normal operation (one-eighth of continuous rated power).

The reference design provides all the required housekeeping power supplies for ease of use. The two channel design is scalable for power and the number of channels.

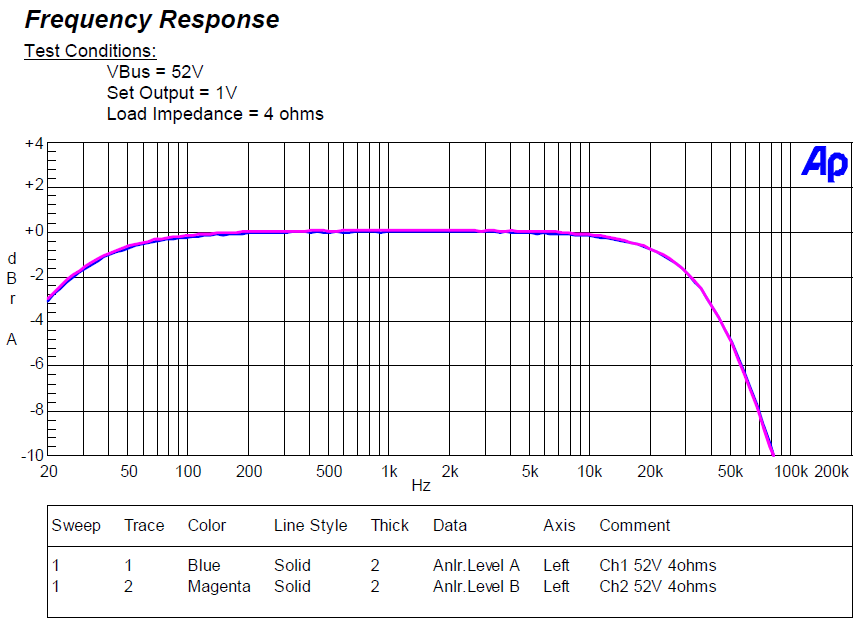

Specifications

Manufacturer	Infineon Technologies
Category	Audio Amplifiers

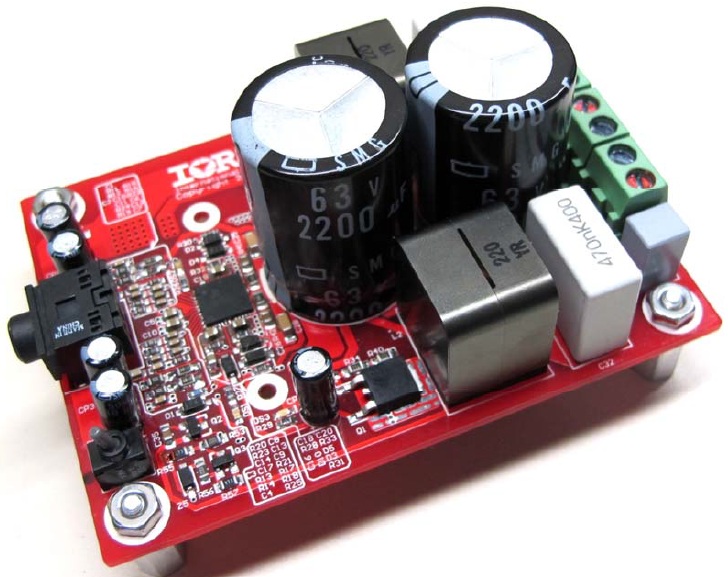

Eval Board Part Number	IRAUDAMP17-ND
Eval Board Supplier	Infineon Technologies
Eval Board	Board not Stocked
Amplifier Type	Class D
Number of Outputs	Stereo
Output Power (RMS) @ Load	100 W x 2 @ 4 Ω
Voltage In	±30 ~ 52 V

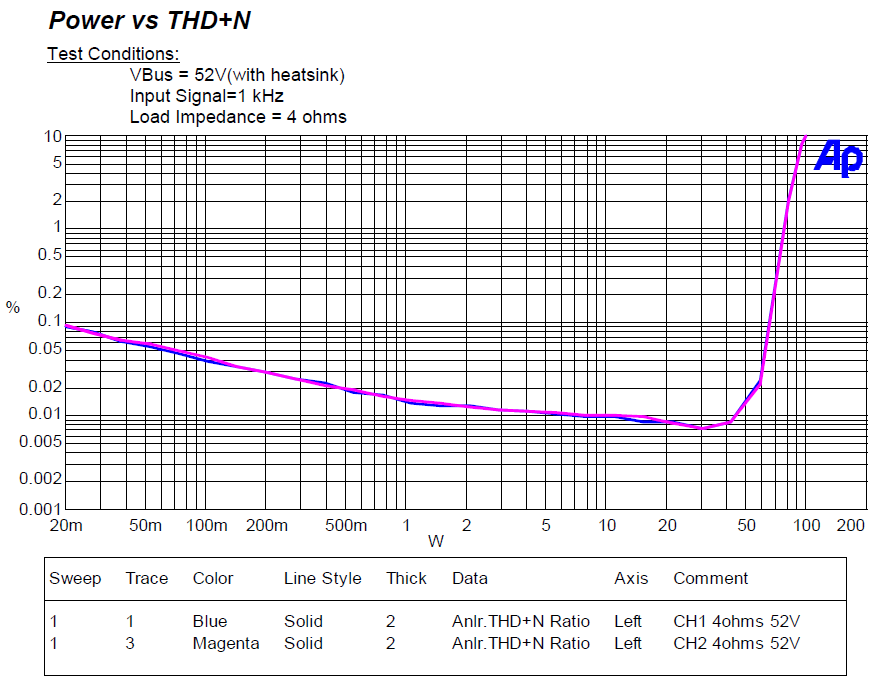

THD+N (1kHz) @ Conditions	< 1% @ 50W (4 Ω, w/o Heatsink) < 1% @ 75W (4 Ω, w/ Heatsink) < 10% @ 100W (4 Ω, w/ Heatsink) < 10% @ 60W (4 Ω, w/o Heatsink)
Features	Over Current Protection Over Voltage Protection Thermal Protection Under Voltage Protection, Brown-Out

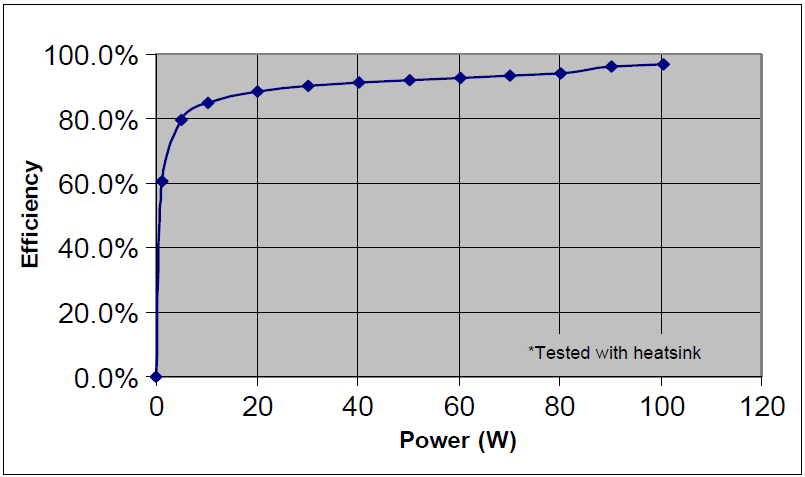

Efficiency @ Conditions	>96%, 100 W @ 4 Ω (w/ Heatsink) >85%, 10 ~ 100 W @ 4 Ω (w/ Heatsink)
Standby Current [Typical]	- Not Given
Quiescent Current [Typical]	65 mA
Component Count + Extras	110 + 18
Application / Target Market	Audio: Home Theater Systems Audio: Powered Speakers Automotive
Design Author	Infineon Technologies
Main I.C. Base Part	IR4302
Quiescent Current [Maximum]	- Not Given
Standby Current [Maximum]	- Not Given
Date Created By Author	2012-05
Date Added To Library	2013-05
