ADP2384-EVALZ: 3.3V @ 4A, 4.5 ~ 20V in

Summary

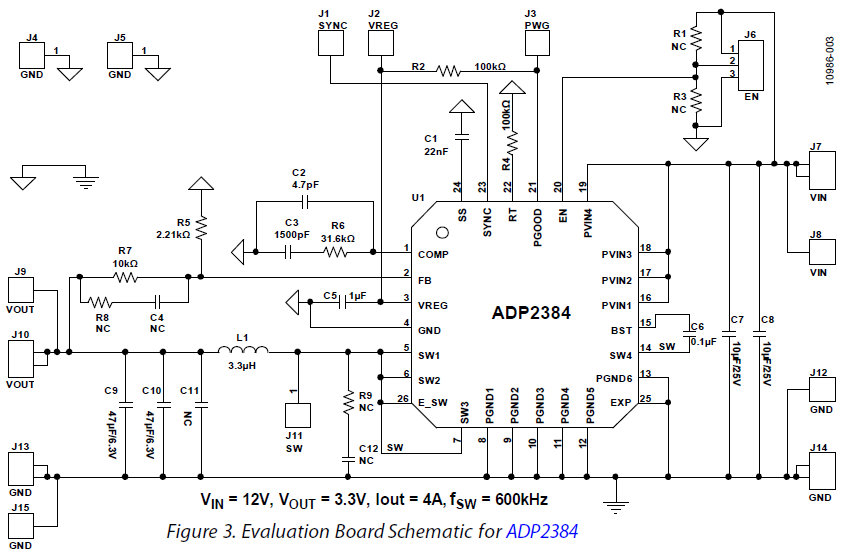

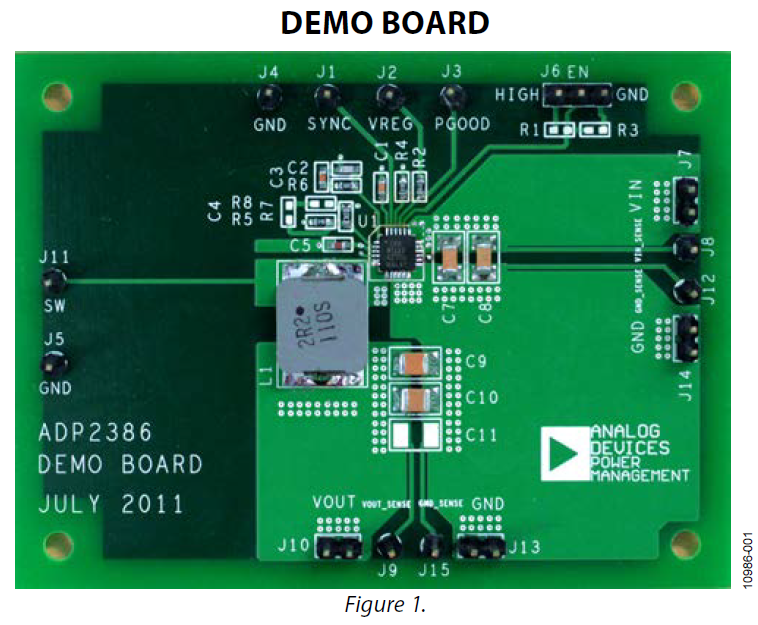

The ADP2384/ADP2386 evaluation board is a complete, 4 A/6 A, 20 V, step-down regulator solution that allows users to evaluate the performance of the ADP2384/ADP2386 with a near ideal printed circuit board (PCB) layout.

The switching frequency can be programmed between 200 kHz and 1.4 MHz, or it can be synchronized to an external clock with a 180° phase shift, which provides the possibility for a stackable multiphase power solution.

The output of the ADP2384/ADP2386 evaluation board is preset to 3.3 V and the switching frequency is set to 600 kHz. Different output voltage settings can be achieved by changing appropriate passive components. The ambient temperature operating range is −40°C to +85°C.

Specifications

Manufacturer	Analog Devices Inc.
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	ADP2386-EVALZ-ND
Eval Board Supplier	Analog Devices Inc.
Eval Board	Normally In Stock
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	3.3 V
Current Out	4 A
Voltage In	4.5 ~ 20 V

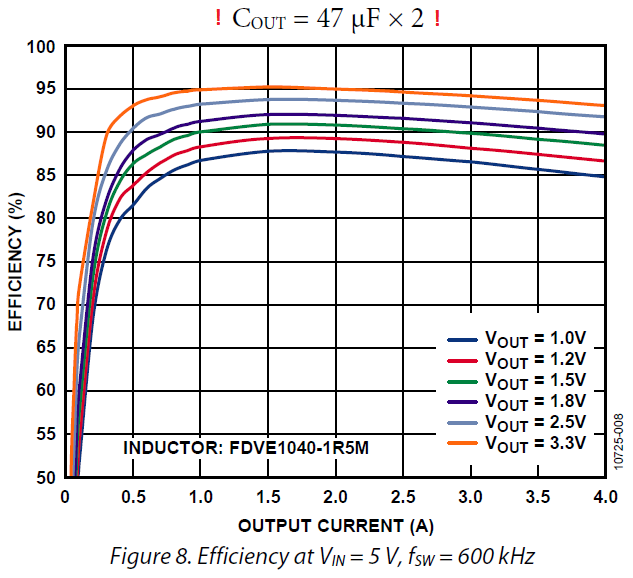

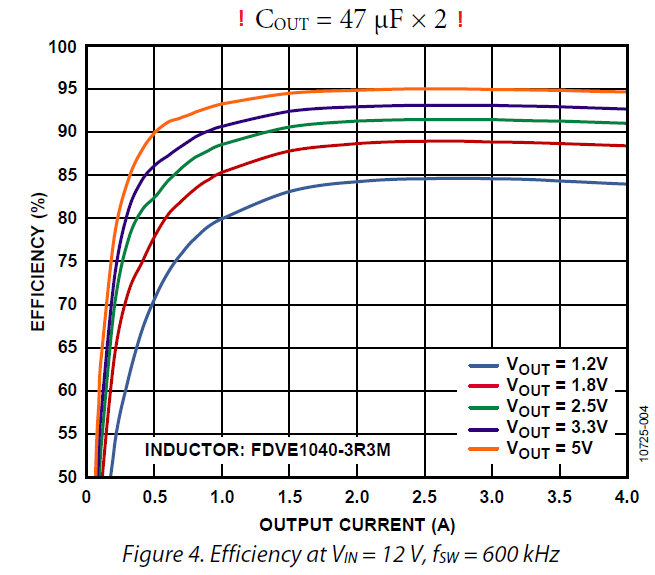

Efficiency @ Conditions	>94%, 12V in, 5V @ 1.5 ~ 4 A >93%, 5V in, 3.3V @ 0.5 ~ 4 A >92%, 5V in, 2.5V @ 0.7 ~ 4 A >92%, 12V in, 3.3V @ 1.3 ~ 4 A
Voltage Out Range	1 ~ 5 V
Features	Current Limit (Adj. or Fixed) Over Voltage Protection Power Good Output Pre-Biased Startup Short Circuit Protection Shutdown, Enable, Standby Soft Start Synchronizable Thermal Protection Under Voltage Protection, Brown-Out
Switching Frequency	600 kHz
Standby Current [Typical]	80 µA
Quiescent Current [Typical]	2.9 mA
Component Count + Extras	16 + 15
Internal Switch	Yes
Design Author	Analog Devices
Application / Target Market	Medical Point of Load (PoL) Servers
Standby Current [Maximum]	110 µA
Quiescent Current [Maximum]	3.6 mA
Main I.C. Base Part	ADP2384
Date Created By Author
Date Added To Library	2013-08
