LM5575EVAL: 5V @ 1.5A, 7 ~ 75 Vin

Summary

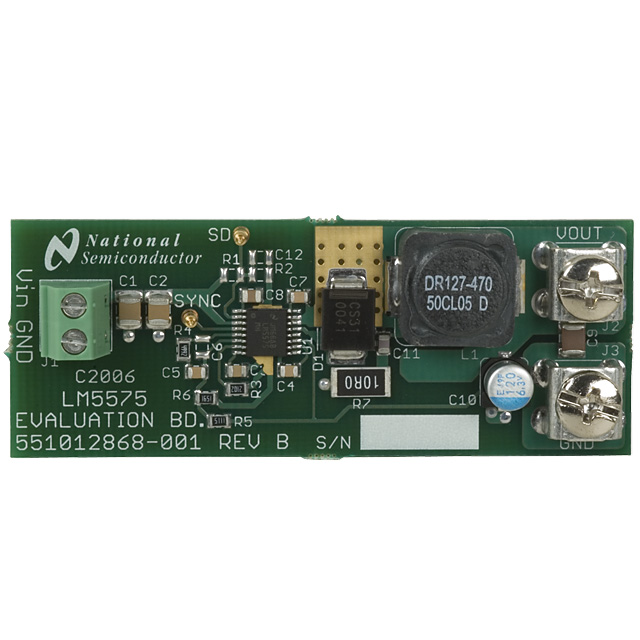

The LM5575 evaluation board is designed to provide the design engineer with a fully functional power converter based on Emulated Current Mode Control to evaluate the LM5575 regulator IC. The evaluation board provides a 5V output with a 1.5A current capability. The ultra-wide input voltage ranges from 7V to 75V. The design operates at 300kHz, a good compromise between conversion efficiency and solution size.

Specifications

Manufacturer	Texas Instruments
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	LM5575EVAL-ND
Eval Board Supplier	Texas Instruments
Eval Board	Normally In Stock
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	5 V
Current Out	1.5 A
Voltage In	7 ~ 75 V

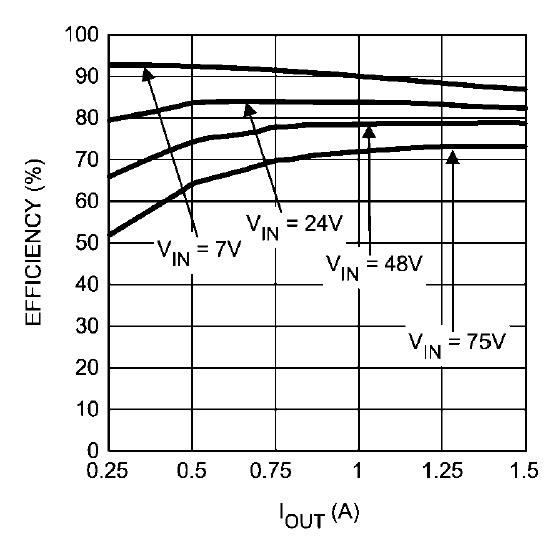

Efficiency @ Conditions	>90%, 7V in, 5V @ 0.25 ~ 1 A >82%, 24V in, 5V @ 0.25 ~ 1.5 A >75%, 48V in, 5V @ 0.5 ~ 1.5 A >65%, 75V in, 5V @ 0.6 ~ 1.5 A
Voltage Out Range	- Not Given
Features	Current Limit (Adj. or Fixed) Over Current Protection Short Circuit Protection Shutdown, Enable, Standby Soft Start Synchronizable Thermal Protection
Switching Frequency	300 kHz
Standby Current [Typical]	57 µA
Quiescent Current [Typical]	3.7 mA
Component Count + Extras	18 + 5
Internal Switch	Yes
Design Author	Texas Instruments
Application / Target Market	Automotive
Standby Current [Maximum]	85 µA
Quiescent Current [Maximum]	4.5 mA
Main I.C. Base Part	LM5575
Date Created By Author
Date Added To Library	2011-03
