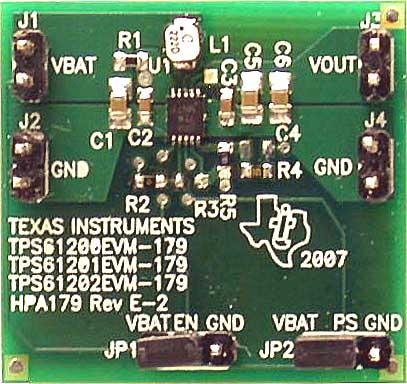

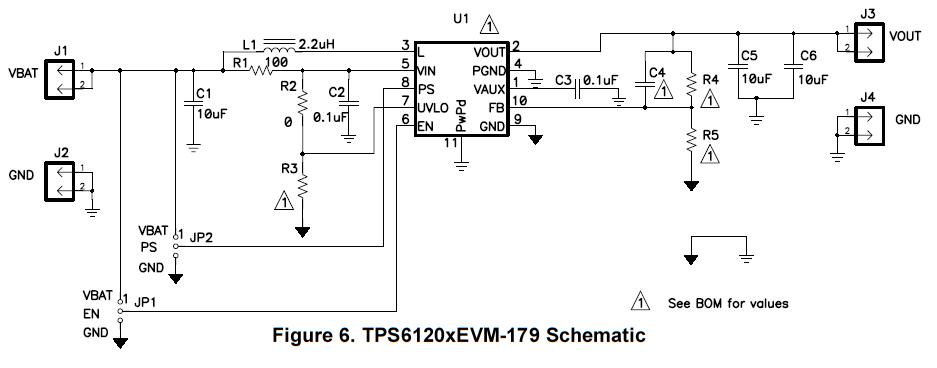

TPS61202EVM-179: 5V @ Up to 1A, 0.5 ~ 5.5V in

Summary

The TPS6120xEVM-179 is specially designed and optimized to operate from a single-cell, two-cell, or three-cell alkaline, NiCd or NiMH, as well as a one-cell Li-Ion or Li-polymer battery. It is also used in single-cell fuel cell or solar cell battery applications where the input voltage is as low as 0.3V.

The TPS6120xEVM-179 operates from a 0.3V to 5.5V (starts up at 0.5V) input rail and provides a single output voltage up to 5.5V.

The TPS6120x is the industry’s lowest input-voltage boost converter, enabling portable electronic end equipment to draw power from new energy sources such as solar and micro-fuel cells.

The TPS6120xEVM-179 has three orderable EVMs:

TPS61200EVM-179 - Adjustable output voltage version preset at 3.3V.
TPS61201EVM-179 - Fixed 3.3V
TPS61202EVM-179 - Fixed 5.0V

Specifications

Manufacturer	Texas Instruments
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	296-TPS61202EVM-179-ND
Eval Board Supplier	Texas Instruments
Eval Board	Normally In Stock
Topology	Step Up
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	5 V
Current Out	Up to 1.1 A
Voltage In	0.5 ~ 5.5 V
Efficiency @ Conditions	>77%, 1.8V in, 5V @ 35 ~ 350 mA
Voltage Out Range	- Fixed
Features	Light Load Mode Short Circuit Protection Thermal Protection Under Voltage Protection, Brown-Out
Switching Frequency	1.4 MHz
Standby Current [Typical]	1.5 µA
Quiescent Current [Typical]	55 µA
Component Count + Extras	8 + 10
Internal Switch	Yes
Design Author	Texas Instruments
Application / Target Market	Audio: MP3 Players Portable Devices USB Powered Devices
Standby Current [Maximum]	3.5 µA
Quiescent Current [Maximum]	78 µA
Main I.C. Base Part	TPS61202
Date Created By Author	2007-04
Date Added To Library	2013-03
