ADP2120-EVALZ: 1.2V @ 1.25A, 2.3 ~ 5.5V in

Summary

The ADP2119/ADP2120 evaluation boards provide an easy way to evaluate the synchronous, step-down devices. This user guide describes how to quickly set up the board to collect performance data. Full details on the ADP2119/ADP2120 are available in the ADP2119/ADP2120 data sheet, which is available from Analog Devices, Inc., and should be consulted in conjunction with this user guide when using the evaluation boards.

The ADP2119/ADP2120 run from input voltages of 2.3V to 5.5V and require minimal external components to provide a high efficiency solution with integrated power switch, synchronous rectifier, and internal compensation.

Specifications

Manufacturer	Analog Devices Inc.
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	505-ADP2120-EVALZ-ND
Eval Board Supplier	Analog Devices Inc.
Eval Board	Board not Stocked
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	1.2 V
Current Out	1.25 A
Voltage In	2.3 ~ 5.5 V

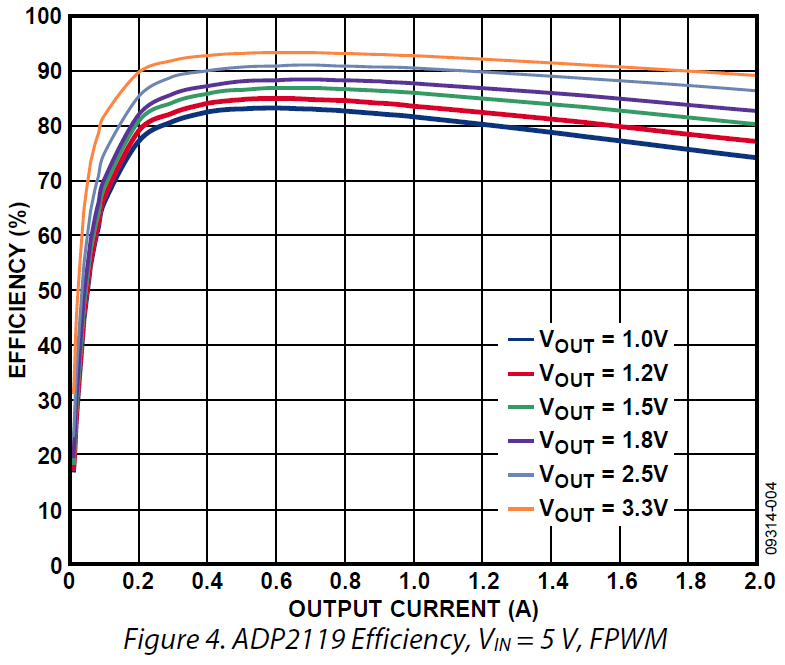

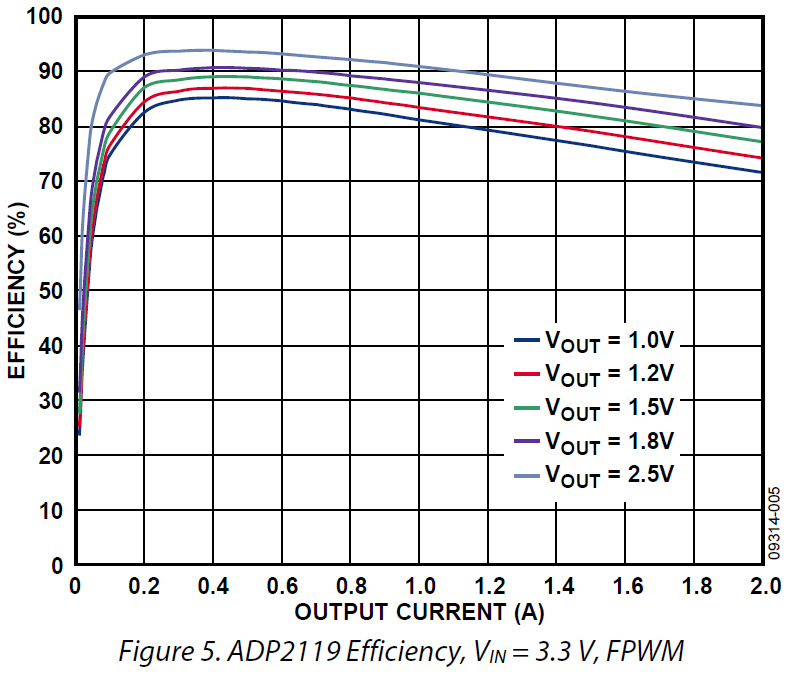

Efficiency @ Conditions	>92%, 5V in, 3.3V @ 0.3 ~ 1.25 A >90%, 5V in, 2.5V @ 0.4 ~ 1.1 A >83%, 5V in, 1.2V @ 0.3 ~ 1.25 A
Voltage Out Range	0.6 ~ Vin
Features	Over Current Protection Over Voltage Protection Power Good Output Pre-Biased Startup Shutdown, Enable, Standby Soft Start Synchronizable Thermal Protection Under Voltage Protection, Brown-Out Voltage Tracking
Switching Frequency	1.2 MHz
Standby Current [Typical]	300 nA
Quiescent Current [Typical]	680 µA
Component Count + Extras	11 + 14
Internal Switch	Yes
Design Author	Analog Devices
Application / Target Market	Medical Point of Load (PoL) Servers Telecom
Standby Current [Maximum]	2 µA
Quiescent Current [Maximum]	900 µA
Main I.C. Base Part	ADP2120
Date Created By Author
Date Added To Library	2013-10
