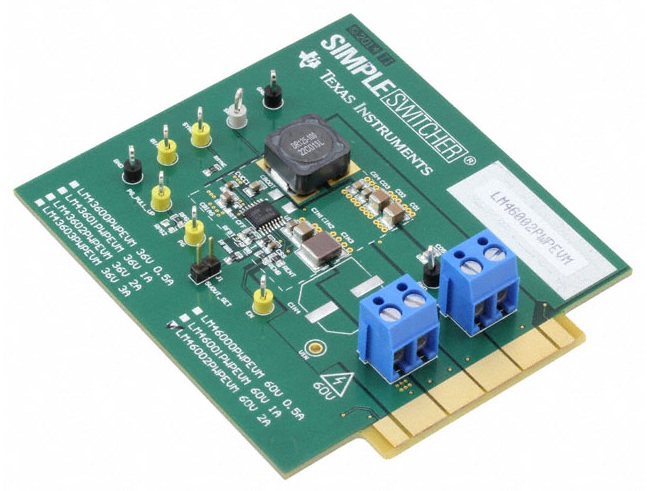

LM46002PWPEVM: 3.3V @ 2A, 3.5 ~ 60V in, Buck

Summary

The Texas Instruments LM46002EVM evaluation module (EVM) helps designers evaluate the operation and performance of the LM46002 wide-input voltage Simple Switcher® buck regulator. The device offers configurability in a 1-V to 28-V output voltage, synchronous rectification and a 200-kHz to 2.2-MHz adjustable frequency range. It also offers external frequency synchronization, power good (PG) flag, and a precision enable to program undervoltage lockout (UVLO) and internal compensation.

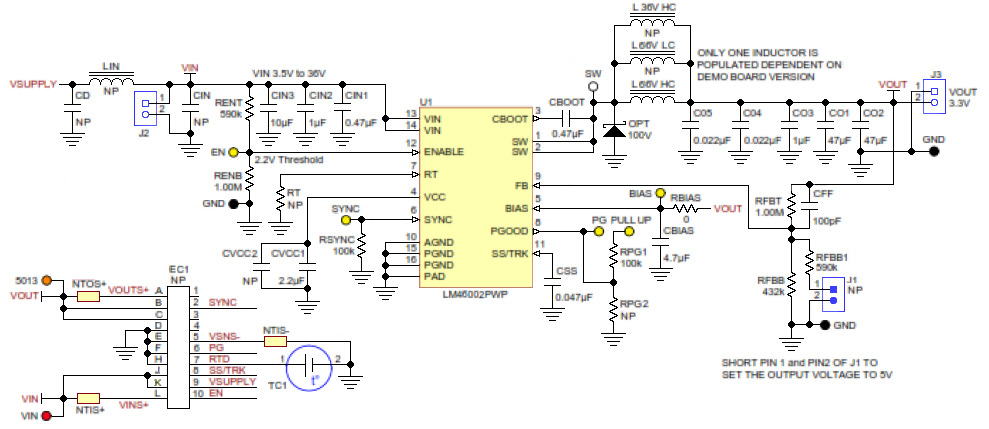

The LM46002EVM is configured for an output voltage of 3.3 V and a switching frequency of 500 kHz.

Refer to the LM46002 datasheet for additional features, detailed description and available options.

Specifications

Manufacturer	Texas Instruments
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	296-37859-ND
Eval Board Supplier	Texas Instruments
Eval Board	Normally In Stock
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	3.3 V
Current Out	2 A
Voltage In	3.5 ~ 60 V
Efficiency @ Conditions	>75%, 12V in, 3.3V @ 0.0018 ~ 2 A >72%, 18V in, 3.3V @ 0.0016 ~ 2 A >70%, 28V in, 3.3V @ 0.0022 ~ 2 A >70%, 24V in, 3.3V @ 0.0018 ~ 2 A
Voltage Out Range	1 ~ 28 V
Features	Current Limit (Adj. or Fixed) Power Good Output Pre-Biased Startup Short Circuit Protection Shutdown, Enable, Standby Soft Start Synchronizable Thermal Protection Voltage Tracking
Switching Frequency	500 kHz
Standby Current [Typical]	2.3 µA
Quiescent Current [Typical]	7 µA
Component Count + Extras	24 + 14
Internal Switch	Yes
Design Author	Texas Instruments
Application / Target Market	Automotive Point of Load (PoL) Power: Auxiliary Power Supply Power: Industrial Power Telecom
Standby Current [Maximum]	5 µA
Quiescent Current [Maximum]	12 µA
Main I.C. Base Part	LM46002
Date Created By Author	2014-03
Date Added To Library	2015-01
