RDK-242: 30W, 12V @ 2.5A, 85 ~ 264VAC

Summary

This engineering report describes a power supply employing the Power Integrations® TOPSwitch®-JX TOP266VG. This power supply operates over a universal input range and provides a 12 V, 30 W output. It has been designed and tested to operate open frame with an ambient temperature environment of up to 40 °C.

The TOPSwitch-JX, by design, maintains virtually constant efficiency across a very wide load range without using special operating modes to meet specific load thresholds. This optimizes performance for existing and emerging energy-efficiency regulations. Maintaining constant efficiency ensures design optimization for future energy-efficiency regulation changes without the need for redesign.

Specifications

Manufacturer Power Integrations
Category AC/DC and DC/DC Conversion
Sub-Category AC/DC SMPS - Single Output
Eval Board Part Number 596-1312-ND
Eval Board Supplier Power Integrations
Eval Board Board not Stocked
AC Voltage 115 V
230 V
Universal (115 / 230V)
Outputs and Type 1 Isolated
Voltage Out 12 V
Current Out 2.5 A
Output Power 30 W
Features Over Current Protection
Over Voltage Protection
Short Circuit Protection
Thermal Protection
Under Voltage Protection, Brown-Out
Efficiency @ Conditions >84%, 230V in, 12V @ 0.5 ~ 2.5 A
>84%, 115V in, 12V @ 0.25 ~ 2.5 A
No-load Input Power @ Voltage 62 mW @ 115 V
75 mW @ 230 V
Switching Frequency 132 kHz
Internal Switch Yes
Component Count + Extras 46 + 7
Voltage In 85 ~ 264 VAC
Design Author Power Integrations
Application / Target Market Power: AC Adapters
Set-Top Boxes
Main I.C. Base Part TOP266
Date Created By Author
Date Added To Library 2011-03

Eval Board

Order a fully assembled board:

Quantity Available: 0

Quantity:

Support Documents & Media

RDK-242 - User Guide TOP264-274 TOPSWITCH-JX - Datasheet TOPSwitch-JX - Application Note

Media

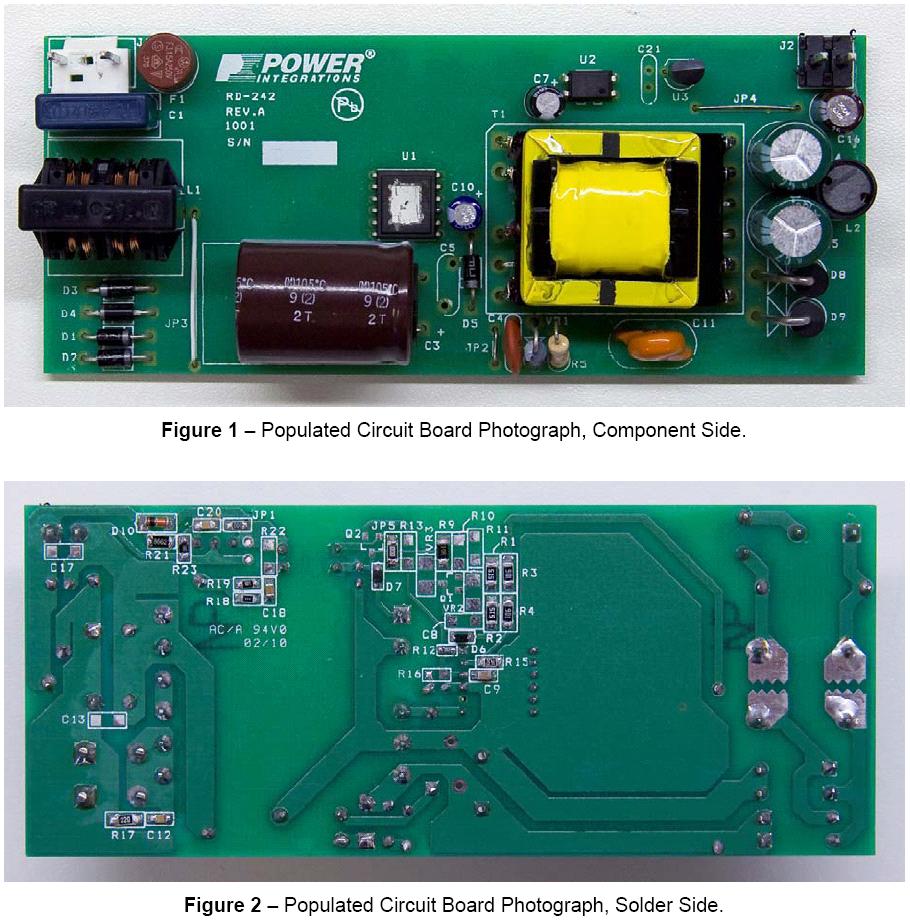

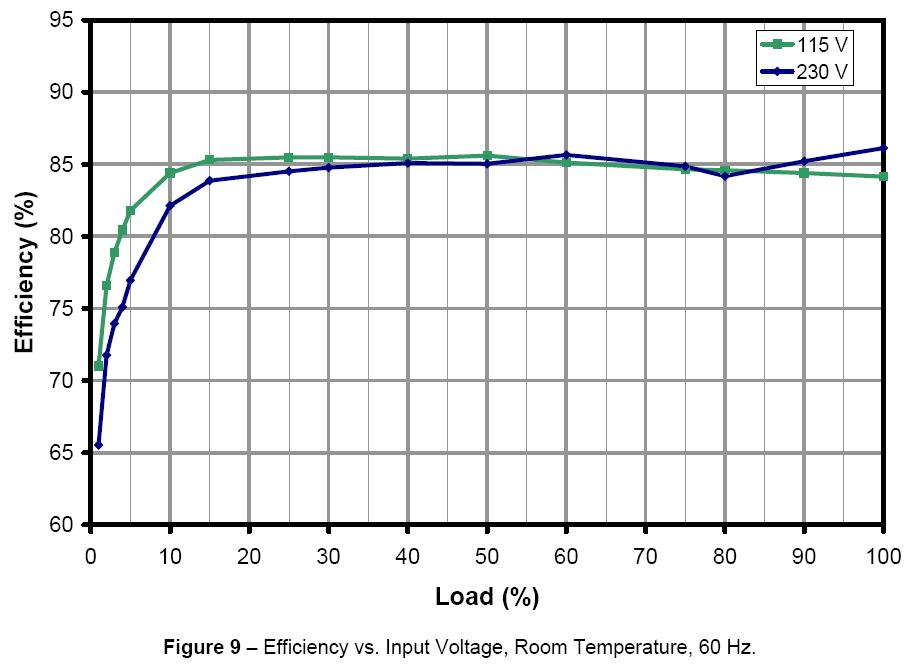

RDK_242_Schematic.JPG RDK_242_Board.JPG RDK_242_Chart.JPG
