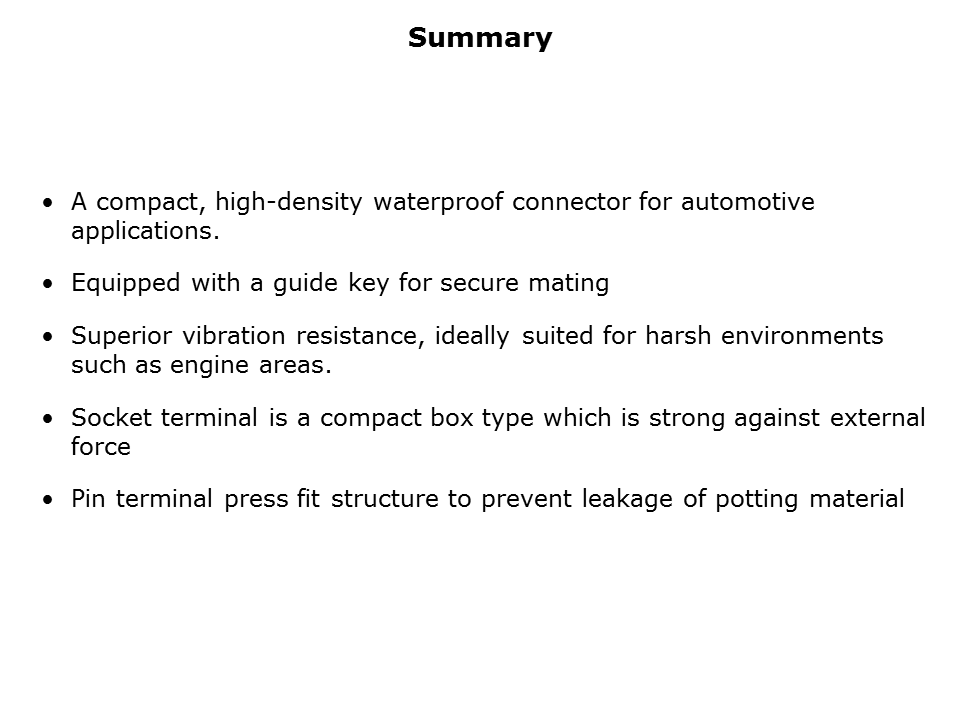

MX47-Slide9

In summary, JAE’s MX47 series is a robust compact, high-density waterproof connector for automotive applications. It is equipped with a guide key for a secure mating. It also has superior vibration resistance, ideally suited for harsh environments such as engine areas for vehicles. The socket terminal for the MX47 series is a compact box type which is strong against an external force, while the pin terminal has a press-fit structure in order to prevent leakage of potting material.

PTM Published on: 2016-02-29
