            Design Evaluation Boards (DEBs)
                    Knowles DEBs include a device mounted onto a 10 mil thick Rogers RO4350B circuit board with an aluminum base plate and connectors at each I/O port


Knowles DEBs are an excellent way to test the assembled performance of DLI devices in a connectorized module. Each DEB includes a device mounted onto a 10 mil thick Rogers RO4350B circuit board with an aluminum base plate and connectors at each I/O port. The filters, couplers, and dividers in the DEBs utilize DLI's high dielectric ceramic materials to deliver small size and minimal performance variation over temperature. DLI Microwave product devices are offered in a variety of frequency bands, demonstrating a range of useful performance for RF and microwave applications.

Features

Fully assembled test board for evaluation of DLI devices

Maximum temperature for exposure: +150°C
DEBs are not RoHS compliant due to SnPb solder used to attach the part to the board (and for filters, solder for attaching the integrated shielding, RoHS compliant per exemption 7a)

DEBs for filters

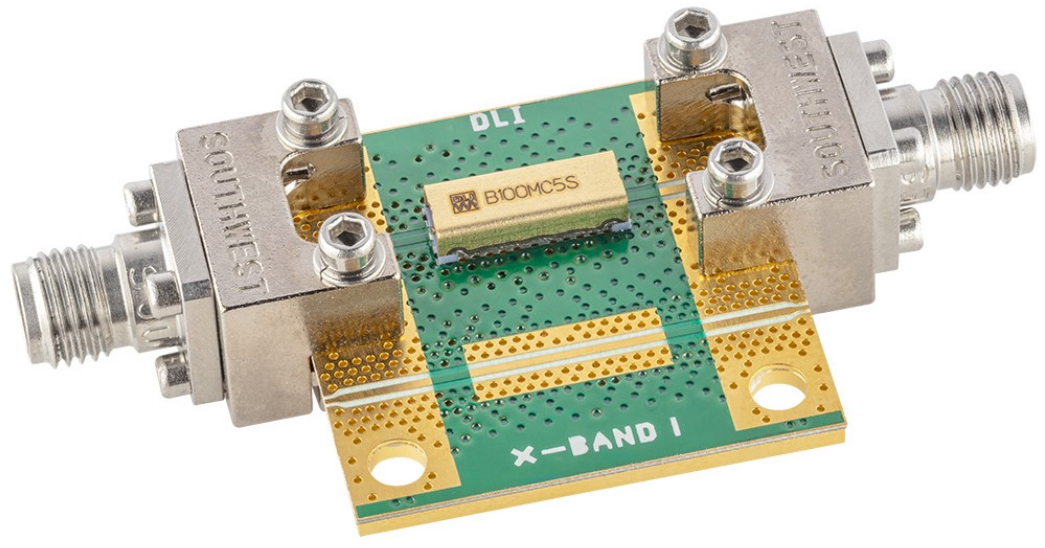

Assembled filter on a 10 mil thick Rogers RO4350B PCB with aluminum baseplate with board dimensions 1" x 1" (2 mm x 2.92 mm female connectors)
Thru-line included in some board designs per table

DEBs without a thru-line are similar to the image, but the part and connectors are centered
Integrated filter shielding assembled with high melting point Pb-based solder

Filter assembled onto DEB with SnPb eutectic solder

DEBs for couplers

Assembled coupler on a 10 mil thick Rogers RO4350B PCB with aluminum baseplate with board dimensions 1" x 1" with SnPb eutectic solder

DEBs for power dividers

Assembled power divider on a 10 mil thick Rogers RO4350B PCB with aluminum baseplate
2.92 mm female connectors

Design Evaluation Boards

Manufacturer Part Number	Description	Type	Frequency	Available Quantity	Price	View Details
DEB06407	EVAL BOARD FOR PDW06407	Power Divider	2GHz ~ 18GHz	4 - Immediate	$546.29	View Details
DEB05758	EVAL BOARD FOR PDW05758	Power Divider	6GHz ~ 18GHz	3 - Immediate	$546.29	View Details
DEB-B385MD0S	EVAL BOARD FOR B385MD0S	Filter	38.5GHz	6 - Immediate	$567.49	View Details
DEB-L065XG9S	EVAL BOARD FOR L065XG9S	Filter	6.5GHz	2 - Immediate	$614.83	View Details
DEB-B083LB6S	EVAL BOARD FOR B083LB6S	Filter	8.25GHz	4 - Immediate	$633.99	View Details
DEB-B080MB5S	EVAL BOARD FOR B080MB5S	Filter	8GHz	3 - Immediate	$639.20	View Details
DEB-B096QC2S	EVAL BOARD FOR B096QC2S	Filter	10GHz	1 - Immediate	$642.67	View Details
DEB-B056RC4S	EVAL BOARD FOR B056RC4S	Filter	5.6GHz	3 - Immediate	$666.91	View Details
DEB-B095MB1S	EVAL BOARD FOR B095MB1S	Filter	9.5GHz	1 - Immediate	$675.55	View Details
DEB-B028RF2S	EVAL BOARD FOR B028RF2S	Filter	2.8GHz	1 - Immediate	$711.66	View Details
DEB06089	EVAL BOARD FOR PDW06089	Power Divider	6GHz ~ 18GHz	2 - Immediate	$435.38	View Details
DEB07691	EVAL BOARD FOR PDW07691	Power Divider	18GHz ~ 20GHz	2 - Immediate	$435.38	View Details
DEB07183	EVAL BOARD FOR FPC07183	Coupler	24GHz ~ 33GHz	3 - Immediate	$501.80	View Details
DEB-B150OG0S	EVAL BOARD FOR B150OG0S	Filter	14.5GHz	0 - Immediate	$611.34	View Details
DEB-L204XF4S	EVAL BOARD FOR L204XF4S	Filter	20.4GHz	0 - Immediate	$623.55	View Details
DEB-L288XC3S	EVAL BOARD FOR L288XC3S	Filter	28.8GHz	0 - Immediate	$647.88	View Details
DEB-B055NC5S	EVAL BOARD FOR B055NC5S	Filter	5.5GHz	0 - Immediate	$656.55	View Details
DEB-B120MB1S	EVAL BOARD FOR B120MB1S	Filter	12GHz	0 - Immediate	$658.27	View Details
DEB-L095XG9S	EVAL BOARD FOR L095XG9S	Filter	9.5GHz	4 - Immediate	$623.55	View Details
DEB-L157XG3S	EVAL BOARD FOR L157XG3S	Filter	15.7GHz	2 - Immediate	$623.55	View Details
