E9X-RUV-3HOTP 5 A 902 MHz Fixture Controller Relay

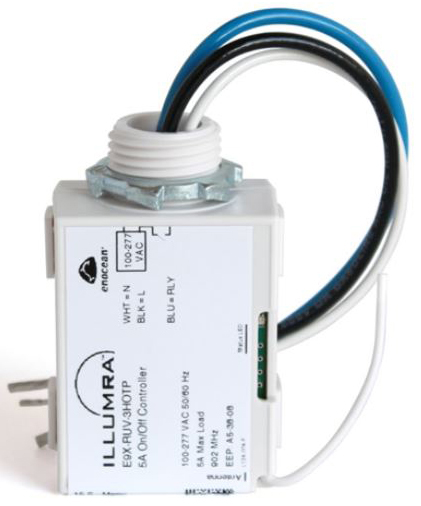

ILLUMRA’s E9X-RUV-3HOTP three-wire relay can control the on/off function of a light or ¼ hp motor. The E9X-RUV-3HOTP uses a 902 MHz EnOcean protocol and can receive a signal from a switch or sensor up to 150 feet away. ILLUMRA controllers and relays have a repeater feature that can be activated to extend a switch or sensor signal an additional 150 feet. This repeater function can be performed twice per signal, extending the total range from a switch or sensor to relay to up to 450 feet.

The E9X-RUV-3HOTP on/off relay can receive up to 25 different switch and sensor signals, opening a wide variety of building control or building management capabilities and applications.

ILLUMRA controllers and relays are BACnet compatible, allowing the incorporation of information into a current building management system (BMS). ILLUMRA 902 MHz relays and controllers are made in the USA and qualify for Buy American Act (BAA) opportunities.

ILLUMRA wireless light switches use kinetic energy, so they require no wires and no batteries to operate.

Linking the switches and relays takes just a few seconds; simply press a button on the relay, then press the switch's ON button three times and it is linked. ILLUMRA can pre-link controllers and relays to wireless switches in advance. ILLUMRA also has a scan and link app designed to support the installation of wireless controls and adjustments to behavior and zoning even after a project is complete. Available on Android or iOS, the scan and link app allows for easy customization and setup of functions for small and large projects.
