6 W Isolated DC/DC Converter - PQDE6W-U Series

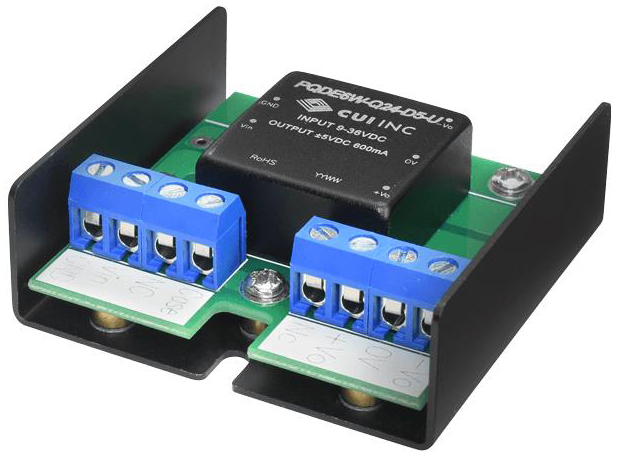

CUI's PQDE6W-U series comes in a rugged U-frame package ideal for use in harsh environments
Producing 6 W of continuous power, CUI's PQDE6W-U series is a family of isolated DC-DC converters housed in a compact chassis mount package designed with easy installation in mind. These low-profile modules feature a 4:1 input voltage range and are available in both single and dual regulated output models. Featuring a wide -40°C to +85°C operating temperature range and 9 VDC to 36 VDC or 18 VDC to 75 VDC input voltage range options, this series is suitable for renewable energy, railway, and industrial applications.
Features
- Wide 4:1 wide input range
- U-frame mounting
- Single and dual output models
- -40°C to +85°C industrial operating temperature range
- Same-side input and output connections
- Input undervoltage, output short-circuit, overcurrent, and overvoltage protections
- High efficiency up to 88%
- 1,500 VDC isolation
- EN/BS EN 62368-1 Certified
Applications
- IoT
- Consumer
- Medical
- Renewable energy
- Railway
- Industrial
6 W Isolated DC/DC Converter - PQDE6W-U Series
| Image | Manufacturer Part Number | Description | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|---|---|---|
 |  | PQDE6W-Q48-S15-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 1 | 20 - Immediate | $39.57 | View Details |
| | PQDE6W-Q48-D15-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 2 | 13 - Immediate | $39.57 | View Details |
| | PQDE6W-Q48-S12-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 1 | 30 - Immediate | $39.57 | View Details |
| | PQDE6W-Q48-D5-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 2 | 32 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-S3-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 1 | 0 - Immediate | $36.87 | View Details |
| | PQDE6W-Q24-D15-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 2 | 2 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-D12-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 2 | 29 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-S24-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 1 | 2 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-S9-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 1 | 4 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-S5-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 1 | 0 - Immediate | $36.87 | View Details |
| | PQDE6W-Q48-D12-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 2 | 35 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-D24-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 2 | 37 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-S12-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 1 | 0 - Immediate | $36.87 | View Details |
| | PQDE6W-Q48-S3-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 1 | 13 - Immediate | $39.57 | View Details |
| | PQDE6W-Q48-S24-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 1 | 35 - Immediate | $39.57 | View Details |
| | PQDE6W-Q24-D5-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 2 | 0 - Immediate | $36.87 | View Details |
| | PQDE6W-Q24-S15-U | DC-DC ISOLATED, 6 W, 9~36 VDC IN | 9V | 36V | 1 | 18 - Immediate | $39.57 | View Details |
| | PQDE6W-Q48-S5-U | DC-DC ISOLATED, 6 W, 18~75 VDC I | 18V | 75V | 1 | 16 - Immediate | $39.57 | View Details |
Published: 2023-01-17
