AIR-030-B90A1 AI Inference System

Advantech's AIR-030 offers next-level artificial intelligence (AI) performance for next-gen Edge-AI systems

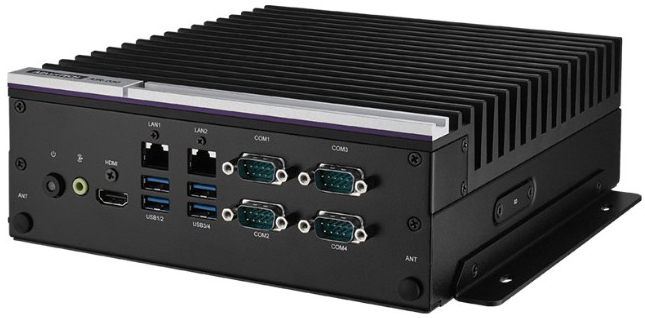

Image of Advantech’s AIR-030-B90A1 AI Inference SystemAdvantech's AIR-030-B90A1 high-performance Edge-AI inference system based on NVIDIA® Jetson AGX Orin™ AI engine provides up to 275 TOPs AI processing power. The system has various industrial I/O, including 3x LAN, DIO, 4x COM, 4x USB 3.2 and USB Type-C®, optional dual PoE GbE LAN, and PCIe® x16 expansion slot. This system is ideal for vision AI applications such as robotic arm control, AMR, vision security, and others.

Features
  • Compact and high-performance AI box
  • NVIDIA Jetson AGX Orin 64 GB and 32 GB modules
  • Multiple IO ports: LAN, DIO, COM, CANBus, USB 3.2, and USB Type-C
  • Input voltage: 9 V to 36 V
  • Operating temperature: -10°C to +60°C
  • Versatile expansions with M.2 B key, M.2 E key, SD, PCIe x16 (optional) support
  • Support Linux Ubuntu 20.04 LTS and JetPack SDK 5.1 and above
  • IEC 61000-6-4 heavy industry certificate
Applications
  • AGV/AMR service robots
  • Industrial robotics
  • Smart factories
  • Video AI surveillance

AIR-030-B90A1 AI Inference System

ImageManufacturer Part NumberDescriptionAvailable QuantityPriceView Details
EDGE AI NVIDIA AGX ORIN 32G INFEAIR-030-B90A1EDGE AI NVIDIA AGX ORIN 32G INFE3 - Immediate$3,943.45View Details
Published: 2023-09-12
