MM2-MR, MM2-LV-T, MM2-T User, Referenece Manual Datasheet by FreeWave Technologies

Datasheet Feedback/Errors

FREEWA\.I.E

Part Number: LUM0014AB

Revision: Apr-2018

User & Reference Manual

MM2-MR, MM2-LV-T, MM2-T

Wireless Data Radios

MM2-MR-R MM2-MR-T MM2-LV-T MM2-T

MM2-MR-R-U MM2-MR-T-U MM2-LV-T-U MM2-T-U

MM2-MR-SR MM2-LV-T-LF MM2-T-LF

Covering Firmware v10.7.04

9 www freewave.com

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Warranty Information

FreeWave Technologies, Inc. warrants your FreeWave® Wireless Data Radio against defects in materials and

manufacturing for a period of two years from the date of shipment, depending on model number. In the event of a

Product failure due to materials or workmanship, FreeWave will, at its discretion, repair or replace the Product.

For evaluation of Warranty coverage, return the Product to FreeWave upon receiving a Return Material

Authorization(RMA).

IN N O EVENT WILL FREEWAVE TEC H NOLOGIES, IN C., IT S SU PPLIE R S,O R IT S LIC EN SO RS B E LIABLE F OR AN Y

D AM AGE S A RISIN G F R OM T H E U SE OF OR IN ABIL IT Y T O U SE T H IS PRODUCT. TH IS IN CLUD ES BUSIN ESS

INT ER R U PT IO N,L OS S OF B USIN ESS IN F OR MAT ION ,OR OT H ER LOSS W H IC H M AY AR ISE F R OM T H E U SE OF T H IS

PRODUCT. OEM C U ST OM ER ’S W AR R AN T Y P ERIOD S C AN V AR Y.

Warranty Policy will not apply in the following circumstances:

1. If Product repair, adjustments, or parts replacements are required due to accident, neglect, or undue

physical, electrical, or electromagnetic stress.

2. If Product is used outside of FreeWave specifications as stated in the Product's data sheet.

3. If Product has been modified, repaired, or altered by Customer unless FreeWave specifically authorized

such alterations in each instance in writing. This includes the addition of conformal coating.

Safety Information

The products described in this manual can fail in a variety of modes due to misuse, age, or malfunction. Systems

with these products must be designed to prevent personal injury and property damage during product operation

and in the event of product failure.

Warning! Do not remove or insert the Ethernet or diagnostics cable while circuit is live unless the

area is known to be free of ignition concentrations of flammable gasses or vapors.

Warning! Do not connect the MM2-MR, MM2-LV-T, MM2-T series radios to DC power without

terminating the antenna port to a suitable load, such as a 50 ohm antenna, or an attenuator with a

power rating greater than or equal to 2 W. Powering up without a load attached will damage the

radio and void the warranty.

FreeWave Technologies, Inc.

5395 Pearl Parkway, Suite 100

Boulder, CO 80301

303.381.9200

Toll Free: 1.866.923.6168

Fax: 303.786.9948

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Table Of Contents

Preface 8

1. Introduction 10

1.1. Choose a Radio Location 11

1.2. Choosing Point-to-Point or Point-to-MultiPoint Operation 11

1.2.1. Point-to-Point (PTP) Network 11

1.2.2. Point-to-MultiPoint (PTMP) Network 11

Differences between PTP and PTMP 12

1.3. Data Communication Link Examples 13

1.3.1. Example 1 - Point-to-Point Gateway to Endpoint 13

1.3.2. Example 2 - Gateway Repeater Endpoint 13

1.3.3. Example 3 - Two Repeaters 14

1.3.4. Example 4 - Multiple Radios 15

1.3.5. Example 5 - Point-to-MultiPoint 16

1.3.6. Example 6 - Point-to-MultiPoint with a Repeater Site 17

1.4. Finding the Product Serial Number 18

1.5. Identifying the Radio Model 19

1.5.1. MM2-T Model 19

1.5.2. MM2-MR Model 20

1.6. LED Layout 21

1.7. Powering the Radio 22

1.8. Antenna Considerations 22

1.8.1. Antenna Location 22

1.9. Configuration Tool Options 23

1.9.1. Tool Suite and Terminal Emulators 24

1.10. Radio Setup Mode 24

1.10.1. Using Tool Suite to Connect to and Program Radios 25

1.10.2. Access the Setup Menu Using a Terminal Emulator 27

1.10.3. Connecting and Disconnecting from HyperTerminal 28

1.10.4. Troubleshooting HyperTerminal 28

Change the COM Port 29

Change the Baud Rate 30

Change the Flow Control 31

Change the Parity 32

1.11. Upgrade the Radios to the Latest Software Version 33

2. Basic Radio Programming and Setup 34

2.1. Setting the Radio's Role in the Network and the Network Type 35

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.2. Establishing Communication with Instrumentation and Computers 38

2.2.1. Baud Rate 38

2.2.2. Data Parity 39

2.2.3. Flow Control 39

2.2.4. Modbus RTU 40

2.2.5. Serial Interface 41

2.2.6. Setup Port 41

2.2.7. Turn Off Delay 41

2.2.8. Turn On Delay 41

2.2.9. Use Break to Access Setup 42

2.3. Establishing Communication with Other Radios in the Network 43

2.3.1. Golden Settings 44

2.4. Designate the RF Transmission Characteristics 44

2.4.1. 900MHz Channel Select Parameters 45

Access to the Single Channel Mask 47

Example of Single Channel Mask 48

2.4.2. 900MHz Frequency Key (Golden Setting) 48

2.4.3. 900MHz Frequency Zones 49

900MHz Frequency Zones Table 50

Enable Frequency Zones in Tool Suite 51

Enable Frequency Zones using the Terminal Interface 51

2.4.4. High Noise 52

2.4.5. 900MHz Hop Table Size 52

2.4.6. 900MHz Hop Table Version 53

2.4.7. Max Packet Size and Min Packet Size (Golden Setting) 54

2.4.8. MCU Speed 55

2.4.9. Remote LED 56

2.4.10. Retry Time Out 56

2.4.11. RF Data Rate (Golden Setting) 57

2.4.12. RTS to CTS 57

2.4.13. Slave Security 59

2.4.14. Transmit Power 59

2.4.15. Transmit Rate 60

3. Configuring Point-to-MultiPoint Networks 62

3.1. Point to MultiPoint Network Characteristics 63

3.1.1. Golden Settings 63

3.1.2. Master to Slave Communications 63

3.1.3. Slave to Master Communications 63

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.2. Point-to-MultiPoint Network Quick Start 64

3.2.1. Point-to-MultiPoint Network Quick Start (Tool Suite) 64

3.2.2. Point-to-MultiPoint Network Quick Start (Terminal Interface) 65

3.3. Point-to-MultiPoint Operation LEDs 67

3.4. Overlapping MultiPoint Networks 68

3.5. Establishing Communication with Other Radios in a MultiPoint Network 68

3.5.1. Using the Network ID in MultiPoint Networks 68

3.5.2. Using the Call Book in MultiPoint Networks 69

3.5.3. Programming Point-to-MultiPoint Extended Call Book 70

3.6. Routing Communications through the Network 71

3.6.1. Assigning Subnet ID Values 71

Example 1: Subnet and Specific Path Communication 72

Example 2: Subnet and Communication Required through Repeaters 73

Example 3: Subnet and Optional Slave Communication 74

3.7. Setting Other MultiPoint Parameters 75

3.7.1. 1 PPS Enable Delay 75

Setup 1PPS Enable/Delay 75

Calibrate a Slave Radio in 1PPS Enable/Delay Mode 76

3.7.2. Diagnostics 76

3.7.3. DTR Connect 76

3.7.4. Local Mode 77

3.7.5. Master Packet Repeat 78

3.7.6. Master Packet Repeat in MultiPoint Networks with Repeaters 79

3.7.7. Max Slave Retry 79

3.7.8. Radio ID 79

3.7.9. Radio Name 80

3.7.10. Repeaters 80

3.7.11. Repeater Frequency 81

3.7.12. Retry Odds 81

3.7.13. Slave / Repeater 82

3.8. Reading Diagnostics in Tool Suite 83

4. Configuring Point-to-Point Networks 85

4.1. Point-to-Point Network Quick Start 85

4.1.1. Point-to-Point Network Quick Start (Tool Suite) 85

4.1.2. Point-to-Point Network Quick Start (Terminal Interface) 87

4.2. Point-to-Point Operation LEDs 89

4.3. Using the Call Book in Point-to-Point Networks 90

4.3.1. Setting the Call Book in Tool Suite 91

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

4.3.2. Setting the Call Book in the Terminal Interface 91

4.3.3. Programming Point-To-Point Extended Call Book to Use Three or Four Repeaters 93

5. Advanced Programming 94

5.1. Working with Parallel Repeaters 95

5.1.1. Repeaters Data Transmitted on the Same Frequency Key 95

5.1.2. Adding a Repeater to the Network 96

5.2. Setting and Changing Radio Passwords 97

5.2.1. Setting the Password 97

5.2.2. Changing a Password 97

5.2.3. Disable a Password 98

5.3. Enable and Set Up AES Encryption 98

5.3.1. Encryption (Strength) 99

5.3.2. Encryption Key 100

5.3.3. Encryption Channel Key 102

5.3.4. Troubleshooting AES Setup 102

5.4. Low Baud Rates 103

5.5. Multi-Master Sync 103

5.6. Time Divisible Multiple Access (TDMA) 103

6. Viewing Radio Statistics 104

6.1. Antenna Reflected Power 105

6.2. Noise Level 105

6.3. Number of Disconnects 105

6.4. Radio Temperature 105

6.5. Rate % (Receive Percentage Rate) 105

6.6. Signal Level 106

6.7. Transmit Current 106

7. MM2-MR, MM2-LV-T, MM2-T Wireless Data Radios Pinouts 107

7.1. Operational RS422 Information 107

7.2. Pinout Assignments and Descriptions 107

7.3. MM2-T and MM2-LV-T Board-Level Pinout 108

7.4. MM2-MR-R or MM2-MR-T Board-Level Pinout 110

8. Troubleshooting 112

8.1. Troubleshooting Flowchart 113

9. MM2-MR, MM2-LV-T, MM2-T Release Notes 114

9.1. Version v10.7.04 115

9.1.1. Access to the Single Channel Mask 116

Example of Single Channel Mask 117

9.2. Version v10.6.8 117

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

9.3. Version v10.6.7 118

9.4. Version v10.6.6 118

9.5. Version 8.78 119

9.6. Version 8.77 119

9.7. Version 8.73 119

9.8. Version 8.71 120

9.9. Version 8.70 120

9.10. Version 8.69 120

9.11. Version 8.68 (Initial Release) 120

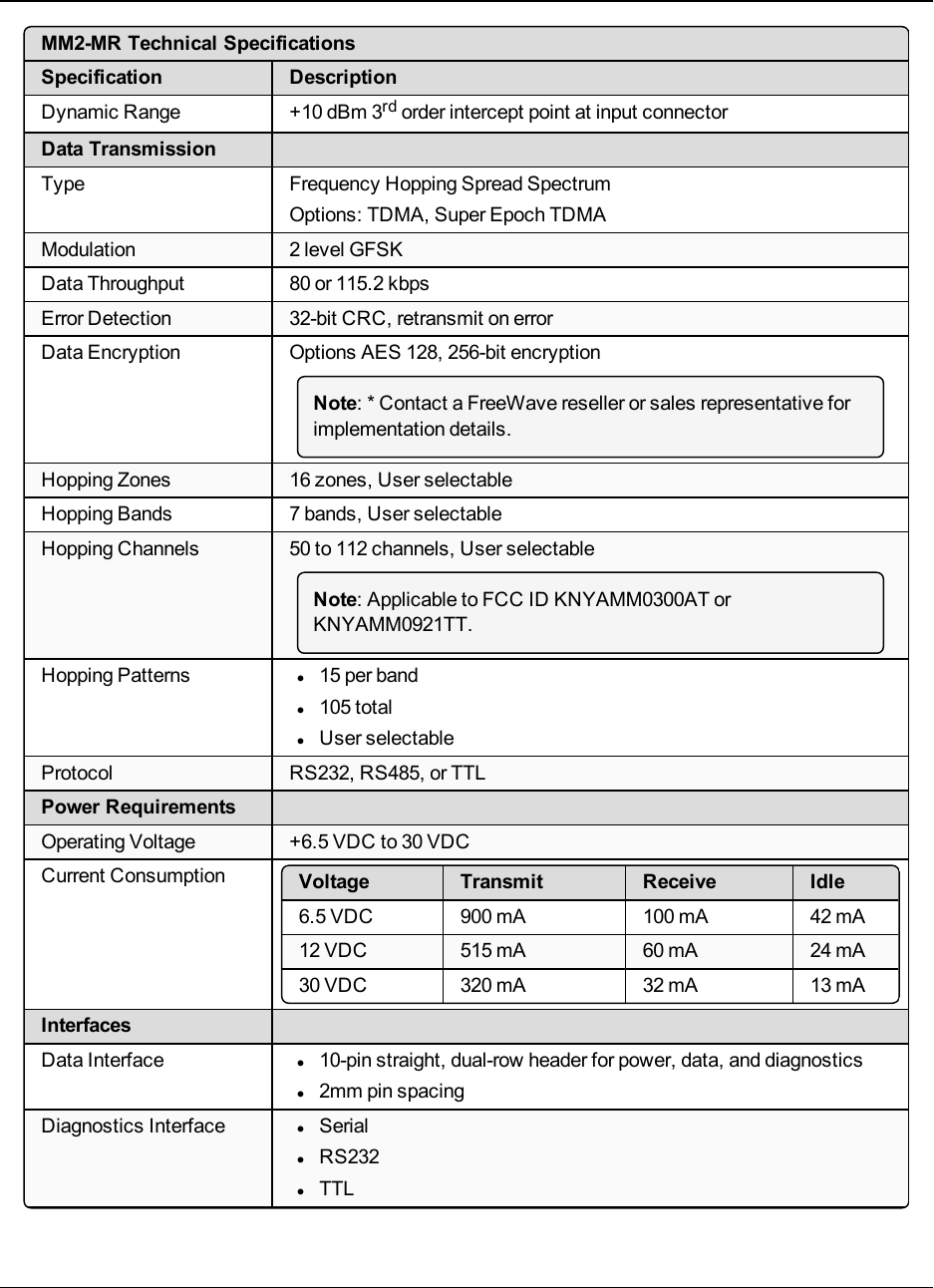

Appendix A: MM2-LV-T and MM2-LV-T-U Technical Specifications 121

Appendix B: MM2-MR Technical Specifications 123

Appendix C: MM2-T and MM2-T-U Technical Specifications 126

Appendix D: MM2-MR Mechanical Drawing 129

Appendix E: MM2-LV-T / MM2-T Mechanical Drawing 130

Appendix F: 900MHz Factory Default Settings 131

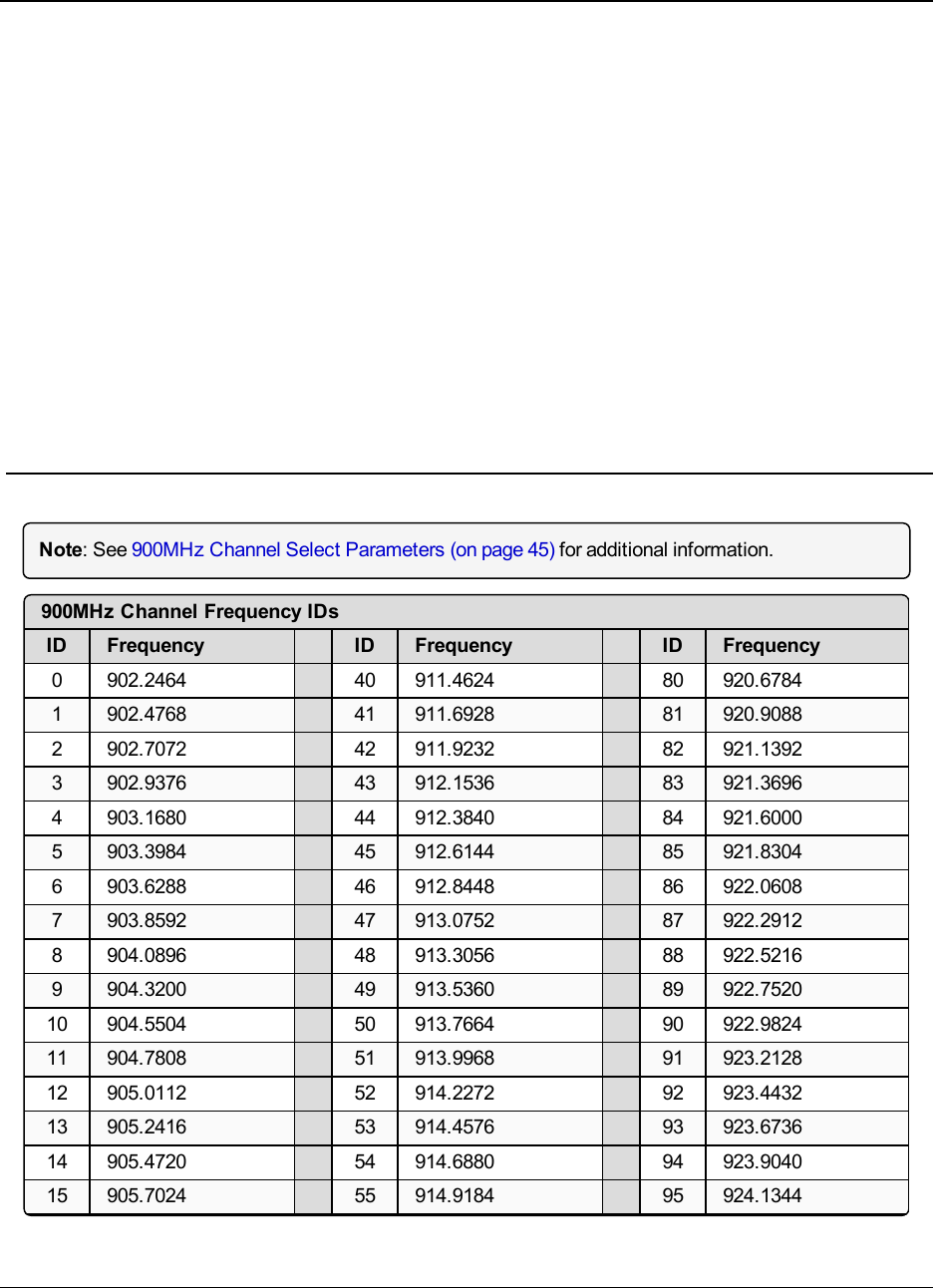

Appendix G: 900MHz Channel Frequency IDs 133

Appendix H: 900MHz Channel Frequency IDs - China 135

Appendix I: FreeWave Legal Information 136

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Preface

Thank you for purchasing the FreeWave MM2-MR, MM2-LV-T, MM2-T Wireless Data Radios

radio.

This document applies to these models in the MM2 series:

lMM2-MR-R lMM2-MR-T lMM2-LV-T lMM2-T

lMM2-MR-R-U lMM2-MR-T-U lMM2-LV-T-U lMM2-T-U

lMM2-MR-SR lMM2-LV-T-LF lMM2-T-LF

This document includes information about the FreeWave MM2-MR, MM2-LV-T, MM2-T serial

radio:

lA basic introduction to the radio and how to determine the mode to run it in.

lExamples of how FreeWave radios can exist in a network with other radios.

lHow to access the setup parameters available on the radio.

lBasic radio programming and setup information that applies to all network types.

lConsiderations and quick starts for the network design, including charts of LED meanings.

lDetails about defining a MultiPoint network including the use of Subnet IDs to route

information through the network.

lSteps to view statistics about a radio's performance.

lPinouts and mechanical drawings.

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

www.freewave.com mor ‘nfo@freewave om Caution: Indicates a situation that MAY cause damage to personnel, the radio, data, or network. Example: Provides example information of the related text. FREEWAVE Recommends: Identifies FreeWave recommendation information. ‘ lmportantl: Provides semi-cautionary information relevant to the text or procedure. ‘ Note: Emphasis of specxfic information relevant to the text or procedure. \. - I, @ Provides time saving or informative suggestions about using the product. ®

Preface MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Contact FreeWave Technical Support

For up-to-date troubleshooting information, check the Support page at www.freewave.com.

FreeWave provides technical support Monday through Friday, 8:00 AM to 5:00 PM Mountain

Time (GMT -7).

lCall toll-free at 1.866.923.6168.

lIn Colorado, call 303.381.9200.

lContact us through e-mail at moreinfo@freewave.com.

Document Styles

This document uses these styles:

lFreeWave applications appear as: FreeWave.

lParameter setting text appears as: [Page=radioSettings]

lFile names appear as: configuration.cfg.

lFile paths appear as: C:\Program Files (x86)\FreeWave Technologies.

lUser-entered text appears as: xxxxxxxxx.

Caution: Indicates a situation that MAY cause damage to personnel, the radio, data, or

network.

Example: Provides example information of the related text.

FREEWAVE Recommends: Identifies FreeWave recommendation information.

Important!: Provides semi-cautionary information relevant to the text or procedure.

Note: Emphasis of specific information relevant to the text or procedure.

Provides time saving or informative suggestions about using the product.

Warning! Indicates a situation that WILL cause damage to personnel, the radio, data, or

network.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

1. Introduction

FreeWave serial radios are DCE (Data Communications Equipment) radios that operate in

virtually any environment where data communications occur. The radios act as data transmission

devices, duplicating data in either Point-to-Point or Point-To-MultiPoint mode.

Figure 1: MM2-LV-T / MM2-T Figure 2: MM2-MR

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Note: FreeWave offers directional and Omni-directional antennas with cable lengths ranging from 3 to 200 feet. \\ ' I, An adjustment as little as 2 feet in antenna placement may resolve noise issues. In extreme cases, (e.g., Cellular Telephone tower interference) the band pass ﬁlters that . FreeWave offers may reduce out-of-band noise. lmportantl: For either a FTP or PTMP network, adding a Repeater cuts the network throughput by 50%. Note: A maximum of four Repeaters can be added to extend the reach of the network.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.1. Choose a Radio Location

Placement of the FreeWave radio may have a significant impact on its performance. The key to

the overall robustness of the radio link is the height of the antenna.

When using an external antenna, placement of that antenna is critical to a solid data link. Other

antennas in close proximity are a potential source of interference.

Use the Radio Statistics to help identify potential problems. In general, FreeWave units with a

higher antenna placement will have a better communication link.

In practice, the radio should be placed away from computers, telephones, answering machines,

and other similar devices. The cable included with the radio provides ample distance for

placement away from other equipment.

Note: FreeWave offers directional and Omni-directional antennas with cable lengths ranging from 3

to 200 feet.

An adjustment as little as 2 feet in antenna placement may resolve noise issues.

In extreme cases, (e.g., Cellular Telephone tower interference) the band pass filters that

FreeWave offers may reduce out-of-bandnoise.

1.2. Choosing Point-to-Point or Point-to-MultiPoint Operation

Important!: For either a PTP or PTMP network, adding a Repeater cuts the network throughput by

50%.

1.2.1. Point-to-Point (PTP) Network

A PTP network work best when the network consists of one Master and one Slave radio.

Note: A maximum of four Repeaters can be added to extend the reach of the network.

1.2.2. Point-to-MultiPoint (PTMP) Network

In a PTMP network (also referred to as MultiPoint network) the Master radio is able to

simultaneously communicate with numerous Slave radios.

lA MultiPoint network functions with the Master broadcasting its messages to all Slave

radios.

lIf requested by the Master, the Slave radios respond to the Master when given data by the

device connected to the data port. The response depends on the setup.

lThe network reach can be extended with as many Repeaters as is required.

Example: If the network polls once a day to retrieve sparse data, several hundred Slave radios could be configured to a single Master. However, if each Slave transmits larger amounts of data or data more frequently, fewer Slave radios can link to the Master while receiving the same network performance. When larger amounts of data are sent more frequently, the overall network bandwidth is closer to capacity with fewer Slave radios.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Differences between PTP and PTMP

lIn a Point-to-Point network all packets are acknowledged, whether sent from the Master to

the Slave or from the Slave to the Master.

lIn a MultiPoint network, the user determines the number of times outbound packets from

the Master or Repeater to the Slave or other Repeaters are sent.

lThe receiving radio, Slave or Repeater, accepts the first packet received that passes the

32 bit CRC. However, the packet is NOT acknowledged.

lOn the return trip to the Master, all packets sent are acknowledged or retransmitted until

they are acknowledged.

lTherefore, the return link in a MultiPoint network is generally very robust.

Traditionally, a MultiPoint network is used in applications where data is collected from many

instruments and reported back to one central site. The architecture of such a network is different

from Point-to-Point applications. These parameters influence the number of radios that can exist

in a MultiPoint network:

lData block size.

lThe longer the data blocks, the fewer number of deployed Slave radios can exist in the

network.

lBaud rate.

lThe data rate between the radio and the device it is connected to could limit the amount

of data and the number of radios that can exist in a network

lThe amount of contention between Slave radios.

lPolled Slave radios versus timed Slave radios.

lRepeater Use.

lUsing the Repeater setting in a Point-to-Point or MultiPoint network decreases overall

network capacity by 50%.

Example: If the network polls once a day to retrieve sparse data, several hundred Slave radios could

be configured to a single Master.

However, if each Slave transmits larger amounts of data or data more frequently, fewer Slave radios

can link to the Master while receiving the same network performance.

When larger amounts of data are sent more frequently, the overall network bandwidth is closer to

capacity with fewerSlave radios.

Note: Adding Repeaters to a network cuts me network rhmughput by 50%. ; ;

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.3. Data Communication Link Examples

lExample 1 - Point-to-Point Gateway to Endpoint (on page 13)

lExample 2 - Gateway Repeater Endpoint (on page 13)

lExample 3 - Two Repeaters (on page 14)

lExample 4 - Multiple Radios (on page 15)

lExample 5 - Point-to-MultiPoint (on page 16)

lExample 6 - Point-to-MultiPoint with a Repeater Site (on page 17)

1.3.1. Example 1 - Point-to-Point Gateway to Endpoint

The versatility of FreeWave radios allows data links to be established using a variety of different

configurations.

This example shows the most common and straight forward link; a Master communicating to a

Slave in a Point-to-Point link.

Figure 3: Master Communicating to a Slave in a Point-to-Point Link

1.3.2. Example 2 - Gateway Repeater Endpoint

This example shows a link using a Repeater.

lThe Repeater may be located on a hilltop or other elevated structure enhancing the link

from the Master to the Slave.

lIn this configuration, it may be desirable to use an external Omni directional antenna at the

Repeater.

lA Yagi antenna may be used at both the Master and Slave radios.

Note: Adding Repeaters to a network cuts the network throughput by 50%.

Figure 4: Master Communicating to a Slave in a Point-to-Point Link with a

Repeater

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.3.3. Example 3 - Two Repeaters

This example shows a link with two Repeaters between the Master and Slave.

lWith two Repeaters there is more flexibility in getting around obstacles and greater total

range is possible.

lIt may be desirable to use external Omni-directional antennas with the Repeaters, and

attaching a Yagi antenna to the Master and Slave radio to increase the range of the link.

lWhen two Repeaters are used no further degradation in the RF throughput of the link is

experienced.

Figure 5: Master Communicating to a Slave in a Point-to-Point Link with Two

Repeaters

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.3.4. Example 4 - Multiple Radios

This example shows a configuration where a Master radio routinely calls a number of Slave radios

at different times.

lThe Master radio is communicating with a radio designated as a Slave/Repeater that is

connected to a remote device.

lSince this device is placed in an elevated location, the radio may also be used as a

Repeater when it is not used as a Slave.

lAt any time the Master may call any of the Slave radios, establish a connection, and send

and receive data.

Figure 6: Master Communicating to Multiple Slave Radios at Different Times

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.3.5. Example 5 - Point-to-MultiPoint

This example illustrates a standard Point-to-MultiPoint network.

lFrom the Master, any data is broadcast to all three Slave radios, one of which receives it

through a Multipoint Repeater.

lThe data is sent out of the serial port of each of the three Slave radios.

lThe end device should be configured to interpret the serial message and act on it if

necessary.

Figure 7: Master Communicating in a Point-to-MultiPoint Network

Mu Slave] Repeater

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.3.6. Example 6 - Point-to-MultiPoint with a Repeater Site

This example is a Point-to-MultiPoint network that uses one of the sites as a Slave/Repeater.

lThis network functions in the same manner as a standard MultiPoint network with

Repeaters.

lHowever, the number of radios may be reduced with the use of the MultiPoint

Slave/Repeater feature.

Figure 8: Master Communicating in a Point-to-MultiPoint Network using a

Slave/Repeater

lmponantl: This number is needed to contact FreeWave Technical Support. Note: The example in this section is an image is of a GXM model. The serial number information is in the same location on different models. m «as x ext/124 Se ~ xxxrxxxx 2, * Sample lahle 'ar sxl lrr24 model The label en mm racm comalns me Correti model number am: my mum addlllorl lrlfcrnlallon lncllldlng regulatcrv le ,aslzs‘fizgdxlzl llllllllllllllllllllll lllllllllllll number is also on the back Slde of the — XXX-XXXX radio in larger print, 3081C

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.4. Finding the Product Serial Number

Each FreeWave radio is assigned a unique serial number.

Important!: This number is needed to contact FreeWave Technical Support.

The serial number is three digits, followed by a hyphen, then four digits (e.g., 111-1111), and is

printed on the FreeWave label on the radio.

Note: The example in this section is an image is of a GXM model.

The serial number information is in the same location on different models.

Figure 9: Example of the Serial Number for a GXM model

On radios that are not in an enclosure, the serial number is printed on a label on the back (the flat,

smooth side) of the radio.

This label is in larger print.

Figure 10: Example of the label and Serial Number of a non-enclosed radio

Note: The image is not to scale. Actua‘ Swze 2 Inches x14mches \50 8 mm x 36 mm\ Model Number ‘ . m m. 14-Pin Connector

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.5. Identifying the Radio Model

This manual covers the configuration settings for the MM2-T,MM2-LV-T,MM2-MR-R, and MM2-

MR-T models. There are slight differences in some of the settings for each model, and important

differences in the power requirements between models. Each of these differences are described

in detail where they apply in this manual.

To identify the radio model, look at these components:

lModel number on the label

lThe model number is printed on the FreeWave label on the radio.

lConnector - The serial connector on the radio helps to identify the model.

lIf the connector has 14 pins, the radio is an MM2-T or MM2-LV-T.

lIf the connector has 10 pins, the radio is an MM2-MR-R or MM2-MR-T.

lSize

lThe MM2-T and MM2-LV-T models are the smaller of the two models, at 2 inches x

1.4inches (50.8 mm x 36 mm).

lThe MM2-MR-R and MM2-MR-T models are larger, at 2.75 inches x 2.4 inches (70 mm x

62mm).

lThe MM2-MR-R and MM2-MR-T models have a larger interface board (see below).

1.5.1. MM2-T Model

Note: The image is not to scale.

Figure 11: MM2-T Components

Note: The image is not to scale. Inlerface Board 1D-Pin Connector Actual Size: 2 75 Inches x 24 Inches (70 mm x 62 mm)

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.5.2. MM2-MR Model

Note: The image is not to scale.

Figure 12: MM2-MR Components

Note: In an MM2-T, the LEDs are on the back side (side opposite the label) in the same orientation as shown in the image. The MM2-MR models contain the radio module installed shield side down on an interface board. From left to right: Carrier Detect (CD) Transmit (T x) Clear to Send (CTS) Note: For descriptions of the LED patterns and what they signify in a Point-to-MultiPoint and Point- to-Point network, see Point-to-MultiPoint Operation LEDs on page 67 or Point-to-Point Operation LEDs on page 89.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.6. LED Layout

The MM2-MR, MM2-LV-T, MM2-T contains three LEDs to help determine the state of the radio

link. This is the orientation of the LEDs on the radio:

Note: In an MM2-T, the LEDs are on the back side (side opposite the label) in the same orientation

as shown in the image.

The MM2-MR models contain the radio module installed shield side down on an interface board.

Figure 13: MM2 LED Layout

Note: For descriptions of the LED patterns and what they signify in a Point-to-MultiPoint and Point-

to-Point network, see Point-to-MultiPoint Operation LEDs on page 67 or Point-to-Point Operation

LEDs on page 89.

Model Power Supply MM2—LV—T +3.5 VDC (1 5%) MMZ—MR +6.0 m +30 VDC MM2—T +5.0 VDC ® Note: For more informalxon about pxnouls, see MM2—MR-R or MMZ-MR—T Board-Level Pinout (on page 110). \’/ Using both helps enhances rehable operalxon.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.7. Powering the Radio

Connect the radio to a positive power supply with:

Model Power Supply

MM2-LV-T +3.5 VDC (± 5%)

MM2-MR +6.0 to +30 VDC

MM2-T +5.0 VDC

Warning! When using an MM2-MR model, if the power supply is above approximately +18.0 to

+20.0 VDC, use a 1ohm resistor inline with B+ input to the radio.

Note: For more information about pinouts, see MM2-MR-R or MM2-MR-T Board-Level Pinout (on

page 110).

If the power supply line runs outside the enclosure, use:

lelectrostatic discharge (ESD) protectors to protect the radio from electric shock.

ltransient voltage suppressors (TVS) to protect from an over-voltage situation.

Using both helps enhances reliable operation.

1.8. Antenna Considerations

FreeWave offers many antenna options with cables in varying lengths. Consider the following

antenna characteristics when choosing an antenna:

lAntenna radiation patterns / antenna type

lCable loss

lDirectionality

lPolarization

lPower gain

Warning! Radios with FCC ID KNYAMM0300AT on the label are required to use only Omni

antennas with 6dBi gain or less.

1.8.1. Antenna Location

When using an external antenna, placement of the FreeWave radio's antenna is likely to have a

significant impact on the radio's performance. The key to the overall robustness of the radio link is

the height of the antenna. In general, FreeWave units with a higher antenna placement have a

better communication link.

However, a higher antenna may pick up more RF noise in the area, and other antennas in close

proximity could cause interference. An adjustment as little as 2 feet in antenna placement can

Note: Use the Radio Statistics, available in option 4 in the main Setup menu of the radio to help identify problems. Example: When using an LMR 400 cable on a 200 foot tower, loss in the cable mn alone is 8 dB over the 200 foot distance. \\ ' I, To help optimize the antenna location, have FreeWave complete a Path Study. Complete and submit the Path Study form available from a FreeWave sales representative. . Email the completed form to pathstudnyreewave.com. www.freewave.com Note: For more information about using Tool Suite, see the Tool Suite User Manual in the Tool Suite software. ll, Use the Setup Terminal application in Tool Suite to use and view the terminal menus. It shows the same menus and provides the same programming settings as you see using a . terminal emulator.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

resolve some noise problems. In extreme cases, such as when interference is due to a pager or

cellular tower, the band pass filters that FreeWave offers, may reduce this out-of-band noise.

Note: Use the Radio Statistics, available in option 4 in the main Setup menu of the radio to help

identify problems.

Also consider the following points when locating antennas:

lIdentify sites with clear Line of Sight.

lLong cable runs decrease signal and increase the amount of picked up noise.

Example: When using an LMR 400 cable on a 200 foot tower, loss in the cable run alone is 8 dB over

the 200 foot distance.

To help optimize the antenna location, have FreeWave complete a Path Study.

Complete and submit the Path Study form available from a FreeWave sales representative.

Email the completed form to pathstudy@freewave.com.

1.9. Configuration Tool Options

When the radio is in Setup mode, use these setup tools to configure the settings on the radio:

lTool Suite- Tool Suite is the recommended method for programming the radios.

lIt provides a group of tools for configuring the devices in the network and for monitoring

the network's performance.

lUse the Configuration application in Tool Suite to program changes to the radio's

settings.

lTool Suite is available for download from www.freewave.com.

Note: For more information about using Tool Suite, see the Tool Suite User Manual in the

Tool Suite software.

lTerminal Emulator - A terminal emulator program (e.g., HyperTerminal or Tera Term)

offers many of the same configuration options available in the Configuration application in

Tool Suite.

lIf running versions of the Windows® operating system prior to Windows® 7,

HyperTerminal is included in the operating system installation.

Use the Setup Terminal application in Tool Suite to use and view the terminal menus.

It shows the same menus and provides the same programming settings as you see using a

terminal emulator.

For OEMs and engineering firms that want to integrate the MM2-MR, MM2-LV-T, MM2-T into

their product, these approaches can be used for programming the MM2-MR, MM2-LV-T, MM2-T.

Example: Option I on the Setup main menu in the terminal menu setup is Set Operation Mode. The corresponding configuration tab for the device in Tool Suite is (0) Operation Mode. Mummmmu-iliwm market mmmmmm (mum . : mm W (a) 9mm“. mm . sf... mama mm ! [mm mum ! mum WM ; slamunvwae n I . om. u m Sn: rum. m. m w my mm WWW.“ m m m m m hm Mm rm ”mum.“ in) Show Radio stalls...s MM m an mum. mm m mun Hm m Chg mm WWW.“ in.) m 5W, mm" m [M mite , \\ '1, Use the Setup Terminal application in Tool Suite to use and view the terminal menus. It shows the same menus and provides the same programming settings as you see using a . terminal emulator. Note: In this document, if the setup procedure in the terminal emulator is different than the procedure in Tool Suite, the terminal instructions are also included. Note: OEM boards may also enter Setup when Pin 2 on a 10- or 14-pin connector or Pin 8 on a 24-pin connector is grounded, or using a break command. For information about the break command, see Use Break to Access Setup (on page 42).

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.9.1. Tool Suite and Terminal Emulators

If using a terminal emulator, the tabs for a device in Tool Suite mirror the Setup main menu

selections.

Example: Option 0on the Setup main menu in the terminal menu setup is Set Operation Mode.

The corresponding configuration tab for the device in Tool Suite is (0) Operation Mode.

Figure 14: Tool Suite menu Matched to Terminal menu

Use the Setup Terminal application in Tool Suite to use and view the terminal menus.

It shows the same menus and provides the same programming settings as you see using a

terminal emulator.

Note: In this document, if the setup procedure in the terminal emulator is different than the procedure

in Tool Suite, the terminal instructions are also included.

1.10. Radio Setup Mode

To read the current settings from or to program a radio, the radio must be in Setup mode. When a

radio is in Setup mode, all three LEDs appear solid green . These sections provide details

about how to access the radio's Setup mode using Tool Suite or the terminal interface.

Note: OEM boards may also enter Setup when Pin 2 on a 10- or 14-pin connector or Pin 8 on a 24-pin

connector is grounded, or using a break command.

For information about the break command, see Use Break to Access Setup (on page 42).

lThe Setup Port parameter on the Baud Rate tab determines whether the main data port

or the diagnostics port is used to access the setup parameters for the radio. For more

information, see Setup Port (on page 41).

Note: For Setup mode troubleshooting information, see Troubleshooting (on page 112). \ l I ‘ ’ Use Tool Suite to set up a template version of a radio. Templates include settings that apply to @ more than one radio in the network. Note: For more information about using templates, see the Tool Suite User Manual in the Tool Suite software. FREEWAVE Recommends: Using a diagnostic cable and the diagnostic port. Pm 14

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lUse the Setup Mode Timeout parameter on the Operation Mode tab to set the radio to

exit Setup Mode automatically. When the setting is enabled, if the radio has not received

any menu selections or programming information within 5 seconds, it exits Setup and

resumes its previous mode.

Note: For Setup mode troubleshooting information, see Troubleshooting (on page 112).

1.10.1. Using Tool Suite to Connect to and Program Radios

To read and program a radio using Tool Suite, connect the radio to a computer that runs the Tool

Suite software.

Use Tool Suite to set up a template version of a radio. Templates include settings that apply to

more than one radio in the network.

Note: For more information about using templates, see the Tool Suite User Manual in the Tool Suite

software.

Procedure

1. Connect a serial or diagnostic cable between the computer and the radio.

FREEWAVE Recommends: Using a diagnostic cable and the diagnostic port.

2. Connect the power supply to the radio and the power source and turn on the radio.

3. Open Tool Suite.

4. In the Applications window, click Configuration to open the Configuration application.

5. Verify the correct port is selected in the Com Port field on the Configuration ribbon.

6. Place the radio in Setup mode.

7. Short Pin 2 to ground.

Figure 15: MM2-LV-T / MM2-T

Pin Layout Figure 16: MM2-MR Pin Layout

Note: If usxng the Setup Terminal application ora terrmnal emulator and usxng the gray ribbon diagnostic cable (part number AC2009DC), orthe black diagnostic cable (part number ASCO409DC), the radio changes to Setup mode automatically when Read Radio is clicked in Tool Suite. Note: This option is only available if Read Radio is clicked and parameter settings are NOT sent from a template to the radio. Note: For more information about using Tool Suite, see the Tool Suite User Manual in the Tool Suite software.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

8. If using a data cable (FreeWave part number: ASC3610DB or ASC3610DJ), press the

Setup button on the data cable.

Note: If using the Setup Terminal application or a terminal emulator and using the gray

ribbon diagnostic cable (part number AC2009DC), or the black diagnostic cable (part number

ASC0409DC), the radio changes to Setup mode automatically when Read Radio is clicked

in Tool Suite.

All three LEDs on the radio are green and stay green as long as the radio is in Setup

mode.

9. On the Configuration ribbon, click Read Radio to read the radio's current settings.

10. Make the necessary parameter changes.

11. On the Network Title ribbon, use one of these options to send the changes to the radio:

lClick Quick to send only the changed parameters.

Note: This option is only available if Read Radio is clicked and parameter settings are

NOT sent from a template to the radio.

lClick All to send all the settings for all parameters.

lClick Default to set a device back to its factory default settings.

Note: For more information about using Tool Suite, see the Tool Suite User Manual in the Tool

Suite software.

Note: For more information about using Tool Suite, see the Tool Suite User Manual in the Tool Suite software. Setup Terminal com -© U conned Connection ‘ Pm 14

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.10.2. Access the Setup Menu Using a Terminal Emulator

This procedure accesses the radio's Setup menu using the Setup Terminal application in Tool

Suite.

Note: For more information about using Tool Suite, see the Tool Suite User Manual in the Tool

Suite software.

Procedure

1. Plug a serial cable into the COM 1 port on the radio.

2. Connect the cable to a COM port on the computer running Tool Suite.

3. Connect the radio to a power source.

4. Open Tool Suite.

5. On the Applications window, click Setup Terminal.

6. Click the Connection list box arrow in the top left of the window and select the COM port

on the computer the radio is connected to.

Figure 17: Connection list box

7. Click Connect.

8. Place the radio in Setup mode.

9. Short Pin 2 to ground.

Figure 18: MM2-LV-T / MM2-T

Pin Layout Figure 19: MM2-MR Pin Layout

Note: If using the Setup Terminal application ora terminal emulator and using the gray ribbon diagnostic cable (part number AC2009DC), orthe black diagnostic cable (part number ASC0409DC), the radio changes to Setup mode automatically when Read Radio is clicked in Tool Suite. lmportantl: When navtgating through the Setup menu and making changes to the parameters, the parameters are sent immediately to the radio. Ll g Note: If the settings have not been saved they must be re-selected when HyperTerminal reconnects to the radio. lmportantl: When a change is made to the HyperTerminal settings in an open terminal session, the connection must be disconnected then reconnected before the settings take effect.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

10. If using a data cable (FreeWave part number: ASC3610DB or ASC3610DJ), press the

Setup button on the data cable.

Note: If using the Setup Terminal application or a terminal emulator and using the gray

ribbon diagnostic cable (part number AC2009DC), or the black diagnostic cable (part number

ASC0409DC), the radio changes to Setup mode automatically when Read Radio is clicked

in Tool Suite.

All three LEDs on the radio are green and stay green as long as the radio is in Setup

mode.

Important!: When navigating through the Setup menu and making changes to the parameters, the

parameters are sent immediately to the radio.

1.10.3. Connecting and Disconnecting from HyperTerminal

The HyperTerminal dialog box has several toolbar buttons.

To reconnect to HyperTerminal, disconnect from the current session.

1. Click the Disconnect .

2. Click the Call to reconnect.

Note: If the settings have not been saved they must be re-selected when HyperTerminal reconnects

to the radio.

1.10.4. Troubleshooting HyperTerminal

These are some common issues encountered while using HyperTerminal as the terminal

emulator.

lThe steps to resolve the issue are specific to the HyperTerminal interface.

lSimilar steps can be used when troubleshooting other terminal emulators.

Important!: When a change is made to the HyperTerminal settings in an open terminal session, the

connection must be disconnected then reconnected before the settings take effect.

lChange the COM Port (on page 29).

lChange the Baud Rate (on page 30).

lChange the Flow Control (on page 31).

lChange the Parity (on page 32).

‘ Importanti: Nothing appears on me screen after placmg me radio into Setup mode. ‘ Note: For more information, see Setup Port (on page 41). Try connecting to the other pen.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Change the COM Port

Important!: Nothing appears on the screen after placing the radio into Setup mode.

This error usually indicates one of two things:

lThe wrong COM port is selected.

lA null modem cable is being used.

1. Click .

2. On the File menu, click Properties.

3. Click the Connect To tab.

4. Verify the correct COM port is selected.

5. Click OK to close the Properties dialog box.

6. Click .

7. Return the radio to Setup mode.

The Setup menu screen appears.

If the radio has been previously configured, the wrong port could be used to access the Setup

menu.

Note: For more information, see Setup Port (on page 41). Try connecting to the other port.

lmportantk Unrecogmzable characters appear on me screen after placxng me radio into Setup mode.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Change the Baud Rate

Important!: Unrecognizable characters appear on the screen after placing the radio into Setup mode.

lUnrecognizable characters usually indicate a Baud Rate problem.

lThe problem may also be that the radio under test is a TTL version or has been set to

RS485 and not RS232. If the radio is TTL or in RS485 mode, verify connection through the

Diagnostic port. Gibberish before the Setup button is pressed indicates Diagnostics is

enabled in a Master.

1. Click .

2. On the File menu, click Properties.

3. Click Configure.

4. Change these settings and click OK:

lBaud Rate to 19200

lData Bits to 8

lParity to None

lStop Bits to 1

lFlow Control to 1

5. Click OK to close the Properties dialog box.

6. Click .

7. Return the radio to Setup mode.

The Setup menu screen appears.

Importantl: The Setup menu appears on the screen, but nothmg happens when keys on me keyboard are pressed. @

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Change the Flow Control

Important!: The Setup menu appears on the screen, but nothing happens when keys on the

keyboard are pressed.

lThis error usually indicates flow control is turned on in a three-wire connection (Rx, Tx, and

Gnd).

Follow these steps if the connection uses a three-wire connection.

1. Click .

2. On the File menu, click Properties.

3. Click Configure.

4. Change the Flow Control to None, and click OK.

5. Click OK to close the Properties dialog box.

6. Click .

7. Return the radio to Setup mode.

The Setup menu screen appears.

lmportantl: A connection exists, the terminal emulator is receiving data, and some data is correct, but the remaining data is in unrecognizable characters.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Change the Parity

Important!: A connection exists, the terminal emulator is receiving data, and some data is correct,

but the remaining data is in unrecognizable characters.

lThis error usually indicates a parity mismatch.

lTo resolve this issue, verify the parity of the radio and the parity of HyperTerminal are set

the same.

lHyperTerminal’s parity settings are under the Properties menu.

lThe FreeWave radio parity is found under the Baud Rate menu in the Setup menu.

1. In HyperTerminal, click .

2. On the File menu, click Properties.

3. Click Configure.

4. Change the Parity to None, and click OK.

5. Click OK button to close the Properties dialog box.

6. Click .

7. Return the radio to Setup mode.

The Setup menu screen appears.

lmportanll: An over-lhe-air upgrade using Tool Suite is not allowed. FREEWAVE Recommends: If using a USB-lo—serial converter cable, a software upgrade can lake a long lime lo complete. Use USB-lo—serial cables lhat include the FTDI Chip Set lo shorten lhe upgrade lime. This inclusion is listed on the cables packaging. See the Application Note #5471 Optimizing Firmware Upgrade Speed While Using a USE- Serial Adaptor for additional information (available at www.freewave.com). Note: For more information about using Tool Suite, see lhe Tool Suite User Manual in the Tool Suite software.

1. Introduction MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

1.11. Upgrade the Radios to the Latest Software Version

If Tool Suite is connected to a radio, and a new version of the software is available for that radio

model, an indication appears in the Configuration application's Device Information tab.

Use Tool Suite to upgrade the software on a serial radio connected directly to the computer using

the diagnostic cable.

Important!: An over-the-air upgrade using Tool Suite is not allowed.

FREEWAVE Recommends: If using a USB-to-serial converter cable, a software upgrade can take

a long time to complete.

Use USB-to-serial cables that include the FTDI Chip Set to shorten the upgrade time.

This inclusion is listed on the cable's packaging.

See the Application Note #5471 Optimizing Firmware Upgrade Speed While Using a USB-

Serial Adaptor for additional information (available at www.freewave.com).

Note: For more information about using Tool Suite, see the Tool Suite User Manual in the Tool

Suite software.

Procedure

1. With the radio connected to the computer through the COM port, open Tool Suite.

2. In the Applications window, click Configuration to open the Configuration application.

3. In the Firmware area of the Configuration application, click Upgrade Radio.

4. Click Yes at the prompt to proceed.

Tool Suite identifies the software version loaded on the connected device and shows the

latest version of software available for that model.

5. Click Yes to continue with the upgrade.

The system shows the progress of the software upgrade.

After the firmware upgrade is complete, a message appears confirming that the software

upgrade was successful.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

2. Basic Radio

Programming and Setup

When setting up either a Point-to-MultiPoint network or a Point-to-Point network, the process for

setting up and programming a radio is the same.

This section describes these aspects of programming and setting up a radio:

lSetting the Radio's Role in the Network and the Network Type (on page 35).

lEstablishing Communication with Instrumentation and Computers (on page 38).

lEstablishing Communication with Other Radios in the Network (on page 43).

lDesignate the RF Transmission Characteristics (on page 44).

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

‘ Note: The network type must match for all radios in a network. When setting up the radio, rememberthat the settings on the Master control a number of parameters. Therefore, deploying the Master on the communications end where it is easier to access is ' advised, but not necessary. \\|I’ I Operation Mode Description Point-to-Point This mode designates the radio as the Master in Point-to-Point mode. Master (0) The Master may call any or all Slaves designated in its Call Book. In Point-to-Point mode the Master determines the setting used for most of the transmission characteristics, regardless of the settings in the Slave and/or Repeaters. The settings NOT determined by the Master are: . Hop Table settings . Retry Time Out . Slave Security . Transmit Power A quick method of identifying a Master is to powerthe radio. Prior to establishing a link with a Slave, all three of the LEDs on the Master are solid red O O O.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.1. Setting the Radio's Role in the Network and the Network

Type

Networks consist of a Master radio and any number of other components including Repeaters,

Slave radios, and radios that act as both a Slave and a Repeater. The first parameter to set in a

radio is its Operation or Modem mode.

The mode tells the radio what network type it is in (Point-to-Point or Point-to-MultiPoint) and what

role it plays (Master, Slave, or Repeater) in that network.

Note: The network type must match for all radios in a network.

If configuring a Point-to-MultiPoint network, verify the Modem Mode selection for radios in the

network starts with Point-to-MultiPoint.

When setting up the radio, remember that the settings on the Master control a number of

parameters.

Therefore, deploying the Master on the communications end where it is easier to access is

advised, but not necessary.

Set the Modem mode on the Operation Mode tab, using the Modem Mode field. These settings

are available in the Operation Mode menu in the terminal interface.

Operation Mode Description

Point-to-Point

Master (0)

This mode designates the radio as the Master in Point-to-Point mode.

The Master may call any or all Slaves designated in its Call Book.

In Point-to-Point mode the Master determines the setting used for most

of the transmission characteristics, regardless of the settings in the

Slave and/or Repeaters.

The settings NOT determined by the Master are:

lHop Table settings

lRetry Time Out

lSlave Security

lTransmit Power

A quick method of identifying a Master is to power the radio.

Prior to establishing a link with a Slave, all three of the LEDs on the

Master are solid red .

Operation Mode Description Point-to-Point Slave (1) This mode designates the radio as a Slave in Point-to-Point mode. . The Slave communicates with any Master in its Call Book — either directly or through a maximum of four Repeaters. . When functioning as a Slave, the Entry to Call feature in the radio's Call Book is NOT operational. . Set the Slave Security parameter to I to bypass the Call Book in the Slave. Note: For more information, see Slave Security on page 59. Point—to-MultiPoint Master (2) This mode designates the radio as a Master in MultiPoint mode. . This mode allows one Master radio to communicate simultaneously with numerous Slaves and Repeaters. . A Point-to-MultiF'oint Master communicates only with other radios designated as Point-to-MultiPoint Slaves or Point-to-MultiF'oint Repeaters. Point-to-MultiFoint Slave (3) This mode designates the radio as a Slave in MultiPoint mode. . This mode allows the Slave to communicate with a MultiPoint Master. . The Slave may communicate with its Master through one or more Repeaters. Point-to-Point Slave / Repeater (4) This mode designates the radio to act as either a Slave or Repeater, depending on the instructions from the Master. - The radio cannot act as both a Slave and a Repeater at the same time. - True Slave/Repeaterfunctionality is only available in a MultiF'oint mode. - Point-to-Point Slave/Repeaters have no security features. - When a radio is designated a Point-to-Point Slave/Repeater, it allows any Master to use it as a Repeater. Note: Adding Repeaters to a network cuts the network throughput by 50%.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Operation Mode Description

Point-to-Point

Slave (1)

This mode designates the radio as a Slave in Point-to-Point mode.

lThe Slave communicates with any Master in its Call Book - either

directly or through a maximum of four Repeaters.

lWhen functioning as a Slave, the Entry to Call feature in the radio’s

Call Book is NOT operational.

lSet the Slave Security parameter to 1to bypass the Call Book in the

Slave.

Note: For more information, see Slave Security on page 59.

Point–to-MultiPoint

Master (2)

This mode designates the radio as a Master in MultiPoint mode.

lThis mode allows one Master radio to communicate simultaneously

with numerous Slaves and Repeaters.

lA Point-to-MultiPoint Master communicates only with other radios

designated as Point-to-MultiPoint Slaves or Point-to-MultiPoint

Repeaters.

Point-to-MultiPoint

Slave (3)

This mode designates the radio as a Slave in MultiPoint mode.

lThis mode allows the Slave to communicate with a MultiPoint

Master.

lThe Slave may communicate with its Master through one or more

Repeaters.

Point-to-Point Slave /

Repeater (4)

This mode designates the radio to act as either a Slave or Repeater,

depending on the instructions from the Master.

lThe radio cannot act as both a Slave and a Repeater at the same

time.

lTrue Slave/Repeater functionality is only available in a MultiPoint

mode.

lPoint-to-Point Slave/Repeaters have no security features.

lWhen a radio is designated a Point-to-Point Slave/Repeater, it

allows any Master to use it as a Repeater.

Note: Adding Repeaters to a network cuts the network

throughput by 50%.

Operation Mode Description Point-to-Poi nt Repeater (5) FreeWave allows the use of a maximum of four Repeaters in a Point-to- Point communications link, significantly extending the operating range. . When designated as a Repeater, a radio behaves as a pass-through link. . All settings for the Call Book, baud rates, and transmission characteristics are disabled. . A Repeater connects with any Masterthat calls it. . The Repeater must be set up properly in the Masters Call Book. Note: Adding Repeaters to a network cuts the network throughput by 50%. Point-to-Point Slave/ Master Switchable (6) Mode 6 allows the radio to be controlled entirely through software commands. . A number of key parameters in the FreeWave user interface may be changed either directly using a terminal emulator or using script files. . When the Point-Ic-Point Slave/Master Switchable option is selected and the radio is not calling a Slave, it functions as a Slave and accepts any appropriate calls from other radios. Note: For more information, see Application Note #5476, Mode 6. Point-to-MultiFoint Repeater (7) This option allows the radio to operate as a Repeater in a MultiPoint network. . A MultiPoint network can have as many Repeaters as necessary. . If the Repeater is to act as a Slave/Repeater, set the Slave Repeater parameter in the MultiPoint Parameters tab to -. Note: Adding Repeaters to a network cuts the network throughput by 50%. Mirrorbit Master (A) Mirrorbit Slave (B) As of Apr-2018, Mirrorbit Master and Mirrorbit Slave mode are not supported.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

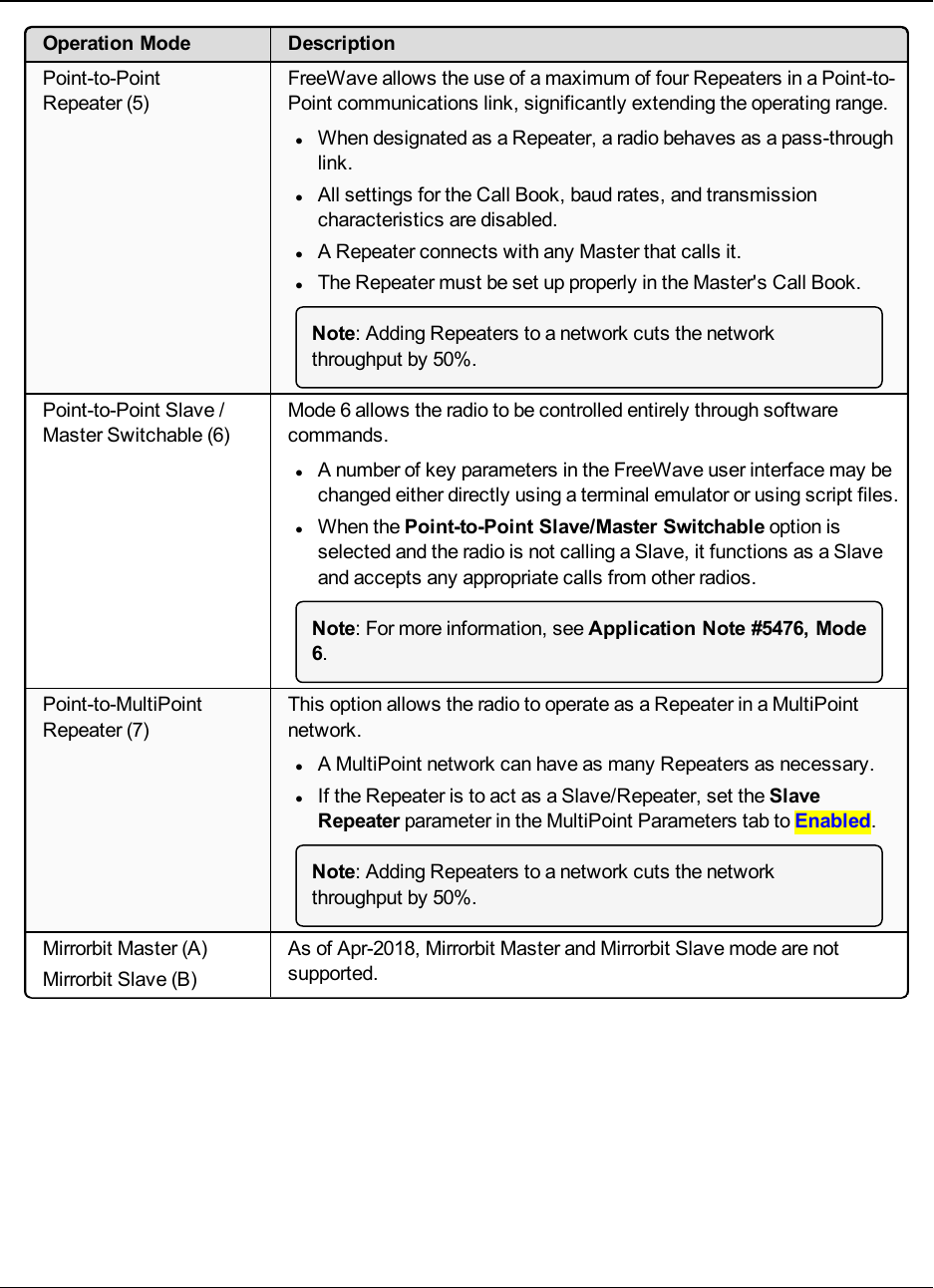

Operation Mode Description

Point-to-Point

Repeater (5)

FreeWave allows the use of a maximum of four Repeaters in a Point-to-

Point communications link, significantly extending the operating range.

lWhen designated as a Repeater, a radio behaves as a pass-through

link.

lAll settings for the Call Book, baud rates, and transmission

characteristics are disabled.

lA Repeater connects with any Master that calls it.

lThe Repeater must be set up properly in the Master's Call Book.

Note: Adding Repeaters to a network cuts the network

throughput by 50%.

Point-to-Point Slave /

Master Switchable (6)

Mode 6 allows the radio to be controlled entirely through software

commands.

lA number of key parameters in the FreeWave user interface may be

changed either directly using a terminal emulator or using script files.

lWhen the Point-to-Point Slave/Master Switchable option is

selected and the radio is not calling a Slave, it functions as a Slave

and accepts any appropriate calls from other radios.

Note: For more information, see Application Note #5476, Mode

Point-to-MultiPoint

Repeater (7)

This option allows the radio to operate as a Repeater in a MultiPoint

network.

lA MultiPoint network can have as many Repeaters as necessary.

lIf the Repeater is to act as a Slave/Repeater, set the Slave

Repeater parameter in the MultiPoint Parameters tab to Enabled.

Note: Adding Repeaters to a network cuts the network

throughput by 50%.

Mirrorbit Master (A)

Mirrorbit Slave (B)

As of Apr-2018, Mirrorbit Master and Mirrorbit Slave mode are not

supported.

Importantl: These settings are unique to each radio, and do not need to match across the network. Example: A pair of radios may be used in an application to send data from remote process instrumentation to an engineer's computer. In this application, the Baud Rate forthe radio on the instrumentation might be set to 9600 and the radio on the polling host might be set to 57,600. Note: See the Parameter Preference for a description of the parameter table's content. Baud Rate Setting Description Default Setting 115200 Options 600, 1200, 2400, 4800, 9600, 19200, 35400, 57600, 76800, 115200, 230400 Terminal Menu (1) Set Baud Rate Description: - This is the communication rate between the radios data port and the instrument it is connected to. - This setting is independent from the baud rate forthe other radios in the network. Note: With a poor RF link, this may actually result in slower data communications. - The Setup Port Baud Rate always defaults to 19,200 no matter how the Data Port Baud Rate is set. . The only exception is Mode 6. - For more information, see Application Note #5476, Mode 6. FREEWAVE Recommends: With a Baud Rate setting of 38,400 or higher, FreeWave recommends using the lines of the Flow Control (on page 39).

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.2. Establishing Communication with Instrumentation and

Computers

The settings on the Baud Rate tab are the communications settings between the radio and the

instrument or computer it is connected to (radio serial port to the device).

Important!: These settings are unique to each radio, and do not need to match across the network.

Example: A pair of radios may be used in an application to send data from remote process

instrumentation to an engineer's computer.

In this application, the Baud Rate for the radio on the instrumentation might be set to 9600 and the

radio on the polling host might be set to 57,600.

These settings are available in the Baud Rate menu in the terminal interface, and apply to both

Point-to-Point and Point-to-MultiPoint networks.

Note: See the Parameter Preference for a description of the parameter table's content.

2.2.1. Baud Rate

Baud Rate

Setting Description

Default Setting 115200

Options 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 76800, 115200, 230400

Terminal Menu (1) Set Baud Rate

Description: lThis is the communication rate between the radio's data port and the

instrument it is connected to.

lThis setting is independent from the baud rate for the other radios in the

network.

Note: With a poor RF link, this may actually result in slower data

communications.

lThe Setup Port Baud Rate always defaults to 19,200 no matter how the Data

Port Baud Rate is set.

lThe only exception is Mode 6.

lFor more information, see Application Note #5476, Mode 6.

FREEWAVE Recommends: With a Baud Rate setting of 38,400 or

higher, FreeWave recommends using the lines of the Flow Control (on

page 39).

Data Parity Setting Description Default Setting 0(8,N,1) Options See Description. Tenmnal Menu (1 ) Set Baud Rate > (A) Data Parity Description: - Six data word length and parity configurations are available for use with FreeWave radios. - The default setting is 8-None-1 and l5 the most commonly used serial communications protocol. ThlS table describes each option: Option Data Bits Parity Stop Bits 0 8 None 1 1 7 Even 1 2 7 Odd 1 3 8 None 2 4 8 Even 1 5 8 Odd 1 Flow Control Setting Description Default Setting (0) None Options - (0) None — Noflow control CTS is active and de-assens when buffering is 98% full. Can pass XON/XOFF data but does not use lt in any way. - (1) RTS — Uses RTS/CTS (Request to Send/Clearto Send)forflow control. . CTS performs the same way as in option (0) None. . RTS must be activated forthe radio to output data overthe serial port. - (2) DTR - Uses DTR/DSR (Data Tenmnal Ready/Data Set Ready)forflow control. - (3) DOT- Half Duplex. Tenmnal Menu (1) Set Baud Rate > (F) FlowControl

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.2.2. Data Parity

Data Parity

Setting Description

Default Setting 0 (8, N, 1)

Options See Description.

Terminal Menu (1) Set Baud Rate > (A) Data Parity

Description: lSix data word length and parity configurations are available for use with

FreeWave radios.

lThe default setting is 8-None-1 and is the most commonly used serial

communications protocol.

This table describes each option:

Option Data Bits Parity Stop Bits

0 8 None 1

1 7 Even 1

2 7 Odd 1

3 8 None 2

4 8 Even 1

5 8 Odd 1

2.2.3. Flow Control

Flow Control

Setting Description

Default Setting (0) None

Options l(0) None - No flow control CTS is active and de-asserts when buffering is 98%

full. Can pass XON/XOFF data but does not use it in any way.

l(1) RTS - Uses RTS/CTS (Request to Send/Clear to Send) for flow control.

lCTS performs the same way as in option (0) None.

lRTS must be activated for the radio to output data over the serial port.

l(2) DTR - Uses DTR/DSR (Data Terminal Ready/Data Set Ready) for flow

control.

l(3) DOT - Half Duplex.

Terminal Menu (1) Set Baud Rate > (F) FlowControl

Flow Control Setting Description Description: Specifies the hardware flow control forthe data port on the radio. Flow control is the process of managing the speed data l5 transmitted to not overwhelm the devxce receiving the transmission. FREEWAVE Recommends: Use Flow Control if the Baud Rate l5 higherthan 38,400. Note: When using the radio in Modbus RTU mode, the Master Packet Repeat parameter setting on the MultiPoint Parameters tab MUST match in every radio. Modbus RTU Setting Description Default Setting 0 (Disabled) Options 0 to 9 Terrmnal Menu (1) Set Baud Rate > (B) Modbus RTU Description: A setting otherthan I in thlS parameter causes the radio to wait for an amount of time gathering data before sending out the RF link. - 0 (Disabled) — The radio sends data out through its RF link as soon as the data l5 received into the serial port. ThlS is the default setting. - 1 - The radio waits fora numberof slots equal to two times the Master Packet Repeat setting before sending the received data out the RF link. Example: If the Master Packet Repeat parameteris set to I the radio waits for 6 slots, gathering data up the whole time. At the end of the 6 slots, the radio sends all received data in one “burst." This is the appropriate setting for most Modbus RTU devices. - 2 or higher - The radio waits fora numberof slots calculated using this formula: (Modbus RTU setting + Master Packet Repeat setting + 1) x 2 Example: In a radio where the Modhus RTU setting is I and the Master Packet Repeat setting is I the radio waits for (2 + 3 + 1) x 2, or 12 slots.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Flow Control

Setting Description

Description: Specifies the hardware flow control for the data port on the radio.

Flow control is the process of managing the speed data is transmitted to not

overwhelm the device receiving the transmission.

FREEWAVE Recommends: Use Flow Control if the Baud Rate is

higher than 38,400.

2.2.4. Modbus RTU

Note: When using the radio in Modbus RTU mode, the Master Packet Repeat parameter setting on

the MultiPoint Parameters tab MUST match in every radio.

Modbus RTU

Setting Description

Default Setting 0 (Disabled)

Options 0 to 9

Terminal Menu (1) Set Baud Rate > (B) ModbusRTU

Description: A setting other than 0in this parameter causes the radio to wait for an amount of

time gathering data before sending out the RF link.

l0 (Disabled) - The radio sends data out through its RF link as soon as the data

is received into the serial port. This is the default setting.

l1- The radio waits for a number of slots equal to two times the Master Packet

Repeat setting before sending the received data out the RF link.

Example: If the Master Packet Repeat parameter is set to 3, the radio

waits for 6 slots, gathering data up the whole time.

At the end of the 6 slots, the radio sends all received data in one “burst.”

This is the appropriate setting for most Modbus RTU devices.

l2 or higher - The radio waits for a number of slots calculated using this

formula:

(Modbus RTU setting + Master Packet Repeat setting + 1) x 2

Example: In a radio where the Modbus RTU setting is 2and the Master

Packet Repeat setting is 3, the radio waits for(2+3+1)x2, or 12 slots.

Serial Interface Setting Description Default Setting (0) R8232 Options ‘ Note: In all MMZ-MR models, thrs parameter must be set to I. ‘ Tennrnal Menu (1 ) Set Baud Rate > (c) R3232/485 Description: Use this optron to set the protocol of the data port for connection to an external devrce. ‘ Note: Thrs setting must beI rn ‘ITL RF board products. ‘ Importantl: Do NOT change this setting unless the correct programming cable is available forthe new setting. Setup Port Setting Description Default Setting (3) Both Options - (1) Main Only — Programming and reading a radio's setup informatron rs done through the data port. - (2) Diagnostics Only — Programming and reading a radio's setup informatron rs done through the dragnostrc port. - (3) Both - Programming and reading a radro's setup rnfonnation is done through eitherthe data port orthe diagnostic port . Tennrnal Menu (1) Set Baud Rate > (D) Setup Port Description: Determines which port on the radro, Main or Diagnostics, rs used to access the parameter settings rn Tool Suite or enterthe Setup marn menu rn the tennrnal interface. Note: Thrs setting is not supported in the MMZ-MR, MM2—LV—T, MM2—T radios. Note: Thrs setting is not supported in the MMZ-MR, MM2—LV—T, MM2—T radios.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.2.5. Serial Interface

Serial Interface

Setting Description

Default Setting (0) RS232

Options Note: In all MM2-MR models, this parameter must be set to 0.

Terminal Menu (1) Set Baud Rate > (C) RS232/485

Description: Use this option to set the protocol of the data port for connection to an external

device.

Note: This setting must be 0in TTL RF board products.

2.2.6. Setup Port

Important!: Do NOT change this setting unless the correct programming cable is available for the

new setting.

Setup Port

Setting Description

Default Setting (3) Both

Options l(1) Main Only - Programming and reading a radio's setup information is done

through the data port.

l(2) Diagnostics Only - Programming and reading a radio's setup information

is done through the diagnostic port.

l(3) Both - Programming and reading a radio's setup information is done

through either the data port or the diagnostic port .

Terminal Menu (1) Set Baud Rate > (D) Setup Port

Description: Determines which port on the radio, Main or Diagnostics, is used to access the

parameter settings in Tool Suite or enter the Setup main menu in the terminal

interface.

2.2.7. Turn Off Delay

Note: This setting is not supported in the MM2-MR, MM2-LV-T, MM2-T radios.

2.2.8. Turn On Delay

Note: This setting is not supported in the MM2-MR, MM2-LV-T, MM2-T radios.

Note: This setting is typically only used in OEM scenanos. Use Break to Access Setup Setting Description Default Setting Disabled Options - (0) - Disabled — The break command is disabled. - (1) - Enabled — The Setup menu is sent at 19,200 bps. - (2) - Enabled — The Setup menu is sent at the radio's current baud rate. Terminal Menu (1) Set Baud Rate > ((3) Use break to access setup Description: Enables a break command to put the radio into Setup mode overthe data port. To send a break character, the end device must hold the Tx data line in the space voltage level for longerthan 1 charactertime. Example: If a character is deﬁned as having 1 start bit, 8 data bits, and 1 stop bit, the character time is 10 bits. Thus, the transmit data line must be held in the space voltage level for a period of time longerthan 10 bits.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.2.9. Use Break to Access Setup

Note: This setting is typically only used in OEM scenarios.

Use Break to Access Setup

Setting Description

Default Setting Disabled

Options l(0) - Disabled - The break command is disabled.

l(1) - Enabled - The Setup menu is sent at 19,200 bps.

l(2) - Enabled - The Setup menu is sent at the radio's current baud rate.

Terminal Menu (1) Set Baud Rate > (G)Use break to access setup

Description: Enables a break command to put the radio into Setup mode over the data port.

To send a break character, the end device must hold the Tx data line in the space

voltage level for longer than 1 character time.

Example: If a character is defined as having 1 start bit, 8 data bits, and 1

stop bit, the character time is 10 bits.

Thus, the transmit data line must be held in the space voltage level for a

period of time longer than 10 bits.

FREEWAVE Recommends: While the Call Book is an option in Point-to—MultiPoint networks, FreeWave strongly recommends using the Network ID feature in most applications. If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or replaced in the network, each radio in the network must be physically reprogrammed and the new serial number entered in the radios Call Book. This can be a time consuming process and can cause a delay in getting the network back up and running. Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may be added or replaced without reprogramming each Slave radio in the network. Note: For more information about defining the Call Book in a Point-to—Point network, see Using the Call Book in Point-to-Point Networks (on page 90).

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.3. Establishing Communication with Other Radios in the

Network

For the radios in the network to communicate successfully, the radios need to be told what other

devices are available for them to communicate with. Use one of these options:

lNetwork ID - Used in MultiPoint Networks, the Network ID parameter is available on the

MultiPoint Parameters tab.

lEach radio in a single network should be assigned the same ID.

lA Slave links with the first Master or Repeater that it hears that has a matching Network

ID.

lBecause the Network ID does not use serial numbers, MultiPoint Masters and

Repeaters may be replaced without reprogramming all of the Slaves in the network.

The Network ID function should be used in conjunction with the Subnet ID feature (if

necessary) to route data through the radio network.

lWithout having the serial numbers in the Call Book, Slaves may establish

communications with different Masters that match the radio's golden settings

described below, though not at the same time. This is very useful in mobile MultiPoint

applications.

lFor information about setting the Network ID parameter in a MultiPoint Network, see

Using the Network ID in MultiPoint Networks (on page 68).

lCall Book - The Call Book is required in Point-to-Point networks.

lThe Call Book stores serial numbers of other radios in the network that are allowed to talk

to a radio.

lUsing the Call Book offers both security and flexibility in determining how FreeWave

radios communicate with each other.

FREEWAVE Recommends: While the Call Book is an option in Point-to-MultiPoint networks,

FreeWave strongly recommends using the Network ID feature in most applications.

If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or

replaced in the network, each radio in the network must be physically reprogrammed and the new

serial number entered in the radio's Call Book.

This can be a time consuming process and can cause a delay in getting the network back up and

running.

Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may

be added or replaced without reprogramming each Slave radio in the network.

Note: For more information about defining the Call Book in a Point-to-Point network, see Using the

Call Book in Point-to-Point Networks (on page 90).

Importantl: The parameters on me Transmission Characleristics ‘ab are only forthe advanced userwho has a good understanding of the pn'ncxples of RF transmissxon.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.3.1. Golden Settings

A standard network requires that these parameters are set the same on all radios in the network.

FreeWave refers to these as the Golden Settings:

lFrequency Key

lMin Packet Size

lMax Packet Size

lNetwork ID

lRF Data Rate

Radios that contain the same settings in all these parameters can communicate with each other.

lIf using the Call Book instead of the Network ID, or are running a Point-to-Point network,

the appropriate serial numbers must be listed in the Call Book for each radio.

lIf working with parallel Repeaters, the Frequency Key setting may differ.

2.4. Designate the RF Transmission Characteristics

The Transmission Characteristics parameters are used to change settings that determine how

data is sent between radios in the network. Many of these parameters must be maintained

throughout the network for proper functionality.

Important!: The parameters on the Transmission Characteristics tab are only for the advanced

user who has a good understanding of the principles of RF transmission.

Several settings on a Slave or Repeater radio come from the Master, and are therefore set only

at the Master. Settings that you must set on each Slave or Repeater include:

lHop Table Offset

lHop Table Size

lHop Table Version

lRetry Time Out

lSlave Security

lTransmit Power

Accept the default settings on the Transmission Characteristics tab when completing basic

setup.

However, these parameters must be set and they must be the same for all radios in the network:

lFrequency Key

lHop Table properties (Size, Version, and Offset)

lMax Packet Size

lMin Packet Size

lRF Data Rate

Set these parameters on the Transmission Characteristics tab. These settings are available in

the Edit > Radio Transmission Characteristics menu in the terminal interface and apply to

Note: See the Parameter Preference for a description of the parameter table's content. 900MHz Channel Select Parameters Setting Description Default Setting (0) Mode Set = Zone Options (0 Mode Set Terminal Menu ) (1) Set Single Channel Mask (3) Edit Radio Transmission Characteristics > (0) Frquey > F > (4) Importantl: This command is NOT visible in the CLI menu. Type I and press to View the Channel Select Parameters. See Access to the Single Channel Mask (on page 47).

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

both Point-to-Point and Point-to-MultiPoint networks, unless indicated otherwise in the

description.

Note: See the Parameter Preference for a description of the parameter table's content.

2.4.1. 900MHz Channel Select Parameters

lThe Channel tables are used to enable / disable each channel within the range of channels

available in the user's region.

lThe available frequencies are shown as either Enabled (1) or Disabled (0(zero)) in the

CLI.

lSpecific regional frequencies are set by FreeWave.

lThese frequencies are NOT available to customers.

lThey are represented in the CLI by a .(period).

900MHz Channel Select Parameters

Setting Description

Default Setting (0) Mode Set = Zone

Options (0) Mode Set

(1) Set Single Channel Mask

Terminal Menu (3) Edit Radio TransmissionCharacteristics > (0) FreqKey > F > (4)

Important!: This command is NOT visible in the CLI menu.

Type 4and press <Enter> to view the Channel Select Parameters.

See Access to the Single Channel Mask (on page 47).

900MHz Channel Select Parameters Setting Description Description: (0) Mode Set options . 0 - sets as Single mode . ’l - sets as Zone mode that allows the 900MHz Frequency Zones (on page 49) to be changed. (1) Set Single Channel Mask lmportantl: This option is ONLY available if - is selected in the Mode Set command. 1. Enterl and press . 2. EntertheChannel ID (from Otc 111)and press . 3. Enterl to set the channel On or Enter I (zero) to turn the channel Off. Example: See Example of Single Channel Mask (on page 48). Note: See 900MHz Channel Frequency IDs (on page 133) or 900MHz Channel Frequency IDs - China (on page 135) for the Channel IDs to use.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Channel Select Parameters

Setting Description

Description: (0) Mode Set options

l0 - sets as Single mode

l1 - sets as Zone mode that allows the 900MHz Frequency Zones (on page 49)

to be changed.

(1) Set Single Channel Mask

Important!: This option is ONLY available if Single is selected in the

Mode Set command.

1. Enter 1and press <Enter>.

2. Enter the Channel ID (from 0 to 111) and press <Enter>.

3. Enter 1to set the channel On or

Enter 0(zero) to turn the channel Off.

Example: See Example of Single Channel Mask (on page 48).

Note: See 900MHz Channel Frequency IDs (on page 133) or 900MHz

Channel Frequency IDs - China (on page 135) for the Channel IDs to use.

mm mm: 12 ans Hersinn u we - 12: m: Hndzn Serxal mm" syn—1374 man Cnd- mmr (a) 5;: mutation ﬁnd: (17 say Baud Rate (53 Edit Hulcirnine Pavamgters (6) 11m um. (17 Chg Password (Esc) Exit :nuy Enter Clmxnz mmo hummus uumm: Dn nut. change parameters “1:11:11: ”many manual WX ac e: xze (21 n1" hum Sign a; (a) 111.1: 1m: 1 (47 RF Data Hat: 3 (5) m: Knit ram» 13 (6) sh»: Szcuricy u (7) ms m as 1! <1) ngn-y="" rim="" cm="" 2;;=""><7) hummer="" mag="" 11="" my="" man="" this:="" n="" (a)="" non="" spud="" 13="" (c)="" known]:="" a="" (m="" (e)="" (eu)="" exit:="" tn="" main="" nu...="" ma="" 1.="" "mm,="" 1.,="" (mam="" 1111="" a="" e="" avamzters="" (a)="" “in:="" table="" "evsiun="" a="" (1)="" map="" fable="" size="" 112="" (2)="" han="" freq="" offset="" :1=""><3) fveuuency="" 2..”="" 1111111111111111=""><2“) 12x1:="" tn="" 11.1.11»="" hum="" hidden="" option="" 4="" 2...”="" chain:="" cunnnel="" 951.201="" mnannﬂs="" n01e:="" se:="" ninual="" for="" frenuzncy="" tn="" channel="" in="" translatinn!="" custnmzr="" channel="" ﬂask="" ms="" [1="on]" [a="on)" i.="unauailablzlnk‘f]" d="" 0*="" 7="" 8="" 11111111="" ...="" _="" resullofomlon="" 4="" selacﬁon="" 1111="" 11111111="" 1111mulnuae1111="" 11111111="" .="" 11111111="" run="" possuble="" channels="" -="" 5n="" ina)="" channzls="" selzcted="72" (a)="" m1:="" 52:="" 1mg).="" (1)="" sat="" sing]:="" can...)="" ﬂask=""><12“) exit="" n="" "011="" 1.111;="" harm="" enter="" chum="">

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Access to the Single Channel Mask

Figure 20: Access to Single Channel Mask

ln this example Freeware has blocked these trequencles my CANNOY he changed m used by customers um sm- mm i Memes am am My.» 905 702-1 m n, n, "W. 2 mum.” 91A2272Imoughgrssnuo an“. mm.) mm nn H . m u . am .. Mammal” 3 Mum-es Mustelmuamzswa "' -::;;;:: $-33 3,,“3 3,, we“ mums "we been mama by m .., _ W ,5 M . m suassmmmughsmarm In: 11mm) “1.11) mun-“mm 5 m . es 9197565Ihmngh92l W m) m. x.‘ mm. m s" mm Eli-Mel m». an) em a, m 1...: km may n W m. , rm: mm "awmcmmsou mum mmmcmd u m up,“ ”mm.“ we,“ “MW :35: gracyggggrgnm “ m n,,_ ., w; W; m we mm on Mum 9m mu mm in 341 m: 3.. um: I" p.“ 1 in mm. Kim“ 9 ‘5 {SE33 Emil "’ iii} 35;}? ﬂu ”‘ “’73? 5mm}? KEEE EH33 55m? “""m mm: 0) hr. Sing]: Cum.) mm (m) En: u m hm. Hum (m. amt. Note: In MultiPoint networks, the Frequency Key must be set identically in all radios. Any radio with a Frequency Key different from the Master radio will not establish a link. In Point-to-Point networks the Master radio's settings take precedence overthe Slave radio. There are exceptions if the network contains parallel repeaters. For more information, see Working with Parallel Repeaters on page 95. 900MHz Frequency Key (Golden Setting) Setting Description Default Setting 5

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Example of Single Channel Mask

Figure 21: Example of Single Channel Mask

2.4.2. 900MHz Frequency Key (Golden Setting)

Note: In MultiPoint networks, the Frequency Key must be set identically in all radios.

Any radio with a Frequency Key different from the Master radio will not establish a link.

In Point-to-Point networks the Master radio's settings take precedence over the Slave radio.

There are exceptions if the network contains parallel repeaters.

For more information, see Working with Parallel Repeaters on page 95.

900MHz Frequency Key (Golden Setting)

Setting Description

Default Setting 5

900MHz Frequency Key (Golden Setting) Setting Description Options 0 to 9 A to E lmportantk Do NOT use Frequency Key E with the 915 to 928 MHz, 916 to 920 MHz, and 921 to 928 MHz hop tables. Terminal Menu (3) Edit Radio Transmission Characteristics > (0) Frquey Description: . Fifteen choices are avarlable forthe Frequency Key (0 to 9 and A to E) setting, representing 15 different pseudo-random hop patterns. . Hopping patterns minimize the interference with other FreeWave radios operating in the area. Example: If 10 pairs of FreeWave radios are operating on different networks in close proximity, setting a different Frequency Key value reduces the chance that radios hop to the same frequency at the same time. If two networks were to hop to the same frequency, the next hop would be to a different frequency for both networks. \ I I ‘ ’ Garn additional network separation by adyusting the Max Packet v Size and Min Packet Size parameters. Note: Use the Hop Table Version, Hop Table Size, and Frequency Zone parameters to define more network differentiation by Irmrting the number and location of frequencres the radios may hop in the 902 to 928 MHz band. lmportantk 900MHz radios do NOT use the Hop Frequency Offset setting. Note: In MultrPoint networks, this setting needs to only be set on the Master. In a F'oint—to-Pornt network, the Master and the Slave must have matching Frequency Zone settings. Importantl: Frequency Zones are NOT valid if Single is selected in the 900MHz Channel Select Parameters (on page 45).

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Frequency Key (Golden Setting)

Setting Description

Options 0 to 9

A to E

Important!: Do NOT use Frequency Key E with the 915 to 928 MHz, 916

to 920 MHz, and 921 to 928 MHz hop tables.

Terminal Menu (3) Edit Radio TransmissionCharacteristics > (0) FreqKey

Description: lFifteen choices are available for the Frequency Key (0 to 9 and A to E)

setting, representing 15 different pseudo-random hop patterns.

lHopping patterns minimize the interference with other FreeWave radios

operating in the area.

Example: If 10 pairs of FreeWave radios are operating on different

networks in close proximity, setting a different Frequency Key value

reduces the chance that radios hop to the same frequency at the same

time.

If two networks were to hop to the same frequency, the next hop would be

to a different frequency for both networks.

Gain additional network separation by adjusting the Max Packet

Size and Min Packet Size parameters.

Note: Use the Hop Table Version,Hop Table Size, and Frequency

Zone parameters to define more network differentiation by limiting the

number and location of frequencies the radios may hop in the 902 to 928

MHz band.

Important!: 900MHz radios do NOT use the Hop Frequency Offset

setting.

2.4.3. 900MHz Frequency Zones

Note: In MultiPoint networks, this setting needs to only be set on the Master.

In a Point-to-Point network, the Master and the Slave must have matching Frequency Zone

settings.

Important!:Frequency Zones are NOT valid if Single is selected in the 900MHz Channel Select

Parameters (on page 45).

900MHz Frequency Zones Setting Description Default Setting All zones selected Options See Description. Terrmnal Menu (3) Edlt Radio Transmission Characteristics > (0) Frquey > F > (3) Frequency Zone Description: DlVldeS the available band (902 MHz to 928 MHz) into smaller bands. In this case 16 smaller bands each consisting of 5, 7, and 8 frequency channels depending on the frequency zone. . These 16 zones are stored in a binary word, which l5 made up of 16 bits numbered 0 to 15. . Displayed in LSB to MSB, these bits directly represent the zones that the radio operates on from lowest frequency to highest. - A value ofl in the bit sequence instructs the radio to operate within the represented band. - A value ofl bypasses the represented band. This feature should only be used with the standard hop table. Caution: Set the Hop Table Version to —when using Frequency Zones. If another Hop Table Version is selected, the limitations of that selection are also applied to the hopping pattern. Example: If_ is used as the Hop Table Version, only the middle of the band is available in the pattern. Then, if Frequency Zones 5, 6, 7, 8, and 9 are set to I no allowable frequencies are available for the radio to use. ® Example: Using zones 1 to 7 is equal to 49 channels; this is NOT legal according to the FCC. Using zones 0 to 6 is equal to 50 channels; this is legal according to the FCC.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Frequency Zones

Setting Description

Default Setting All zones selected

Options See Description.

Terminal Menu (3) Edit Radio TransmissionCharacteristics > (0) FreqKey > F > (3) Frequency

Zone

Description: Divides the available band (902 MHz to 928 MHz) into smaller bands.

In this case 16 smaller bands each consisting of 5, 7, and 8 frequency channels

depending on the frequency zone.

lThese 16 zones are stored in a binary word, which is made up of 16 bits

numbered 0 to 15.

lDisplayed in LSB to MSB, these bits directly represent the zones that the

radio operates on from lowest frequency to highest.

lA value of 1in the bit sequence instructs the radio to operate within the

represented band.

lA value of 0bypasses the represented band. This feature should only be

used with the standard hop table.

Caution: Set the Hop Table Version to 902 to 928 MHz when using

Frequency Zones.

If another Hop Table Version is selected, the limitations of that

selection are also applied to the hopping pattern.

Example: If 916 to 920 is used as the Hop Table Version, only the

middle of the band is available in the pattern.

Then, if Frequency Zones 5, 6, 7, 8, and 9 are set to 0, no allowable

frequencies are available for the radio to use.

900MHz Frequency Zones Table

Warning! FCC regulations require a minimum of 50 separate channels be used within a hop

pattern.

Use the 900MHz Frequency Zones Table to determine the number of frequency zones

required for legal FCC use.

Example: Using zones 1 to 7 is equal to 49 channels; this is NOT legal according to the FCC.

Using zones 0 to 6 is equal to 50 channels; this is legal according to the FCC.

900MHz Frequency Zones Binarg-égnFeiggmber Beginning Freq. (MHz) Ending Freq. (MHz) Number OfChannels 1 902.2464 903.8592 8 2 904.0896 905.4720 7 3 905.7024 907.0848 7 4 907.3152 908.6976 7 5 908.9280 910.3104 7 6 910.5408 911.9232 7 7 912.1536 913.5360 7 8 913.7664 915.1488 7 9 915.3792 916.7616 7 10 916.9920 918.6048 8 11 918.8352 920.2176 7 12 920.4480 921.8304 7 13 922.0608 923.4432 7 14 923.6736 925.0560 7 15 925.2864 926.6688 7 16 926.8992 927.8208 5 I I Note: Frequency Zone entries begin With 0 (LSB) and continue through 15 (M83).

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Frequency Zones

Binary Zone Number

(LSB First) Beginning Freq. (MHz) Ending Freq. (MHz) Number Of Channels

1 902.2464 903.8592 8

2 904.0896 905.4720 7

3 905.7024 907.0848 7

4 907.3152 908.6976 7

5 908.9280 910.3104 7

6 910.5408 911.9232 7

7 912.1536 913.5360 7

8 913.7664 915.1488 7

9 915.3792 916.7616 7

10 916.9920 918.6048 8

11 918.8352 920.2176 7

12 920.4480 921.8304 7

13 922.0608 923.4432 7

14 923.6736 925.0560 7

15 925.2864 926.6688 7

16 926.8992 927.8208 5

Enable Frequency Zones in Tool Suite

1. In the Tool Suite Configuration application, select the device to program.

2. Click the (3) Transmission Characteristics tab.

3. Click Frequency Zones to view the available frequency zones.

4. Select the Frequency Zones to enable.

Enable Frequency Zones using the Terminal Interface

1. On the main Setup menu, select 3 Edit Radio Transmission Characteristics.

2. Select option 0 FreqKey.

3. Select Ffor More.

4. Select option 3 Frequency Zone.

5. Enter:

1to enable a frequency zone or

0to disable a frequency zone.

Note:Frequency Zone entries begin with 0(LSB) and continue through 15 (MSB).

mum“ I": evmlm E [b m v.4. M gﬂ all Bil ﬁﬂ Zone I! lone 1 [one 0 Zone 1 [one E Zone 1 Zone 0 Zone 1 Zone 9 ﬂ 1 ﬂ 1 ﬂ 1 U l Zone 10 Zone I 1 Zone 12 Zone 13 [one M Ione 15 Zone 16 Non luble Para-sly; Mon table Version 0 _ ”on Table Sue 112 Elery other Lone ls Hon rrcu ﬂﬂsel a disabled Zone 1 Is Frequencv Zone nlotnmmomm <— (esc)="" my="" to="" radio="" menu="" leplesented="" as="" "if="" 0="" inter="" choice="" _="" on="" the="" left.="" while="" zone="" 16="" is="" the="" i="" on="" the="" right="" 63:;="" (wnm-eow="" 54="" “mm="" \\w6~l="" u="" note:="" this="" setting="" is="" not="" supported="" in="" the="" mmz-mr,="" mm2—lv-t,="" mm2—t="" radios.="" note:="" all="" radios="" in="" a="" network="" must="" have="" identical="" hop="" table="" settings.="" 900mhz="" hop="" table="" size="" setting="" description="" default="" setting="" 112="" options="" 50="" to="" ’l="" 11="" terminal="" menu="" (3)="" edit="" radio="" transmission="" characteristics=""> (0) Frquey > F > (1) Hop Table Size

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Figure 22: HyperTerminal window with Frequency Zones

2.4.4. High Noise

Note: This setting is not supported in the MM2-MR, MM2-LV-T, MM2-T radios.

2.4.5. 900MHz Hop Table Size

Note: All radios in a network must have identical Hop Table settings.

Warning! FCC regulations require a minimum of 50 separate frequency channels be used

within a hop pattern.

900MHz Hop Table Size

Setting Description

Default Setting 112

Options 50 to 111

Terminal Menu (3) Edit Radio TransmissionCharacteristics > (0) FreqKey > F > (1) Hop Table

Size

900MHz Hop Table Size Setting Description Description: Defines how many separate channels a grven network uses. FREEWAVE Recommends: Use the Frequency Zones instead of the Hop Table Size setting. Note: All radios in a network must have identical Hop Table settings. 900MHz Hop Table Version Setting Description Default Setting 902—928 MHZ Options - 902—928 MHZ, full band - 915—925 MHZ - 90314449263232 MHZ - 916—920 MHZ - 921—925 MHZ - 902—9117919928 MHZ . Uses 902-928 MHz with center frequencies of 911-919 MHz notched out. - 902—915 MHZ lmportantk If usrng a Hop Table Version setting of 915-928 MHz, 916- 920 MHz, or 921-928 MHz, do NOT set the Frequency Key parameter setting to. (916—920 MHZ). Terrmnal Menu (3) Edit Radio Transmissron Characteristics > (0) Frquey > F > (0) Hop Table Version

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Hop Table Size

Setting Description

Description: Defines how many separate channels a given network uses.

FREEWAVE Recommends: Use the Frequency Zones instead of the

Hop Table Size setting.

2.4.6. 900MHz Hop Table Version

Note: All radios in a network must have identical Hop Table settings.

900MHz Hop Table Version

Setting Description

Default Setting 902-928 MHz

Options l902-928 MHz, full band

l915-928 MHz

l903.744-926.3232 MHz

l916-920 MHz

l921-928 MHz

l902-911_919-928 MHz

lUses 902-928 MHz with center frequencies of 911-919 MHz notched out.

l902-915 MHz

Important!: If using a Hop Table Version setting of 915-928 MHz, 916-

920 MHz, or 921-928 MHz, do NOT set the Frequency Key parameter

setting to E(916-920 MHz).

Terminal Menu (3) Edit Radio TransmissionCharacteristics > (0) FreqKey > F > (0) Hop Table

Version

900MHz Hop Table Version Setting Description Description: Determines the section of the 900 MHz band the radio uses. In the terminal Interface, enterthe numberthat corresponds to the frequency band: Terminal Interface Frequency Band Number 0 902—928 MHz, uses the full band ’I 915—925 MHZ 2 903.744-926.3232 MHZ 3 916—920 MHZ 4 921—925 MHZ 5 902—9117913928 MHZ Uses 902—928 MHz thh centerfrequencies of 91 1—919 MHz notched out. 5 902—915 MHZ Note: In MuItIPoint networks, the Max Packet Size and Min Packet Size must be set identically in all radios. In F'oint—to-Poxnt networks the Master radio's settings take precedence overthe Slave radio. Max Packet Size and Min Packet Size (Golden Setting) Setting Description Default Setting . Max Packet Size: 8 . Min Packet Size: 9 Options Any number between 0 and 9. Terrmnal Menu (3) Edit Transmission Characteristics > (1) Max Packet Size and (2) Min Packet Size

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Hop Table Version

Setting Description

Description: Determines the section of the 900 MHz band the radio uses.

In the terminal interface, enter the number that corresponds to the frequency band:

Terminal

Interface

Number

Frequency Band

0 902-928 MHz, uses the full band

1 915-928 MHz

2 903.744-926.3232 MHz

3 916-920 MHz

4 921-928 MHz

5 902-911_919.928 MHz

Uses 902-928 MHz with center frequencies of 911-919 MHz

notched out.

6 902-915 MHz

2.4.7. Max Packet Size and Min Packet Size (Golden Setting)

Note: In MultiPoint networks, the Max Packet Size and Min Packet Size must be set identically in

all radios.

In Point-to-Point networks the Master radio's settings take precedence over the Slave radio.

Max Packet Size and Min Packet Size (Golden Setting)

Setting Description

Default Setting lMax Packet Size = 8

lMin Packet Size = 9

Options Any number between 0 and 9.

Terminal Menu (3) Edit TransmissionCharacteristics > (1) Max Packet Size and (2) Min

Packet Size

Max Packet Size and Min Packet Size (Golden Setting) Setting Description Description: The Max and Min Packet Size parameter settings and the RF Data Rate parameter deterrmne the numberof bytes In the packets. . Throughput can be enhanced when packet sizes are optimized. . In Point—to-Pornt mode, the Max and Min Packet Size settings do not have material Impact on throughput unless 115.2 kbps rs desired. . However, this may have an Impact on latency. Example: If small amounts of data are sent and large packet sizes are selected, a certain amount of time wasted between each packet would be seen. . In each over—the-arrframe, both the Master and Slave are guaranteed the numberof bytes specified in the Minimum Packet Size parameter. . In the Master, thlS is used for maintaining the RF link whetherthe Gateway has data to transmit or not. . The Maximum Packet Size parameter is used to allocate the maximum numberof bytes for each Mastertransmrssion. . The Minimum Packet Size parameter is used to allocate the minimum numberof bytes for each Slave transmission. . If the Master does not use all the bytes allocated in the Maximum Packet Size setting minus the Minimum Packet Size setting, then the remaining bytes are available forthe Slave. MCU Speed Setting Description Default Setting (0) Normal Options - (0) Normal (low speed) - Reduces current consumption. - (1) Fast (high speed) - Required for 230 KBaud and greaterdata port rate. Note: If the radio is AES enabled and using the encryption functionality, set thlS parameter to 3 using the terminal Interface. The value is accepted even though it is not vrewable as an option and applies only when using AES encryption. For more Information about setting up AES encryption, see Enable and Set UpAES Encryption (on page 98). Terrmnal Menu (3) Edit Radio Transmission Characteristics > (B) MCU Speed Description: Controls the speed of the Micro Controller Unit (MCU) in the radio.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Max Packet Size and Min Packet Size (Golden Setting)

Setting Description

Description: The Max and Min Packet Size parameter settings and the RF Data Rate

parameter determine the number of bytes in the packets.

lThroughput can be enhanced when packet sizes are optimized.

lIn Point-to-Point mode, the Max and Min Packet Size settings do not have

material impact on throughput unless 115.2 kbps is desired.

lHowever, this may have an impact on latency.

Example: If small amounts of data are sent and large packet sizes are

selected, a certain amount of time wasted between each packet would be

seen.

lIn each over-the-air frame, both the Master and Slave are guaranteed the

number of bytes specified in the Minimum Packet Size parameter.

lIn the Master, this is used for maintaining the RF link whether the Gateway

has data to transmit or not.

lThe Maximum Packet Size parameter is used to allocate the maximum

number of bytes for each Master transmission.

lThe Minimum Packet Size parameter is used to allocate the minimum

number of bytes for each Slave transmission.

lIf the Master does not use all the bytes allocated in the Maximum Packet

Size setting minus the Minimum Packet Size setting, then the remaining

bytes are available for the Slave.

2.4.8. MCU Speed

MCU Speed

Setting Description

Default Setting (0) Normal

Options l(0) Normal (low speed) - Reduces current consumption.

l(1) Fast (high speed) - Required for 230 KBaud and greater data port rate.

Note: If the radio is AES enabled and using the encryption functionality,

set this parameter to 3using the terminal interface.

The value is accepted even though it is not viewable as an option and

applies only when using AES encryption.

For more information about setting up AES encryption, see Enable and Set

Up AES Encryption (on page 98).

Terminal Menu (3) Edit RadioTransmission Characteristics > (B) MCU Speed

Description: Controls the speed of the Micro Controller Unit (MCU) in the radio.

Note: This setting is not supported in the MM2—MR, MM2—LV—T, MM2—T radios. Retry Time Out Setting Description Default Setting 255 Options Any number between 0 and 255 in MultiPoint networks. Note: The minimum in 900MHz radios is 8 seconds. Any number between 151 and 255 in Point-to-Point networks. Terminal Menu (3) Edit TransmisSion Characteristics > (8) Retry Time Out Description: The Retry Time Out parameter in a Slave or Repeater sets the delay the unit waits before dropping the connection to a Master or Repeater. . The factory default is set at the maximum of 255. - With a setting of 255, the Master allows a Slave or Repeater to stay connected as long as 1 packet in 255 is successfully received at the Master. . The maximum setting means that if 1 packet in 255 is sent successfully from the Master to the Slave or Repeater, the link is maintained. . This allows a Slave or Repeater to drop a connection if less than 1 in 8 consecutive packets is successfully received from the Master. The Retry Time Out parameter is useful when a MultiPoint network has a roving Master or Slave. As the link gets weaker, a lower setting allows a poorlink to break in search of a stronger one. FREEWAVE Recommends: Setting the Retry Time Out parameter to l in the MultiPoint Master is recommended in areas where several FreeWave networks exist. This recommended setting allows Slaves and Repeaters to drop the connection if the link becomes too weak, while at the same time prevent errant disconnects due to interference from neighboring networks. Note: While intended primarily for MultiPoint networks, the Retry Time Out parameter may be changed in Point—to-Point networks. However, the value in Point-to-Point mode should NOT be set to less than 151.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.4.9. Remote LED

Note: This setting is not supported in the MM2-MR, MM2-LV-T, MM2-T radios.

2.4.10. Retry Time Out

Retry Time Out

Setting Description

Default Setting 255

Options Any number between 0 and 255 in MultiPoint networks.

Note: The minimum in 900MHz radios is 8 seconds.

Any number between 151 and 255 in Point-to-Point networks.

Terminal Menu (3) Edit Transmission Characteristics > (8) RetryTime Out

Description: The Retry Time Out parameter in a Slave or Repeater sets the delay the unit

waits before dropping the connection to a Master or Repeater.

lThe factory default is set at the maximum of 255.

lWith a setting of 255, the Master allows a Slave or Repeater to stay

connected as long as 1 packet in 255 is successfully received at the

Master.

lThe maximum setting means that if 1packet in 255is sent successfully from

the Master to the Slave or Repeater, the link is maintained.

lThis allows a Slave or Repeater to drop a connection if less than 1 in 8

consecutive packets is successfully received from the Master.

The Retry Time Out parameter is useful when a MultiPoint network has a roving

Master or Slave. As the link gets weaker, a lower setting allows a poor link to

break in search of a stronger one.

FREEWAVE Recommends: Setting the Retry Time Out parameter to

20 in the MultiPoint Master is recommended in areas where several

FreeWave networks exist.

This recommended setting allows Slaves and Repeaters to drop the

connection if the link becomes too weak, while at the same time prevent

errant disconnects due to interference from neighboring networks.

Note: While intended primarily for MultiPoint networks, the Retry Time

Out parameter may be changed in Point-to-Point networks.

However, the value in Point-to-Point mode should NOT be set to less than

151.

Note: In MultiPoint networks, the RF Data Rate parameter must be set the same in all radios. Any radio With an RF Data Rate setting different from the Master Will not establish a link. In F'oint—to- F'oint networks the Master setting takes precedence overthe Slave. RF Data Rate (Golden Setting) Setting Description Default Setting (3) Normal Options . (2) High -153.6 kbps - (3) Normal — 115.2 kbps Terminal Menu (3) Edit Transmission Characteristics > (4) RF Data Rate Description: lmportantk Do NOT confuse the RF Data Rate with the serial port Baud Rate. FreeWave radios have these RF Data Rate settings: . I(High). . Use setting I (RF Speed of 153.6 kbps) when the radios are close together and need to optimize data throughput. . I(Normal). . Use setting I (RF Speed of 115.2 kbps) when the radios are farther away and a solid data link is preferred over data throughput. Importantl: It is NOT recommended to enable this feature when operating at Baud Rates above 38,400. The RTS to CTS option is only available in the MM2-MR—R models. RTS to CTS Setting Description Default Setting (0) Disabled Options . (0)Disabled . (1)Enabled . (2) Line Alarm Note: Settinglis descnbed in detail intheApplication Note #5437, DTR to CTS Line Alarm Feature. Terminal Menu (3) Edit Transmission Characteristics > (7) RTS to CTS

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

2.4.11. RF Data Rate (Golden Setting)

Note: In MultiPoint networks, the RF Data Rate parameter must be set the same in all radios. Any

radio with an RF Data Rate setting different from the Master will not establish a link. In Point-to-

Point networks the Master setting takes precedence over the Slave.

RF Data Rate (Golden Setting)

Setting Description

Default Setting (3) Normal

Options l(2) High - 153.6 kbps

l(3) Normal - 115.2 kbps

Terminal Menu (3) Edit Transmission Characteristics > (4)RF Data Rate

Description: Important!: Do NOT confuse the RF Data Rate with the serial port Baud

Rate.

FreeWave radios have these RF Data Rate settings:

l2(High).

lUse setting 2(RF Speed of 153.6 kbps) when the radios are close together

and need to optimize data throughput.

l3(Normal).

lUse setting 3(RF Speed of 115.2 kbps) when the radios are farther away

and a solid data link is preferred over data throughput.

2.4.12. RTS to CTS

Important!:

It is NOT recommended to enable this feature when operating at Baud Rates above 38,400. The

RTS to CTS option is only available in the MM2-MR-R models.

RTS to CTS

Setting Description

Default Setting (0) Disabled

Options l(0) Disabled

l(1) Enabled

l(2) Line Alarm

Note: Setting 2is described in detail in the Application Note #5437, DTR

to CTS Line Alarm Feature.

Terminal Menu (3) Edit Transmission Characteristics > (7) RTS to CTS

RTS to CTS Setting Description Description: Use this option to set the RTS line on the Master radio to control the CTS line of the Slave. Wlth RTS to CTS enabled: . In Multhoint networks, the Master RTS line controls all Slave's CTS lines. . The CTS line stops functioning as flow control. . The Master senses the RTS llne prior to all scheduled packet transmissions. - If the state has changed, the Masterthen transmits a message to the Slave wrth the new status. This transmission occurs regardless of data berng sent. - If data is ready to be sent, the RTS status message l5 sent in addition to the data. . ln Point—to-Polnt mode, the Master continues sending the new status message until it receives an acknowledgment from the Slave. . ln Multhoint mode, the Master repeats the message the number of times equal to the Master Packet Repeat value in the MultiPolnt Parameters tab. . Master transmit times are completely asynchronous to the occurrence of any change of the RTS line; the latency time from RTS to CTS is variable. . The Max and Min Packet Size parameters deterrmne this duration. - Setting both parameters to thelr maximum value ofl produces a maximum latency time of approximately 21ms, given no Repeaters in the network. . At the minimum settings for Max and Min Packet Size (0), the time is approximately 5.9ms. . ThlS latency can increase significantly lf packets are lost between the Master and Slave. . ln Point—to-MultiPolnt mode, no absolute guarantee is made that the state changers communicated to all Slaves. . ln Multhoint networks wrth Repeaters present, the latency l5 cumulative for each senal Repeater. Example: If the latency between the Master and the ﬁrst Repeater is 15ms, and two serial Repeaters are present, the total latency is 45ms. (M—R1 (15ms)+ R1—R2 (15ms)+ RZ—S (15ms)= 45ms). lmportantl: The RTS to CTS feature does NOT function in Point—to-Polnt networks that contain a Repeater. If this feature is needed in such network, the mode should be changed to Point—to-MultiPolnt. . If DTR Connect on the Tool Suite MultiPoint Parameters tab l5 enabled and set to I the RTS to CTS feature does not work.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

RTS to CTS

Setting Description

Description: Use this option to set the RTS line on the Master radio to control the CTS line of

the Slave.

With RTS to CTS enabled:

lIn MultiPoint networks, the Master RTS line controls all Slave's CTS lines.

lThe CTS line stops functioning as flow control.

lThe Master senses the RTS line prior to all scheduled packet transmissions.

lIf the state has changed, the Master then transmits a message to the Slave

with the new status. This transmission occurs regardless of data being

sent.

lIf data is ready to be sent, the RTS status message is sent in addition to the

data.

lIn Point-to-Point mode, the Master continues sending the new status message

until it receives an acknowledgment from the Slave.

lIn MultiPoint mode, the Master repeats the message the number of times

equal to the Master Packet Repeat value in the MultiPoint Parameters tab.

lMaster transmit times are completely asynchronous to the occurrence of any

change of the RTS line; the latency time from RTS to CTS is variable.

lThe Max and Min Packet Size parameters determine this duration.

lSetting both parameters to their maximum value of 9produces a maximum

latency time of approximately 21ms, given no Repeaters in the network.

lAt the minimum settings for Max and Min Packet Size (0), the time is

approximately 5.9ms.

lThis latency can increase significantly if packets are lost between the Master

and Slave.

lIn Point-to-MultiPoint mode, no absolute guarantee is made that the state

change is communicated to all Slaves.

lIn MultiPoint networks with Repeaters present, the latency is cumulative for

each serial Repeater.

Example: If the latency between the Master and the first Repeater is

15ms, and two serial Repeaters are present, the total latency is 45ms.

(M—R1 (15ms) + R1—R2 (15ms) + R2—S (15ms) = 45ms).

Important!: The RTS to CTS feature does NOT function in Point-to-Point

networks that contain a Repeater.

If this feature is needed in such network, the mode should be changed to

Point-to-MultiPoint.

lIf DTR Connect on the Tool Suite MultiPoint Parameters tab is enabled and

set to 2, the RTS to CTS feature does not work.

RTS to CTS Setting Description . If DTR Connect is enabled and set to I RTS to CTS mode takes precedence overthe functionality of the CTS line on the Slave relating to the DTR Connect feature. Note: The Slave Security parameter has no effect in F'oint—to-MultiPornt networks where the Network ID is used. Slave Security Setting Description Default Setting (0) 0n Options (0) 0n (1) Off Terminal Menu (3) Edit Transmission Characteristics > (6) Slave Security Description: . Slave Security allows Slave radios to accept transmissions from a Master not included inthe Call Book. - The default setting of I (On) means only Masters in the Slave radio's Call Book may link to that Slave. . The Slave Security parameter may be disabled (setting of I) allowing any Master to call the Slave. . The Slave Security parameter must be set to I when the unit is operating in Mode 6, Slave/Master Switchable ora Point—to-Pornt network where the Slave may need to accept calls from more than 10 different Masters. - SeeApplication Note #5476: Mode 6for additional information. . When the Slave Security parameter is set to I the radio accepts calls from any other radio. . Additional network security measures may be taken to prevent unauthorized access (e.g., changing default settings for Frequency Key, Hop Table, or Frequency Zones). Transmit Power Setting Description Default Setting 10 Options Any number between 0 and 10

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

RTS to CTS

Setting Description

lIf DTR Connect is enabled and set to 1, RTS to CTS mode takes precedence

over the functionality of the CTS line on the Slave relating to the DTR

Connect feature.

2.4.13. Slave Security

Note: The Slave Security parameter has no effect in Point-to-MultiPoint networks where the

Network ID is used.

Slave Security

Setting Description

Default Setting (0) On

Options (0) On

(1) Off

Terminal Menu (3) Edit TransmissionCharacteristics > (6) Slave Security

Description: lSlave Security allows Slave radios to accept transmissions from a Master not

included in the Call Book.

lThe default setting of 0(On) means only Masters in the Slave radio's Call

Book may link to that Slave.

lThe Slave Security parameter may be disabled (setting of 1) allowing any

Master to call the Slave.

lThe Slave Security parameter must be set to 1when the unit is operating in

Mode 6, Slave/Master Switchable or a Point-to-Point network where the Slave

may need to accept calls from more than 10 different Masters.

lSee Application Note #5476: Mode 6 for additional information.

lWhen the Slave Security parameter is set to 1, the radio accepts calls from

any other radio.

lAdditional network security measures may be taken to prevent unauthorized

access (e.g., changing default settings for Frequency Key,Hop Table, or

Frequency Zones).

2.4.14. Transmit Power

Transmit Power

Setting Description

Default Setting 10

Options Any number between 0 and 10

Transmit Power Setting Description Terminal Menu (3) Edit Transmission Characteristics > (5) RF Xmit Power Description: Sets the output power of the radio in dBm. - In MM2 radios, a setting of. is approximately 1 W of output power. \ I I When testing radios, and they are in close proximity to one another, ‘ ’ set the Transmit Power parameter to a low number. When deploying radios to the field, raise the Transmit Power ' number accordingly. Importantl: This table is for reference only. All Transmit Power settings below 9 are approximate. 7 Power (in mW) for Setting MM2-MR, MM2-LV-T, MM2-T Radios 0 5 1 10 2 35 3 80 4 140 5 230 6 330 7 480 8 500 9 800 it) 1000 Transmit Rate Setting Description Default Setting (1) Normal Options - 0 - Diagnostics . 1 - Normal Terminal Menu (3) Edit Transmission Characteristics > (3) Xmit Rate

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Transmit Power

Setting Description

Terminal Menu (3)Edit Transmission Characteristics > (5) RFXmit Power

Description: Sets the output power of the radio in dBm.

lIn MM2 radios, a setting of 10 is approximately 1 W of output power.

When testing radios, and they are in close proximity to one another,

set the Transmit Power parameter to a low number.

When deploying radios to the field, raise the Transmit Power

number accordingly.

Important!: This table is for reference only. AllTransmit Power settings below 9 are approximate.

Setting

Power (in mW) for

MM2-MR, MM2-LV-T, MM2-T

Radios

0 5

1 10

2 35

3 80

4 140

5 230

6 330

7 480

8 600

9 800

10 1000

2.4.15. Transmit Rate

Transmit Rate

Setting Description

Default Setting (1) Normal

Options l0 - Diagnostics

l1 - Normal

Terminal Menu (3) Edit TransmissionCharacteristics > (3) Xmit Rate

Transmit Rate Setting Description Description: MMZ-MR, MM2-LV-T, MM2-T radios have two available Transmit Rate settings. . The setting for normal operation of the radio l5 I. When set to I the radios transmit back and forth continuously regardless if they have any actual data. Ishould be used only as a diagnostic tool and not for normal operation. The strength of the signal may be gauged by the Clear to Send (CTS) LED. A solid red (O ) CTS LED indicates a strong signal. . A blinking (CI) CTS LED indicates a weakerslgnal. I is useful to qualitatively gauge signal strength in Pornt-to—Point mode.

2. Basic Radio Programming and Setup MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Transmit Rate

Setting Description

Description: MM2-MR, MM2-LV-T, MM2-T radios have two available Transmit Rate settings.

lThe setting for normal operation of the radio is 1.

lWhen set to 0, the radios transmit back and forth continuously regardless if

they have any actual data.

l0should be used only as a diagnostic tool and not for normal operation.

lThe strength of the signal may be gauged by the Clear to Send (CTS) LED.

lA solid red ( ) CTS LED indicates a strong signal.

lA blinking ( ) CTS LED indicates a weaker signal.

0is useful to qualitatively gauge signal strength in Point-to-Point mode.

Note: See Routing Commumcations mmugh me Network (on page 71) and Assignxng Subnet ID Values (on page 71 ) for addxtional informalxon.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

3. Configuring

Point-to-MultiPoint Networks

When installing MultiPoint networks it is important to do some up front planning around the

devices to implement and the route the data is going to take back to the Master. A MultiPoint

network can contain the following devices:

lOnly one Master. All communications are from and to the Master.

lAn unlimited number of Slave radios (remote sites).

lAn unlimited number of Repeaters between any Slave and the Master.

lSerial Repeaters can be Slave radios and Repeaters at the same time.

This section provides details about the setup that applies specifically to a MultiPoint network:

lPoint to MultiPoint network characteristics.

lUsing the Network ID or the Call Book to establish which radios in the network can

communicate with each other.

lUsing subnet IDs to route traffic through the network, back to the Master.

lSettings and recommendations for additional parameters that apply to a MultiPoint

network.

lConserving power in devices within the network.

lRunning network diagnostics.

Note: See Routing Communications through the Network (on page 71) and Assigning Subnet ID

Values (on page 71) for additional information.

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.1. Point to MultiPoint Network Characteristics

A Point to MultiPoint network has these unique characteristics:

lGolden Settings (on page 63).

lMaster to Slave Communications (on page 63).

lSlave to Master Communications (on page 63).

3.1.1. Golden Settings

A Point-to-MultiPoint network requires that the Golden Settings (described in Golden Settings (on

page 44)) are set the same on ALL radios in the network.

If several independent MultiPoint networks are located in close proximity, the planning becomes

more critical. It is very important to include as much frequency and time diversity as possible using

different Min and Max Packet Size. In some instances the use of the MultiMaster Sync option

may be required.

In almost all MultiPoint networks, the Frequency Key is the same for all radios. In other networks,

where parallel Repeaters are introduced, the Frequency Key value needs to change.

3.1.2. Master to Slave Communications

Master - to - Slave communications within a MultiPoint network have these characteristics:

lData packets sent from the Master include a 32-bit CRC.

lThe Master repeats its data broadcast between 0 to 9 times, depending on the Master

Packet Repeat setting. For more information, see Master Packet Repeat (on page 78).

lA Slave or Repeater does not send acknowledgments to the Master when it receives data.

lWhen any Slave in the network receives the data packet from the Master with the 32-bit

CRC, that Slave ignores any additional repeats of the data, and passes the data to its

data port.

lRepeaters in the network send data to Slave radios and other Repeaters.

3.1.3. Slave to Master Communications

Slave - to - Master communications within a MultiPoint network have these characteristics:

lData packets sent from the Slave to the Master include a 32-bit CRC.

lWhen the Master successfully receives data, it sends an acknowledgment to the Slave and

passes the data out its data port.

lmportantl: Power supply ranges and recommendations vary depending on model. Verify the specifications fortne model pnorto connecting power. Note: A MultiPoint network can have only one Master, unless running in Mum-Master Sync mode. For more information, see Multi-Master Sync (on page 103).

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.2. Point-to-MultiPoint Network Quick Start

This is a quick start procedure for setting up two radios in Point-to-MultiPoint mode. This mode

allows for a Master to communicate with several Repeaters and Slaves simultaneously.

3.2.1. Point-to-MultiPoint Network Quick Start (Tool Suite)

1. Connect the radio to a TTL-to-RS232 converter.

2. Connect to the serial port of a computer either through the data pins or diagnostics pins.

3. Connect the radio to a power source.

Important!: Power supply ranges and recommendations vary depending on model.

Verify the specifications for the model prior to connecting power.

4. Open a Tool Suite session.

5. Click the Configuration application.

6. Verify the correct port is selected in the Com Port field in the upper left of the

Configuration ribbon.

7. On the Configuration ribbon, in the Network section, click the network the radio resides in

Click Add Network to create a new network in Tool Suite.

8. Click Read Radio on the Configuration ribbon to read the radio's current settings.

lIf using a diagnostics cable to connect to the radio, the radio automatically goes into

Setup mode.

lWhen in Setup mode, all three LEDs on the radio are solid green.

lIf using a data cable to connect to the radio, follow the prompt to press the radio's

Setup button to put it in Setup mode.

9. Click the Operation Mode tab.

10. In the Modem Mode field:

Select 2to set the radio as a Point-to-MultiPoint Master.

Select 3to set the radio as a Point-to-MultiPoint Slave.

Note: A MultiPoint network can have only one Master, unless running in Multi-Master Sync

mode.

For more information, see Multi-Master Sync (on page 103).

11. Click the Baud Rate tab.

12. Change the Baud Rate,Data Parity, and Modbus RTU to match the device that the radio

is to be connected to.

13. Click the Transmission Characteristics tab.

14. Set these parameters so they are identical on all radios in the network:

lFrequency Key

lMax Packet Size

Note: If several independent MultiPoint networks are located in close proximity, it is very important to include as much frequency and time diversity as possible through use of different Frequency Key, Min and Max Packet Size, and Hop Table settings. FREEWAVE Recommends: Set the Network ID to the last three or four digits of the Master radio's serial number if it is below 4095. This value must be the same in all radios in the network. lmpor'antl: A setting of - disables the Network ID feature and enables the Call Book. Note: This option is only available if Read Radio is clicked and parameter settings are NOT sent from a template to the radio. lmpor'antl: Power supply ranges and recommendations vary depending on model. Verify the specifications for the model pnor to connecting power. Use the Tool Suite Setup Terminal application if a terminal emulator is not available.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lMin Packet Size

lRF Data Rate

Note: If several independent MultiPoint networks are located in close proximity, it is very

important to include as much frequency and time diversity as possible through use of different

Frequency Key,Min and Max Packet Size, and Hop Table settings.

15. Click the MultiPoint Parameters tab.

16. In the Network ID field, set to any value between 1and 4095.

FREEWAVE Recommends: Set the Network ID to the last three or four digits of the Master

radio's serial number if it is below 4095.

This value must be the same in all radios in the network.

Important!: A setting of 255 disables the Network ID feature and enables the Call Book.

17. Send the parameter settings by either:

lSending all the settings for all parameters:

In the Configuration application, on the Network Title ribbon, click All.

lSending only the changed parameters:

In the Configuration application, on the Network Title ribbon, click Quick.

Note: This option is only available if Read Radio is clicked and parameter settings are

NOT sent from a template to the radio.

3.2.2. Point-to-MultiPoint Network Quick Start (Terminal Interface)

1. Connect the radio to a TTL-to-RS232 converter.

2. Connect to the serial port of a computer either through the data pins or diagnostics pins.

3. Connect the radio to a power source.

Important!: Power supply ranges and recommendations vary depending on model.

Verify the specifications for the model prior to connecting power.

4. Open a terminal emulator session.

Use the Tool Suite Setup Terminal application if a terminal emulator is not available.

5. Connect to COMx (where 'x' is the number of the COM connected port).

6. Set these options:

lData Rate: 19,200

lData Bits: 8

lParity: None

Note: A MulliPoint network can have only one Master, unless running in Multi-Master Sync mode. For more information, see Multi-Master Sync (on page 103). Note: The Frequency Key option is located in the F submenu after pressing I to access the Frequency Key menu in Main menu I. Note: A 255 setting disables the Network ID feature and enables the Call Book. FREEWAVE Recommends: Set the Network ID to the last three or four digits of the Master radio's serial number if it is below 4095. This value must be the same in all radios in the network.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lStop Bits: 1

lFlow Control: None

7. Press the Setup button on the evaluation board or short Pin 2 to ground.

If using the diagnostics cable, press <Shift+U>.

lThe three LEDs on the radio should all turn green , indicating Setup mode.

lThe Main menu appears on the screen.

8. Press <0> to access the Operation Mode menu.

9. Press <2> to set the radio as a Point-to-MultiPoint Master or

Press <3> to set the radio as a Point-to-MultiPoint Slave.

10. Press <Esc> to return to the Main menu.

Note: A MultiPoint network can have only one Master, unless running in Multi-Master Sync

mode.

For more information, see Multi-Master Sync (on page 103).

11. Press <1> on the Main menu.

12. Change the Baud Rate,Data Parity, and Modbus RTU to match the device that the

radio is to be attached to.

13. Press <Esc> to return to the Main menu.

14. Press <3> in the Main menu.

15. Set these parameters so they are the same on all radios in the network:

lFreqKey

lMax Packet Size

lMin Packet Size

lRF Data Rate

Note: The Frequency Key option is located in the Fsubmenu after pressing 0to access the

Frequency Key menu in Main menu 3.

16. Press <Esc> to return to the Main menu.

17. Press <5> on the Main menu.

18. In the Network ID field, set the value to any value between 1and 4095.

Note: A 255 setting disables the Network ID feature and enables the Call Book.

FREEWAVE Recommends: Set the Network ID to the last three or four digits of the Master

radio's serial number if it is below 4095.

This value must be the same in all radios in the network.

19. Press <Esc> to exit the Setup menu and resume normal radio operation.

Master Slave Repeater Carrier . Clear to Carrier . Clear to Carrier . Clear to Transmt Transmt Transmt Condition Detect ' Sand Detect ' Sand Detect ' Sena (CD) ”’9 (C‘rsl (CD) ”’0 (C‘rsl (CD) (7") (CTS) Pewered. notllnked Salld red Salld red on I Solld red on I Bllnklng Salld red Bllnklng prlgnt O dlm pngnt 0 red 0 prlgnt 0 red [I Repeater and Slave llnked tp Solld red Solld red on I Solld on I Solld red Solld Solld red Solld red Master. 1mm. dim green 0 prrgnt 0 green 0 mm pngnt O Nodata. Repeater and Slave llnked te Salld red Salld red on I Solld on I Solld red Salld Solld red Solld red Master. bright O dlm green 0 pngnt 0 green . dlm bright . Master sendlng datalo Slave. Repeater and Slave llnked tg Solld green I RCV data Solld red lntermntent Solld lntermntent Solld red Solld Solld red Solld red Master. orSolldred dim flashred 0 green 0 flashred 0 bnghl 0 green 0 bnghl O bnghl O Slave sendlng data to bright 0 Master. Master with dlagnosllcs Salld red Salld red lnterrnntent Solld lnterrnntent Solld red Salld Solld red Solld red prpgramrunnrng. bright O dlm flashred 0 green 0 ilasnred pngnt 0 green 0 pngnt O pngnt O p Note: 'In an idle condition, the CTS LED is solid red 0 With a solid link, as the link weakens the CTS LED on the Repeater and Slave begins to blink ‘Z'.

3.3. Point-to-MultiPoint Operation LEDs

Master Slave Repeater

Condition

Carrier

Detect

(CD)

Transmit

(Tx)

Clear to

Send

(CTS)

Carrier

Detect

(CD)

Transmit

(Tx)

Clear to

Send

(CTS)

Carrier

Detect

(CD)

Transmit

(Tx)

Clear to

Send

(CTS)

Powered, not linked Solid red

bright

Solid red

dim

Off Solid red

bright

Off Blinking

red

Solid red

bright

Off Blinking

red

Repeater and Slave linked to

Master.

No data.

Solid red

bright

Solid red

dim

Off Solid

green

Off Solid red

bright

Solid

green

Solid red

dim

Solid red

bright

Repeater and Slave linked to

Master.

Master sending data to

Slave.

Solid red

bright

Solid red

dim

Off Solid

green

Off Solid red

bright

Solid

green

Solid red

dim

Solid red

bright

Repeater and Slave linked to

Master.

Slave sending data to

Master.

Solid green RCV data

or Solid red

bright

Solid red

dim

Intermittent

flash red

Solid

green

Intermittent

flash red

Solid red

bright

Solid

green

Solid red

bright

Solid red

bright

Master with diagnostics

program running.

Solid red

bright

Solid red

dim

Intermittent

flash red

Solid

green

Intermittent

flash red

Solid red

bright

Solid

green

Solid red

bright

Solid red

bright

Note: *In an idle condition, the CTS LED is solid red with a solid link, as the link weakens the CTS LED on the Repeater and Slave begins

to blink .

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by FreeWave. This document cannot be reproduced

in whole or in part by any means without written permission from FreeWave Technologies, Inc.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T User & Reference Manual

www.freewave.com Note: For more information about the installation of Point-to-MultiPoint networks, contact FreeWave Technical Support. See Contact FreeWave Technical Support on page 9 FREEWAVE Recommends: While the Call Book is an option in Point-to—MultiPoint networks, FreeWave strongly recommends using the Network ID feature in most applications. If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or replaced in the network, each radio in the network must be physically reprogrammed and the new serial number entered in the radios Call Book. This can be a time consuming process and can cause a delay in getting the network back up and running. Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may be added or replaced without reprogramming each Slave radio in the network.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.4. Overlapping MultiPoint Networks

Overlapping MultiPoint networks may be set up effectively when several key parameters are set

correctly. Overlapping MultiPoint networks are defined as networks using different Master radios,

which share or overlap in a specific geographic area. It may also include collocated radios

configured into different networks.

For more information, see Application Note #5412, Synchronizing Collocated Masters (Multi-

Master Sync Mode) (available from www.freewave.com).

Collocated MultiPoint networks require these parameters be unique for each network:

lNetwork ID (unless using the Call Book)

lFrequency Key (with Repeater Frequency)

lMax Packet Size

lMin Packet Size

Note: For more information about the installation of Point-to-MultiPoint networks, contact FreeWave

Technical Support.

See Contact FreeWave Technical Support on page 9

3.5. Establishing Communication with Other Radios in a

MultiPoint Network

For the radios in the network to communicate successfully, the radio needs to know what other

devices are available for them to communicate with. Use the Network ID or the Call Book.

FREEWAVE Recommends: While the Call Book is an option in Point-to-MultiPoint networks,

FreeWave strongly recommends using the Network ID feature in most applications.

If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or

replaced in the network, each radio in the network must be physically reprogrammed and the new

serial number entered in the radio's Call Book.

This can be a time consuming process and can cause a delay in getting the network back up and

running.

Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may

be added or replaced without reprogramming each Slave radio in the network.

3.5.1. Using the Network ID in MultiPoint Networks

The Network ID parameter is located on the MultiPoint Parameters tab. In a single network,

assign each radio the same Network ID. Slave radios link with the first Master or Repeater it

hears that has a matching Network ID.

When setting the Network ID:

lThe value can be any value between 1 and 4095, except 255.

l255 enables the Call Book.

Example: Use the last four digits of the Master serial number if it is below 4095. This is ensured to be unique and does not overlap with other nearby FreeWave networks. FREEWAVE Recommends: While the Call Book is an option in Point-to—MultiPoint networks, FreeWave strongly recommends using the Network ID feature in most applications. If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or replaced in the network, each radio in the network must be physically reprogrammed and the new serial number entered in the radio's Call Book. This can be a time consuming process and can cause a delay in getting the network back up and running. Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may be added or replaced without reprogramming each Slave radio in the network. lmportantl: Using the Call Book in a MultiPoint network can cause delay in resuming communications if a Master is damaged. Note: For information about setting the Call Book, see Using the Call Book in Point-to-Point Networks on page 90. Entry Number Repeater 1 Repeater 2 (0) 000-0000 (1) 000-0000 Note: No serial number entries are necessary in the Mastefs Call Book.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lTo help ensure the ID is unique to the network, avoid using numbers that coincide with

nearby landmarks or highways.

Example: Use the last four digits of the Master serial number if it is below 4095.

This is ensured to be unique and does not overlap with other nearby FreeWave networks.

lUse the Network ID function in conjunction with the Subnet ID feature (if necessary) to

route data through the radio network.

3.5.2. Using the Call Book in MultiPoint Networks

Although NOT recommended, the Call Book is an option in MultiPoint networks. If the Network

ID feature is used in a MultiPoint network, no entries are needed in the Call Book of any of the

radios.

FREEWAVE Recommends: While the Call Book is an option in Point-to-MultiPoint networks,

FreeWave strongly recommends using the Network ID feature in most applications.

If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or

replaced in the network, each radio in the network must be physically reprogrammed and the new

serial number entered in the radio's Call Book.

This can be a time consuming process and can cause a delay in getting the network back up and

running.

Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may

be added or replaced without reprogramming each Slave radio in the network.

Important!: Using the Call Book in a MultiPoint network can cause delay in resuming

communications if a Master is damaged.

Note: For information about setting the Call Book, see Using the Call Book in Point-to-Point

Networks on page 90.

In a MultiPoint network, the Slave radios and Repeaters are not listed in the Master radio's Call

Book. Slave radios must have the Master and any Repeater it is going to use in its Call Book.

These examples show the Call Book of a MultiPoint network comprised of a Master, Repeater,

and Slave in which the Slave can communicate either through the Repeater or directly to the

Master.

MultiPoint Master Call Book (Unit Serial Number 900-0001)

Entry Number Repeater 1 Repeater 2

(0) 000-0000

(1) 000-0000

Note: No serial number entries are necessary in the Master’s Call Book.

Entry Number Repeater 1 Repeater 2 (0) 900-0001 (1) 000-0000 Entry Number Repeater 1 Repeater 2 (0) 900-0001 (1 ) 900-0002 (2) 000-0000 'I, At times, the Slave radios need to be forced to go through a specific MultiPoint Repeater. ' In this scenario, the Slave radio's Call Book should contain only the serial number forthat Repeater as the entry on line 0. 0- u .— a! 1...... v» ns I an s NODtH mLL auox ~ {"er lo Ca“ 5 (nu) tum. yin-her Reuunlerl "upbalur? m 3': $13 3}: i3}! 31 :3}? (7) 9n mm 9“ ml! 914 mm Emmacm‘ “L (3) 9|Arlﬂl9 91mm! “Arum in MA 1:42? 9n n93 on 7074 {5) 91/. 3023 9“ 2m 9“ 2927 m an 2923 9“ 2929 91A 2039 H) 911.4031 9154037 91477033 (3) “Army surznae. surmas m 9‘29 999? 999 999 9n 70:17 (c) Change 1 0 Use maul (um rm to u...“ r Enter all (tyros (me new) a r in; ,, .er Enmes at me bottom 0! me Number and Repeater! Columns are 99979999

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MultiPoint Repeater Call Book (Unit Serial Number 900-0002)

Entry Number Repeater 1 Repeater 2

(0) 900-0001

(1) 000-0000

MultiPoint Slave Call Book (Unit Serial Number 900-0003)

Entry Number Repeater 1 Repeater 2

(0) 900-0001

(1) 900-0002

(2) 000-0000

At times, the Slave radios need to be forced to go through a specific MultiPoint Repeater.

In this scenario, the Slave radio's Call Book should contain only the serial number for that

Repeater as the entry on line 0.

3.5.3. Programming Point-to-MultiPoint Extended Call Book

In a MultiPoint network, Slave radios can be programmed to roam between Master radios and

Repeaters using the MultiPoint Extended Call Book function. Slave radios with Call Book, as

configured in this procedure, communicate with any radio whose serial number appears in any of

the three columns.

Procedure

1. Set the Network ID to 255.

2. In the Call Book, enter 999-9999 as the last entry in the first and second columns.

3. In the Call Book, set Entry to Call to All.

Figure 23: HyperTerminal PTMP Extended Call Book

Note: Forcing the communications path optimizes the performance of the network by ensuring the Repeater or Slave links to a Repeater or Master with robust RF communications. Subnel IDs can help to minimize latency.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.6. Routing Communications through the Network

When using the Network ID, a Repeater or Slave links to the first Repeater or Master it hears

with the same ID.

lUse Subnet IDs to determine the path a Repeater or Slave uses to communicate back to

the Master.

lSubnet IDs are particularly helpful to force:

lTwo Repeaters in the same network to operate in series rather than in parallel.

lSlave radios to communicate to a specific Repeater for load balancing purposes.

Note: Forcing the communications path optimizes the performance of the network by ensuring the

Repeater or Slave links to a Repeater or Master with robust RF communications. Subnet IDs can

help to minimize latency.

3.6.1. Assigning Subnet ID Values

Subnet IDs consist of two parts, both available on the MultiPoint Parameters tab:

lRx - This setting identifies which radio a Repeater or Slave listens to.

lIn the terminal interface, this is the Rcv Subnet ID.

lTx - This setting identifies the ID this device transmits on and which devices listen to it.

lThe Tx Subnet ID parameter is relevant for MultiPoint Master radios and Repeaters

only.

lIn the terminal interface, this is the Xmt Subnet ID.

lThe default (disable) setting for both Rx and Tx is F, F.

lThis is a visual way to indicate that the device is the final in the line of communication and

does not use a subnet ID.

lA MultiPoint Slave with a Subnet ID of F, F does not roam from one Repeater or network

to the next.

lIt only links to a Master or Repeater that has either a Transmit Subnet setting of 0or an

F, F Subnet ID.

lSetting both Rx and Tx Subnet ID to 0allows a mobile Slave to roam from subnet to

subnet, and possibly from network to network, provided the Network ID,Max and Min

Packet Size, and RF Data Rates are the same between networks.

The examples in this section show the subnet definitions from the Master radio through the

network to the Slave radios. When the subnet path is defined, the Slave radios can follow the

route back to the Master.

Masmr 4—» Receive Sumet n Transmit Suhnet n r" 7/. Receive subnet o ,. Receive subnet 1 , Receive subnet 2 Transmit smnel 1 r / Transmit subnel z “ / Transmll subnel F Can only connect Can only cannecr through repeater 1 through tweeter 2 RegealerI 4—» RegealerZ 4—» slave Subnet and Speciﬁc Path Communication Radio Rx Tx Additional Information Master 0 0 The default settings (F, F) actually use 0, 0. The Rx Subnet on the Master has no effect on the network. Repeater 1 0 1 Rx Subnet = Iforces the radio to link only to the Master. Repeaterz 1 2 Rx Subnet forces communication through Repeater 1. Repeater1 transmits on subnet 2. Slave 2 F Rx Subnet = Iforces communication through Repeater2. The Slave is the end of the network, so its Tx Subnet is F.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Example 1: Subnet and Specific Path Communication

This example shows a network in which subnet IDs are used to force communications along a

specific path.

Figure 24: Subnet and Specific Path Communication

Subnet and Specific Path Communication

Radio Rx Tx Additional Information

Master 0 0 The default settings (F, F) actually use 0, 0.

The Rx Subnet on the Master has no effect on the

network.

Repeater 1 0 1 Rx Subnet =0forces the radio to link only to the Master.

Repeater 2 1 2 Rx Subnet =1forces communication through Repeater 1.

Repeater 1 transmits on subnet 2.

Slave 2 F Rx Subnet =2forces communication through Repeater 2.

The Slave is the end of the network, so its Tx Subnet is F.

Masmr Receive Subnet n Transmit Subnet o\ Transom subner 1 Slnvi 1 Receive Subnet 2 Race“ “my . Transmrt Subnet F Slave 1 Slnv- g Recs“ mm a sin. I R. nor 2 Transmﬂ Subnet r: sI-ve 2 Receive Subnet o nansmrr Suhnu F Receive sunner 2 Rem” 5mm ‘ /Transmrt Subnet F Transmlt Subnet 1 R-umr 1 Receive smner n Slwoé runsnut Subnet F Subnet and Communication Required through Repeaters Radio Rx Tx Additional Information Master 0 0 The default settings (F, F) actually use 0, 0. The Rx Subnet on the Master has no effect on the network. Slave 1 0 F Rx Subnet = I forces the radio to link only to the Master. The Slave does not transmit to any device except the Master, so its Tx Subnet is F. Repeater 1 0 1 Rx Subnet = forces the radio to link only to the Master. Transmits on subnet 1. Slave 2 0 Rx Subnet = I forces the radio to link only to the Master. Slave/Repeater 2 2 Rx Subnet = I forces the radio to link only to Repeater ’I. It transmits on Tx Subnet 2 to Slave 4 and 5. Slave 3 1 F Rx Subnet = forces the radio to link only to Repeater ’l. The Slave does not transmit to any device except Repeater 1, so its Tx Subnet is F. Slave 4 F Rx Subnet = forces the radio to link with Slave/Repeater 2. Slave 5 F Rx Subnet = forces the radio to link with Slave/Repeater 2.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Example 2: Subnet and Communication Required through Repeaters

This example shows:

lRepeater 2 must communicate through Repeater 1.

lThe Slave connected to Repeater 1 must route through Repeater 1.

lThe other two Slave radios must route through Slave/Repeater 2.

Figure 25: Subnet and Communication Required through Repeaters

Subnet and Communication Required through Repeaters

Radio Rx Tx Additional Information

Master 0 0 The default settings (F, F) actually use 0, 0.

The Rx Subnet on the Master has no effect on the network.

Slave 1 0 F Rx Subnet =0forces the radio to link only to the Master.

The Slave does not transmit to any device except the Master,

so its Tx Subnet is F.

Repeater 1 0 1 Rx Subnet =0forces the radio to link only to the Master.

Transmits on subnet 1.

Slave 2 0 F Rx Subnet =0forces the radio to link only to the Master.

Slave/Repeater 2 1 2 Rx Subnet =1forces the radio to link only to Repeater 1.

It transmits on Tx Subnet 2 to Slave 4 and 5.

Slave 3 1 F Rx Subnet =1forces the radio to link only to Repeater 1.

The Slave does not transmit to any device except Repeater

1, so its Tx Subnet is F.

Slave 4 2 F Rx Subnet =2forces the radio to link with Slave/Repeater 2.

Slave 5 2 F Rx Subnet =2forces the radio to link with Slave/Repeater 2.

Maslar ,. Receive sucnel o Transmit suhnel o ' 1 Recerve subuet n Tlansmll suhnet F Slave 5 Receive subnet u ”.N Transmll subnel 0 ‘ 1 v Roﬁlle' 1 R all.’ Z RECEIVE SUDM U RECEIVE SumEt I Transmit SLIDVIEI 1 Transmll suhnet 2 \ SI . 1 \ . Recelve suhnet I RECEIVE subnel 2 TlHnSlllll suhnel F Transmrt sumel F Subnet and Optional Slave Communication Radio Rx Tx Additional Information Master 0 or F 0 or F The default settings (F, F) actually use 0, 0. The Rx Subnet on the Master has no effect on the network. Repeater 1 0 1 Rx Subnet Iforces the radio to link only to the Master. Repeater2 1 2 Rx Subnet Iforces communication through Repeater 1. Repeater1 transmits on SubnetlD 1. Slave 1 0 0 or F Rx Subnet forces communication through the Master. Slave 2 1 0 or F Rx Subnet forces communication through Repeater 1. Slave 3 2 0 or F Rx Subnet Iforces communication through Repeater 2. Slave 4 0 0 The 0, 0 setting allows the Slave to link with the: . first Masteror . Repeater it hears With the same Network ID.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Example 3: Subnet and Optional Slave Communication

This example shows:

lRepeater 1 must talk directly to the Master.

lRepeater 2 must talk directly to Repeater 1.

lSlave 1, 2, and 3 are forced along the direction of the solid lines.

lSlave 4 may link to the first Master or Repeater it hears in the network.

Figure 26: Subnet and Optional Slave Communication

Subnet and Optional Slave Communication

Radio Rx Tx Additional Information

Master 0 or F 0 or F The default settings (F, F) actually use 0, 0.

The Rx Subnet on the Master has no effect on the

network.

Repeater 1 0 1 Rx Subnet =0forces the radio to link only to the Master.

Repeater 2 1 2 Rx Subnet =1forces communication through Repeater 1.

Repeater 1 transmits on SubnetID 1.

Slave 1 0 0 or F Rx Subnet =0forces communication through the Master.

Slave 2 1 0 or F Rx Subnet =1forces communication through Repeater 1.

Slave 3 2 0 or F Rx Subnet =2forces communication through Repeater 2.

Slave 4 0 0 The 0, 0 setting allows the Slave to link with the:

lfirst Master or

lRepeater it hears with the same Network ID.

Note: See the Parameter Preference for a description of the parameter table's content. lmportantl: When 1 PPS is enabled, the Master radio must have a 1 F'PS pulse on its DTR pin, othenmsethe RF network does not function. 1 FPS Enable Delay Setting Description Default Setting 255 Options - 25510 disable 1 PPS - 0 to 254 to enter the delay Terrmnal Menu (5) Edlt MultiPolnt Parameters > (9)1 PPS Enable/Delay Description: The 1 PPS Enable/Delay setting allows a 1PPS signal to propagate from the Master to all Slave in a MultiPolnt network. When thlS parameter l5 enabled a property generated pulse applied on the DTR line of the Master provtdes a 1 PPS pulse on the CD line of any Slave in the network. Note: The Master must have a 1 PPS pulse on the DTR pin, othenmse the RF network will not function.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.7. Setting Other MultiPoint Parameters

The other MultiPoint Parameters options allow you to modify several different parameters in the

radio that determine the characteristics of a MultiPoint network.

lIn Tool Suite, set these parameters in the MultiPoint Parameters tab.

lThese settings are available in the MultiPoint Parameters menu in the terminal interface.

Note: See the Parameter Preference for a description of the parameter table's content.

3.7.1. 1 PPS Enable Delay

Important!: When 1 PPS is enabled, the Master radio must have a 1 PPS pulse on its DTR pin,

otherwise the RF network does not function.

1 PPS Enable Delay

Setting Description

Default Setting 255

Options l255 to disable 1 PPS

l0 to 254 to enter the delay

Terminal Menu (5) Edit MultiPoint Parameters > (9) 1 PPS Enable/Delay

Description: The 1 PPS Enable/Delay setting allows a 1PPS signal to propagate from the

Master to all Slave in a MultiPoint network.

When this parameter is enabled a properly generated pulse applied on the DTR

line of the Master provides a 1 PPS pulse on the CD line of any Slave in the

network.

Setup 1PPS Enable/Delay

1. On the Master radio, set the 1 PPS Enable/Delay parameter to 0.

Note: The Master must have a 1 PPS pulse on the DTR pin, otherwise the RF network will

not function.

2. Enable the 1 PPS Enable/Delay parameter on the Slave radios.

Slave radios are calibrated at the factory.

Diagnostics Setting Default Setting Description 0 (Disabled) Options Any number between 0 and 128 Terrmnal Menu (5) Edlt MultiPolnt Parameters > (B) Diagnostics Allows diagnostics data in the Network Diagnostics in Tool Suite to be viewed at Description: the Master radio in parallel Wlth application data. - The setting in this parameter determines how many slots out of 128 are dedicated to diagnostics. - Diagnostics l5 always secondary to actual transmitted data. Example: If set to l 1 out of every 10 data slots is for diagnostics data. If set to - 1 out of every 100 data slots is for diagnostics data. Note: For more information, see Reading Diagnostics in Tool Suite on page 83. DTR Connect Setting Description Default Setting (0) Off

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Calibrate a Slave Radio in 1PPS Enable/Delay Mode

1. On the Master radio, trigger an oscilloscope on the 1 PPS pulse on the DTR line.

2. Monitor the CD line of the Slave radio.

3. If the timing on the Slave radio differs from the Master it may be adjusted via the value in the

Slave radio's 1 PPS Enable/Delay parameter.

The difference in time between each incremental integer value is 542.534 nanoseconds (ns).

Changing the parameter to higher values decreases the Slave radio time delay and changing the

parameter to lower values increases the time delay.

When properly calibrated, the CD line Slave radio outputs a pulse that goes high for about 2 ms in

sync with the 1 PPS pulse on the Master radio. The output on the Slave radio occurs within 20

microseconds of the input to the Master.

3.7.2. Diagnostics

Diagnostics

Setting Description

Default Setting 0 (Disabled)

Options Any number between 0 and 128

Terminal Menu (5) Edit MultiPoint Parameters > (B) Diagnostics

Description: Allows diagnostics data in the Network Diagnostics in Tool Suite to be viewed at

the Master radio in parallel with application data.

lThe setting in this parameter determines how many slots out of 128 are

dedicated to diagnostics.

lDiagnostics is always secondary to actual transmitted data.

Example: If set to 10, 1 out of every 10 data slots is for diagnostics data.

If set to 100, 1 out of every 100 data slots is for diagnostics data.

Note: For more information, see Reading Diagnostics in Tool Suite on

page 83.

3.7.3. DTR Connect

DTR Connect

Setting Description

Default Setting (0) Off

DTR Connect Setting Description Options - (0) Off- When set to off in the Slave radio, the radio transmits when the data l5 received. - (1) DTR Sensing — Forms a Point-to-Point link with the Master radio when the DTR line l5 high to send data. - (2) Burst Mode-The radio transmits data in bursts. Terrmnal Menu (5) MultiPolnt parameters > (4) DTR Connect Description: Determines how the radio sends its data. Note: This mode is valuable when a network has many low data rate devices and to increase overall network capacity. The radio has two separate transmit and receive user data buffers of 2kb each. Caution: In case of a buffer overflow, the radio outputs unpredictable data. Local Mode Setting Description Default Setting (0) Disabled Options (0) Disabled, (1) Enabled Terminal Menu (5) Edit Multhoint Parameters > (E) Local Access Description: Enable Local Mode to access a Slave radio with a local Master radio. Importantl: This Master does NOT take the place of the network Master. Note: For more information, see Application Note #5457, Local Mode (available from www.freewave.com).

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

DTR Connect

Setting Description

Options l(0) Off - When set to off in the Slave radio, the radio transmits when the data is

received.

l(1) DTR Sensing - Forms a Point-to-Point link with the Master radio when the

DTR line is high to send data.

l(2) Burst Mode - The radio transmits data in bursts.

Terminal Menu (5) MultiPoint parameters > (4) DTR Connect

Description: Determines how the radio sends its data.

Note: This mode is valuable when a network has many low data rate

devices and to increase overall network capacity.

The radio has two separate transmit and receive user data buffers of 2kb each.

Caution: In case of a buffer overflow, the radio outputs unpredictable

data.

3.7.4. Local Mode

Local Mode

Setting Description

Default Setting (0) Disabled

Options (0) Disabled, (1) Enabled

Terminal Menu (5) Edit MultiPointParameters > (E) Local Access

Description: Enable Local Mode to access a Slave radio with a local Master radio.

Important!: This Master does NOT take the place of the network Master.

Note: For more information, see Application Note #5457, Local Mode

(available from www.freewave.com).

Note: When usrng the radio in Modbus RTU mode, the Master Packet Repeat setting must match in every radio, regardless of whether the network is in Potnt-to—Point or MultiPoint mode. Master Packet Repeat Setting Description Default Setting 3 Options Any number between 0 and 9. Terrmnal Menu (5) Edit MultiPoint Parameters > (1) Master Packet Repeat Description: In a Point—to-MultiPoint network, Slave radios do not acknowledge transmissrons from the Master. . If Slave radios did acknowledge all data transmissrons, in a large network, the Master would soon become ovenrvhelmed with acknowledgments from the Slaves. . Without acknowledgments, 100% confidence every Slave radio has received every packet cannot be met. . To address this issue, change the Master Packet Repeat parameter, assrgning a value between I (the packet IS transmitted once) tol (the packet is transmitted 10 times). For networks with solid RF links, this parametershould be set to a low value (e.g., IorI)- . If a network has some weak or marginal links it should be set with higher values. . If a Slave radio receives a good packet from a Master more than once it discards the repeated packets. . Similarty, aftera MultiPoint Repeater receives a good packet from the Master, it discards any further repeated packets. . In tum, the Repeater sends the packet out to the next Repeater or Slaves the number of times corresponding to its own Master Packet Repeat setting. Increasrng the Master Packet Repeat setting increases the probability of a packet getting through, but also increases latency in the network because each packet from the Master or Repeater IS being sent multiple times. Note: Therefore, it is important to find the optimal mix between network robustness, throughput, and latency. In general, a setting ofl tol works well for most well designed networks. The Master Packet Repeat parameter may be set to I if the user software is capable of, or requires acknowledgment. In this case, If the Master sends a packet that the Slave radio does not receive, the user software controls the retnes as needed.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.7.5. Master Packet Repeat

Note: When using the radio in Modbus RTU mode, the Master Packet Repeat setting must match

in every radio, regardless of whether the network is in Point-to-Point or MultiPoint mode.

Master Packet Repeat

Setting Description

Default Setting 3

Options Any number between 0 and 9.

Terminal Menu (5) Edit MultiPoint Parameters > (1) Master Packet Repeat

Description: In a Point-to-MultiPoint network, Slave radios do not acknowledge transmissions

from the Master.

lIf Slave radios did acknowledge all data transmissions, in a large network, the

Master would soon become overwhelmed with acknowledgments from the

Slaves.

lWithout acknowledgments, 100% confidence every Slave radio has received

every packet cannot be met.

lTo address this issue, change the Master Packet Repeat parameter,

assigning a value between 0(the packet is transmitted once) to 9(the packet

is transmitted 10 times).

For networks with solid RF links, this parameter should be set to a low value (e.g.,

1or 2).

lIf a network has some weak or marginal links it should be set with higher

values.

lIf a Slave radio receives a good packet from a Master more than once it

discards the repeated packets.

lSimilarly, after a MultiPoint Repeater receives a good packet from the Master,

it discards any further repeated packets.

lIn turn, the Repeater sends the packet out to the next Repeater or Slaves the

number of times corresponding to its own Master Packet Repeat setting.

Increasing the Master Packet Repeat setting increases the probability of a

packet getting through, but also increases latency in the network because each

packet from the Master or Repeater is being sent multiple times.

Note: Therefore, it is important to find the optimal mix between network

robustness, throughput, and latency.

In general, a setting of 2to 3works well for most well designed networks.

The Master Packet Repeat parameter may be set to 0if the user software is

capable of, or requires acknowledgment.

In this case, if the Master sends a packet that the Slave radio does not receive,

the user software controls the retries as needed.

Example: If a Master's Master Packet Repeat parameter setting is I the link between the Master and Repeater should be robust. If the Repeater‘s Master Packet Repeat parameter setting is I this could cause marginal links between the Repeater and the Slaves. The Slaves communicating through this Repeater only receive the initial packet from the Master with no repeats. Therefore, if the packet is not received on the ﬁrst try, the Slave radio does not respond as expected. Note: The Master Packet Repeat parameter setting in any MultiPornt Repeater must be less than or equal to the Masters setting. Max Slave Retry Setting Description Default Setting 9 Options Any number between ’l and 9. Terminal Menu (5) Edit Multhoint Parameters > (2) Max Slave Retry Description: . Defines how many times the Slave radio attempts to retransmit a packet to the Master before beginning to use a back—off algorithm as defined by the Retry Odds on page 81 setting. . The Slave radio retrles stop when the Slave receives an acknowledgment from the Master. Radio ID Setting Description Default Setting Blank Options Any 4 digit, user-defined number. Terminal Menu (5) Edit MultiPolnt Parameters > (D) Radio ID Description: Use this option to designate a radio with an arbitrary, user-defined, 4-digit number that identifies the radio in Diagnostics mode.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.7.6. Master Packet Repeat in MultiPoint Networks with Repeaters

The Master Packet Repeat parameter must be set in MultiPoint Repeaters because a Repeater

appears as a Master to a Slave radio.

Therefore, the Repeater sends the packet out the number of times corresponding to its own

Master Packet Repeat parameter setting. If this parameter is set improperly the reliability of the

overall network may be diminished.

Example: If a Master's Master Packet Repeat parameter setting is 3, the link between the Master

and Repeater should be robust.

If the Repeater's Master Packet Repeat parameter setting is 0, this could cause marginal links

between the Repeater and the Slaves.

The Slaves communicating through this Repeater only receive the initial packet from the Master with

no repeats.

Therefore, if the packet is not received on the first try, the Slave radio does not respond as expected.

Note: The Master Packet Repeat parameter setting in any MultiPoint Repeater must be less than

or equal to the Master's setting.

3.7.7. Max Slave Retry

Max Slave Retry

Setting Description

Default Setting 9

Options Any number between 1 and 9.

Terminal Menu (5) Edit MultiPoint Parameters > (2) Max Slave Retry

Description: lDefines how many times the Slave radio attempts to retransmit a packet to the

Master before beginning to use a back-off algorithm as defined by the Retry

Odds on page 81 setting.

lThe Slave radio retries stop when the Slave receives an acknowledgment from

the Master.

3.7.8. Radio ID

Radio ID

Setting Description

Default Setting Blank

Options Any 4 digit, user-defined number.

Terminal Menu (5) Edit MultiPoint Parameters > (D) Radio ID

Description: Use this option to designate a radio with an arbitrary, user-defined, 4-digit number

that identifies the radio in Diagnostics mode.

Radio Name Setting Description Default Setting Blank Options A maximum of 20 characters in any combination of letters or numbers. Terminal Menu (5) Edit MultiPoxnt Parameters > ((3) Radio Name Description: Use this parameter to give a radio a name, such as its location. \\ I I, . . . . . Naming radios can be helpful to Identify a radio when in @ Diagnostics mode. Note: ThlS parameter needs to be set in the MultiPoxnt Master only. The setting has no effect if set in a Multhoint Slave. Repeaters Setting Description Default Setting (1) Enabled Options . 0 - Disabled . ’l - Enabled Terminal Menu (5) Edit MultiPoxnt Parameters > (0) Number Repeaters Description: Indicates if any number of Repeaters exist in the network.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.7.9. Radio Name

Radio Name

Setting Description

Default Setting Blank

Options A maximum of 20 characters in any combination of letters or numbers.

Terminal Menu (5) Edit MultiPoint Parameters > (G) Radio Name

Description: Use this parameter to give a radio a name, such as its location.

Naming radios can be helpful to identify a radio when in

Diagnostics mode.

3.7.10. Repeaters

Note: This parameter needs to be set in the MultiPoint Master only.

The setting has no effect if set in a MultiPoint Slave.

Repeaters

Setting Description

Default Setting (1) Enabled

Options l0 - Disabled

l1 - Enabled

Terminal Menu (5) Edit MultiPoint Parameters > (0) Number Repeaters

Description: Indicates if any number of Repeaters exist in the network.

Repeater Frequency Setting Description Default Setting (0) Disabled Options (0) Disabled (1) Enabled Terrmnal Menu (5) Edit Multhoint Parameters > (5) Repeater Frequency Description: Enable this parameter when a Frequency Key is needed otherthan that of the Master. . ThlS condition occurs when parallel Repeaters in a network may have overlapping areas of responsibility. . The default setting ofl (Disabled) causes the Repeater to use the key set in the Frequency Key parameter on the Tool Suite Transmission Characteristics tab. Note: When the Repeater Frequency parameter is disabled and Subnets are NOT configured, the Frequency Key parameter setting in each Slave radio MUST match the Master or Repeater acting as the Master forthe radio. Retry Odds Setting Description Default Setting 0 Options Any number between 0 and 9. Terrmnal Menu (5) Edit Multhoint Parameters > (3) Retry Odds

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

3.7.11. Repeater Frequency

Repeater Frequency

Setting Description

Default Setting (0) Disabled

Options (0) Disabled

(1) Enabled

Terminal Menu (5) Edit MultiPoint Parameters > (5) Repeater Frequency

Description: Enable this parameter when a Frequency Key is needed other than that of the

Master.

lThis condition occurs when parallel Repeaters in a network may have

overlapping areas of responsibility.

lThe default setting of 0(Disabled) causes the Repeater to use the key set in

the Frequency Key parameter on the Tool Suite Transmission

Characteristics tab.

Note: When the Repeater Frequency parameter is disabled and Subnets

are NOT configured, the Frequency Key parameter setting in eachSlave

radio MUST match the Master or Repeater acting as the Master for the

radio.

3.7.12. Retry Odds

Retry Odds

Setting Description

Default Setting 0

Options Any number between 0 and 9.

Terminal Menu (5) Edit MultiPoint Parameters > (3) Retry Odds

Retry Odds Setting Description Description: While packets transmitted from the Master to the Slave radios in a MultiPoint network are not acknowledged, packets transmitted from Slaves to the Master are acknowledged. It is possible that more than one Slave attempts to transmit to the Master at the same time. Therefore, it is important that a protocol exists to resolve contention forthe Master between Slaves in the network. This is addressed through the Max Slave Retry (on page 79) and Retry Odds parameters. . Afterthe Slave has unsuccessfully attempted to transmit the packet the number of times specified in the Max Slave Retry parameter, it attempts to transmit to the Master on a random basis. . The Retry Odds parameter determines the probability that the Slave attempts to retransmit the packet to the Master; a low setting assigns low odds to the Slave attempting to transmit. - Conversely, a high setting assigns higher odds. Example: Considertwo different Slave radios in a MultiF'oint network, one with a strong RF link and the other with a weak RF link to the Master. If a Slave has a weak or poor link, set the Retry Odds parametertol as it may become a chatty Slave and lockup the network, causing a loss of communication. . When the Retry Odds parameter is set to I, afterthe Slave has exhausted the number of retries set in the Max Slave Retry parameter and still not gained the Mastefs attention, the Slave's data buffer is purged. FREEWAVE Recommends: A Retry Odds parameter set tol is recommended for most networks. Slave I Repeater Setting Description Default Setting (0) Disabled Options (0) Disabled (1) Enabled Terminal Menu (5) MultiPoint Parameters > (A) Slave/Repeater

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Retry Odds

Setting Description

Description: While packets transmitted from the Master to the Slave radios in a MultiPoint

network are not acknowledged, packets transmitted from Slaves to the Master are

acknowledged.

It is possible that more than one Slave attempts to transmit to the Master at the

same time. Therefore, it is important that a protocol exists to resolve contention

for the Master between Slaves in the network.

This is addressed through the Max Slave Retry (on page 79) and Retry Odds

parameters.

lAfter the Slave has unsuccessfully attempted to transmit the packet the

number of times specified in the Max Slave Retry parameter, it attempts to

transmit to the Master on a random basis.

lThe Retry Odds parameter determines the probability that the Slave attempts

to retransmit the packet to the Master; a low setting assigns low odds to the

Slave attempting to transmit.

lConversely, a high setting assigns higher odds.

Example: Consider two different Slave radios in a MultiPoint network,

one with a strong RF link and the other with a weak RF link to the

Master.

If a Slave has a weak or poor link, set the Retry Odds parameter to 0

as it may become a chatty Slave and lockup the network, causing a

loss of communication.

lWhen the Retry Odds parameter is set to 0, after the Slave has exhausted the

number of retries set in the Max Slave Retry parameter and still not gained the

Master’s attention, the Slave’s data buffer is purged.

FREEWAVE Recommends: A Retry Odds parameter set to 0is

recommended for most networks.

3.7.13. Slave / Repeater

Slave / Repeater

Setting Description

Default Setting (0) Disabled

Options (0) Disabled

(1) Enabled

Terminal Menu (5) MultiPoint Parameters > (A) Slave/Repeater

Slave I Repeater Setting Description Description: The Slave/Repeater mode allows a radio in a MultiPornt network to switch between Slave and Repeaterfunctions. - When in this mode, a radio repeats any packets sent across the network as well as uses the data port. - Thus, where one Repeater and one Slave may be required in another vendor‘s network, FreeWave networks require only one radio. To operate a radio as a MultiPornt Slave/Repeater, these parameters must be set: - The Modem Mode parameter in the Operation Mode tab must be set to - The Slave/Repeater parameter in the MultiPoint Parameters tab must be enabled. lmportantl: The Network Diagnostics application is NOT meant to replicate the functionality of a Network Management System. It is a tool intended for occasional network monitoring or troubleshooting in the field, not for continuous, long—term collection of diagnostic data. Name and Radio ID fields on the MultiPoint Parameters tab. \ l I "’ To help identify the radios in the network when running Network Diagnostics, set the Radio www.freewave.com Note: For more information about diagnostics, contact FreeWave Technical Support. Contact FreeWave Technical Support (on page 9) for assistance.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Slave / Repeater

Setting Description

Description: The Slave/Repeater mode allows a radio in a MultiPoint network to switch

between Slave and Repeater functions.

lWhen in this mode, a radio repeats any packets sent across the network as

well as uses the data port.

lThus, where one Repeater and one Slave may be required in another vendor’s

network, FreeWave networks require only one radio.

To operate a radio as a MultiPoint Slave/Repeater, these parameters must be set:

lThe Modem Mode parameter in the Operation Mode tab must be set to

MultiPoint Repeater.

lThe Slave/Repeater parameter in the MultiPoint Parameters tab must be

enabled.

3.8. Reading Diagnostics in Tool Suite

The Network Diagnostics application provides a place to view diagnostic data for all the devices

connected to the Master in the network in real time.

Important!: The Network Diagnostics application is NOT meant to replicate the functionality of a

Network Management System.

It is a tool intended for occasional network monitoring or troubleshooting in the field, not for

continuous, long-term collection of diagnostic data.

This section provides basic steps for reading diagnostics using Tool Suite. Tool Suite stores the

diagnostic data in the database for import from or export to a diagnostic file.

For information regarding the data available, recommended best practices, and importing and

exporting files using the Network Diagnostics application, see the Tool Suite User Manual

available in the Tool Suite software.

To help identify the radios in the network when running Network Diagnostics, set the Radio

Name and Radio ID fields on the MultiPoint Parameters tab.

The diagnostic program must be run from the Master radio. Diagnostics require:

lA setting between 1 and 128 in the Diagnostics parameter available in the MultiPoint

Parameters menu on the Master.

lA second computer or serial connection to run the diagnostics software.

lA diagnostics cable. (Available from FreeWave.)

lDiagnostics software. (Available from www.freewave.com).

Note: For more information about diagnostics, contact FreeWave Technical Support.

Contact FreeWave Technical Support (on page 9) for assistance.

Note: The Network Diagnostics application continues to poll for diagnostic data until it is stopped. lmponantl: Tool Suite is NOT optimized for the collection and management of large amounts of diagnostic data from continuous polling. Collection of excesswe amounts of data results in overall performance degradation in Tool Suite and network throughput degradation.

3. Configuring Point-to-MultiPoint Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Procedure

1. Connect the Master to the computer running Tool Suite.

2. Open Tool Suite.

3. On the Applications tab, click Network Diagnostics.

4. In the Networks section of the ribbon, use the list box to select the serial network to run

diagnostics on.

If there is no network defined, click Add and follow the instructions in the wizard.

5. On the ribbon, click Start.

6. To stop running diagnostics, click Stop.

Note: The Network Diagnostics application continues to poll for diagnostic data until it is stopped.

Important!: Tool Suite is NOT optimized for the collection and management of large amounts of

diagnostic data from continuous polling.

Collection of excessive amounts of data results in overall performance degradation in Tool Suite and

network throughput degradation.

Note: Power supply ranges and recommendations vary depending on model. Verify lhe specifications for me model you are using prior lo connecting power.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

4. Configuring

Point-to-Point Networks

Point-to-Point networks are the most basic type of network and do not require much more than

the setup described in the basic programming and setup section.

This section provides:

lA brief quick start to setup a Point-to-Point network.

lAn LED chart for LED function within a Point-to-Point network.

lInformation about programming the Call Book.

4.1. Point-to-Point Network Quick Start

To establish a link between a pair of FreeWave radios just received from the factory, complete

these steps for each radio.

4.1.1. Point-to-Point Network Quick Start (Tool Suite)

1. For board level configuration, connect the radio to a TTL-to-RS232 converter then connect

to the serial port of a computer either through the data pins or diagnostics pins.

2. Connect the radio to a power source.

Note: Power supply ranges and recommendations vary depending on model.

Verify the specifications for the model you are using prior to connecting power.

3. Open a Tool Suite session.

4. Click the Configuration application.

5. Verify the correct port is selected in the Com Port field in the Configuration ribbon.

6. On the Configuration ribbon, in the Networks section, select the network the radio

resides in or click Add Network to create a new network in Tool Suite.

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Example: Set one radio as a Point-to-Point Master (Mode 0) and the other as a Point-to-Point Slave (Mode 1). Note: A Point-to-Point network can have only one Master. For more information about modern modes, see Setting the Radio's Role in the Network and the Network Type (on page 35). Note: For more information about setting up the Call Book see Using the Call Book in Point- to-Point Networks (on page 90).

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

7. Click Read Radio on the Configuration ribbon to read the radio's current settings.

lIf using a diagnostics cable to connect to the radio, the radio automatically goes into

Setup mode.

lIf using a data cable to connect to the radio, a prompt appears to press the radio's

Setup button to enter Setup mode.

lWhen in Setup mode, all three LEDs on the radio display solid green .

8. Click the Operation Mode tab.

9. In the Modem Mode field, select to set the radio to Point-to-Point mode.

Example: Set one radio as a Point-to-Point Master (Mode 0) and the other as a Point-to-Point

Slave (Mode 1).

Note: A Point-to-Point network can have only one Master.

For more information about modem modes, see Setting the Radio's Role in the Network and

the Network Type (on page 35).

10. Click the Baud Rate tab.

11. Change the Baud Rate,Data Parity, and Modbus RTU to match the device that the radio

is to be attached to.

12. Click the Transmission Characteristics tab.

13. Set these parameters so they are identical on all radios in the network:

lFrequency Key

lMax Packet Size

lMin Packet Size

lRF Data Rate

If several independent networks are located in close proximity, it becomes very

important to include as much frequency and time diversity as possible through use of

different Frequency Key,Min and Max Packet Size, and Hop Table parameter

settings.

14. Click the Call Book tab.

15. Enter the Slave serial number in the Master’s Call Book.

16. Enter the Master’s Serial number in the Slave’s Call Book, or disable the Slave Security

parameter in the Slave.

Note: For more information about setting up the Call Book see Using the Call Book in Point-

to-Point Networks (on page 90).

Shortly after both radios are plugged in, they should establish a link with each other and the

connection is complete.

17. Using the Point-to-Point Operation LEDs (on page 89), verify that the radios are operating

as expected.

18. On the Configuration application in the Network Title ribbon:

Note: Quick is only available if Read Radio is selected and parameter settings are NOT sent from a template to the radio. Note: Power supply ranges and recommendations vary depending on model. Verify the specifications for the model you are using prior to connecting power. Note: Use the Setup Terminal application in Tool Suite if a terminal emulator is unavailable. Note: For more information about modern modes, see Setting the Radio's Role in the Network and the Network Type (on page 35).

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lClick All to send all the settings for all parameters.

lClick Quick to send only the changed parameters.

Note:Quick is only available if Read Radio is selected and parameter settings are

NOT sent from a template to the radio.

4.1.2. Point-to-Point Network Quick Start (Terminal Interface)

1. For board level configuration, connect the radio to a TTL-to-RS232 converter then connect

to the serial port of a computer either through the data pins or diagnostics pins.

2. Connect the radio to a power source.

Note: Power supply ranges and recommendations vary depending on model.

Verify the specifications for the model you are using prior to connecting power.

3. Open a terminal emulator session.

Note: Use the Setup Terminal application in Tool Suite if a terminal emulator is unavailable.

4. Connect to COMx (where 'x' is the number of the COM port being connected).

5. Set these parameters to:

lData Rate - 19,200

lData Bits - 8

lParity - none

lStop bits - 1

lFlow Control - none

6. Press the Setup button on the radio.

If using the diagnostics cable, press <Shift+U>.

lWhen in Setup mode, all three LEDs on the radio display solid green .

lThe Main Menu appears in the window.

7. Type 0and press <Enter> to access the Operation Mode menu.

8. Type 0and press <Enter> to set the radio as a Point-to-Point Masteror

Type 1and press <Enter> to set the radio as Point-to-Point Slave.

Note: For more information about modem modes, see Setting the Radio's Role in the

Network and the Network Type (on page 35).

9. Press <Esc> to return to the Main menu.

10. On the Main Menu, type 1and press <Enter>.

11. Change the Baud Rate,Data Parity, and Modbus RTU to match the device that the radio

is to be attached to.

12. Press <Esc> to return to the Main menu.

13. On the Main Menu, type 2and press <Enter> to update the Call Book.

Note: For more information about setting up the Call Book see Using the Call Book in Point- to-Poinl Networks (on page 90). Note: The Frequency Key option is located in the F submenu after you press to access the Frequency Key menu on Main menu .

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

14. Enter the Slave serial number in the Master’s Call Book.

15. Enter the Master’s Serial number in the Slave’s Call Book or

disable the Slave Security (on page 59) parameter in the Slave.

Note: For more information about setting up the Call Book see Using the Call Book in Point-

to-Point Networks (on page 90).

16. On the Main Menu, type 3and press <Enter>.

17.

18. Press <3> on the Main menu.

19. Set these parameters so they are identical on all radios in the network:

lFrequency Key

lMax Packet Size

lMin Packet Size

lRF Data Rate

Note: The Frequency Key option is located in the Fsubmenu after you press <0> to access

the Frequency Key menu on Main menu <3>.

20. Press <Esc> to return to the Main menu.

Shortly after both radios are plugged in, they should establish a link with each other and the

connection is complete.

21. Using the Point-to-Point Operation LEDs (on page 89), verify that the radios are operating

as expected.

22. Press <Esc> to exit the Setup menu and resume normal radio operation.

Masmr suave Repeater Carrier Transm.‘ Clearlo Carrier Transm.‘ Clearlo Carrier Transm.‘ Cleane Condition Detect (Tx) ' Send Detect (Tx) ' Send Detect (Tx) ' Send (ODD 1c‘r5) (CD) 1c‘r5) (CD) (c‘rsp Powered, ne unk Sohd red Sohd red Send red Sohd red aunkrng Sohd red aunkrng engm. engm. bngm. bright red':‘ bright red':‘ . . Linked. Sohd memmmgasmed o Intermmenl Sohd Intermmant Intermmenl N/A N/A N/A No Repeater green. ﬂashred 0 green. ﬂash red 0 ﬂashred 0 Sendmg sparse dam Master caHIng Sohd red Sohd red Send red Sohd red aunkrng Sohd red aunkrng Slavelhrough Repearer bright. dlm bngm. engm redo engm redo . . Masterlmkedlo Repea‘er‘ ﬁlaenrng orange Sohd red Send red Sohd red aunkrng Sohd Sohd red Send red nolm Slave dim bngm. engm redo Red dim bngm. . engm . RepealerlmkedloS‘ave Sohd Imermmam Intermmenl Sohd Imermmam Intermmenl Sohd Imermmam Intermmenl green. ﬂash red 0 ﬂasnred 0 green. ﬂash red 0 ﬂasnred 0 green. ﬂash red 0 ﬂasnred 0 Mode 6 Sand red aunkrng Sohd red aunkrng N/A N/A N/A Wamng forATD eernrnand brunt. red'a‘ haw" red'a‘ Semp Mode Sohd Sohd Send Sohd Sohd Send Sohd Sohd Send green. green. green. green. green. green. green. green . green.

4.2. Point-to-Point Operation LEDs

Master Slave Repeater

Condition

Carrier

Detect

(CD)

Transmit

(Tx)

Clear to

Send

(CTS)

Carrier

Detect

(CD)

Transmit

(Tx)

Clear to

Send

(CTS)

Carrier

Detect

(CD)

Transmit

(Tx)

Clear to

Send

(CTS)

Powered, no link Solid red

bright

Solid red

bright

Solid red

bright

Solid red

bright

Off Blinking

red

Solid red

bright

Off Blinking

red

Linked.

No Repeater

Sending sparse data

Solid

green

Intermittent flash red Intermittent

flash red

Solid

green

Intermittent

flash red

Intermittent

flash red

N/A N/A N/A

Master calling

Slave through Repeater

Solid red

bright

Solid red

dim

Solid red

bright

Solid red

bright

Off Blinking

red

Solid red

bright

Off Blinking

red

Master linked to Repeater,

not to Slave

Flashing orange Solid red

dim

Solid red

bright

Solid red

bright

Off Blinking

red

Solid

Red

bright

Solid red

dim

Solid red

bright

Repeater linked to Slave Solid

green

Intermittent

flash red

Intermittent

flash red

Solid

green

Intermittent

flash red

Intermittent

flash red

Solid

green

Intermittent

flash red

Intermittent

flash red

Mode 6

Waiting for ATD command

Solid red

bright

Off Blinking

red

Solid red

bright

Off Blinking

red

N/A N/A N/A

Setup Mode Solid

green

Solid

green

Solid

green

Solid

green

Solid

green

Solid

green

Solid

green

Solid

green

Solid

green

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by FreeWave. This document cannot be reproduced

in whole or in part by any means without written permission from FreeWave Technologies, Inc.

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T User & Reference Manual

lmponantl: The Call Book is required in Foint—to-Point networks. FREEWAVE Recommends: While the Call Book is an option in Point-to—MultiPoint networks, FreeWave strongly recommends using the Network ID feature in most applications. If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or replaced in the network, each radio in the network must be physically reprogrammed and the new serial number entered in the radios Call Book. This can be a time consuming process and can cause a delay in getting the network back up and running. Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may be added or replaced without reprogramming each Slave radio in the network. Note: To set the Entry to Call option in the terminal interface, press at the Call Book menu, followed by the menu number corresponding to that Slave. To call any available Slave in the list, press then press to direct the Master to Call All. Note: When entering numbers into the Call Book, define only the Repeaters in the Masters Call Book. The Slave‘s Call Book only requires the Master serial number. A Repeater need not have anything listed in its Call Book.

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

4.3. Using the Call Book in Point-to-Point Networks

Using the Call Book offers both security and flexibility in determining how FreeWave radios

communicate with each other.

Important!: The Call Book is required in Point-to-Point networks.

FREEWAVE Recommends: While the Call Book is an option in Point-to-MultiPoint networks,

FreeWave strongly recommends using the Network ID feature in most applications.

If a large MultiPoint network is implemented using the Call Book and a radio needs to be added to or

replaced in the network, each radio in the network must be physically reprogrammed and the new

serial number entered in the radio's Call Book.

This can be a time consuming process and can cause a delay in getting the network back up and

running.

Because the Network ID does not use serial numbers, MultiPoint Master radios and Repeaters may

be added or replaced without reprogramming each Slave radio in the network.

lThe Call Book allows a maximum of 10 FreeWave radios.

lDesignate 1 to 4 Repeaters to use with each radio.

lDesignate which Slave the Master calls.

These settings are required for two FreeWave radios to communicate in Point-to-Point mode:

1. The Master radio serial number must be listed in the Slave radio's Call Book or Slave

Security is turned off in the Slave.

2. The Slave serial number must be listed in the Master Call Book .

3. The Master must be programmed to call the Slave (Entry to Call option).

a. Select the number in the Entry to Call field, select All to direct the Master to call all

Slave radios.

Note: To set the Entry to Call option in the terminal interface, press <C> at the Call Book

menu, followed by the menu number corresponding to that Slave.

To call any available Slave in the list, press <C> then press <A> to direct the Master to Call

All.

It is important that the Call Book slots (0-9) are filled sequentially starting with slot 0.

lWhen a Master is instructed to Call All, it calls all Slave radios listed until it reaches the first

serial number of 000-0000 (or a blank slot).

lIf a serial number is entered after the all zero number or as a Repeater, the Master does not

recognize it as a valid number.

Note: When entering numbers into the Call Book, define only the Repeaters in the Master's Call

Book.

The Slave's Call Book only requires the Master serial number.

A Repeater need not have anything listed in its Call Book.

new“: um Mmmnl Hyperremnm m m w gal [Vania nap DI" 3 me Q MDDEM CRLL BﬂﬂK Enlrv Io Call 15 (HLL) Entry Number Repealerl RepealerZ (0! 9600605 (1] 91272890 911*“19 (2] 0II07000 (3) 00070000 (A) 000*0000 (5] 0H07000 (5] 0I070I00 (7) (8) (9) (C) (Es Ent \ > 00070000 000*0000 00070000 Change Entry to Use (0’9) or WELL] c Exit to Main Menu er all Zeros (000*0000) a: your lasl number in list m <> (“mum an 52 magma mm m NUM

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

4.3.1. Setting the Call Book in Tool Suite

1. In the Tool Suite Configuration application, select the device to program.

2. Click the (2) Call Book tab.

3. In the Number column in Row 0, enter the seven-digit serial number of the radio being

called.

4. In the Repeater 1 column, enter the first Repeater's seven-digit number.

If no Repeaters are being used, leave the column empty.

5. In the Repeater 2 column, enter the second Repeater’s 7-digit number.

If only one Repeater is being used, leave the column empty.

6. If Repeaters are being used, select the appropriate Entry to Call option in the Master Call

Book.

7. To apply the changes, click either the Quick or All icon.

Tool Suite applies the changes to the radio.

4.3.2. Setting the Call Book in the Terminal Interface

1. On the Setup menu, click C(2) Edit all Book.

The Modem Call Book window opens.

Figure 27: Modem Call Book window

2. Enter the number or letter associated with the option to select.

3. In the Enter New Number prompt, enter the seven-digit serial number of the radio being

called.

The system prompts for the first Repeater's serial number.

4. If no Repeaters are being used, press <Esc> and continue.

Otherwise, enter the 7-digit serial number of the Repeater.

The system prompts for the second Repeater's serial number.

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

5. Enter the 7-digit serial number of the second Repeater.

If only one Repeater is being used, press <Esc>.

The system refreshes the radio’s Call Book menu with the new changes.

6. Repeat steps 2 to 5 for additional radios in the network.

7. Press <Esc> to return to the Main menu.

|Emry ‘ Number Renate! 1 Repeaterz 0 571-3372 9014234 910—0234 999—9999 571 3456 571—4567 OGNOWG-WNH

4. Configuring Point-to-Point Networks MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

4.3.3. Programming Point-To-Point Extended Call Book to Use Three or

Four Repeaters

In a Point-to-Point configuration, FreeWave radios can use a maximum of four Repeaters.

1. To use three or four Repeaters, program the Call Book with the Slave serial number,

followed by the first two Repeaters.

2. On the next line enter 999-9999 as the radio to call.

3. When prompted for the Repeaters enter the third and fourth Repeaters in the link.

Figure 28 shows a Point-to-Point link where a Slave is called through four Repeaters. In this

example:

lthe Master is calling the Slave, 571-3872, through Repeater 1, 901-1234,

lthen Repeater 2,910-0234,

lthen Repeater 3, 571-3456, and finally

lRepeater 4, 571-4567.

lEntering the serial number 999-9999 in line 1 instructs the Master to continue calling

through the Repeaters programmed on that line.

Figure 28: Point-to-Point link where a Slave is called through four Repeaters

lTo call a Slave radio through one or more Repeaters, that Slave must be called individually.

lWith Call All selected, the Master will not connect with any Slave radios through

Repeaters.

lThe Master calls every Slave in the list and connects with the first Slave that responds.

lWhen calling through a Repeater, the Master must first call that Repeater and establish a

communications link with it prior to making contact with the Slave.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

5. Advanced Programming

The settings and scenarios covered in this section are considered advanced programming.

lWorking with Parallel Repeaters (on page 95)

lSetting and Changing Radio Passwords (on page 97)

lEnable and Set Up AES Encryption (on page 98)

lEncryption Channel Key (on page 102)

lEncryption Key (on page 100)

lEncryption (Strength) (on page 99)

lTroubleshooting AES Setup (on page 102)

lLow Baud Rates (on page 103)

lMulti-Master Sync (on page 103)

lTime Divisible Multiple Access (TDMA) (on page 103)

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Settings to Change on Repeaters in Conﬂict Setting Description Repeater - Set the Repeater Frequency parameterin the MultiFoint Parameters tab to Frequency any number other than 0. - If set to a number other than 0, the radio uses the frequency key set in the Frequency Key parameter in the Transmission C haracteristics tab, instead of the frequency key assigned to the Master.

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

5.1. Working with Parallel Repeaters

When Repeaters are added to a network, plan accordingly to avoid creating a parallel Repeater

scenario. A parallel Repeater is defined as two or more Repeaters linked to the same point in the

network.

lRepeaters Data Transmitted on the Same Frequency Key (on page 95)

lAdding a Repeater to the Network (on page 96)

5.1.1. Repeaters Data Transmitted on the Same Frequency Key

In this diagram, the Slave radio in the middle has overlapping coverage from both the Repeaters

(parallel Repeaters). Data from the Repeaters is transmitted on the same Frequency Key in the

same time slot, which creates message collisions.

Figure 29: Slave Radio with Overlapping Coverage

To resolve this scenario, change these settings on one or more of the Repeaters in conflict:

Settings to Change on Repeaters in Conflict

Setting Description

Repeater

Frequency

lSet the Repeater Frequency parameter in the MultiPoint Parameters tab to

any number other than 0.

lIf set to a number other than 0, the radio uses the frequency key set in the

Frequency Key parameter in the Transmission Characteristics tab, instead

of the frequency key assigned to the Master.

Settings to Change on Repeaters in Conﬂict Setting Description Frequency Key Set the Frequency Key parameter in the Transmission C haracteristics tab to a key other than that of the conflicting Repeater. Regeater 1 Repeater Frequency : 0 Frequency Key = 5 Rx Subnet = 0 TX Subnet = 1 Master Frequency Key = 5 Rx Subnei = 0 Tx Subnet : ﬂ Slave Frequency Key = 6 Rx Subnet = 2 Tx Subnel = F 913 MHz R- mr 2 Repeater Frequency : 1 Frequency Key = a Rx Subnel = 0 Tx Subnet = Z I l / Gather the settings from all the Repeaters that are currently in the network.

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Settings to Change on Repeaters in Conflict

Setting Description

Frequency Key Set the Frequency Key parameter in the TransmissionCharacteristics tab to a

key other than that of the conflicting Repeater.

5.1.2. Adding a Repeater to the Network

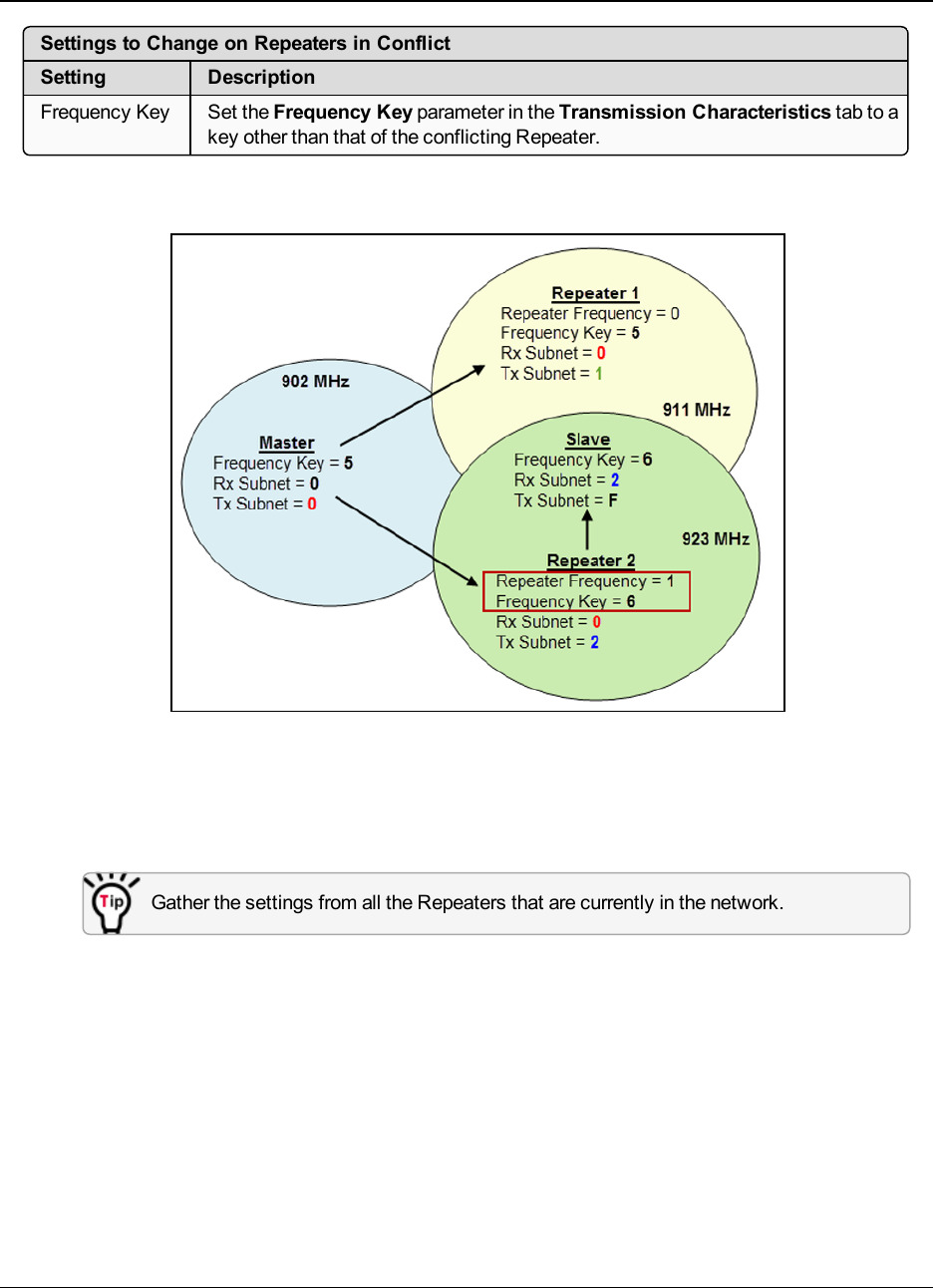

Figure 30: Repeater Added to Network

If a Repeater needs to be added to the network, use these steps to ensure any parallel Repeater

issues are resolved before deploying the Repeater in the network.

1. In Tool Suite, run a network diagnostics file.

Gather the settings from all the Repeaters that are currently in the network.

2. Review the network diagnostics file.

Pay special attention to these settings on each Repeater and the Master:

lFrequency Key

lRepeater Frequency

lRx and Tx Subnet IDs

3. On a piece of paper, draw the network.

4. Note the above settings for each Repeater.

Verify there are no duplicates.

5. If there are duplicates, change the Repeater Frequency and the Frequency Key

parameters described in the table.

Note: If the Setup Port option on the Baud Rate tab is set to — or-, the password is only accepted if the option is accessed from the main data port. To use the Password function using the diagnostics port, the Setup Port option must be set to I ® ‘ Note: Press to cancel the process at any time. Importanti: Press and the password appears on the line above. The password is case sensitive and every keystroke is a character.

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

6. If the Repeater being adding is the only Repeater in the network, set the:

a. Frequency Key parameter to match the Master.

b. Rx Subnet ID parameter to match the Master's Tx Subnet ID parameter setting

c. Tx Subnet ID parameter to 1.

d. In the Master, set the Repeaters parameter to Enabled.

5.2. Setting and Changing Radio Passwords

Use passwords to prevent access to or changing of any of the radio’s parameters. This option is

useful to prevent unauthorized personnel from gaining access to the radio settings.

Note: If the Setup Port option on the Baud Rate tab is set to (1) Main Only or (3) Both, the

password is only accepted if the option is accessed from the main data port.

To use the Password function using the diagnostics port, the Setup Port option must be set to (2)

Diagnostics Only.

Warning! If the password feature is enabled and the password is forgotten, the radio MUST be

returned to FreeWave to have the password disabled.

5.2.1. Setting the Password

1. On the Setup menu in the terminal interface, select (8) Chg Password.

New PW? (<esc> to exit) appears.

Note: Press <Esc> to cancel the process at any time.

2. Enter exactly four characters.

Passwords are case sensitive.

<Enter> to accept, <esc> to quit appears.

3. Press <Enter> to accept the password and enable the feature.

Press <Esc> to quit the process and not enable the password.

Important!: Press <Enter> and the password appears on the line above.

The password is case sensitive and every keystroke is a character.

5.2.2. Changing a Password

After the password feature has been enabled, it is possible to change to a new password.

1. On the Setup menu in the terminal interface, select (8) Chg Password.

The Enter Security Code prompt appears.

2. Enter the current four character, case-sensitive password.

The prompt to enter the new password appears.

3. Re-enter the new four character, case-sensitive password.

Note: Press to cancel the process at any time. lmportantl: Press and the password appears on the line above. The password is case sensitive and every keystroke is a character. lmportantl: The password can only be disabled using the prompt when reading the radio in Tool Suite orthmugh a terminal emulator. The password CANNOT be disabled using Setup Terminal application in Tool Suite. lmportantl: Type the - uSlng the NUM Fad on the keyboard, NOT the top row of numerals. Note: AES encryption is available as an option set at the factory in firmware v10.6.6 and later in some MM2—MR, MMZ-LV-T, MMZ-T models.

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Note: Press <Esc> to cancel the process at any time.

4. Press <Enter> to accept the password and enable the feature.

Press <Esc> to quit the process and not enable the password.

Important!: Press <Enter> and the password appears on the line above.

The password is case sensitive and every keystroke is a character.

5.2.3. Disable a Password

After the password features has been enabled, it is possible to disable the password if the

current password is known.

Important!: The password can only be disabled using the prompt when reading the radio in Tool

Suite or through a terminal emulator.

The password CANNOT be disabled using Setup Terminal application in Tool Suite.

1. On the Setup menu in the terminal interface, select (8) Chg Password.

2. Hold down the <Alt> key and type 0255 using the number pad on the keyboard.

3. Release the <Alt> key.

4. Repeat this step three more times (hold <Alt> and type 0255 a total of 4 times).

Important!: Type the 0255 using the NUM Pad on the keyboard, NOT the top row of

numerals.

5. After the fourth entry, the password is disabled.

5.3. Enable and Set Up AES Encryption

Protecting the confidentiality, integrity, and authenticity of data communications is essential to

maintaining a robust, reliable, and secure wireless infrastructure. FreeWave has incorporated a

number of mechanisms to achieve these critical security objectives, including the use of AES

encryption. When available and enabled, AES encryption adds a layer of 128-bit, 192-bit, or 256-

bit encryption strength to the data before it is sent over the RF link.

Note: AES encryption is available as an option set at the factory in firmware v10.6.6 and later in

some MM2-MR, MM2-LV-T, MM2-T models.

When using AES encryption, these settings are required:

lEncryption Channel Key (on page 102).

lEncryption Key (on page 100).

lEncryption (Strength) (on page 99).

lmportantl: These settings are ONLY available in the (3) Edit Radio Transmission Characteristics > (E) Encryption menu in the terminal interface. These settings are NOT available in Tool Suite. Note: For information about accessing the Setup menu using the terminal interface, see Access the Setup Menu Using a Terminal Emulator (on page 27). lmportantl: When AES is enabled, every radio in the network must have matching encryption strengths, encryption keys, and encryption channel keys, and the MCU Speed parameter set to I for successful communication and data transmission. Note: AES encryption settings are available only through the Setup menu in the terminal interface. If the radio does not have Encryption enabled, menu option E in the (3) Edit Radio Transmission Characteristics menu is blank and has no function. lmportantl: This setting MUST match across all radios in the network. Encryption (Strength) Setting Description Default Setting (0) Off Options . (0) Off - Turns off AES encryption. . (2) AES 128 - Enables AES encryption, 12&bit strength. . (3) AES 192 - Enables AES encryption, 192—bit strength. . (4) AES 256 - Enables AES encryption, 256—bit strength. The options available for selection are based on the encryption strength set at the factory, or Within the upgrade to use AES completed With FreeWave technical support's assistance. Example: If the radio is factory set to include AES 256, then each strength option is available. However, if the radio is factory set to include AES 192, then only Off, AES 128, and AES 192 are available. Note: Selecting any option other than _ enables AES encryption. The encryption key and the channel key are required for successful communication. Terminal Menu (3) Edit Radio Transmission Characteristics > (E) Encryption

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

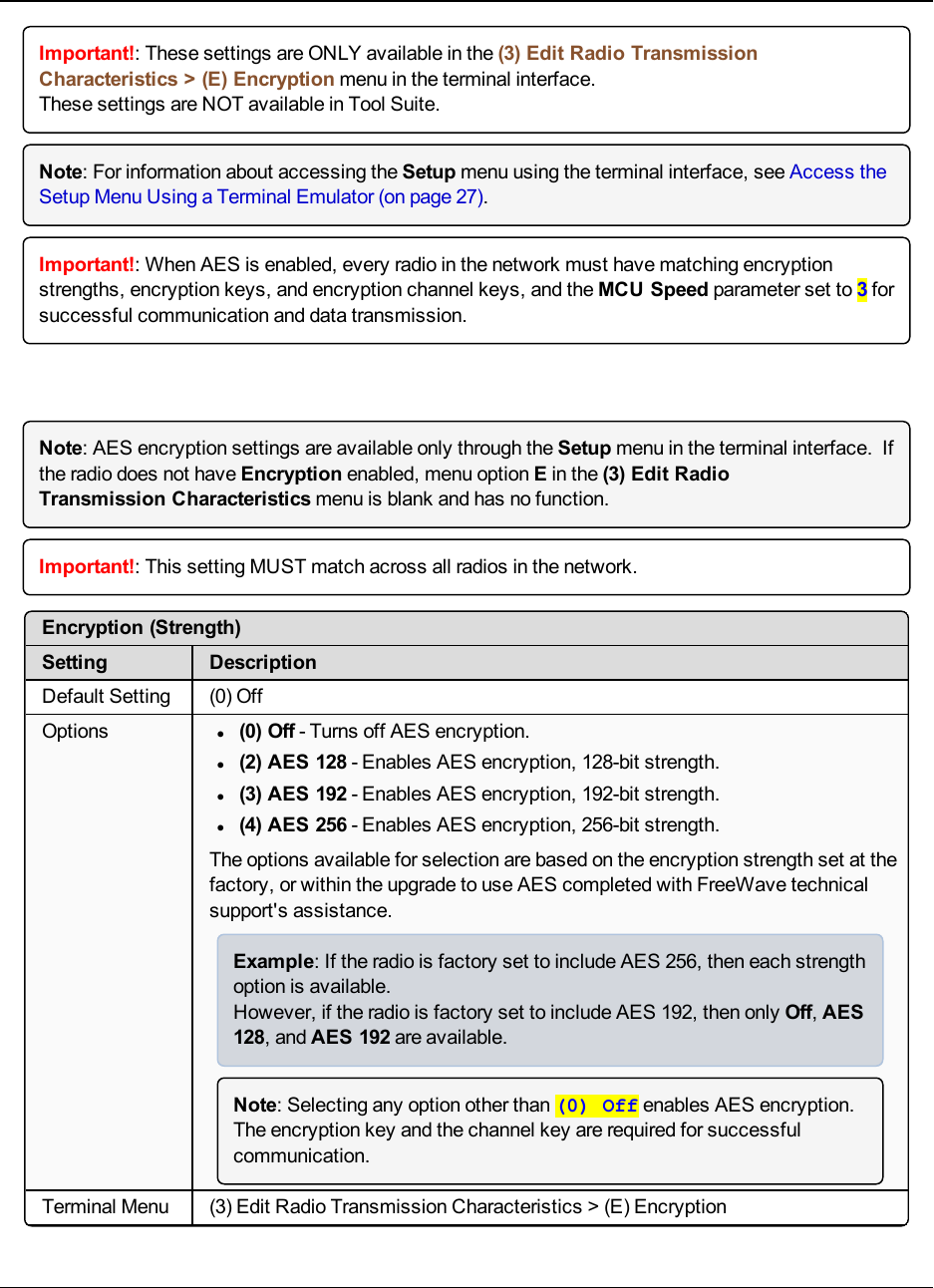

Important!: These settings are ONLY available in the (3) Edit Radio Transmission

Characteristics > (E) Encryption menu in the terminal interface.

These settings are NOT available in Tool Suite.

Note: For information about accessing the Setup menu using the terminal interface, see Access the

Setup Menu Using a Terminal Emulator (on page 27).

Important!: When AES is enabled, every radio in the network must have matching encryption

strengths, encryption keys, and encryption channel keys, and the MCU Speed parameter set to 3for

successful communication and data transmission.

5.3.1. Encryption (Strength)

Note: AES encryption settings are available only through the Setup menu in the terminal interface. If

the radio does not have Encryption enabled, menu option Ein the (3) Edit Radio

TransmissionCharacteristics menu is blank and has no function.

Important!: This setting MUST match across all radios in the network.

Encryption (Strength)

Setting Description

Default Setting (0) Off

Options l(0) Off - Turns off AES encryption.

l(2) AES 128 - Enables AES encryption, 128-bit strength.

l(3) AES 192 - Enables AES encryption, 192-bit strength.

l(4) AES 256 - Enables AES encryption, 256-bit strength.

The options available for selection are based on the encryption strength set at the

factory, or within the upgrade to use AES completed with FreeWave technical

support's assistance.

Example: If the radio is factory set to include AES 256, then each strength

option is available.

However, if the radio is factory set to include AES 192, then only Off,AES

128, and AES 192 areavailable.

Note: Selecting any option other than (0) Off enables AES encryption.

The encryption key and the channel key are required for successful

communication.

Terminal Menu (3) Edit Radio Transmission Characteristics > (E) Encryption

Encryption (Strength) Setting Description Description: AES encryption is available in various strengths. . The network and the data being sent determine the encryption strength used. . The higherthe encryption strength, the strongerthe encryption although it can also take longer forthe encryption and un-encryption to take place. Note: AES encryption settings are available only through the Setup menu in the terrmnal interface. If the radio does not have Encryption enabled, menu option I in the (3) Edit Radio Transmission Characteristics menu is blank and has no function. lmportantl: This setting MUST match across all radios in the network. Encryption Key Setting Description Default Setting Blank Options Any set of hexadecimal pairs identified in Description. Terrmnal Menu (3) Edit Radio Transmission Characteristics > (E) Encryption > (5) Enter Key

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Encryption (Strength)

Setting Description

Description: AES encryption is available in various strengths.

lThe network and the data being sent determine the encryption strength used.

lThe higher the encryption strength, the stronger the encryption although it can

also take longer for the encryption and un-encryption to take place.

5.3.2. Encryption Key

Note: AES encryption settings are available only through the Setup menu in the terminal interface.

If the radio does not have Encryption enabled, menu option Ein the (3) Edit Radio

TransmissionCharacteristics menu is blank and has no function.

Important!: This setting MUST match across all radios in the network.

Encryption Key

Setting Description

Default Setting Blank

Options Any set of hexadecimal pairs identified in Description.

Terminal Menu (3) Edit Radio Transmission Characteristics > (E) Encryption >

(5) Enter Key

Encryption Key Setting Description Description: The encryption key is the piece of information used to encrypt and unencrypt the data sent through the network. Even With encryption, the data is only as secure as the strength of the encryption key used. Keys should be random and entered as hexadecimal values he, 0 to F in two- character pairs). Any combination of characters can be used for the key. Example: A combination of numbers, or a sentence or phrase converted into hexadecimal format. Various string-to—hexadecimal converters are available on the lntemet. Enterthe encryption key in 2—character hexadecimal combinations in the lines provxded: cimce c , 2453125, J-AESIFZ, Aazszzz, The Enter Key option always asks for all 32 lines of the encryption key. However, the encryption strength you select determines how many of the lines are required: . 128-bit encryption — Enter key information in rows 00 to CF. - The last 16 lines (10 to 1F) are ignored. . 192-bit encryption — Enter key information in rows 00 to 17. - The last 8 entries (18 to 1F) are ignored. . 256-bit encryption — Enter key information in rows 00 to 1F. - All lines are used.

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Encryption Key

Setting Description

Description: The encryption key is the piece of information used to encrypt and un-encrypt the

data sent through the network. Even with encryption, the data is only as secure as

the strength of the encryption key used.

Keys should be random and entered as hexadecimal values (i.e., 0 to F in two-

character pairs). Any combination of characters can be used for the key.

Example: A combination of numbers, or a sentence or phrase converted

into hexadecimal format.

Various string-to-hexadecimal converters are available on the Internet.

Enter the encryption key in 2-character hexadecimal combinations in the lines

provided:

The Enter Key option always asks for all 32 lines of the encryption key. However,

the encryption strength you select determines how many of the lines are required:

l128-bit encryption - Enter key information in rows 00 to 0F.

lThe last 16 lines (10 to 1F) are ignored.

l192-bit encryption - Enter key information in rows 00 to 17.

lThe last 8 entries (18 to 1F) are ignored.

l256-bit encryption - Enter key information in rows 00 to 1F.

lAll lines areused.

Note: AES encryption settings are available only through the Setup menu in the terminal interface. If the radio does not have Encryption enabled, menu option E in the (3) Edit Radio Transmission Characteristics menu is blank and has no function. lmportantl: This setting MUST match across all radios in the network. Encryption Channel Key Setting Description Default Setting Blank Options Any set of hexadecimal pairs identified in Description. Terminal Menu (3) Edit Radio Transmission Characteristics > (E) Encryption > (6) Channel Key Description: The channel key is required when AES encryption is enabled for radios in the network to link when AES encryption is enabled. This setting is different from the Encryption Key parameter because it does not encrypt the actual data but is required with the other Golden Settings, descnbed in a network, forthe communication to take place. Channel keys should be random and entered as hexadecimal values (e.g., 0 to F in two-character pairs). Any combination of characters can be used forthe key. Example: A combination of numbers, or a sentence or phrase converted into hexadecimal format. Various string-to—hexadecimal converters are available on the lntemet. Enterthe encryption key in 2—character hexadecimal combinations in lines 00 to 07 inthelines provided. Eur , 2::55123, 3::55192, 4:552:35, rpm-ice; Key 64:1;an Key

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

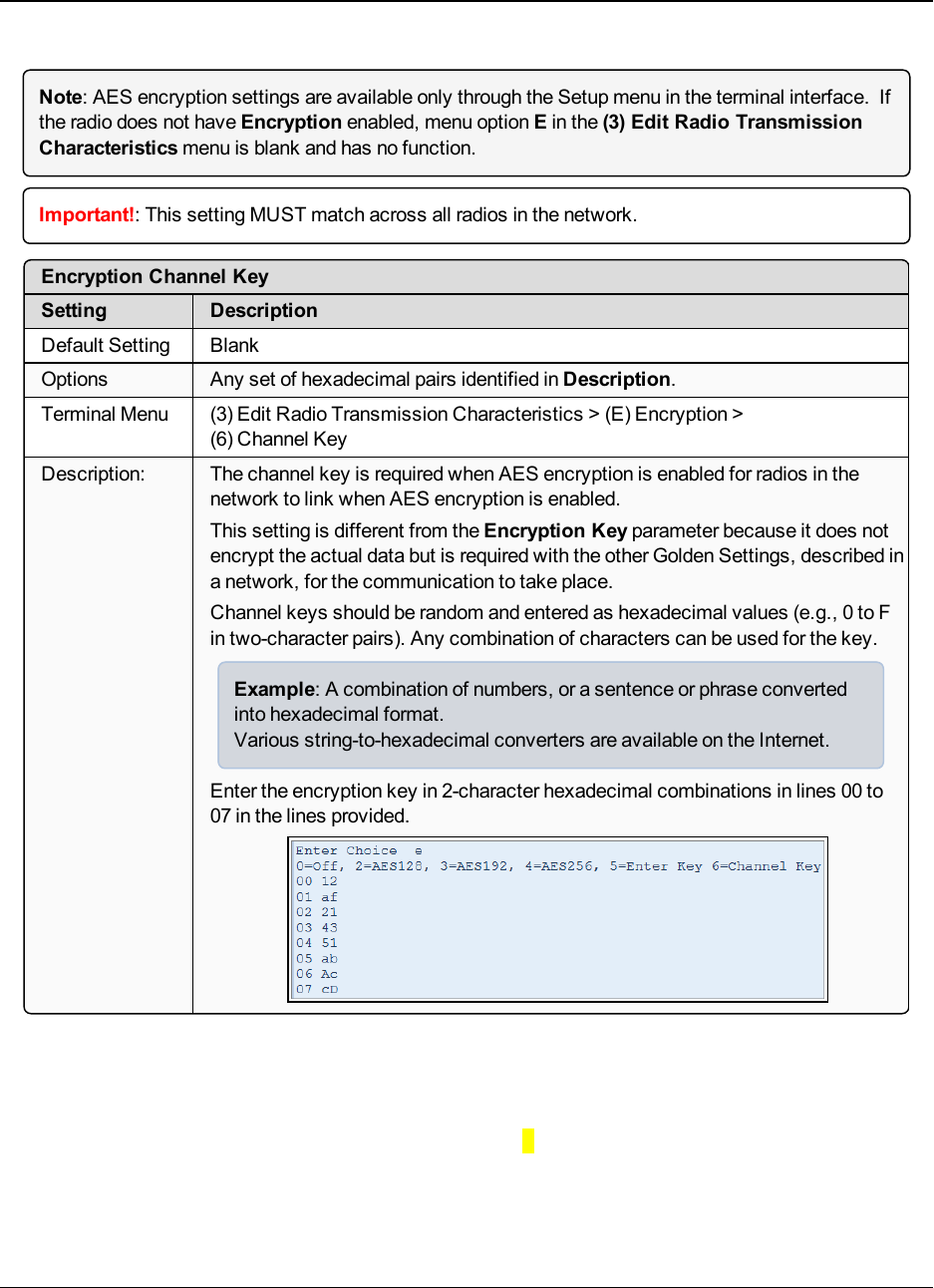

5.3.3. Encryption Channel Key

Note: AES encryption settings are available only through the Setup menu in the terminal interface. If

the radio does not have Encryption enabled, menu option Ein the (3) Edit Radio Transmission

Characteristics menu is blank and has no function.

Important!: This setting MUST match across all radios in the network.

Encryption Channel Key

Setting Description

Default Setting Blank

Options Any set of hexadecimal pairs identified in Description.

Terminal Menu (3) Edit Radio Transmission Characteristics > (E) Encryption >

(6) Channel Key

Description: The channel key is required when AES encryption is enabled for radios in the

network to link when AES encryption is enabled.

This setting is different from the Encryption Key parameter because it does not

encrypt the actual data but is required with the other Golden Settings, described in

a network, for the communication to take place.

Channel keys should be random and entered as hexadecimal values (e.g., 0 to F

in two-character pairs). Any combination of characters can be used for the key.

Example: A combination of numbers, or a sentence or phrase converted

into hexadecimal format.

Various string-to-hexadecimal converters are available on the Internet.

Enter the encryption key in 2-character hexadecimal combinations in lines 00 to

07 in the lines provided.

5.3.4. Troubleshooting AES Setup

The radios link, transmit data, and then unlink.

lVerify that the MCU Speed parameter is set to 3in the terminal interface.

The radios link, transmit data, but the data is in unrecognizable characters.

Note: For more information about using a low baud rate, Contact FreeWave Technical Support (on page 9). Note: For more information about using Multi-Master Sync while in TDMA mode, contact FreeWave Technical Support. See Contact FreeWave Technical Support (on page 9). lmponantl: This option is only used for peer-to-peer communications or when applications are very time specific. If you purchase TDMA as an option, additional information is provtded to you about implementing and using the feature. Note: For additional information about TD MA, contact FreeWave Technical Support. See Contact FreeWave Technical Support (on page 9).

5. Advanced Programming MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lVerify that the Encryption Key on each radio is set exactly the same. If the keys do not

match, the radios can still transmit data, but cannot decrypt the data.

The radios do not link and the golden settings are all set the same.

lVerify that the Channel Key in the Encryption menu is set the same across the radios in the

network. If the keys do not match, the radios will not link when AES is enabled, even if the

golden settings match.

5.4. Low Baud Rates

The radio's Baud Rate may be set to 300, 600, or 900.

Note: For more information about using a low baud rate, Contact FreeWave Technical Support (on

page 9).

5.5. Multi-Master Sync

The Multi-Master Sync setting is reserved for applications in both Point-to-Point and MultiPoint

modes with concentrations of Master units where it is necessary to reduce interference between

the Master radios.

lFor more information about using Multi-Master Sync in non-TDMA mode, see

Application Note #5412, Synchronizing Collocated Masters.

Note: For more information about using Multi-Master Sync while in TDMA mode, contact FreeWave

Technical Support.

See Contact FreeWave Technical Support (on page 9).

5.6. Time Divisible Multiple Access (TDMA)

lAvailable as an optional, add-on feature, the FreeWave Time Division Multiple Access

(TDMA) protocol is an enhanced and sophisticated version of Point-to-MultiPoint

communications.

lThe TDMA protocol provides timing and other parameters, which in turn allow large radio

networks to work in a non-polled environment.

Important!: This option is only used for peer-to-peer communications or when applications are very

time specific. If you purchase TDMA as an option, additional information is provided to you about

implementing and using the feature.

Note: For additional information about TDMA, contact FreeWave Technical Support.

See Contact FreeWave Technical Support (on page 9).

Note: For informalxon about runmng network dxagnoslxcs see me Tool Suite User Manual.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

6. Viewing Radio Statistics

When reading a radio, the system shows data transmission statistics the radio has gathered

during the most recent session. This information is valuable to know the signal strength and noise

levels of the link. Statistics are gathered during each time the Master and Slave link and are reset

when the next link begins.

More data transmission characteristics are available, including averages gathered over time, in

the Network Diagnostics application.

Note: For information about running network diagnostics see the Tool Suite User Manual.

lAntenna Reflected Power (on page 105)

lNoise Level (on page 105)

lNumber of Disconnects (on page 105)

lRadio Temperature (on page 105)

lRate % (Receive Percentage Rate) (on page 105)

lSignal Level (on page 106)

lTransmit Current (on page 106)

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Note: This statistic is not valid in the MM2—MR, MMZ-LV-T, MMZ-T radios. \ I I The individual measurement values at each frequency hop channel are shown in the 900MHz \ I Frequency Zones Table (on page 50). v If viewing statistics in the terminal interface, press when the Radio Statistics menu ' appears. Note: In Tool Suite, the disconnect information is available in the Summary View under Network Diagnostics.

6. Viewing Radio Statistics MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

6.1. Antenna Reflected Power

Note: This statistic is not valid in the MM2-MR, MM2-LV-T, MM2-T radios.

6.2. Noise Level

The Noise Level indicates the level of background noise and interference at this radio and at

each of the Repeaters in the link. The number is an average of the noise levels measured at each

frequency in the radio’s frequency hop table.

The individual measurement values at each frequency hop channel are shown in the 900MHz

Frequency Zones Table (on page 50).

If viewing statistics in the terminal interface, press <Enter> when the Radio Statistics menu

appears.

lIdeally, the difference between the average signal level and average noise level should be

15 or more.

lMargins that are significantly higher than this are an indication of a high level of interference

that may degrade the performance of the link.

6.3. Number of Disconnects

The value in this statistic indicates the total number of times the link between the Master and the

Slave has been lost and the radios lose Carrier Detect from the time the radio is powered on until

the radio is put into Setup mode.

lUnder ideal operating conditions, the number of disconnects should be 0.

lOne or more disconnects may indicate a weak link, the presence of severe interference

problems, or loss of power to any of the radios in the link.

Note: In Tool Suite, the disconnect information is available in the Summary View under Network

Diagnostics.

6.4. Radio Temperature

The Radio Temperature value is the current operating temperature of the radio in degrees

Celsius.

6.5. Rate % (Receive Percentage Rate)

The Rate % measures the percentage of data packets that were successfully transmitted from the

Master and received by the upstream radio on the first attempt. The rate percentage represents

only what the upstream radio received.

lA number of 75 or higher indicates a robust link that provides very good performance even

at high data transmission rates.

Note: Many settings can impact actual throughput, including Master Packet Repeat and Max Slave Retry. If the link is asymmetrical, the percentage reported in this statistic can be very high, and the uplink can still be poor. \ I I The individual measurement values at each frequency hop channel are shown in the 900MHz \ ’ Frequency Zones Table (on page 50). v If viewing statistics in the terminal interface, press when the Radio Statistics menu ' appears. ‘ Note: This statistic is not valid in the MM2—MR, MMZ-LV-T, MMZ-T radios.

6. Viewing Radio Statistics MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lA number of 15 or lower indicates a weak or marginal link that provides lower data

throughput.

lThroughput is reduced by 50 percent if the network contains a Repeater.

Note: Many settings can impact actual throughput, including Master Packet Repeat and Max Slave

Retry.

If the link is asymmetrical, the percentage reported in this statistic can be very high, and the uplink

can still be poor.

6.6. Signal Level

The Signal Level indicates the level of received signal at the radio and at each of the Repeaters

in the link.

lThe source of the signal is the radio that transmits to the radio reading this statistic.

lThe number is an average of the received signal levels measured at each frequency in the

radio's frequency hop table.

lFor a reliable link, the margin should be at least 15 dB.

lLow average signal levels can often be corrected with higher gain antennas, better antenna

placement and/or additional Repeaters.

The individual measurement values at each frequency hop channel are shown in the 900MHz

Frequency Zones Table (on page 50).

If viewing statistics in the terminal interface, press <Enter> when the Radio Statistics menu

appears.

6.7. Transmit Current

Note: This statistic is not valid in the MM2-MR, MM2-LV-T, MM2-T radios.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

7. MM2-MR, MM2-LV-T, MM2-T Wireless Data Radios

Pinouts

7.1. Operational RS422 Information

A maximum of 256 devices can be tied on the bus if all of the line receivers have 1/8 unit load.

lRS-422 is used for 4-wire or full duplex communications with one Master radio and multiple

Slave radios.

lThe Master radio keeps the line driver asserted at all times.

lThe maximum line length is 4,000 feet using two, 120 ohm twisted pair cables with a 5th

wire for data common.

7.2. Pinout Assignments and Descriptions

lMM2-T and MM2-LV-T Board-Level Pinout (on page 108)

lMM2-MR-R or MM2-MR-T Board-Level Pinout (on page 110)

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

‘ Note: Figure 31 identifies pin the numbers. ®®®®@©© ©®®GG®9 MM2-LV-TI MM2-T Board-Level Pinout Pin lnputhutput Description Label Notes 1 Input Power B + 2 Input Reset Interrupt Active Low 100 ps pulse 3 Input Data Terminal Ready DTR TTL2 4 Ground Gmund GN D 5 Output Transmitted Data TXD O to 3.3 V TTL1 6 Output RSSI Out RSSI Currently not functional 7 input Received Data RXD TTL2 8 Output Carrier Detect CD 0 to 3.3 V TTL1 9 Input Request To Send RTS TTL2 10 Output Clear To Send CTS O to 3.3 V T‘I’L1

7. MM2-MR, MM2-LV-T, MM2-T Wireless Data Radios Pinouts

MM2-MR, MM2-LV-T, MM2-

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

7.3. MM2-T and MM2-LV-T Board-Level Pinout

lJ1 - 14 pin, 2.00 mm centers, Samtec TMM series, TMM-107-01-G-D-SM-option

lMates with Samtec CLT, SMM, MMS, SQT, ESQT, SQW, TLE, TCSD, TLSD series.

Note:Figure 31 identifies pin the numbers.

Figure 31: MM2-LV-T / MM2-T Board-Level Pinout

MM2-LV-T / MM2-T Board-Level Pinout

Pin Input/Output Description Label Notes

1 Input Power B+

2 Input Reset Interrupt Active Low

100 μs pulse

3 Input DataTerminalReady DTR TTL2

4 Ground Ground GND

5 Output Transmitted Data TXD 0 to 3.3 V TTL1

6 Output RSSI Out RSSI Currently not

functional

7 input Received Data RXD TTL2

8 Output Carrier Detect CD 0 to 3.3 V TTL1

9 Input Request To Send RTS TTL2

10 Output Clear To Send CTS 0 to 3.3 V TTL1

MM2-LV-T I MM2-T Board-Level Pinout Pin lnputhquut Description Label Notes 11 Input Diagnostic Received Data Diag RX TTL3 12 Output Diagnostic Transmitted Diag TX 0 to 3.3 V ‘ITL1 Data 13 Ground Ground GND 14 Output Baud Clock Baud Clock

7. MM2-MR, MM2-LV-T, MM2-T Wireless Data Radios Pinouts

MM2-MR, MM2-LV-T, MM2-

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-LV-T / MM2-T Board-Level Pinout

Pin Input/Output Description Label Notes

11 Input Diagnostic Received Data Diag RX TTL3

12 Output Diagnostic Transmitted

Data

Diag TX 0 to 3.3 V TTL1

13 Ground Ground GND

14 Output Baud Clock Baud Clock

1. 3.3 V output assumes greater than 3.3 V input voltage. At 3 V input voltage, signal will be 0 to 3 V TTL.

2. 0 to 5 V TTL, 330 Ω resistor in series.

3. 0 to 5 V TTL

MM2-MR-R or MM2-MR-T Board-Level Finout Pin Assignment Signal 3232633; 1 5+ input Power Red 2 Interrupt (temporarily ground to invoke menu) Input Brown 3 Data Terminal Ready (DTR) Input Orange 4 Ground Black 5 Transmit Data (TXD) Output Yellow 6 Ground Black 7 Receive Data (RXD) Input Green 8 Carrier Detect (DCD) Output Blue

7. MM2-MR, MM2-LV-T, MM2-T Wireless Data Radios Pinouts

MM2-MR, MM2-LV-T, MM2-

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

7.4. MM2-MR-R or MM2-MR-T Board-Level Pinout

The board-level radios are available in both TTL and RS232 versions. The TTL version uses

reverse polarity from standard RS232 at 0 to 5 Volt levels. All pin descriptions and pin numbering

are the same as the RS232 version. The RS232 version uses standard RS232 polarity and

voltage levels for all of the RS232 signal lines (DTR, Transmit Data, Receive Data, Carrier

Detect, RTS, and Clear to Send) and TTL standard polarity and voltage level for the Interrupt pin.

lPin 1: B+ Power input.

lPin 2: Interrupt (INT) – Input – A 0 Volt level on this pin switches the radio into Setup mode.

Figure 32: MM2-MR-R or MM2-MR-T Pin Layout

MM2-MR-R or MM2-MR-T Board-Level Pinout

Pin Assignment Signal ACS3610xx

Cable Color

1 B+ input Power Red

2 Interrupt (temporarily ground to invoke menu) Input Brown

3 Data Terminal Ready (DTR) Input Orange

4 Ground Black

5 Transmit Data (TXD) Output Yellow

6 Ground Black

7 Receive Data (RXD) Input Green

8 Carrier Detect (DCD) Output Blue

MM2-MR-R or MM2-MR-T Board-Level Pinout . . _ ACS361OXX Fm Assugnmenl Signal Cable Color Request to Send (RTS) Input Violet (purple) to Clearto Send (CTS) Output Gray

7. MM2-MR, MM2-LV-T, MM2-T Wireless Data Radios Pinouts

MM2-MR, MM2-LV-T, MM2-

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-MR-R or MM2-MR-T Board-Level Pinout

Pin Assignment Signal ACS3610xx

Cable Color

9 Request to Send (RTS) Input Violet (purple)

10 Clear to Send (CTS) Output Gray

Note: Contact FreeWave Technical Support (on page 9) for assistance.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

8. Troubleshooting

If experiencing trouble with the network, see these sections to initially troubleshoot and help

identify the problem with the network or a radio within it:

lLEDs on the radio.

lPoint-to-MultiPoint Operation LEDs (on page 67).

lPoint-to-Point Operation LEDs (on page 89).

lSettings

lRF Quality

Use the Troubleshooting Flowchart (on page 113) for basic checks to help diagnose the issue.

Note:Contact FreeWave Technical Support (on page 9) for assistance.

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Troubleshooting Flowchart mm, mm." W. w.“ v.5 mm. mm H WMNW ~ ”may WM N MW". mm. W WWWWWWWM Na mm, m WNW m WW «— mm.‘ W WWW — WNW W Wynnmyw ‘ Na mm WWW WW... SW .4..an w ‘ vmrym: WM aw i 57% ”TESL?” mg V“ M, “ Mm m pvwmumsw u, O‘awi‘h-FvaWKIym-m' WW" ”’6" N "NW! nﬂﬂﬂﬂﬂf‘m‘ﬁf’wmm mammwww w 4m u... ....‘ a, ‘ mm“. wwmgw m 2 Mam», lezumhewm Va 3 ”WWW" \ “:,T_;:‘;"::g‘;:g:m cm: a.» Wm; Wm M Em MM WWW m m s‘manmwmmmmm Oman mm” Ymna‘ 5W “3m pm m a" m: Wham“, «wwmwmmm “mm Wmmuhmmmme m Do.- In a; m m mmnmmsuw m an m. mmmmw mm. m. as am n m ,_ my mm [,1 mm m- “mm-y mev- mus m. m m. "mum m www.mw g on um mm m an MW Euaww m m Mm; {km

8. Troubleshooting MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

8.1. Troubleshooting Flowchart

II ’ The latest software verSions and the most recent list of known limitations and workarounds are available on www.freewave.com. ‘ lmportantl: Some eanier firmware versions may not be available on all MM2 models.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

9. MM2-MR, MM2-LV-T, MM2-T Release Notes

These sections describe the updates and known limitations in each software version for the MM2-

MR, MM2-LV-T, MM2-T Wireless Data Radios. The most recent version is listed first.

The latest software versions and the most recent list of known limitations and workarounds are

available on www.freewave.com.

Important!: Some earlier firmware versions may not be available on all MM2 models.

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Note: The original implementation is limited to a finite number This functionality is maintained to support backwards compatibility. Note: The current selectable frequency tables and the zone filter remain the same to allow for backwards compatibility.

9. MM2-MR, MM2-LV-T, MM2-T Release Notes MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

9.1. Version v10.7.04

Release date: December 2016

Additions and Changes

lA hidden Option 4 has been added to the Hop Table Parameters menu. This option:

lprovides another mechanism to set channel restrictions.

lallows users to mask out individual or blocks of frequencies (channels).

lSee 900MHz Channel Select Parameters (on page 45) for detailed information.

Note: The original implementation is limited to a finite number This functionality is maintained

to support backwards compatibility.

lThe Single Channel Mask process is used instead of the Zones method by using two

array masks.

lThe first array is the Master Channel Array (MCA) and is created via an order option and

is programmed into the unit at FreeWave.

lThe second array is the Customer Channel Array (CCA) and can be created by the

customer.

lThe CCA cannot unmask channels that are masked by the MCA but can mask out

channels that are not restricted by the MCA.

lAdded a new option to legacy MM2-MR, MM2-LV-T, MM2-T radios to use a channel select

for each channel.

lWhen enabled, this overrides the Zone mask.

Note: The current selectable frequency tables and the zone filter remain the same to allow for

backwards compatibility.

mm new 112 M39 “ersiun u 702 7 12a mz mum. Serxal mm" 1711—1374 Hath-I end. mmr <0) sat="" ovzratinn="" had:="" (1)="" sag="" 1mm="" rate="" \w="" (5)="" edit="" hultipoint="" rum-um="" (in="" mm="" um.="" (i)="" chg="" pasrunrd="" (eu)="" exit="" hut):="" emu-="" chain:="" mama="" mmnuzne="" trauma:="" 0.="" not="" dung.="" pzumtavs="" with-mt="" razdinv="" lunnzl="" ‘="" (2)="" n1"="" packet="" siz:="" (1)="" qut="" lax:=""><4) m!="" om="" 11m=""><5) np="" and:="" l’uwer="" (s)="" slam:="" security="" (7)="" ms="" tn="" cm="" (i)="" retry="" nme="" on:="" 25="" (v)="" lawman»="" mm;="" (:1)="" h151.="" “his:="" (a:="" non="" xneed="" (c)="" newmtelill="" (m="" (a)="" (m)="" £11:="" to="" n.1,.="" nun.="" asssmssauuw="" \m="" my="" u="" mum,="" m,="" an)”="" up="" a="" e="" armztcrs="" (ll)="" hun="" ram}:="" "ersiuu="" u="" (1)="" hop="" mu.="" $12.="" 112="" (z)="" hny="" freq="" on“:="" a=""><1) frequenny="" zane="" 1111111111111111="" (esc)="" exit="" u="" nadia="" nun.="" hidden="" option="" 4="" enter="" chum="" mama.="" select="" ramming="" mon:="" 5::="" ninual="" fur="" frequency="" izn="" channal="" in="" translitlnn!="" customer="" channel="" msk="" ms="" [1="" -="" on]="" [a="" -="" o”)="" i.="" -="" unauuhble/otn="" d="" 0*="" 7="" 9="" 11111111="" ...="" _="" result="" of="" option="" :1="" —7v="" m—-="" -a7="" nan-~15="" vs-="" -1n3="" 1m--111="" .="" selectlon="" 1111="" 11111111="" 1111mm="" aaaann="" 11111111="" .="" 11111111="" run="" fnslabh="" gianna].="5n" nu)="" channel:="" szlzcted="" -="" 72="" (a)="" ma:="" 52:="" 1mg).="" (1)="" set="" king]:="" channel="" ﬂask=""><2“) exit="" u="" "011="" iahlc="" "an“="" enter="" chum="">

9. MM2-MR, MM2-LV-T, MM2-T Release Notes MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

9.1.1. Access to the Single Channel Mask

Figure 33: Access to Single Channel Mask

mm. mm ”mantis um: n. m... m 2...“... m. an...“ .. mun“... Kinny-u an"... mm m. u . m. u . .m x. . “mu...“m. .. . 4. w 7.. . .7 .. .....;.Z ........ .... ........ la.” ........ :”.;.-;:;" ..;...1. - ...;;... n... 2.. 2...... n. m... mnntlﬂluh m «no 2... 2. m. 1.... m... c..." . 2..., cm... 1)) (n... .. 2...... . u. . um... ..., a .. u... m. . 0...... .4 o. mm}. mm pmmm as .s as up an .w n. Amﬁ”. ﬁnne- mm mmn , mum n... n. n.- m m... 2......” i... a... s... .. u... 1.... n .. 125: c.2252. m an... 24 g... ‘. :3 :2? 0...... .n. n :a n... m. . mam. snzn mumps m. :- ....... x... 2......” m cm... x. mm. Ln“: Em... 355.“: mm}: 53’“ .. 5.. «a .4 m. mm}? 35...: Eﬁ—Tiﬂ “3.3? V" "“1 mm}: m . . m m... hr. 3...... cm... m a... e... V. n... 1.... n... 2...... m... m "Us examv‘e Fveewam r... mocked mesa mum-.5 they CANNOY he changed .7. used by cuslnmeﬁ 1 quuencles an. we Imam ens 102-: 2 new"... 91.: 2272 Imough 915 mo 3 quuencnss 92: new Wrong?! 925 5775 mm lrﬂuuenuas n... bean Mama... by m. war a Frequencies sue 5975 mmuqh 9m sum 5 quuencles m 755.. Ihmngh 92. 3.95 m. Show: haw lhe um. turn: an new... 910 mu \Channe‘ m :0» ms shows haw me “an”... arr Frequency 9m aauu (mm. u: 341

9. MM2-MR, MM2-LV-T, MM2-T Release Notes MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Example of Single Channel Mask

Figure 34: Example of Single Channel Mask

Known Limitations and Workarounds

lNone

9.2. Version v10.6.8

Release Date: August 2013

Additions and Changes

lNone

Known Limitations and Workarounds

lFixes to low power mode from v8.78 corrects MM2-MR, MM2-LV-T, MM2-T's failure to

wake out of low power mode and lockup after few hours in service.

Note: If upgrading from ﬁrmware 8.77 or 8.78 to firmware v10.6.7 and experience issues or inconsistent results, contact FreeWave Technical Support at 303.381.9200 or by email at moreinfo@freewave.com.

9. MM2-MR, MM2-LV-T, MM2-T Release Notes MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

9.3. Version v10.6.7

Release Date: July 2013

Note: If upgrading from firmware 8.77 or 8.78 to firmware v10.6.7 and experience issues or

inconsistent results, contact FreeWave Technical Support at 303.381.9200 or by email at

moreinfo@freewave.com.

Additions and Changes

lThis firmware is provided for the MM2 models to stay in sync with firmware updates made

for the FreeWave FGR2 product line, which shares the same firmware. This firmware

version corrects a problem with serial radios set to RS485 changing to RS232 operation

with no settings change. The MM2 models run only in RS232, so this fix does not apply.

Known Limitations and Workarounds

lIn the Network Diagnostics application in Tool Suite, the radios report having the

incorrect firmware version installed.

lOn the Operation Mode tab in Tool Suite (Modem Mode menu in the terminal interface),

Ethernet parameters appear.

lThese options do not apply to this radio.

lSupply voltage readings in Tool Suite can fluctuate and differ from those readings on an

external voltage meter.

lIn the Transmission Characteristics tab in Tool Suite (Edit Transmission

Characteristics menu in the terminal interface), the Serial Interface parameter includes

RS422, RS485, and RS232. The only valid option is RS232.

9.4. Version v10.6.6

Release Date: October 2012

Additions and Changes

lUpdated firmware version to use the vX.X.X format.

lAdded AES 128, 192, and 256 encryption capability. AES functionality is enabled at the

factory. To upgrade an existing radio to use the AES functionality, contact FreeWave

Technical Support.

lAES options MUST be set using the terminal interface.

lTool Suite versions 2.9.0.0 and earlier do NOT include AES.

lRemoved the Ultra Low Power Mode feature.

Known Limitations and Workarounds

lIn the Network Diagnostics application in Tool Suite, the radios report having the

incorrect firmware version installed.

9. MM2-MR, MM2-LV-T, MM2-T Release Notes MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

lOn the Operation Mode tab in Tool Suite (Modem Mode menu in the terminal interface),

Ethernet parameters appear.

lThese options do not apply to this radio.

9.5. Version 8.78

Release Date: December 2011

Additions and Changes

lAES zeroization - AES capability now supports zeroization, attempting to hold to NAVSO

P5239, and various locks and checks against zeroized keys.

lClear 8th data bit when set to 7 data bits - In a case where one radio is programmed

with 7 data bits, and parity enabled, the parity bit is transferred by the radios as the 8th data

bit, and sent out the port on the other side. This corrupts the data. Now if the radio is set to 7

data bits, it clears the 8th data bit on serial receive.

lRepeater un-shifts timing in OTA slot - Repeaters shift half of their timing to ensure

their transmissions lineup exactly in time with the masters (2nd layer deep). During an over

the air firmware upgrade, the repeater shifted half of it's timing, but did not unshift the

timing. This could build into a timing problem causing drop of link on sufficient missed

packets.

lUltra Low Power Mode -ULPM Enable and ULPM Sleep parameters now available in

the Transmission Characteristics settings. For more information about Ultra Low Power

Mode, see the Parameter Reference chapter in this manual.

9.6. Version 8.77

Release Date: May 2011

Additions and Changes

lAdded support for mirror bits and multi-band master sync.

Known Limitations and Workarounds

lYou can now select Mirrored Bit Master or Mirrored Bit Slave as an operation mode.

9.7. Version 8.73

Release Date: October 2009

Additions and Changes

lRS485 Protocol fixed.

lUse Break Command to Enter Setup function fixed.

lGrand Master mode (for Multi-Master Sync) feature fixed.

9. MM2-MR, MM2-LV-T, MM2-T Release Notes MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

9.8. Version 8.71

Release Date: August 2009

Additions and Changes

lImproved efficiency and reliability of writing TDMA settings to memory.

lImproved efficiency and reliability of writing Diagnostics settings to memory.

9.9. Version 8.70

Release Date: March 2009

Additions and Changes

lMirror back-end changes.

9.10. Version 8.69

Release Date: October 2008

Additions and Changes

lLink acquisition issue corrected.

9.11. Version 8.68 (Initial Release)

Release Date: June 2008

MM2-LV-T and MM2-LV-T-U Technical Speciﬁcations Speciﬁcation Description Transmitter Frequency Range 902 to 928 MHz Output Power Upto 1 W Range Up to 32 km (20 mi.), clearline of Sight Channel Spacing 230.4 kHz RF Data Rate 115.2 or 153.6 kbps, User selectable Receiver Sen5itivity . ~108 dBm @ 115.2 kbps for BER 10’4 . ~103dBm @ 153.6 kbps for BER 104 IF Selectivity 40 dB at fc +/— 230 kHz RF Selectivity 50 dB at 896 MHZ, 935 MHZ Dynamic Range +10 dBm 3rd order intercept point at input connector Data Transmission Type Frequency Hopping Spread Spectrum Options: TDMA, Super Epoch TDMA Modulation 2 level GFSK Data Throughput 80 or 1 15.2 kbps

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Appendix A: MM2-LV-T and MM2-LV-T-U

Technical Specifications

MM2-LV-T and MM2-LV-T-U Technical Specifications

Specification Description

Transmitter

Frequency Range 902 to 928 MHz

Output Power Up to 1 W

Range Up to 32 km (20 mi.), clear line of sight

Channel Spacing 230.4 kHz

RF Data Rate 115.2 or 153.6 kbps, User selectable

Receiver

Sensitivity l-108 dBm @ 115.2 kbps for BER 10-4

l-103 dBm @ 153.6 kbps for BER 10-4

IF Selectivity 40 dB at fc +/- 230 kHz

RF Selectivity 50 dB at 896 MHz, 935 MHz

Dynamic Range +10 dBm 3rd order intercept point at input connector

Data Transmission

Type Frequency Hopping Spread Spectrum

Options: TDMA, Super Epoch TDMA

Modulation 2 level GFSK

Data Throughput 80 or 115.2 kbps

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-LV-T and MM2-LV-T-U Technical Speciﬁcations Speciﬁcation Description Error Detection 32-bit CRC, retransmit on error Data Encryption Options AES 128, 192, 256-bit encryption Note: ‘ Contact a FreeWave reseller or sales representative for implementation details. Hopping Zones 16 zones, User selectable Hopping Bands 7 bands, User selectable Hopping Channels . 50 to 110 channels . User selectable Hopping Patterns . 15 per band . 105 total . User selectable Protocol ‘ITL Power Requirements Operating Voltage 3.5 VDC (+/. 5%) Current Consumption l Voltage Transmit Receive Idle I 3.5VDC 1175mA 125mA 13mA Interfaces Data Interface . 14—pin straight, dual—row headerfor power, data, and diagnostics . 2mm pin spacing Diagnostics Interface ‘ITL Serial RF Connector MMCX General Information Operating Temperature . 40°C to +85°C - 40°F to 185°F Humidity 0 to 95% non—condensing Dimensions . 50.8Lx 35.6Wx 9.6 H (mm) . 2.0 Lx1.4Wx0.3sH(m.) Weight 15g(0.3|bs.)

Appendix A: MM2-LV-T and MM2-LV-T-U Technical Specifications

MM2-MR, MM2-LV-T,

MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-LV-T and MM2-LV-T-U Technical Specifications

Specification Description

Error Detection 32-bit CRC, retransmit on error

Data Encryption Options AES 128, 192, 256-bit encryption

Note: * Contact a FreeWave reseller or sales representative for

implementation details.

Hopping Zones 16 zones, User selectable

Hopping Bands 7 bands, User selectable

Hopping Channels l50 to 110 channels

lUser selectable

Hopping Patterns l15 per band

l105 total

lUser selectable

Protocol TTL

Power Requirements

Operating Voltage 3.5 VDC (+/- 5%)

Current Consumption

Voltage Transmit Receive Idle

3.5 VDC 1175 mA 125 mA 13 mA

Interfaces

Data Interface l14-pin straight, dual-row header for power, data, and diagnostics

l2mm pin spacing

Diagnostics Interface TTL Serial

RF Connector MMCX

General Information

Operating Temperature l-40°C to +85°C

l-40°F to 185°F

Humidity 0 to 95% non-condensing

Dimensions l50.8 L x 35.6 W x 9.6 H (mm)

l2.0 L x 1.4 W x 0.38 H (in.)

Weight 15g (0.3 lbs.)

MM2-MR Technical Speciﬁcations Speciﬁcation Description Transmitter Frequency Range 902 to 928 MHZ Output Power Up 101 W Range Upto 97 km(60 mu), clearline ofsight Channel Spacing 230 kHz Note: Applicable to FCC ID KNYAMMOSOOAT or KNYAMMOQZ’I'IT. RF Data Rate 115.2 or153.6 kbps, User selectable Receiver Sensxtivity - -107 dBm @ 115.2 kbps for BER 10" . 402 dBm @1536 kbps forBER 104‘ IF Selectivity 40GB at fc +/- 230 kHZ RF Selectiwty 50GB at 896 MHZ, 935 MHZ

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Appendix B: MM2-MR Technical Specifications

These specifications apply to these models:

lMM2-MR-R

lMM2-MR-R-U

lMM2-MR-SR

lMM2-MR-T

lMM2-MR-T-U

MM2-MR Technical Specifications

Specification Description

Transmitter

Frequency Range 902 to 928 MHz

Output Power Up to 1 W

Range Up to 97 km (60 mi.), clear line of sight

Channel Spacing 230 kHz

Note: Applicable to FCC ID KNYAMM0300AT or

KNYAMM0921TT.

RF Data Rate 115.2 or 153.6 kbps, User selectable

Receiver

Sensitivity l-107 dBm @ 115.2 kbps for BER 10-4

l-102 dBm @ 153.6 kbps for BER 10-4

IF Selectivity 40 dB at fc +/- 230 kHz

RF Selectivity 50 dB at 896 MHz, 935 MHz

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-MR Technical Speciﬁcations Speciﬁcation Description Dynamic Range +10 dBm 3rd order intercept point at input connector Data Transmission Type Frequency Hopping Spread Spectmm Options: TDMA, Super Epoch TDMA Modulation 2 level GFSK Data Throughput 80 or115.2 kbps Error Detection 32-bit CRC, retransmit on error Data Encryption Options AES 128, 256—bit encryption Note: ' Contact a FreeWave reseller or sales representative for Implementation details. Hopping Zones 16 zones, User selectable Hopping Bands 7 bands, User selectable Hopping Channels 50 to 112 channels, User selectable Note: Applicable to FCC ID KNYAMMOSOOAT or KNYAMMOQZ’I'IT. Hopping Patterns - 15 per band . 105 total - User selectable Protocol R8232, RS485, or TTL Power Requirements Operating Voltage +6.5VDC to 30 VDC Current Consumption Voltage Transmit Receive Idle 6.5 VDC 900 mA 100 mA 42 mA 12 VDC 515 mA 60 mA 24 mA 30 VDC 320 mA 32 mA 13 mA Interfaces Data Interface - 10-pin straight, dual-row neaderfor power, data, and diagnostics - 2mm pin spacing Diagnostics Interface . Serial . R8232 . TTL

Appendix B: MM2-MR Technical Specifications MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-MR Technical Specifications

Specification Description

Dynamic Range +10 dBm 3rd order intercept point at input connector

Data Transmission

Type Frequency Hopping Spread Spectrum

Options: TDMA, Super Epoch TDMA

Modulation 2 level GFSK

Data Throughput 80 or 115.2 kbps

Error Detection 32-bit CRC, retransmit on error

Data Encryption Options AES 128, 256-bit encryption

Note: * Contact a FreeWave reseller or sales representative for

implementation details.

Hopping Zones 16 zones, User selectable

Hopping Bands 7 bands, User selectable

Hopping Channels 50 to 112 channels, User selectable

Note: Applicable to FCC ID KNYAMM0300AT or

KNYAMM0921TT.

Hopping Patterns l15 per band

l105 total

lUser selectable

Protocol RS232, RS485, or TTL

Power Requirements

Operating Voltage +6.5 VDC to 30 VDC

Current Consumption

Voltage Transmit Receive Idle

6.5 VDC 900 mA 100 mA 42 mA

12 VDC 515 mA 60 mA 24 mA

30 VDC 320 mA 32 mA 13 mA

Interfaces

Data Interface l10-pin straight, dual-row header for power, data, and diagnostics

l2mm pin spacing

Diagnostics Interface lSerial

lRS232

lTTL

MM2-MR Technical Speciﬁcations Speciﬁcation Description RF Connector - MMCX, ngnt angle - MMZ—MR-SR: SSMC Connector General Information Operating Temperature . 40°C to +85°C - ~40°F10185°F Humidity 0 to 95% non-condensing Dimensions - 69.9Lx61.0Wx10.2H (mm) . 2.75 Lx 2.4w x 0.4 H (in.) Weight 14 g (0.03 lbs.)

Appendix B: MM2-MR Technical Specifications MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-MR Technical Specifications

Specification Description

RF Connector lMMCX, right angle

lMM2-MR-SR: SSMC Connector

General Information

Operating Temperature l-40°C to +85°C

l-40°F to 185°F

Humidity 0 to 95% non-condensing

Dimensions l69.9 L x 61.0 W x 10.2 H (mm)

l2.75 L x 2.4 W x 0.4 H (in.)

Weight 14 g (0.03 lbs.)

MM2-T and MM2-T-U Technical Speciﬁcations Speciﬁcation Description Transmitter Frequency Range - 90210928 MHZ - China:920.5to 9245an Output Power UptolW Range Upto 32 km (20 mm), clearline ofsight Note: Using Omni to Omni antenna connection, wwth clearline of sight and no diffraction loss. Channel Spacing - 230.4kHZ - China1230Khz Note: Applicable to FCC ID KNYAMMOSOOAT or KNYAMMOQZ’I'IT. RF Data Rate 115.2 or153.6 kbps, User selectable Receiver Sensxtivity . -108dBm@115.2kbpsforBER10'4 . 403 dBm @1536 kbpsforBER10'4 IF Selectiwty 40GB at fc +/- 230 kHz

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Appendix C: MM2-T and MM2-T-U

Technical Specifications

MM2-T and MM2-T-U Technical Specifications

Specification Description

Transmitter

Frequency Range l902 to 928 MHz

lChina: 920.5 to 924.5Mhz

Output Power Up to 1 W

Range Up to 32 km (20 mi.), clear line of sight

Note: Using Omni to Omni antenna connection, with clear line of

sight and no diffraction loss.

Channel Spacing l230.4 kHz

lChina: 230 Khz

Note: Applicable to FCC ID KNYAMM0300AT or

KNYAMM0921TT.

RF Data Rate 115.2 or 153.6 kbps, User selectable

Receiver

Sensitivity l-108 dBm @ 115.2 kbps for BER 10-4

l-103 dBm @ 153.6 kbps for BER 10-4

IF Selectivity 40 dB at fc +/- 230 kHz

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-T and MM2-T-U Technical Speciﬁcations Speciﬁcation Description RF Selectrvrty 50GB at 896 MHZ, 935 MHZ Dynamic Range +10 dBm 3rd order intercept pornt at input connector Data Transmission Type Frequency Hopping Spread Spectmm Options: TDMA, Super Epoch TDMA Modulation 2 level GFSK Data Throughput 80 or115.2 kbps Error Detection 32-bit CRC, retransmit on error Data Encryptron Options AES128, 192, 256—bit encryption' Note: ' Contact a FreeWave reselleror sales representative for Implementation details. Hopping Zones 16 zones, User selectable Hopping Bands 7 bands, User selectable Hopping Channels - 50 to 110, User selectable - China: 80 to 100, User selectable Note: Applicable to FCC ID KNYAMMOSOOAT or KNYAMMOQZ’I'IT. Hopping Patterns - 15 per band, . 105 total, - User selectable Protocol TTL Power Requirements Operating Voltage 5.0 VDC (+/— 5%) Current Consumption I Voltage Transmit Receive Idle I 5.0 VDC 855 mA 90 mA 21 mA Interfaces Data Interface - 14-pin straight, dual-row neaderfor power, data, and diagnostics - 2mm pin spacing Diagnostics Interface TTL Serral RF Connector MMCX General Information

Appendix C: MM2-T and MM2-T-U Technical Specifications MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-T and MM2-T-U Technical Specifications

Specification Description

RF Selectivity 50 dB at 896 MHz, 935 MHz

Dynamic Range +10 dBm 3rd order intercept point at input connector

Data Transmission

Type Frequency Hopping Spread Spectrum

Options: TDMA, Super Epoch TDMA

Modulation 2 level GFSK

Data Throughput 80 or 115.2 kbps

Error Detection 32-bit CRC, retransmit on error

Data Encryption OptionsAES 128, 192, 256-bit encryption*

Note: * Contact a FreeWave reseller or sales representative for

implementation details.

Hopping Zones 16 zones, User selectable

Hopping Bands 7 bands, User selectable

Hopping Channels l50 to 110, User selectable

lChina: 80 to 100, User selectable

Note: Applicable to FCC ID KNYAMM0300AT or

KNYAMM0921TT.

Hopping Patterns l15 per band,

l105 total,

lUser selectable

Protocol TTL

Power Requirements

Operating Voltage 5.0 VDC (+/- 5%)

Current Consumption

Voltage Transmit Receive Idle

5.0 VDC 855 mA 90 mA 21 mA

Interfaces

Data Interface l14-pin straight, dual-row header for power, data, and diagnostics

l2mm pin spacing

Diagnostics Interface TTL Serial

RF Connector MMCX

General Information

MM2-T and MM2-T-U Technical Speciﬁcations Speciﬁcation Description Operating Temperature . 40°C to +85°C - ~40°F10185°F Humidity 010 95% non-condensing Dimensions - 50.8 Lx35.6Wx9.6H (mm) . 2.0 Lx1.4 w x 0.33 H (in.) Weight 159 (0.3 lbs.)

Appendix C: MM2-T and MM2-T-U Technical Specifications MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-T and MM2-T-U Technical Specifications

Specification Description

Operating Temperature l-40°C to +85°C

l-40°F to 185°F

Humidity 0 to 95% non-condensing

Dimensions l50.8 L x 35.6 W x 9.6 H (mm)

l2.0 L x 1.4 W x 0.38 H (in.)

Weight 15 g (0.3 lbs.)

Appendix D: MM2-MR Mechanical Drawing MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Appendix D: MM2-MR Mechanical Drawing

138: :2 \‘82 8:& OOCOOOOQ) O GOO GOO /, Sm.» 2M

Appendix E: MM2-LV-T / MM2-T Mechanical Drawing MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Appendix E: MM2-LV-T / MM2-T Mechanical Drawing

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Appendix F: 900MHz Factory Default Settings

900MHz Factory Default Settings

Operation Mode Default MultiPoint Parameters Default

Point-to-Point Slave 1 (0) Number of Repeaters 1

Set Baud Rate Default (1) Master Packet Repeat 2

Baud Rate 115200 (2) Max Slave Retry 9

(A) Data Parity 0 (3) Retry Odds 9

(B) Modbus RTU 0 (4) DTR Connect 0

(D) Setup Port 3 (6) Network ID 255

(E) Turn Off Delay / On Delay 0/0 (7) Reserved -

(F) Flow Control 0 (8) MultiMaster Sync 0

Radio Parameters Default (9) 1 PPS Enable Delay 255

(0) Freq Key 5 (A) Slave/Repeater 0

(0) Hop Table Version 0 (B) Diagnostics 0

(1) Hop Table Size 111 (C) Subnext ID “Disabled”

(2) Hop Freq Offset 0 Rx ID F

(3) Frequency Zone All 1s (Enabled) Tx ID F

(4) Government Rules 0 (D) Radio ID Not Set

(1) Max Packet Size 8 (E) Local Access 0

(2) Min Packet Size 9 (G) Radio Name "blank"

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

Appendix F: 900MHz Factory Default Settings MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Factory Default Settings

Operation Mode Default MultiPoint Parameters Default

(3) Xmit rate 1

(4) RF Data Rate 3

(5) RF Xmit Power 10

(6) Slave Security 0

(7) RTS to CTS 0

(8) Retry Timeout 255

(9) Low Power Mode 0

(A) High Noise 0

(B) MCU Speed 0

(E) Encryption

Strength (0) Off

Enter Key Blank

Channel Key Blank

Note: See 900MHz Channel Select Parameters (on page 45) for addxtional informatxon. 900MHz Channel Frequency IDs ID Frequency ID Frequency ID Frequenm/ 0 902 .2464 40 911.4624 80 920. 6784 1 902.4768 41 911.6928 81 920.9088 2 902.7072 42 911.9232 82 921.1392 3 902.9376 43 912.1536 83 921.3696 4 903.1680 44 912.3840 84 921.6000 5 903.3984 45 912.6144 85 921.8304 6 903.6288 46 912.8448 86 922.0608 7 903.8592 47 913.0752 87 922.2912 8 904.0896 48 913.3056 88 922.5216 9 904.3200 49 913.5360 89 922.7520 10 904.5504 50 913.7664 90 922.9824 11 904.7808 51 913.9968 91 923.2128 12 905.0112 52 914.2272 92 923.4432 13 905.2416 53 914.4576 93 923.6736 14 905.4720 54 914.6880 94 923.9040 15 905.7024 55 914.9184 95 924.1344

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Appendix G: 900MHz Channel Frequency IDs

Note: See 900MHz Channel Select Parameters (on page 45) for additional information.

900MHz Channel Frequency IDs

ID Frequency ID Frequency ID Frequency

0 902.2464 40 911.4624 80 920.6784

1 902.4768 41 911.6928 81 920.9088

2 902.7072 42 911.9232 82 921.1392

3 902.9376 43 912.1536 83 921.3696

4 903.1680 44 912.3840 84 921.6000

5 903.3984 45 912.6144 85 921.8304

6 903.6288 46 912.8448 86 922.0608

7 903.8592 47 913.0752 87 922.2912

8 904.0896 48 913.3056 88 922.5216

9 904.3200 49 913.5360 89 922.7520

10 904.5504 50 913.7664 90 922.9824

11 904.7808 51 913.9968 91 923.2128

12 905.0112 52 914.2272 92 923.4432

13 905.2416 53 914.4576 93 923.6736

14 905.4720 54 914.6880 94 923.9040

15 905.7024 55 914.9184 95 924.1344

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Channel Frequency IDs ID Frequency ID Frequency ID Frequenm/ 16 905.9328 56 915.1488 96 924.3648 17 906.1632 57 915.3792 97 924.5952 18 906.3936 58 915.6096 98 924.8256 19 906.6240 59 915.8400 99 925.0560 20 906.8544 60 916.0704 100 925.2864 21 907.0848 61 916.3008 101 925.5168 22 907.3152 62 916.5312 102 925.7472 23 907.5456 63 916.7616 103 925.9776 24 907.7760 64 916.9920 104 926.2080 25 908.0064 65 917.2224 105 926.4384 26 908.2368 66 917.4528 106 926.6688 27 908.4672 67 917.6832 107 926.8992 28 908.6976 68 917.9136 108 927.1296 29 908.9280 69 918.1440 109 927.3600 30 909.1584 70 918.3744 110 927.5904 31 909.3888 71 918.6048 111 927.8208 32 909.6192 72 918.8352 33 909.8496 73 919.0656 34 910.0800 74 919.2960 35 910.3104 75 919.5264 36 910.5408 76 919.7568 37 910.7712 77 919.9872 38 911.0016 78 920.2176 39 911.2320 79 920.4480

Appendix G: 900MHz Channel Frequency IDs MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

900MHz Channel Frequency IDs

ID Frequency ID Frequency ID Frequency

16 905.9328 56 915.1488 96 924.3648

17 906.1632 57 915.3792 97 924.5952

18 906.3936 58 915.6096 98 924.8256

19 906.6240 59 915.8400 99 925.0560

20 906.8544 60 916.0704 100 925.2864

21 907.0848 61 916.3008 101 925.5168

22 907.3152 62 916.5312 102 925.7472

23 907.5456 63 916.7616 103 925.9776

24 907.7760 64 916.9920 104 926.2080

25 908.0064 65 917.2224 105 926.4384

26 908.2368 66 917.4528 106 926.6688

27 908.4672 67 917.6832 107 926.8992

28 908.6976 68 917.9136 108 927.1296

29 908.9280 69 918.1440 109 927.3600

30 909.1584 70 918.3744 110 927.5904

31 909.3888 71 918.6048 111 927.8208

32 909.6192 72 918.8352

33 909.8496 73 919.0656

34 910.0800 74 919.2960

35 910.3104 75 919.5264

36 910.5408 76 919.7568

37 910.7712 77 919.9872

38 911.0016 78 920.2176

39 911.2320 79 920.4480

Note: See 900MHz Channel Select Parameters (on page 45) for addxtional informatxon. 900MHz Channel Frequency IDs ID Freq uency ID Freq uency 80 920.6784 91 923.2128 81 920.9088 92 923.4432 82 921.1392 93 923.6736 83 921.3696 94 923.9040 84 921.6000 95 924.1344 85 921.8304 96 924.3648 86 922.0608 97 924.5952 87 922.2912 98 924.8256 88 922.5216 99 925.0560 89 922.7520 100 925.2864 90 922.9824

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Appendix H: 900MHz Channel Frequency IDs - China

Note: See 900MHz Channel Select Parameters (on page 45) for additional information.

900MHz Channel Frequency IDs

ID Frequency ID Frequency

80 920.6784 91 923.2128

81 920.9088 92 923.4432

82 921.1392 93 923.6736

83 921.3696 94 923.9040

84 921.6000 95 924.1344

85 921.8304 96 924.3648

86 922.0608 97 924.5952

87 922.2912 98 924.8256

88 922.5216 99 925.0560

89 922.7520 100 925.2864

90 922.9824

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

Appendix I: FreeWave Legal Information

Restricted Rights

Any product names mentioned in this manual may be trademarks or registered trademarks of their respective

companies and are hereby acknowledged.

This manual is for use by purchasers and other authorized users of FreeWave products.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical,

or for any purpose without the express written permission of FreeWave Technologies, Inc. FreeWave reserves

the right to make changes to this manual without notice. FreeWave assumes no responsibility or liability for the

use of this manual or the infringement of any copyright or other proprietary right.

FreeWave products are designed and manufactured in the United States of America.

Export Notification

FreeWave Technologies, Inc. products may be subject to control by the Export Administration Regulations

(EAR) and/or the International Traffic in Arms Regulations (ITAR). Export, re-export, or transfer of these

products without required authorization from the U.S. Department of Commerce, Bureau of Industry and

Security, or the U.S. Department of State, Directorate of Defense Trade Controls, as applicable, is

prohibited. Any party exporting, re-exporting, or transferring FreeWave products is responsible for

obtaining all necessary U.S. government authorizations required to ensure compliance with these and other

applicable U.S. laws. Consult with your legal counsel for further guidance.

IC Notifications

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

Ce dispositif est conforme aux normes permis-exemptes du Canada RSS d'industrie. L'opération est sujette aux

deux conditions suivantes : (1) ce dispositif peut ne pas causer l'interférence, et (2) ce dispositif doit accepter

n'importe quelle interférence, y compris l'interférence qui peut causer le fonctionnement peu désiré du dispositif.

IC ID: 2329B-AMM0921TT

China

CMIIT ID: 2018DJ2012(M)

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

0“ US 9 9

Appendix I: FreeWave Legal Information MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

UL Notifications / Warnings - Class1 Div2

Warning! EXPLOSION HAZARD! - Substitution of components may impair suitability for Class 1,

Division 2.

Warning! DO NOT REMOVE or insert the diagnostics cable while the circuit is live!

UL Power Source

Important!: Input power shall be derived from a single Class 2 power source.

Do not connect or disconnect any connectors while the circuit is live unless the area is known to be non-

hazardous.

lModels MM2-T-U, MM2-LV-T-U, MM2-MR-R-U, and MM2-MR-T-U are suitable for use in Class 1,

Division 2, Groups A, B, C, and D or non-hazardous locations only.

lInput voltage for the MM2-LV-T-U models is +3.5 VDC (± 5%).

lInput voltage for the MM2-MR-R-U and MM2-MR-T-U models is +6.5 VDC to +30.0 VDC.

lInput voltage for the MM2-T-U models is +5.0 VDC.

FCC Notifications

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This

device may not cause harmful interference and 2) this device must accept any interference received, including

interference that may cause undesired operation.

The content of this guide covers FreeWave Technologies, Inc. models sold under FCC ID: KNYAMM0300AT or

KNYAMM0921TT.

All models sold under the FCC ID(s) listed above must be installed professionally and are only approved for use

when installed in devices produced by FreeWave Technologies or third party OEMs with the express written

approval of FreeWave Technologies, Inc. Changes or modifications should not be made to the device.

The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23cms from

all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a

host device, except in accordance with FCC multi-transmitter product procedures.

FCC NEMA Installation and Label

Where applicable, the models described in this guide must be installed in a NEMA enclosure. When any

FreeWave Technologies, Inc. module is placed inside an enclosure, a label must be placed on the outside of the

enclosure. The label must include the text "Contains Transmitter Module with FCC ID: KNYAMM0300AT or

KNYAMM0921TT."

Warning! If the device you are installing contains a radio with FCC ID KNYAMM0300AT on the

label, you are restricted to using only Omni antennas with 6 dBi gain or less.

Warning! The radios covered in this guide have a maximum transmitted output power of 1 W. The

antennas used must provide a separation distance of at least 23 cm from all persons and must not

be co-located or operate in conjunction with any other antenna or transmitter.

0 ANATEL .m mm 4442- 14- 2478 (01)07899029305257 Esle equlpamemv opera em mam secumana, me 4, use lem direuo u prolecio nunlra imerlerénciu prejudicial mesmu de estagées do mesnm Iipn. e n50 pnde causar inlerlerénciu u sisiemas operando em camel prima’ria

Appendix I: FreeWave Legal Information MM2-MR, MM2-LV-T, MM2-T

User & Reference Manual

This document is the property of FreeWave Technologies, Inc. and contains proprietary information owned by

FreeWave. This document cannot be reproduced in whole or in part by any means without written permission from

FreeWave Technologies, Inc.

ANATEL Information

FREE AVE

MM2-MR, MM2-LV-T, MM2-T User, Referenece Manual Datasheet by FreeWave Technologies

INFORMATION

HELP

CONTACT US

FOLLOW US
