蓝牙和 MSP430 音频信宿参考设计

利用 Texas Instruments 器件为各种应用创建低端、低功耗音频解决方案

Texas Instruments 的蓝牙和 MSP430 音频信宿参考设计Texas Instruments 的“蓝牙 + MSP430”音频信宿参考设计可供客户为各种应用创建低端、低功耗音频解决方案。 一些可能的应用包括玩具、低端蓝牙扬声器和音频流配件。 该参考设计是一种经济实惠的音频实施方案，利用其全面的设计文件，您可以将工作重心转移到应用和最终产品的开发上。 该参考设计支持的软件包括 Stonestreet One Bluetopia 蓝牙堆栈（经过认证且免专利费）。

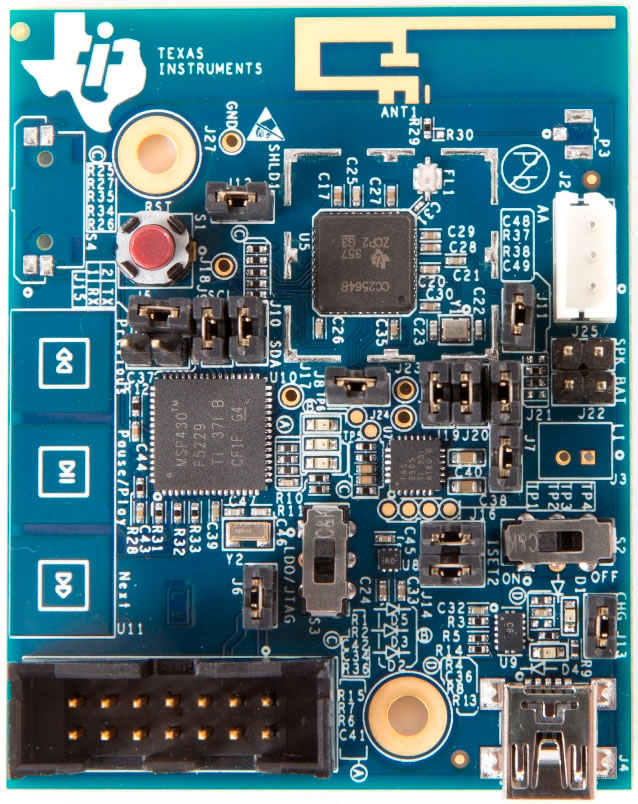

查看放大的板图片

特性
  • 利用低成本、低功耗 MSP430F5229 实现蓝牙音频功能（SBC 编码/解码）
  • 该设计将音频处理任务从 MCU 转移到蓝牙器件，从而实现低功耗音频
  • 采用四层布局和 QFN 封装的高性价比、低端、无线、音频解决方案
  • 该解决方案的内核采用 TI CC2564，这种内核拥有一流蓝牙性能（+12dBm 输出功率）
  • 该设计还采用了 TI 的低功耗数字输入扬声器放大器 (TAS2505) 和 USB 充电管理器件 (BQ24055)
  • CC256x 和 Bluetopia 堆栈均具有蓝牙子系统 QDID，让您能仅需蓝牙终端产品清单

Bluetooth and MSP430 Audio Sink Reference Design

图片制造商零件编号描述频率内含物天线类型可供货数量价格查看详情
BOARD REF DESGN BLUETOOTH MSP430BT-MSPAUDSINKBOARD REF DESGN BLUETOOTH MSP4302.4GHz板-0 - 立即发货$102.75查看详情
发布日期： 2014-06-11
