Introduction

STM32F100xx value line microcontrollers feature a high-definition multimedia interface

consumer electronics control (HDMI™-CEC) controller peripheral that supports the HDMI-

CEC v1.3a protocol. The HDMI-CEC controller provides a hardware support of this protocol,

and it supports the whole set of features offered with CEC devices.

This application note describes the CEC protocol software and hardware implementation

based on the HDMI-CEC controller. A real application example is also provided to illustrate

the software implementation.

www.st.com

Contents AN3127

2/36 Doc ID 16896 Rev 2

Contents

1 High-definition multimedia interface, consumer

electronics control (HDMI-CEC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.2 Frame description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.3 Bit timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.4 Device connectivity and addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.4.1 CEC communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.4.2 Enhanced DDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

1.4.3 Hot plug detect (HPD) signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.4.4 Physical address discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.4.5 Discovery algorithm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.4.6 Logical addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.4.7 Logical address allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

1.5 STM32F100xx’s HDMI-CEC controller . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.5.1 Main features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

1.5.2 HDMI-CEC advanced features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2 Hardware environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.1 HDMI connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.1.1 I2C bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.2 Hardware connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

3 Firmware description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.1 Package directories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3.2 Firmware architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

4 Value line evaluation board CEC demonstration . . . . . . . . . . . . . . . . . 27

4.1 CEC demonstration overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4.2 Device type selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.3 Physical address discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.4 Logical address allocation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

4.5 Checking the connected devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.6 Displaying CEC send/receive information on the LCD . . . . . . . . . . . . . . . 30

AN3127 Contents

Doc ID 16896 Rev 2 3/36

4.6.1 Receive information subscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

4.6.2 Send information subscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

5 Conclusion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

6 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

List of tables AN3127

4/36 Doc ID 16896 Rev 2

List of tables

Table 1. Logical addresses. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Table 2. HDMI connector pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Table 3. STM32F100xx and HDMI-CEC connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table 4. High-level functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Table 5. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

AN3127 List of figures

Doc ID 16896 Rev 2 5/36

List of figures

Figure 1. CEC frame format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 2. Message structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Figure 3. Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 4. Bit timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Figure 5. Follower acknowledge (ACK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 6. CEC and DDC line connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Figure 7. Addresses within a HDMI cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Figure 8. Physical address discovery algorithm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Figure 9. System exits Stop mode when data reception starts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Figure 10. HDMI cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Figure 11. Application schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

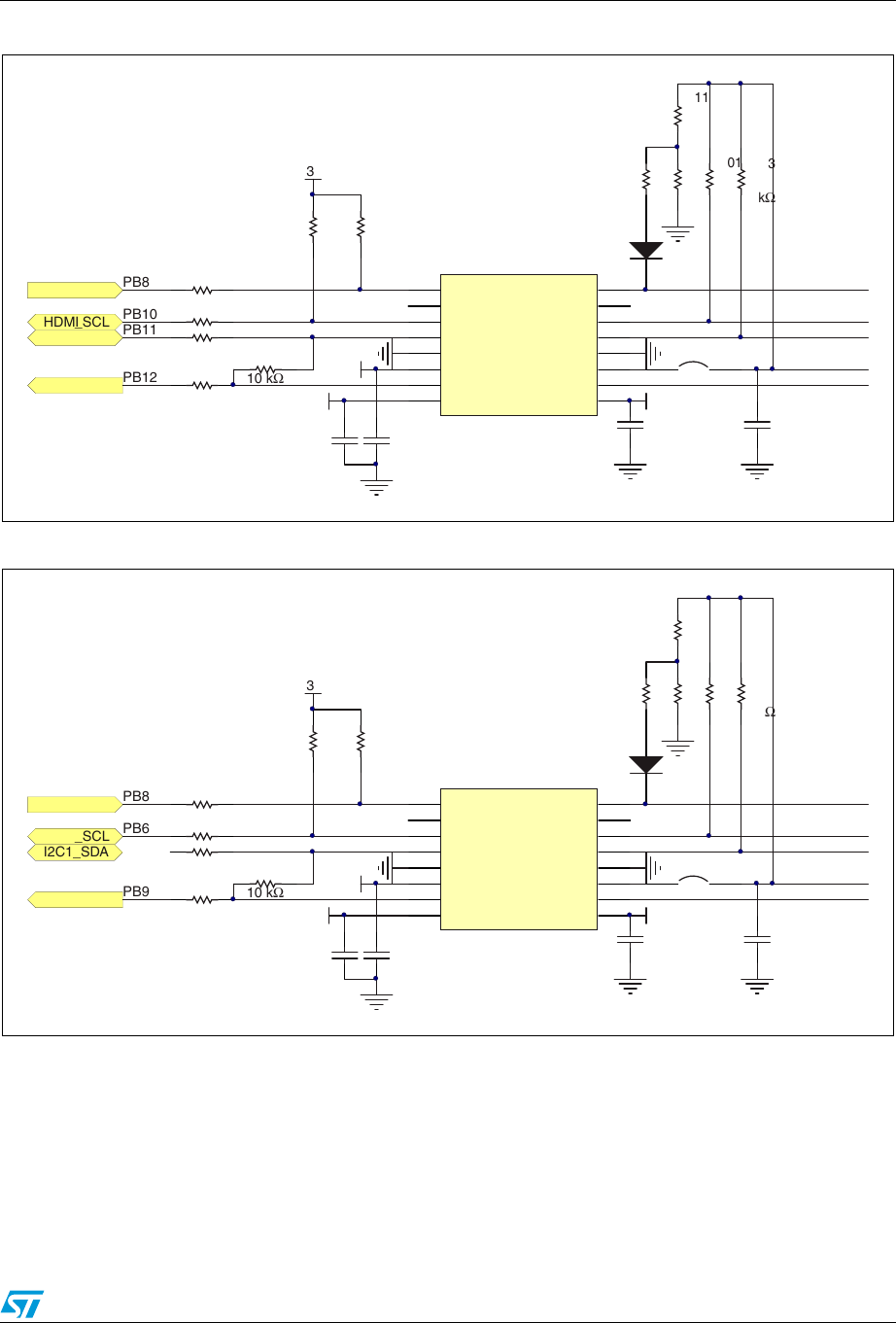

Figure 12. Electrical schematic proposal for STM32100B-EVAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 13. Electrical schematic proposal for STM32100E-EVAL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Figure 14. Example of a hardware connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Figure 15. Package directory structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Figure 16. Firmware architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Figure 17. CEC demonstration flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Figure 18. Device type selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Figure 19. Physical and logical addresses display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 20. CEC menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Figure 21. Receive flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Figure 22. Receive information subscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Figure 23. Send flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Figure 24. Select CEC command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

AN3127

6/36 Doc ID 16896 Rev 2

Glossary of terms

Broadcast message: a message sent to logical address 15 that all devices are expected to

receive.

Destination: the target device for a CEC message.

Follower: a device that has just received a CEC message and is required to respond to it.

Initiator: the device that is sending, or has just sent, a CEC message and, if appropriate, is

waiting for a follower to respond.

Logical address: a unique address assigned to each device.

Menu-providing device: a non-display device that may render a menu on TV.

Playback device: a device that has the ability to play media, like a DVD player.

Recording device: a device that has the ability to record a source such as an internal tuner

or an external connection.

Source device: a device that is currently providing an AV stream via HDMI.

Tuner device: a device that contains a tuner, e.g. an STB (set-top box) or a recording

device.

TV: a device with a HDMI input that has the ability to display the input HDMI signal.

Generally it has no HDMI output.

CEC: consumer electronics control.

DDC: display data channel.

E-DDC: enhanced display data channel.

EDID: extended display identification data.

E-EDID: enhanced extended display identification data.

HDMI: high-definition multimedia Interface.

(HDMI) source: a device with a HDMI output.

(HDMI) sink: a device with a HDMI input.

w bms w bus w bus hwgh bu o m 14 operands mgh

AN3127 High-definition multimedia interface, consumer electronics control (HDMI-CEC)

Doc ID 16896 Rev 2 7/36

1 High-definition multimedia interface, consumer

electronics control (HDMI-CEC)

1.1 Introduction

Consumer electronics control (CEC) is the appendix supplement 1 to the HDMI (high-

definition multimedia interface) standard.

It is a protocol that provides high-level control functions between all of the various

audiovisual products in a given environment. It is specified to operate at low speeds with

minimum processing and memory overhead.

For more details, refer to the high-definition multimedia interface specification available from

www.hdmi.org.

1.2 Frame description

The CEC bus is a single-wire protocol that can connect up to 10 audiovisual devices through

standard HDMI cabling.

All transactions on the CEC line consist of an initiator and one or more followers. The

initiator is responsible for sending the message structure and the data. The follower is the

recipient of any data and is responsible for setting any acknowledgement bits.

A message is conveyed in a single frame that consists of a start bit followed by a header

block and, optionally, an opcode and a variable number of operand blocks. Figure 1 shows a

CEC frame format.

Figure 1. CEC frame format

Figure 2. Message structure

Start bit

01101101 0-

EOM ACKInitiator Destination

Header block

Header block Data bock 1 Data block n

10 bits10 bits10 bits

Initiator address = 0x6

Destination address = 0xD

Example of Header block:

11100101 0 -

EOM ACK

Data

Data block

Data = 0xE5

Example of Data block:

ai15931

3TART

HIGH (EADER /PCODE /PERAND /PERAND

TOOPERANDS

HIGH

IMPEDANCE BIT IMPEDANCE

AI

45ms:02ms <—> 3 7 ms :02 ms 4—» 2 4 ms :0 35 ms 4—» 1.5 ms :02 ms 4—»

High-definition multimedia interface, consumer electronics control (HDMI-CEC) AN3127

8/36 Doc ID 16896 Rev 2

Figure 3. Blocks

All these blocks are made of an 8-bit payload (most significant bit transmitted first) followed

by an end-of-message (EOM) bit and an acknowledge (ACK) bit.

The EOM bit is set in the last block of a message and kept cleared in all others. If a message

contains additional blocks after the EOM, these blocks should be ignored. The EOM bit may

be set in the header block to “ping” other devices and make sure that they are active.

The acknowledge bit is always brought to high impedance by the initiator. It can therefore be

driven low by either the follower that has read its own address in the header, or the follower

that needs to reject a broadcast message.

The header consists of the source logical address field, and the destination logical address

field. Note that the address 0xF is specially used for broadcast messages.

1.3 Bit timing

The format of the start bit is unique and identifies the start of a message. It should be

validated by its low duration and its total duration.

All remaining data bits in the message, after the start bit, have a consistent timing. The high-

to-low transition at the end of the data bit is the start of the next data bit except for the final

bit where the CEC line remains high.

Figure 4 shows the timings of the start bit and the different data bits.

Figure 4. Bit timings

%/- !#+



$%34).!4)/.;=).)4)!4/2;=

(EADERBLOCK

%/- !#+



$!4!;=

/PCODE/PERANDBLOCK

AI

3TARTBIT

HIGHIMPEDANCE

LOWIMPEDANCE

MSMS

MSMS

$ATABIT

HIGHIMPEDANCE

LOWIMPEDANCE

MSMS

MSMS

).)4)!4/2LOGICAL

$ATABIT

HIGHIMPEDANCE

LOWIMPEDANCE

MSMS

MSMS

).)4)!4/2LOGICAL

AI

H- —> a— ‘O .-.---___ / _ DDClme — CEC bus

AN3127 High-definition multimedia interface, consumer electronics control (HDMI-CEC)

Doc ID 16896 Rev 2 9/36

CEC Figure 5 shows an example bit with both initiator and follower where the follower may

assert the bit to logical 0 to acknowledge a data block. The initiator outputs a logical 1, thus

allowing the follower to change the CEC state by pulling the control line low for the duration

of the safe sample period.

Figure 5. Follower acknowledge (ACK)

1.4 Device connectivity and addressing

1.4.1 CEC communication

By definition the HDMI system architecture consists of sources and sinks. A given device

may have one or more HDMI input(s) and output(s). Each HDMI input on the device should

follow all the rules for a HDMI sink and each HDMI output should follow all the rules for a

HDMI source.

The DDC is used for configuration and status exchange between a single source and a

single sink. The optional CEC protocol provides high-level control functions between all of

the various audiovisual products in a user’s environment.

Figure 6. CEC and DDC line connections

HIGHIMPEDANCE

LOWIMPEDANCE

HIGHIMPEDANCE

LOWIMPEDANCE

AI

MS

MS

MS

MSMAX

$ATABITINITIATORLOGICAL

$ATABITFOLLOWERLOGICAL

PVR 2.3.1.0 DVD "We...“ 2.1.0.0 1.0.0.0 0.0.0.0 AIVR I / / D-VHS Amiga? 22-0-0 2.0.0.0 5TB EDID 23-00 1.0.0.0 0.0.0.0 EDID / 2.0.0.0

High-definition multimedia interface, consumer electronics control (HDMI-CEC) AN3127

10/36 Doc ID 16896 Rev 2

Figure 7. Addresses within a HDMI cluster

1.4.2 Enhanced DDC

The enhanced DDC described in this section is defined in VESA “ENHANCED DISPLAY

DATA CHANNEL STANDARD Version 1 (September 2, 1999)”. All sinks are required to

support these enhanced DDC features. If the E-EDID structure of a sink is longer than 256

bytes, it should support the segment pointer.

Timing

Data is synchronized with the SCL signal and timing should comply with the Standard Mode

of the I2C specification (100 kHz maximum clock rate).

The I2C bus is a standard two-wire (clock and data) serial databus protocol. Refer to the I2C

specification for details.

Note that a HDMI sink may hold off the DDC transaction by stretching the SCL line during

the SCL-low period following the Acknowledge bit as permitted by the I2C specification. All

HDMI sources should delay the DDC transaction while the SCL line is being held low.

Data transfer protocols

The source should use I2C commands to read information from a sink’s E-EDID with a slave

address.

In Enhanced DDC, a segment pointer is used to address the E-EDID outside the 256 bytes

normally addressable by the 0xA0/0xA1 addresses. The Enhanced DDC protocol sets the

segment pointer before the remainder of the DDC command.

AN3127 High-definition multimedia interface, consumer electronics control (HDMI-CEC)

Doc ID 16896 Rev 2 11/36

Segment pointer

Enhanced DDC allows access to up to 32 Kbytes of data. This is accomplished using a

combination of the 0xA0/0xA1 address pair and a segment pointer. For each value of the

segment pointer, 256 bytes of data are available at the 0xA0/0xA1 address pair. An

unspecified segment pointer references the same data as when the segment pointer is zero.

Each successive value of the segment pointer allows access to the next two blocks of E-

EDID (128 bytes each). The value of the segment pointer register cannot be read since it is

reset at the completion of each command.

Enhanced DDC sink

The sink should be Enhanced DDC read compliant.

The sink should be capable of responding with EDID 1.3 data and up to 255 extension

blocks, each 128 bytes long (up to 32 Kbytes of E-EDID memory) whenever the hot plug

detect (HPD) signal is asserted.

The sink should be capable of providing E-EDID information over the Enhanced DDC

channel whenever the +5 V power signal is provided. The information should be available

within 20 ms after the +5 V power signal is provided.

Enhanced DDC source

The source should use Enhanced DDC protocols.

It should be capable of reading EDID 1.3 data at DDC address 0xA0.

The source reads Enhanced EDID extension data at DDC address 0xA0 using segment

pointer 0x60.

1.4.3 Hot plug detect (HPD) signal

A HDMI sink should not assert high voltage levels on its HPD pin when the E-EDID is not

available for reading. This requirement should be fulfilled at all times, even if the sink is

powered off or in standby. The HPD pin may be asserted only when the +5 V power line

from the source is detected. This ensures that the HPD pin is not asserted before the third

make of the connector.

A source may use a high voltage level HPD signal to initiate the reading of E-EDID data. It

does not indicate whether the sink is powered, or whether the HDMI input on the sink is

selected or active.

A HDMI sink should indicate any change to the contents of the E-EDID by driving a low

voltage level pulse on the HPD pin. This pulse should last at least 100 ms.

1.4.4 Physical address discovery

In order to allow CEC to address specific physical devices, all have a physical address. The

bus connectivity is worked out whenever the hot plug detect (HPD) signal is de-asserted by

the physical address discovery process. That process uses only the DDC/EDID (display

data channel/extended display identification data) mechanism. Starting from the CEC root

device which takes address 0b0000 (normally the TV), all sinks and repeaters, whether

CEC-capable or not, determine the address their source device should take, and make it

available in the source address field of the EDID vendor-specific data block

High-definition multimedia interface, consumer electronics control (HDMI-CEC) AN3127

12/36 Doc ID 16896 Rev 2

(EDID_EXT_VSDB_B0-1). Thereby, except for the root device, all devices have the physical

address stored in the EDID of their connected sink.

The physical address of each node is determined through the physical address discovery

process. This process is dynamic in that it automatically adjusts physical addresses as

required as devices are physically or electrically added or removed from the device tree.

All sinks and repeaters should perform the steps of physical address discovery and

propagation even if those devices are not CEC-capable. Sources are not required to

determine their own physical address unless they are CEC-capable.

All addresses are 4 digits long allowing for a 5-device-deep hierarchy. All are identified in the

form of n.n.n.n in the following description.

A sink or repeater that is acting as the CEC root device generates its own physical address:

0.0.0.0. The source or repeater reads its physical address from the EDID of the connected

sink. The CEC line may be connected to only one HDMI output so a device with multiple

HDMI outputs will read its physical address from the EDID on the CEC-connected output.

Each sink and repeater is responsible for generating the physical address of all source

devices connected to that device by appending a port number onto its own physical address

and placing that value in the EDID for that port.

1.4.5 Discovery algorithm

The following algorithm is used to allocate the physical address of each device whenever

HPD is de-asserted, or upon power-up:

Figure 8. Physical address discovery algorithm

$ISA BLEASSERTION OF(0$TOALL SOURCEDEVICE S

)F) AM#%#ROOT

3ET MY? ADDR ESSTO

%LSE

 7AITFOR(0$ FROMSINK

 1UERYSINKFO RMY?ADDRESSOF MYCONNECTIO N

 4HEDEVICESH ALLRETAINTHIS PHYSICALADD RESSUNTIL

(0$ ISREMOVED ORTHEDEVICEI SPOWEREDOFF 

%ND IF

)FD EVICEHASCON NECTIONSFORSO URCEDEVICES THEN

, ABELALLPOSS IBLECONNECTION STOSOURCED EVICES

U NIQUELYSTART INGFROMCONNEC TION?LABEL TOTHE

N UMBEROFSOUR CEINPUTCONNEC TIONS

)F DEVICEHASS EPARATE%$)$SF OREACHSOURC ECONNECTION

THEN

)F MY ?A DD RESSENDSWITHTH EN

 3ETEACH SOURCE?PHYSICA L?ADDRESSTO MY?ADDRESS

 WITHTHEFIRSTBEING REPLACEDWITH 

 CONNECTI ON?LABEL

%LSEIEBEYONDTHEFIFTHLAYEROFTHETREE

 3ETEA CHSOURCE?PHYSI CAL?ADDRESST O&&&&

 %NDIF

%L SE

3 ETEACHSOURC E?PHYSICAL?ADDR ESSTOMY?ADD RESS

%N DIF

7R ITESOURCE?PH YSICAL?ADDRESS TO($-)63$" IN%$)$FOR

EACH SOURCECONNE CTION

%ND IF

!LLO W(0$TOBEA SSERTEDFORSOU RCEDEVICES AI

AN3127 High-definition multimedia interface, consumer electronics control (HDMI-CEC)

Doc ID 16896 Rev 2 13/36

Whenever a new physical address (other than F.F.F.F) is discovered, a CEC device should:

●allocate the logical address (see Section 1.4.7: Logical address allocation)

●report the association between its logical and physical addresses by broadcasting

This process allows any node to create a map of physical connections to logical addresses.

1.4.6 Logical addressing

Apart from the physical address, each device appearing on the control signal line has a

unique logical address. This address defines a device type as well as being a unique

identifier. This address is 0 for a TV set with physical address 0b0000 and 14 or even 15

otherwise. It is defined in the CEC_OAR register and in the upper nibble of the first byte of

the transmitted message. All CEC devices therefore have both a physical and a logical

address, whereas non-CEC devices only have a physical address.

1.4.7 Logical address allocation

Note that a logical address should only be allocated when a device has a valid physical

address (i.e. not F.F.F.F), at all other times a device should take the ‘Unregistered’ logical

address (15).

Only the device at physical address 0.0.0.0 may take logical address TV (0). A TV at any

other physical address will take the ‘free use’ (14) address. If address 14 is already

allocated it will take the ‘unregistered’ address (15).

Table 1. Logical addresses

Address Device

0TV

1 Recording device 1

2 Recording device 2

3 Tuner 1

4 Playback device 1

5 Audio system

6 Tuner 2

7 Tuner 3

8 Playback device 2

9 Recording device 3

10 Tuner 4

11 Playback device 3

12 Reserved

13 Reserved

14 Free use

15 Unregistered (as initiator address) broadcast (as destination

address)

High-definition multimedia interface, consumer electronics control (HDMI-CEC) AN3127

14/36 Doc ID 16896 Rev 2

Reserved addresses should not be used at present and are reserved for future extensions

to this specification.

Where more than one possible logical address is available for the given device type (e.g.

Tuner 1, Tuner 2, etc.), an address allocation procedure should be carried out by a newly

connected device. The device takes the first allocated address for that device type and

sends a <Polling Message> to the same address (e.g. Tuner 1 -->Tuner 1). If the <Polling

Message> is not acknowledged, then the device stops the procedure and retains that

address.

If the first address is acknowledged, then the device takes the next address for that device

type and repeats the process (e.g. Tuner 2 .. Tuner 2). Again, if the message is not

acknowledged, the device keeps that address.

This procedure continues until all possible ‘type-specific’ addresses have been checked; if

no ‘type-specific’ addresses are available the device should take the unregistered address

(15). Note that several physical devices might be sharing this address.

A device may lose its logical address when it is disconnected or switched off. However, it

may remember its previous logical address, so that the next time it is connected or switched

on, it can begin the polling process at its previous logical address and try each other

allowable logical address in sequence before taking the unregistered address. For example

if an STB that was previously allocated address Tuner 2 is reconnected, it would poll Tuner

2, Tuner 3, Tuner 4 and Tuner 1 before taking the unregistered address.

If a device loses its physical address at any time (e.g. it is unplugged) then its logical

address should be set to unregistered (15).

1.5 STM32F100xx’s HDMI-CEC controller

The STM32F100xx’s HDMI-CEC controller provides a hardware support of the CEC

protocol.

AN3127 High-definition multimedia interface, consumer electronics control (HDMI-CEC)

Doc ID 16896 Rev 2 15/36

1.5.1 Main features

●Supports HDMI-CEC v1.3a

●Supports the whole set of features offered with CEC (devices may use all or only some

of these features, depending on functionality):

– One touch play - a device may be played and become the active source by

pressing a single button.

– System standby - enables devices to be set on standby by pressing a single

button.

– Preset transfer - the presets of a device can be autoconfigured to match those of

the TV.

– One touch record - used to make recordings by pressing a single button.

– Timer programming - any device can program a timer to start/stop audio/video

recording.

– System information - allows devices to autoconfigure their language and country

settings.

– Deck control - allows a device to control and interrogate a playback device.

– Tuner control - allows a device to control the tuner of another device.

– Vendor-specific commands - allow vendor-defined commands to be used.

– OSD display - allows a device to display text using the on-screen display of the TV.

– Device menu control - allows a device to control the menu of another device.

– Routing control - enables control of CEC switches for the streaming of a new

source device.

High-definition multimedia interface, consumer electronics control (HDMI-CEC) AN3127

16/36 Doc ID 16896 Rev 2

1.5.2 HDMI-CEC advanced features

The STM32 HDMI-CEC controller provides an easy platform to build CEC firmware

applications:

●dedicated address register containing up to 15 CEC device addresses

●Programmable high-resolution prescaler (14 bit) to obtain a 50 µs time base (HDMI

specification resolution)

●advanced arbitration mechanism using SFT (signal free time) and header arbitration

●dedicated transmission and reception flags (TBTRF and RBTF) with interrupt capability

●error handling in a single dedicated register: bit timing errors, bit period errors,

message errors and error bit generation

– Tx block transfer finished error (TBTFE)

– Line error (LINE)

– Block acknowledge error (ACKE)

– Start bit error (SBE)

– Rx block transfer finished error (RTBFE)

– Bit period error (BPE)

– Bit timing error (BTE)

●error-free mode to allow safe communication with non-tolerant CEC devices. This

mode can be selected using a dedicated configuration bit.

●Rx digital filtering

●CEC controller built around a flexible state machine to ensure safe communication,

switching between the Tx and Rx modes, and easy error handling. There are 6 states:

Disabled, Idle, RX, TX, RX_ERROR and TX_ERROR. Please refer to the reference

manual (RM0041) available from www.st.com for more details.

●Wakeup-from-Stop source, with no data loss: the CEC line can be used as a wakeup

event from the Stop mode. The STM32 Wakeup system is fast enough to ensure that

there is no CEC data loss. CEC data received when the system is in the Stop mode

cause the system to wake up from the low power mode, and in so doing, allow the CEC

peripheral to easily retrieve them.

5 Opdode Operand 1 o gh Impedance tam I Heady m c Me Is pulled (hat new data d‘ an even! IS he EXT‘ \me, 5 Exﬂ genemed Slop made Run mode 200 us "‘ Mmlmum low duvat (0 restave the SIB" bll IS 3 5 ms system dock on o!

AN3127 High-definition multimedia interface, consumer electronics control (HDMI-CEC)

Doc ID 16896 Rev 2 17/36

Figure 9. System exits Stop mode when data reception starts

As the tolerance margin on the start bit is 200 µs, the software has to reconfigure the system

clock within this time frame (see Figure 9). The system clock reconfiguration is necessary as

after waking up from the Stop mode the CPU starts running on the high-speed internal

oscillator (HSI 8 MHz).

To ensure that there is no data loss while the system is in the wakeup phase from the Stop

mode, the following procedures can be selected:

●The software can choose to use the system PLL as the system main clock. The PLL

source should be the HSI and not the HSE.

●For applications which do not need the full CPU performance, the software can choose

to receive the first message just after waking up from Stop mode at the HSI frequency.

In this case, there is no need to reconfigure the system clock after the CPU exits the

Stop mode. However, just before entering the Stop mode the CEC prescaler should be

reprogrammed to be in line with the HSI frequency by:

– disabling the CEC peripheral. To do so, write PE=0 and wait until PE goes low

– writing the CEC prescaler register (CEC_PRER = 399)

– enabling the CEC peripheral. This is done by writing PE=1.

– requesting Stop mode entry

Note: 1 The HSE cannot be used after wakeup from Stop mode as it takes some time to start up,

and CEC data would be lost.

2 Any data sent on the CEC bus cause the device to wake up even if the destination address

is not matched.

3 After the first message is received, the software can restore the initial clock configuration to

continue in Run mode or re-enter the Stop mode.

Refer to the STM32F100xx reference manual (RM0041) for further details.

4HESYSTEMISIN3TOPMODE

THE#%#LINEISCONFIGUREDAS

AN%84)LINEONTHEFALLINGEDGE

3YSTEM3TOPMODE 3YSTEM2UNMODE

%84)

#%#LINE (IGHIMPEDANCE 3TART

BIT (EADER /PDODE /PERAND /PERAND

7HENTHE#%#LINEISPULLED

LOWTOINDICATETHATNEWDATA

WILLBERECEIVEDANEVENTIS

GENERATEDONTHE%84)LINE

CAUSINGTHESYSTEMTOEXIT

THE3TOPMODE

%84)GENERATED

2UNMODE3TOPMODE

S

TORESTORETHE

SYSTEMCLOCK

-INIMUMLOWDURATIONOF

STARTBITISMS

AI

Hardware environment AN3127

18/36 Doc ID 16896 Rev 2

2 Hardware environment

To be fully compliant with the stringent HDMI 1.3a specification, specially when the CEC

device is in the power-off state, a fully integrated ESD protection should be added externally

to the STM32F100xx device. For that purpose, the HDMI2C1-5DIJ ensures level-shifting

and serves as the signal booster for control links of HDMI 1.3 transmitters. The HDMI2C1-

5DIJ is a bidirectional isolation buffer, integrating hysteresis and signal boosters for

maximum system robustness and signal integrity.

In addition to this circuit, the 27 kΩ pull-up resistor on the CEC line should be externally

connected to the STM32F100xx.

With these few hardware additions, the STM32F100xx CEC solution (CEC peripheral plus

ESD protection circuit) is fully compliant with the HDMI 1.3 standard.

The solution is already implemented on Value line evaluation boards. Two HDMI connectors

are available for each Value line evaluation board (CN15, CN16 for STM32100B-EVAL and

CN2, CN3 for STM32100E-EVAL). The CEC, SCL, SDA and HPD signals are supported

and connected to STM32F100xx through HDMI2C1-5DIJ.

The external hardware component is only needed when the CEC power-off state is needed

in the application. If the power-off state is not needed, you can directly connect the

STM32F100xx CEC line to the CEC bus.

2.1 HDMI connector

Only a vendor-approved, HDMI connector should be used. The list of approved HDMI

connectors is available from the HDMI site (www.hdmi.org).

The differential impedance of this connector should be equal to 100 Ω ±15%. This can be

checked by using time domain reflectometry (TDR) equipment.

Figure 10. HDMI cable

AN3127 Hardware environment

Doc ID 16896 Rev 2 19/36

2.1.1 I2C bus

The display data channel (DDC) I/Os and wires (SDA, SCL, DDC/CEC Ground), should

meet the requirements specified in the I²C bus specification, version 2.1 (Section 15 for

“Standard-Mode” devices).

Discussions about high-capacitance environments found in the I²C Specification section

(17.2 “Switched pull-up circuit for Fast-mode I²C-bus devices”) also apply to the HDMI

environment.

This section covers the electrical specifications for the I²C (defined by the CTS and by the

I²C bus specification). Timing specifications are not dealt with here. The HDMI standard

specifies that the maximum clock rate is 100 kHz.

The I²C bus is a standard two-wire (SCL for clock and SDA for data) serial databus protocol.

The electrical specifications for I²C bus device I/Os are power-supply-dependent. An I²C bus

device with fixed input levels of 1.5 V and 3 V can have its own supply voltage. A pull-up

resistor has to be connected to a 5 V ±10% supply.

When devices with fixed input levels are mixed with devices with input levels dependent on

VCC, the latter have to be connected to a common 5 V ±10% supply line with pull-up

resistors connected to their SDA and SCL pins.

The ST reference board implemented in this application note has 3.3 V-tolerant I/Os and a

HDMI-compatible I²C bus dependent on a +5 V VCC supply. For the implementation, it is

recommended to use the setup shown in Figure 11, with the HDMI2C1-5DIJ chip.

Table 2. HDMI connector pinout

Pin number Signal name Pin number Signal name

1 TMDS Data 2+ 11 TMDS Clock Shield

2 TMDS Data 2 Shield 12 TMDS Clock-

3 TMDS Data 2- 13 CEC

4 TMDS Data 1+ 14 No Connect

5 TMDS Data 1 Shield 15 DDC Clock

6 TMDS Data 1- 16 DDC Data

7 TMDS Data 0+ 17 Ground

8 TMDS Data 0 Shield 18 +5 V power

9 TMDS Data 0- 19 Hot Plug Detect

10 TMDS Clock+ - -

non HDMI (Set-Top Box‘ DVD maven 9:) % SATAII'LCSJPS m 4 g E E audm H mm. _ cm 11

Hardware environment AN3127

20/36 Doc ID 16896 Rev 2

Figure 11. Application schematic

AN3127 Hardware environment

Doc ID 16896 Rev 2 21/36

Figure 12. Electrical schematic proposal for STM32100B-EVAL

Figure 13. Electrical schematic proposal for STM32100E-EVAL

($-)?#%#

2

K7

6

6

2

K7

2

0" #%#?)#





3,#?)#



3$!?)#



'.$



6$$?6



(0$?)#



6$$?)#

6$$?#%# 

(0$ 

6?/54 

'.$ 

3$! 

3#, 

.# 

#%# 

5

($-)#$)*#

($-)?3#,

($-)?3$!

($-)?(0$

#

N&

2

0"

2

0"

2

0"

#

N&

2

K7

6

6

#

N&

2

K

2

K

2

K7

2

K

2

K7

$

"!4*

#

N&

($-)?PIN

($-)?PIN

($-)?PIN

($-)?PIN

($-)?PIN

3"

7

($-)?#%#

2

K7

6

6

2

K7

2

0"

#%#?)#





3,#?)#



3$!?)#



'.$



6$$?6



(0$?)#



6$$?)#

6$$?#%# 

(0$ 

6?/54 

'.$ 

3$! 

3#, 

.# 

#%# 

5

($-)#$)*

?3#,

)#?3$!

($-)?(0$

#

N&

2

0"

2

0"

2

0"

#

N&

2

K7

6

6

#

N&

2

K

2

K

2

K7

2

K

2

K7

$

"!4*&),-

#

N&

($-)?3#,

($-)?3$!

($-)?6

($-)?(0$

($-)?#%#

3"

7

)#

Hardware environment AN3127

22/36 Doc ID 16896 Rev 2

2.2 Hardware connection

To run the CEC demonstration, you have to connect the HDMI connector of the Value line

evaluation board (STM32F100B-EVAL or STM32F100E-EVAL) to another HDMI device (TV,

recording device, etc.) using the HDMI cable (see Figure 10)

Figure 14. Example of a hardware connection

Note: You can connect the Value line evaluation board to other Value line evaluation boards using

HDMI cables, or a simple wire between all CEC device lines (PB8). If you choose the

second solution, do not forget to connect the grounds of all the boards together.

$6$($-)DEVICE

6ALUELINEEVALUATIONBOARDS

46($-)DEVICE

($-)CABLE

($-)

CONNECTOR

($-)

CABLE

#.X #.Y

($-)

CONNECTOR

AIB

Table 3. STM32F100xx and HDMI-CEC connection

HDMI-CEC pins STM32100B-

EVAL

STM32100E-

EVAL Configuration Remap

CEC line pin PB8 PB8 Output open drain PB10

CEC_I2C_SCL PB10 PB6 Output open drain

CEC_I2C_SDA PB11 PB7 Output open drain

CEC_HPD_PIN PB12 PB9 Output push pull

AN3127 Firmware description

Doc ID 16896 Rev 2 23/36

3 Firmware description

3.1 Package directories

When unzipped, the package has the structure shown in the figure below.

Figure 15. Package directory structure

_htmresc folder: contains all the html page resources of the package.

Libraries folder: contains all CMSIS files and the STM32F10x standard peripheral's Drivers:

●CMSIS subfolder: contains the STM32F10xxx CMSIS files: device peripheral access

layer and core peripheral access layer

●STM32F10x_StdPeriph_Driver subfolder: contains all the subdirectories and files that

make up the core of the library:

–inc subfolder: contains the header files of the peripheral drivers

–src subfolder: contains the source files of the peripheral drivers

Firmware description AN3127

24/36 Doc ID 16896 Rev 2

Project folder: contains preconfigured projects and the source and header files of the CEC

demonstration

●src subfolder: contains the source files

–main.c: file in which the system clocks and interrupts are configured

–stm32f10x_it.c: file in which the CEC events (transmitter/receiver) and error

(acknowledge failure, bus error, overrun, arbitration loss) interrupts are handled.

–cec_display.c: displays the CEC demonstration messages on the LCD of Value

line Evaluation board, or on HyperTerminal

●inc subfolder: contains the header files

–stm32f10x_it.h: headers of the interrupt handlers

–stm32f10x_conf.h: configuration file

–cec_display.h: header file of cec.display.c

●EWARMv5, RVMDK, HiTOP and RIDE subfolders: contain tool-dependent

preconfigured projects and workspaces

Utilities folder: STM32_EVAL implement an abstraction layer that interacts with the human

interface resources-buttons, LEDs, LCD and COM ports (USARTs)-available on the

STMicroelectronics Value line evaluation boards

The stm32_eval.c driver provides a common API to interact with buttons, LEDs and COM

ports, while the definitions of these hardware resources are made in the header file of the

Value line evaluation board (stm32100b_eval.h or stm32100e_eval.h).

Moreover, a common API is provided to manage the LCD (stm32100b_eval_lcd.c or

stm32100e_eval_lcd.c).

Likewise, a full firmware API is provided to manage the Value line board's HDMI-CEC

(stm32100b_eval_cec.c or stm32100e_eval_cec.c). See Table 4: High-level functions for a

list of the functions.

3.2 Firmware architecture

Figure 16 shows the firmware architecture, the different blocks and levels are explained

below.

c comm er

AN3127 Firmware description

Doc ID 16896 Rev 2 25/36

Figure 16. Firmware architecture

●The Value line evaluation board (STM32100B-EVAL or STM32100E-EVAL) is designed

as a complete development platform for STMicroelectronics' ARM™ Cortex®-M3 core-

based Value line microcontroller.

●STM32F10x_StdPeriph_Driver: STM32F10x standard peripheral library

●User application: Value line boards (STM32100B-EVAL or STM32100E-EVAL) CEC

demonstration

●Display module: It can be an LCD or Terminal programs. It is used to display the CEC

demonstration messages.

●CEC driver (stm32100b_eval_cec or stm32100e_eval_cec): the application may

interface CEC devices directly through the driver application layer. The driver functions

are summarized in Table 4: High-level functions.

High-level functions

These are the functions that can simply be called by the final application to execute all

needed configurations and perform high-end functionalities (like sending and receiving

messages).

Table 4. High-level functions

Function name Description

HDMI_CEC_Init

Initializes the HDMI-CEC controller:

●Enables the CEC and GPIOx clocks

●Configures the CEC line

●Calls the PhysicalAddressDiscovery function

●Calls the LogicalAddressAllocation function

●Calls the HDMI_ReportPhysicalAddress function

HDMI_CEC_TransmitMessage Transmits messages (Header, opcode and operands)

HDMI_CEC_GetErrorStatus Gets the error status register (ESR) register status

HDMI_CEC_ProcessIRQSrc Processes all the interrupts (RBTF, RERR, TBTRF, TERR)

that are high

PhysicalAddressDiscovery Algorithm used to discover the physical address

LogicalAddressAllocation Allocates the device’s logical address based on the logical

address allocation algorithm

5SERAPPLICATION

!PPLICATION

LEVEL

&IRMWARE

$RIVERLEVEL

CEC?DISPLAYC

$ISPLAYMODULE,#$

(YPER4ERMINAL

34-&X?3TD0ERIPH?$RIVER

STMFX?CECCSTMFX?GPIOC

STMFX?USARTCETC

#%#DRIVERSTMB?EVAL?CECC

ORSTME?EVAL?CECC

(ARDWARE 34-&XX 6ALUELINEEVALUATION

($-)#%#

CONTROLLER

AIB

BOARD

Firmware description AN3127

26/36 Doc ID 16896 Rev 2

HDMI_ReportPhysicalAddress Reports the physical address to all other devices, thus

allowing any device to create a map of the network

HDMI_CEC_CommandCallBack Handles the CEC command’s receive callback

Table 4. High-level functions (continued)

Function name Description

AN3127 Value line evaluation board CEC demonstration

Doc ID 16896 Rev 2 27/36

4 Value line evaluation board CEC demonstration

The demonstration delivered with this application note is intended to run on the Value line

evaluation boards (STM32100B-EVAL or STM32100E-EVAL) and it shows how to configure

the HDMI-CEC peripheral and how to create a CEC network providing high-level

communication between different devices using CEC protocol messages.

4.1 CEC demonstration overview

The CEC demonstration contains 2 different configurations:

1. Use the joystick push-buttons and display the CEC demonstration messages on the

LCD of the Value line evaluation boards (STM32100B-EVAL or STM32100E-EVAL).

2. Use the keyboard keys (r: right, l: left, u: up, d: down and s: select) and display the CEC

demonstration messages on HyperTerminal.

Note: To use the second configuration, you have to comment the following defines in the

cec_display.c file:

#define LCD_DISPLAY

#define USE_JOYSTICK

In the following sections, the SEL, RIGHT, LEFT, UP and DOWN buttons mean the SEL,

RIGHT, LEFT, UP and DOWN joystick push-buttons or the “s”, “r”, “l”, “u” and “d” keyboard

keys, respectively, depending on the selected configuration.

Figure 17: CEC demonstration flowchart shows the menu system of the CEC

demonstration. After system reset, you should use the UP, DOWN, RIGHT, LEFT and SEL

buttons to select the device type of the CEC device. Then you should press the SEL button

to enter the CEC menu.

The LEFT and RIGHT buttons should be used to navigate between the available follower

addresses and CEC commands. The SEL button should be used to select the follower

address or command to be sent.

To run the CEC demonstration:

1. Load the CEC demonstration and reset the device

2. Select the device type of the CEC device using the joystick push-buttons or the

keyboard keys (see Section 4.2: Device type selection)

3. If the selected device type is not available, the following message is displayed:

“Unregistered Device”.

In this case you have to reset the device and select another device type.

4. The physical and logical addresses are displayed on the selected display module (LCD

or HyperTerminal).

5. Use the SEL button to enter the CEC menu

6. Use the LEFT and RIGHT buttons to navigate between the follower addresses. Use the

SEL button to select the desired follower address (see Figure 20: CEC menu)

a ﬁg

Value line evaluation board CEC demonstration AN3127

28/36 Doc ID 16896 Rev 2

Note: Only the addresses of connected devices are available. If a new device is connected, its

logical address is added to the list of available follower addresses.

7. Use the LEFT and RIGHT buttons to navigate between the available CEC commands.

Use the SEL button to select the command to be sent (Figure 24: Select CEC

command)

8. The send status is displayed on the selected display module. Repeat from step 6 if you

want to select another follower and send another command. Reset the device if you

want to select a different device type.

Figure 17. CEC demonstration flowchart

3YSTEMRESET

3ELECTDEVICETYPE

0HYSICALADDRESSDISCOVERY

#%#

ERROR 2ETURNTHEERRORSTATUS

9E S

,OGICALADDRESSALLOCATION

2ETURNTHEERRORSTATUS

#%#

ERROR

9E S

2EPORTPHYSICALADDRESS

#%#

ERROR

9E S

2ETURNTHEERRORSTATUS

%NTERTHE#%#MENUANDCHECKTHE

CONNECTEDDEVICES

3END3ELECTTHEFOLLOWERADDRESSANDCOMMANDTOBESENT

USINGTHE2)'(4,%&4AND3%,BUTTONS

ANDDISPLAYTHESENDSTATUS

2ECEIVE$ISPLAYTHERECEIVEINFORMATION

RECEIVESTATUSSENDERADDRESSAND

RECEIVEDMESSAGE

AI

Select Device Type RIGHT --> Recording LEFT --> Tuner UP --> Playback DWON --> AudioSystem

AN3127 Value line evaluation board CEC demonstration

Doc ID 16896 Rev 2 29/36

4.2 Device type selection

To select the device type of the CEC device, do the following:

●RIGHT button: select recording as the device type

●LEFT button: select tuner as the device type

●UP button: select playback as the device type

●DOWN button: select audio system as the device type

The selected device type is then used in the logical address allocation algorithm to allocate

the logical address of the CEC device.

Figure 18. Device type selection

4.3 Physical address discovery

The algorithm defined in Section 1.4.5: Discovery algorithm is used to allocate the physical

address of each device. If no CEC error is generated, the CEC device executes the logical

address allocation algorithm.

4.4 Logical address allocation

The selected device type is used to allocate the logical address as described in

Section 1.4.7: Logical address allocation. If no CEC error is generated, the physical and

logical addresses are displayed on the LCD. You should then press the SEL push-button to

enter the CEC menu.

Note: 1 If the selected device type is not available, the following message is displayed:

“Unregistered Device”.

In this case you have to reset the device and select another device type.

2 Whenever a new physical address is discovered, the CEC device reports the association

between its logical and physical addresses by broadcasting <Report Physical Address>.

0x03 0X1000 Press SEL buttonto Enter CEC menu Receive: Send Status: Select FollowerADDR

Value line evaluation board CEC demonstration AN3127

30/36 Doc ID 16896 Rev 2

Figure 19. Physical and logical addresses display

4.5 Checking the connected devices

Before displaying the available follower addresses, the CEC device checks the connected

devices by sending a <Polling Message> to all logical addresses. If the <Polling Message>

is acknowledged, then the device retains that address. After that step, only the addresses of

the connected devices are displayed.

If no device is connected, only the broadcast address is available.

If a new device is connected after the connected device check step, its address is

automatically added to the list of available addresses.

4.6 Displaying CEC send/receive information on the LCD

The LCD screen is divided into two parts as shown in Figure 20: CEC menu:

●a subscreen that shows the CEC receive information: receive status, sender address

●a subscreen used to select the follower address and the command to send

Figure 20. CEC menu

AN3127 Value line evaluation board CEC demonstration

Doc ID 16896 Rev 2 31/36

4.6.1 Receive information subscreen

The following information is displayed when a new message is received:

●Receive status

●Sender address

●Number of bytes (including the sender address)

●Message opcode

●Data (operands)

Figure 21. Receive flowchart

Figure 22: Receive information subscreen shows that the device has correctly received the

frame from the sender with address 0x5.

●Sender address 0x5

●The number of bytes received is 0x3 (header + opcode + data)

●Message opcode: 0x44

●Data: 0x41

"EGIN

2ECEIVEFIRSTBYTE

#%#

ERROR

2%/-

2ECEIVENEXTBYTE

9E S

2ETURNTHEERRORSTATUS

$ISPLAYRECEIVEINFORMATION2ECEIVE

STATUSSENDERADDRESSANDRECEIVED

MESSAGEOPCODEANDOPERANDS

2ESPONDTORECEIVED

COMMAND

AI

Receive: Succeeded SenderAddress = 05 Number of bytes : 03 Message Opcode :44 Data : 41, Send Status: Select FollowerADDR TV

Value line evaluation board CEC demonstration AN3127

32/36 Doc ID 16896 Rev 2

Figure 22. Receive information subscreen

Note: The STM32F100xx Value line CEC responds only to the following commands (to other

commands, it sends a feature abort):

●Standby

●Get CEC version

●Give physical address

●Give OSD name

4.6.2 Send information subscreen

This subscreen is used to navigate among the connected device addresses by using the

RIGHT and LEFT buttons. After selecting the follower address, you have to select the

command to be sent to the selected follower address with the LEFT, RIGHT and SEL

buttons. Once you have selected a command, the CEC device sends this command to the

selected follower address, and displays the transmission status.

You can then select a new follower address and a new command.

Receive Send Status Select CEC command GET CEC VERSION

AN3127 Value line evaluation board CEC demonstration

Doc ID 16896 Rev 2 33/36

Figure 23. Send flowchart

Figure 24. Select CEC command

"EGIN

#%#

ERROR

4%/-

9E S

2ETURNTHEERRORSTATUS

AI

3ENDFIRSTBYTEANDSET4%/-IF

CURRENTBYTEISTHELASTTOBESENT

$ISABLE4%/-AND

DISPLAYTHESENDSTATUS

3ENDTHENEXTBYTEANDSET4%/-IF

CURRENTBYTEISTHELASTTOBESENT

Conclusion AN3127

34/36 Doc ID 16896 Rev 2

5 Conclusion

This application note gives details on the HDMI-CEC controller available on the Value line

evaluation boards (STM32100B-EVAL or STM32100E-EVAL) and the CEC demonstration

firmware running on this evaluation board.

Note: The HDMI-CEC communication can be enhanced by adding Infrared protocols so that the

user commands can be generated in a more flexible way. The STM32 Value line devices can

easily handle this configuration using the embedded CEC and timer peripherals (the STM32

timer is used to decode the infrared protocols with the associated software). This

combination (CEC communication / Infrared protocols) is implemented on STM32100E-

EVAL firmware demo.

AN3127 Revision history

Doc ID 16896 Rev 2 35/36

6 Revision history

Table 5. Document revision history

Date Revision Changes

01-Mar-2010 1 Initial release.

11-Oct-2010 2 Updated for high-density value line devices.

AN3127

36/36 Doc ID 16896 Rev 2

Please Read Carefully:

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the

right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any

time, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no

liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this

document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products

or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such

third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED

WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS

OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZED ST REPRESENTATIVE, ST PRODUCTS ARE NOT

RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING

APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,

DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE

GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void

any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any

liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -

Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America

www.st.com

Products related to this Datasheet

STM32F100 EVAL BRD

STM32100B-EVAL
