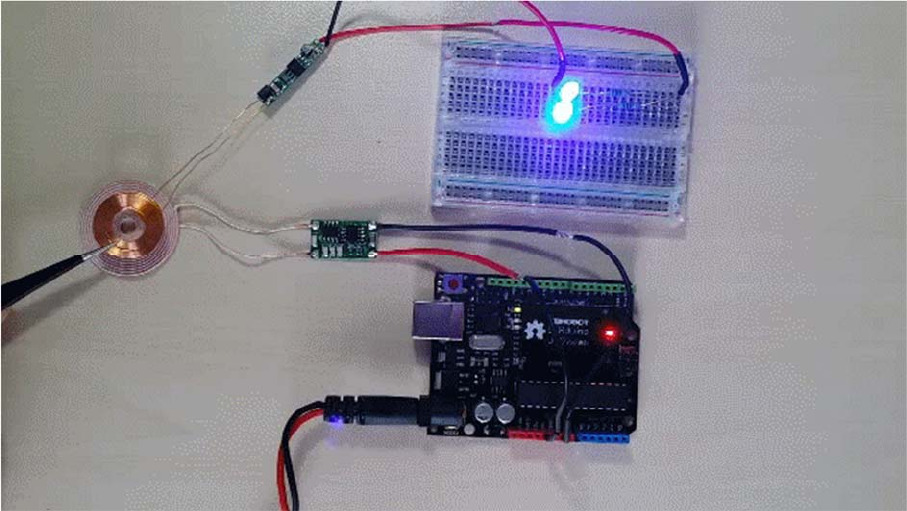

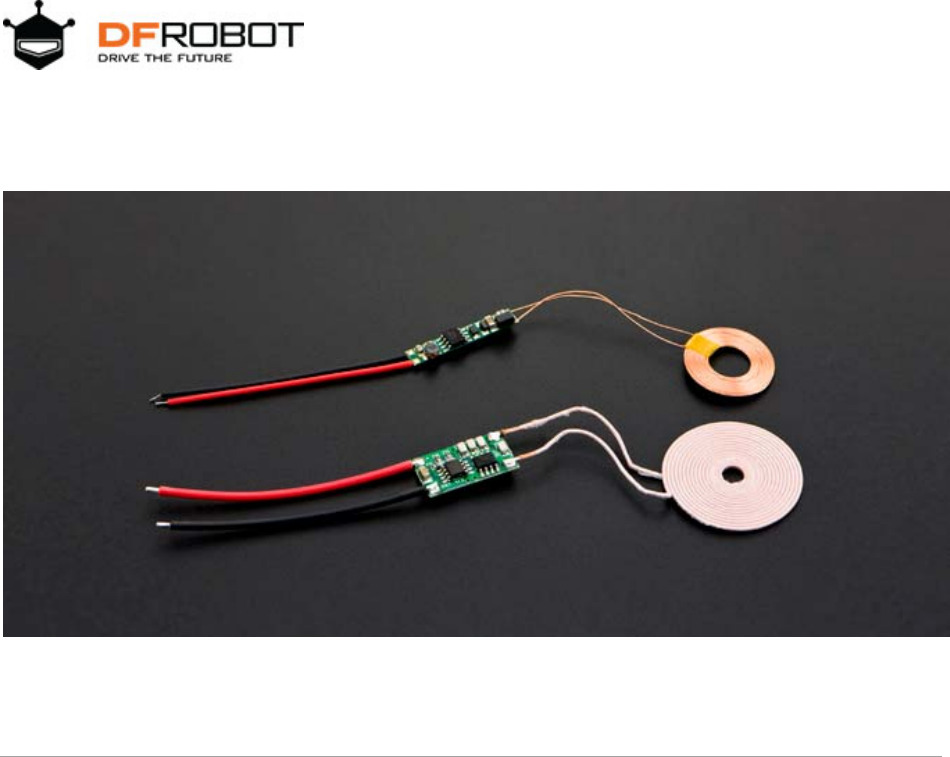

Wireless Charging Module 5V/300mA

SKU:DFR0363

INTRODUCTION

Wireless charging uses an electromagnetic field to transfer energy between two

objects. This is usually done with a charging station. Energy is sent through an

inductive coupling to an electrical device, which can then use that energy to charge

batteries or run the device.

This is a new wireless charging module, which could provide 5V@300mA (MAX

600mA) power output. It is using the new technology "resonant magnetic coupling,

which will reduce the electricity consumption during power transmission. The

transfer efficiency could arrive at 90%. It could meet your most project requests.

5V/1A also available (Wireless Charging Module 5V/1A)



FEATURES

 StablePowerSupply

 Magneticcouplingresonancetechnique

 InsulationCoil

 CompactDesign



SPECIFICATION

 ChiponBoard:XKT‐412

 OperatingVoltage(Input):5V

 OperatingVoltage(Output):5V@300mA(Max:600mA)

 TransmittingTerminalSize:33±2mm(1.30")(Outerdiameter)*5mm(0.20")(Inside

diameter)*1mm(0.04")(Thickness)

 ReceivingTerminalSize:21±2mm(0.83")(Outerdiameter)*10mm(0.39")(Inside

diameter)*0.5mm(0.02")(Thickness)

 OperatingDistance:2‐10mm(0.08‐0.39")
