QSG144: CP2615-EK2 Quick-Start Guide

The Silicon Labs CP2615 Digital Audio Bridge Evaluation Kit is de-

signed to enable rapid development of mobile audio accessories

and USB digital audio products using the CP2615 Digital Audio

Bridge.

The CP2615 provides built-in support for USB digital audio streaming and HID user-inter-

face functions for transport control buttons. It also provides an I/O protocol to allow host

applications access to GPIO, ADC, and serial interfaces. The CP2615 is designed to op-

erate with any USB host that supports USB Audio class 1.0. No firmware development is

required to use the CP2615, and it has many custom options that can be configured us-

ing a GUI configuration tool.

The CP2615-EK2 kit includes the following:

KEY FEATURES

• USB Audio class 1.0

•Supports USB HID Consumer Controls for

Volume and Mute Synchronization

• Includes USB-UART bridge function

• Supports 48 kHz,16-bit/ 24-bit stereo

digital audio

• Integrated USB transceiver; no external

resistors required

• Integrated clock; no external crystal

required

• On-chip voltage regulator: 3.45 V output

• Self-powered or Bus-powered

• No firmware development

• CP2615 Audio Bridge evaluation board

•1 x Micro USB OTG adapter

• 1 x USB Type-C to USB-A adapter

• 1 x mini USB cable

•1 x micro USB cable

• Quick-Start Card

silabs.com | Building a more connected world. Rev. 0.2

Not Recommended for New Designs

usa 5v5v Exnva EXT van a 1157 fr: TF1 VP? , J11 ($5 j®w Em“ E" suucuu LAES CP2615 use to I25 Bridge Eva - Tsuunav LDDJEN CFGMODE” ZS SCLK RESET 25 SDIN ‘ ‘25 SDOUT GPIOIE I IZC SDA n 12C SCL n ‘25 LRCLK . emu MIC_IN_L:m . usucLK MICJN‘RQYP: 75 MICBIAS TP5 R75 1m © ' 0" 1V3 J3 . n o n - n . . ‘ PREV PLAYIPAUSE NEXT '\ 56 my... 3 HPDETECT©TP5 VOL- 53 ZLEEMI LEM 2'40)"qu TX . ‘ in a . HEADPHONE

1. Getting Started

1. Set Up Your Kit

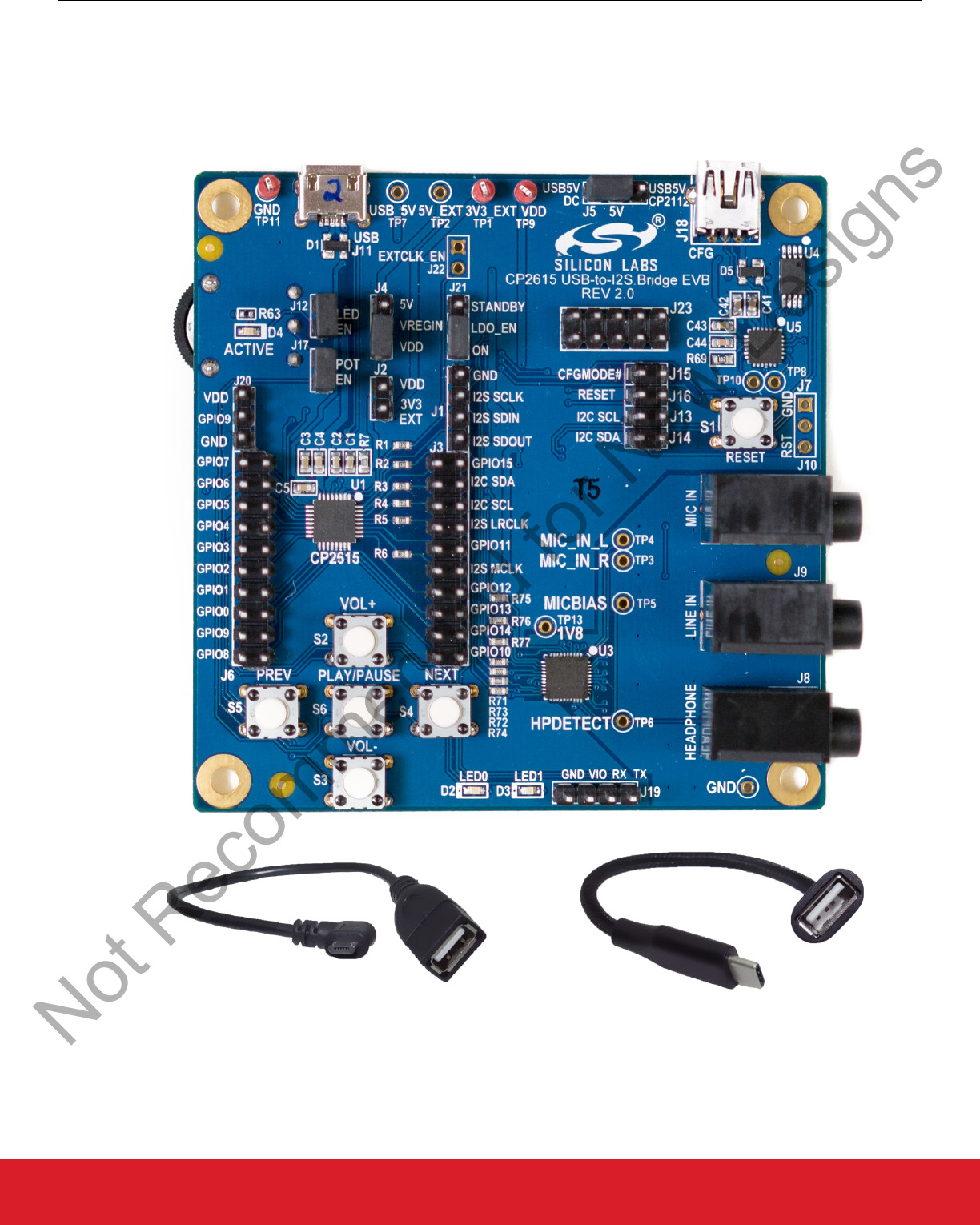

Connect the USB micro cable to [J11] of the CP2615-EK2 board. Depending on the type of recepticle on your phone, attach either

the micro OTG adapter or the USB Type-C adapter to the other end of the USB cable. Then, connect the other end of the adapter

to your Android phone.

Micro OTG Adapter Cable USB Type-C Adapter Cable

The Micro USB OTG adapter is for phones that use a micro connector. The USB Type-C adapter is for phones that use a USB

Type-C connector.

2. Listen to Audio

Connect headphones (J8) to the CP2615 board and use your favorite Android audio application to play music.

QSG144: CP2615-EK2 Quick-Start Guide

Getting Started

silabs.com | Building a more connected world. Rev. 0.2 | 2

Not Recommended for New Designs

”IE “m mmzcri: "m .3.” a

3. Control the Audio

Use the buttons to control volume, play and pause the music, and skip ahead or skip back.

QSG144: CP2615-EK2 Quick-Start Guide

Getting Started

silabs.com | Building a more connected world. Rev. 0.2 | 3

Not Recommended for New Designs

(szs r01 CM my: genuine: :onﬁguliﬁon . ﬁrmware m mm mm" . Jug“ HMXHHI Kmy HE'P Slam mmmm mum“ compnmnwh Kuauml

2. Resources

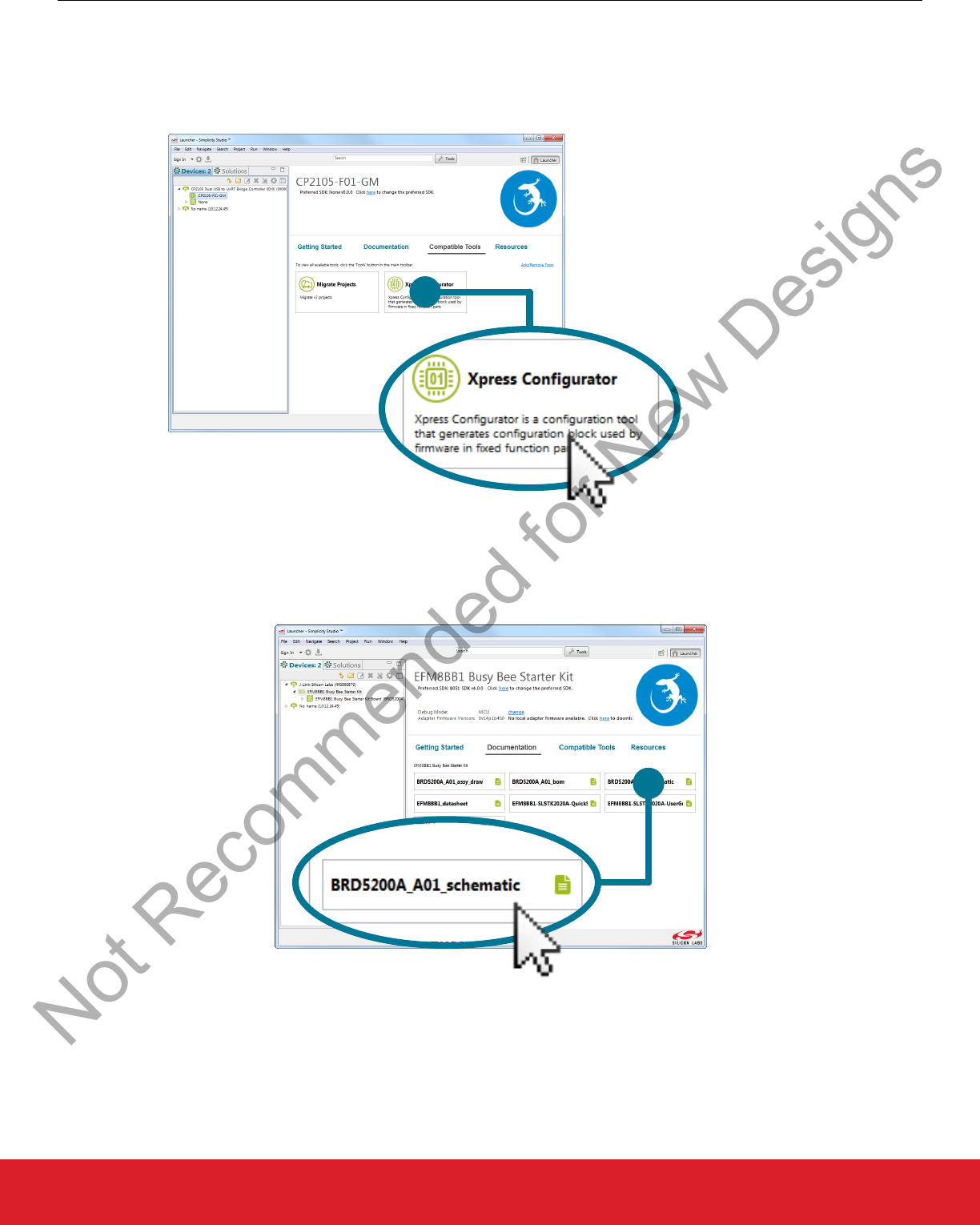

Xpress Configurator

The CP2615 device can be configured by using the [Xpress Configurator] tool within Simplicity Studio.

Kit Documentation and User’s Guide

Kit documentation like the schematic and detailed board user guide can be found using the [Documentation] area of the Simplicity

Studio launcher.

QSG144: CP2615-EK2 Quick-Start Guide

Resources

silabs.com | Building a more connected world. Rev. 0.2 | 4

Not Recommended for New Designs

”qu31 Kmy Hw- sum Mug»... sum-Man compnmnwh Kuauml mum...“ # nun-mm urn-Am».— (a .m..muM,. ~ Application Notes AN111 Using (”Slim in 5' M tersm umy upp Slamar Kn ‘ ~21“: ,, . mMWWWLW d mm“. Mmm" :ompnnth mm @ mm M... Silicon Labs Communit:

Application Notes

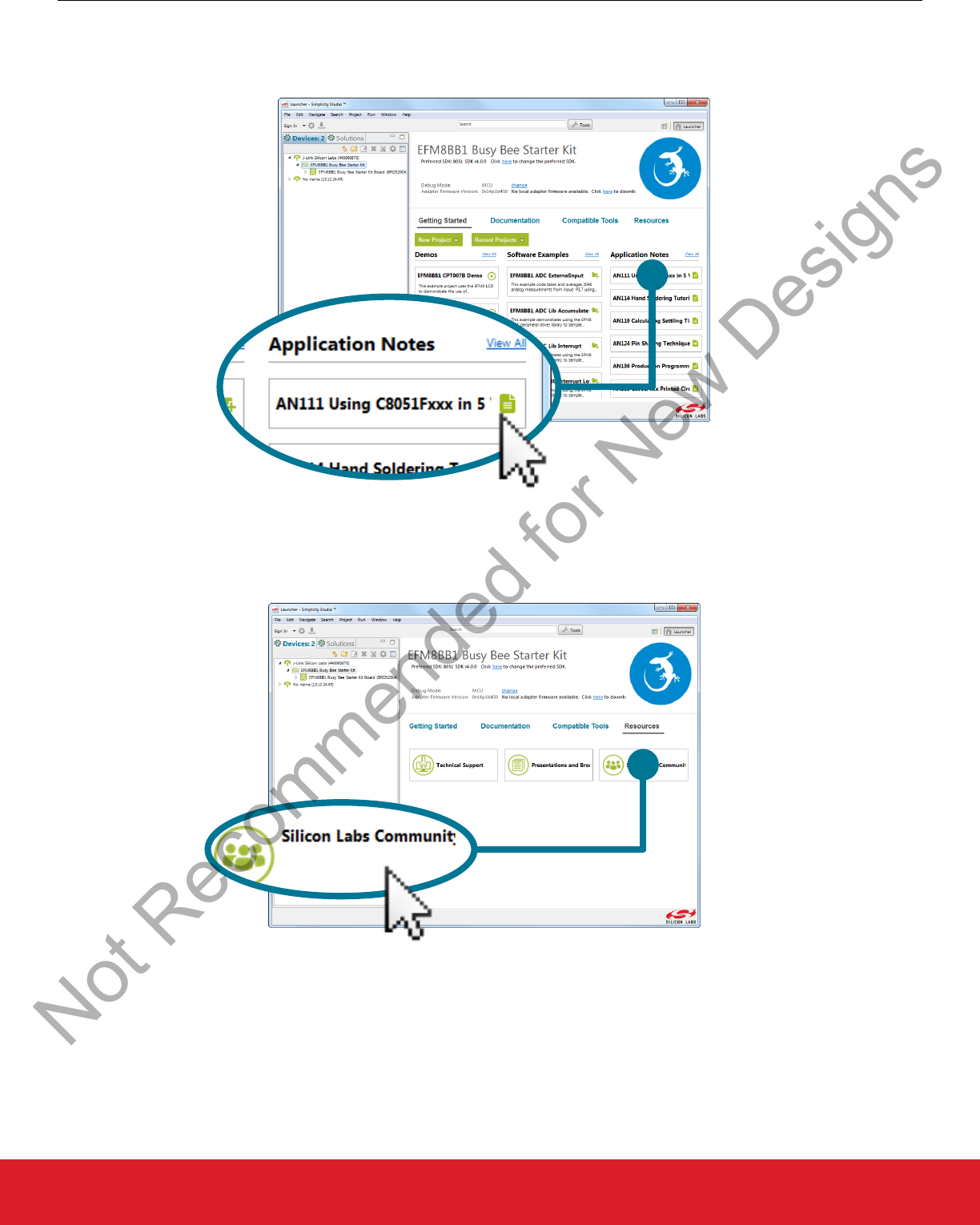

Application Notes on peripherals and other various topics can be accessed using the [Getting Started]>[Software Examples] area of

the launcher.

Community and Support

Have a question? Visit the community by clicking the [Resources]>[Silicon Labs Community] area of the launcher.

QSG144: CP2615-EK2 Quick-Start Guide

Resources

silabs.com | Building a more connected world. Rev. 0.2 | 5

Not Recommended for New Designs
