C-US UL VDE SEMKO RoHs Comgliant
IFeatures —
IPart Numbering
SITE 2 10 K 3 - 5
SLE210K
Miniature Power Rocker Switches
■Features
1. C-US UL , VDE and SEMKO approved products
2. Snap-in panel mounting
3. Compact size is suited for space-saving design.
4. Best suited for power supply of equipment.
5. Dust-proof type
6. 100 A rush current type.
7. Breaking distance is 3 mm or over.
RoHS Compliant
C-US UL SEMKOVDE
■Specifications
Rating
Load
Inductive load
Resistive
load
Inrush current
（p.f.＝0.6）
125VAC 250VAC
10A
125VAC
10A
250VAC
（p.f.＝1.0）
100A 60A 100A 60A
Break current
（p.f.＝0.9）
10A 10A 10A 10A
Min. 10mA 5VAC/DC （Resistive load）
C-ULUS 6A 125VAC・6A 250VAC （Resistive load）
Initial contact resistance
20mΩ max. （1A 1∼2VDC）
Initial dielectric strength
1500VAC 1 minute
Initial insulation resistance
100MΩ min （500VDC）
Electrical life（cycles）
5,000 10,000 5,000 10,000 10,000
Operating force 3.92∼12.7N
Operating temperature range
−25∼＋85℃
Strage temperature range
−40∼＋85℃
■Part Numbering
■Marking Color
Frame color・Rocker color Making color
Black White
The black color is standard for the frame and the rocker.
The gray and the ivory colors are also available as custom-made items.
SLE 2 10 K 2 － 5
Series code
CurrentPoles Switching function
Terminal style Rocker design
：The combination marked in blue brackets shows made-to-order products.
ON－OFF
K
10A
10
2-poles
2
2
4
9
11
5
6
7
9
Solder terminal
TAB#187
（t=0.8）
R/A
L/A
VM
■Handling Precautions
1. Soldering Specifications
⑴Manual Soldering
Device : Soldering iron
380℃, Max.; 5 seconds, Max.
※The tab terminals cannot be soldered.
Dust Proof
ITable of Part Numbers
\- [‘ 0H [S E] 70H
Part number and ran" mam S‘de
x.
0
SLE210K
■Table of Part Numbers
Frame color and
rocker color
Marking color Switching
function
Terminal styles
Part number and rating marking side
Black White ON−OFF
Solder terminal
☆SLE210K ★
SLE210K-5
SLE210K-6
★
SLE210K-7
SLE210K-9
#187
TAB SLE210K2
SLE210K2-5
SLE210K2-6
SLE210K2-7
SLE210K2-9
Right-angle ★SLE210K4 ★
SLE210K4-5
☆
SLE210K4-6
★
SLE210K4-7
▲
SLE210K4-9
Left-angle
▲
SLE210K9 ★
SLE210K9-5
★
SLE210K9-6
★
SLE210K9-7
★
SLE210K9-9
Vertical mounting
▲
SLE210K11
▲
SLE210K11-5
★
SLE210K11-6
☆
SLE210K11-7
▲
SLE210K11-9
●For custom-made products, we accept orders for indication of letters, codes, etc., on the top surface of rocker.
Switching
function
Part No.
Viewed from part No. & rating marking side
SLE210K ON OFF
Connecting
terminals
2−3
5−6−
★：Made to order products.☆：Semi-standard products.
▲
： Inquiry products. ●
Terminal numbers are shown on the bottom of the switch.
■
PC Hole Layouts（Top view）
■
PC Hole Layouts（Top view）
The blue lines show the outline of the switch.
The blue lines show the outline of the switch.
Solder terminal
（t=0.8）
TAB#187 Terminal
Right Angle Terminal
Left Angle Terminal
u p." Nu mam-g 'm'kn;
(5i

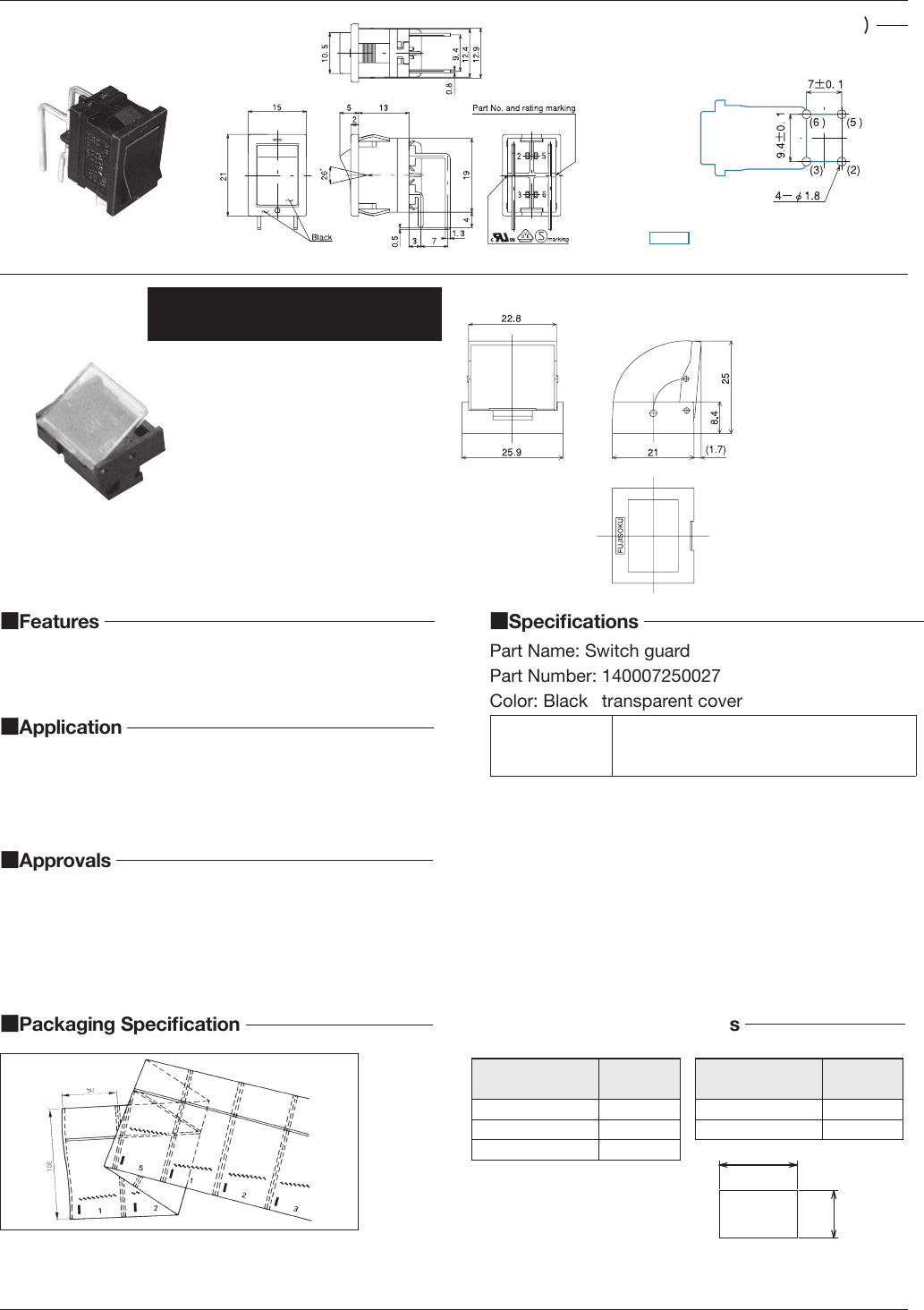

<2) 2i="" i—i="" —="" a="" ,/="" "="" {7="" :="" f/="" ""““="" m="" ‘24="" i="" j)="" ‘ai‘l="" ;[="" 259="" zi="" u="" 7)="" ifeatures="" —="" ispecifications="" pan="" name:="" switch="" guard="" pan="" number:="" 140007250027="" color:="" black="" transparent="" cover="" iapplication="" iapprovals="" ipackaging="" specification="" —="" s="">SLE210K
■Features
Clear visibility and one-touch mounting to save labor
■Application
Best suited for protection of malfunction of miniature
rocker switches （panel cutout: 19.2 x 12.9）
■Specifications
Part Name: Switch guard
Part Number: 140007250027
Color: Black （transparent cover）
An application switch
●SLE6
●SL10K
●SLE10
●SLE210K
※The switch guard cannot be used for the SLE10K type.
■Approvals
UL File No.E43275
VDE License No. 40000090
SEMKO File No. 1312457
■Packaging Specification
Perforated
Plastic
Bags
25 pcs/pack
Switch Guard
Dedicated for use of rocker switches
■
PC Hole Layouts（Top view）
Vertical Mounting Terminal
The blue lines show the outline of the switch.
■Panel Cut-Out Dimensions
Switchs
Switch Guard Installation
Panel thickness X Panel thickness X
0.75∼1.25 19.2 0.75∼1.4 19.4
1.25∼2.0 19.4 1.4∼2.3 19.8
2.0∼3.0 19.8 X+0.1
0
12.9+0.1
0
■PRECAUTIONS FOR PANEL MOUNTING
